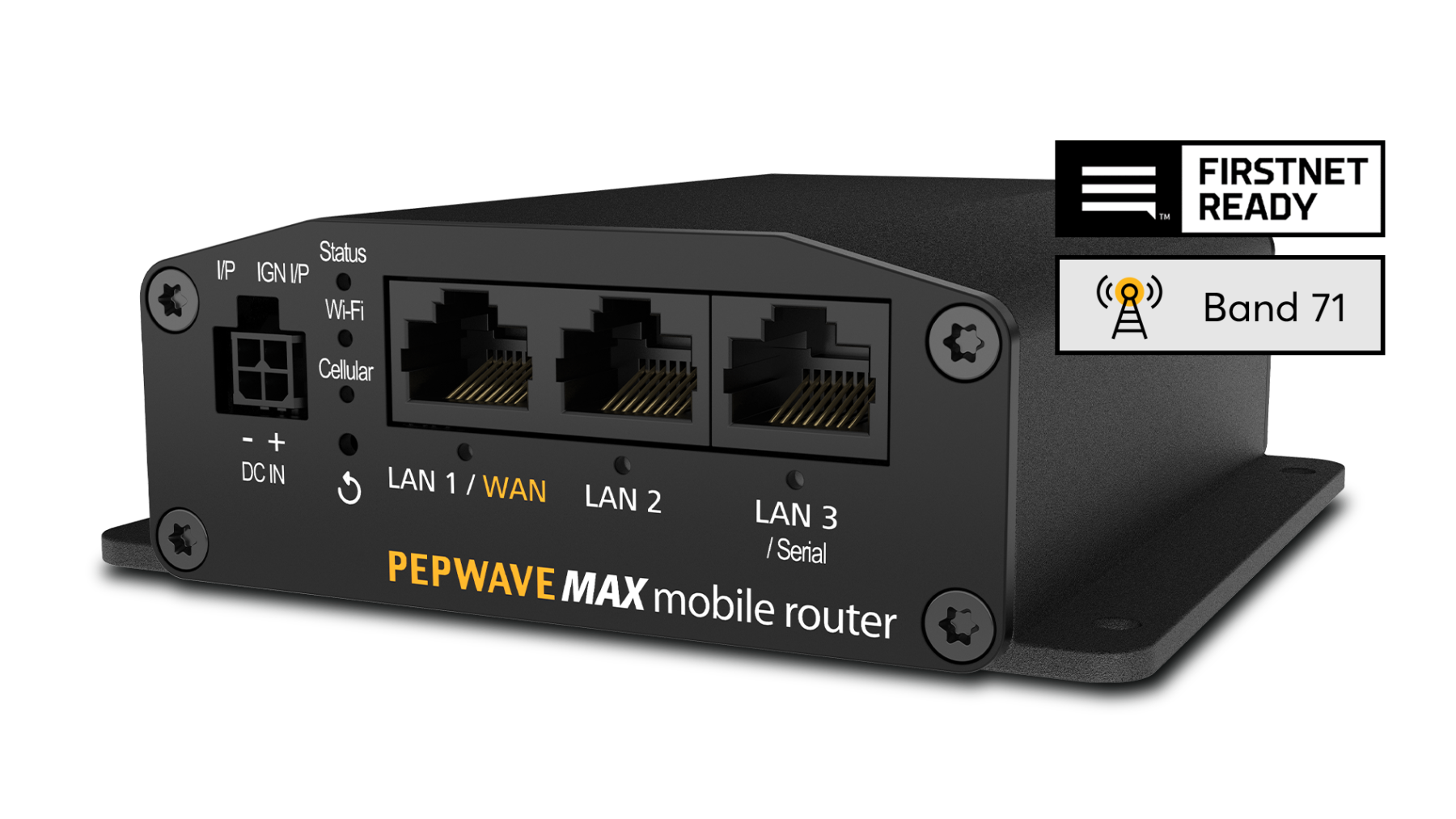

PepwaveMax Transit Mini
Single Cellular FirstNet and Band 71 Ready Router

Pepwave Max Transit Mini

Sorry, this product is no longer available, please contact us for a replacement.


More pricing below, click here!

Overview:

Band 71 and FirstNet Ready

The Transit Mini supports both band 71 and FirstNet, providing additional coverage as the situation demands. Band 71 operates at a 600MHz frequency that travels twice as far and works four times better in buildings than conventional LTE bands. This means Band 71 provides better coverage in remote areas as well as indoors. FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity.

carriers supported

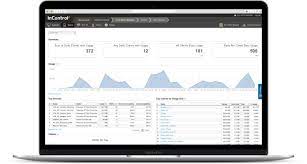

Scalable Management

Scalable Management

With a footprint of 4.1 x 4.3 inches, the Transit Mini can fit in just about any small space. It can be powered using Passive PoE, reducing the number of wires in the vehicle. Most importantly,the Transit Mini can be remotely managed by InControl cloud management^. This enables you to bulk push configurations and firmware updates, ensuring infinite scalability.


    Designed for Mobility
    The MAX Transit Mini has specialized features for vehicular deployments. Ignition sensing, which detects the ignition status of the vehicle, enables the device to turn on and off as the vehicle starts up and shuts down. It is also equipped with GPS, enabling you to track its movements. With InControl’s fleet management, you can review the route history of all your vehicles from any web browser.

Application:

Use Cases

  • Public Safety. First Responders.
  • Transportation. On – Board Deployments.
  • In – Vehicle Deployments and Fleet Tracking.

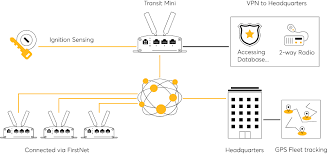

MAX-Transit-Mini-Topology


On-Board Connectivity and Entertainment

The MAX Transit Mini provides cellular connectivity for passengers. It connects using LTE, supporting band 71 for improved range and signal penetration. This means the Transit Mini will stay connected even in remote areas where other bands drop off.
Installation is simple; the Transit Mini’s accepts passive PoE input, so it can be powered and connected using a single cable.To prevent battery drain, the MAX Transit Mini features Ignition Sensing, which senses the ignition status of the vehicle and turns the router on or off accordingly. For fleets of multiple vehicles, the Transit Mini is equipped with GPS, enabling you to track your entire fleet at once. InControl central management^ enables you to bulk push configurations and even remotely access the Web Admin of any device in your network.

First Responder Connectivity to HQ

Using the MAX Transit Mini, officers on the field can connect to headquarters using FirstNet. Using the redundant SIM slot, the device can failover to commercial LTE as needed. By building a PepVPN to headquarters, 2-way radios such as TETRA, NXDN, and DMR can be used between multiple remote sites, enabling the entire force to seamlessly communicate as if they were connected to the same repeater. Finally, the Transit Mini can broadcast a mobile hotspot, connecting cameras and other equipment.
With its built-in GPS, the Transit Mini can send its location to headquarters in real-time. Using InControl central management^, central command can remotely configure any connected router, simplifying network maintenance.
The device itself is easy to install: it’s compact form factor ensures that it can fit in tight spaces. It can also be powered using PoE or Micro-Fit 3.0 2x2 connector, providing installation versatility.

^ Requires PrimeCare Subscription, complementary for the first year

Specifications:


  MAX Transit Mini
Cellular WAN Interfaces Single LTE Modem
Redundant SIM Slots Yes
SpeedFusion Hot Failover Yes^
SpeedFusion WAN Smoothing Yes^
Number of PepVPN/SpeedFusion Peers 5^
WAN Interface 1x 10/100M Ethernet Port ^
LAN Interface 3x 10/100M Ethernet Port
(1x WAN Port shared with LAN Interface)
(1x Serial Port shared with LAN Interface)
Load Balancing Yes
Recommended Users 60
Stateful Firewall Throughput 100Mbps
LTE Modem Downlink/Uplink Data Rate:
LTE Modem 150Mbps/50Mbps
Wi-Fi Standard 802.11b/g/n Wi-Fi WAN^ and AP
Antenna Connectors 2x SMA Cellular, 1x SMA GPS, 1x RP-SMA Wi-Fi
Power Input Passive PoE Input (WAN Port, 12V – 28V DC) / Power + GPIO
Power Consumption 12W (max.)
Dimensions 4.1 x 4.3 x 1.2 inches |
105 x 110 x 30 mm
Weight 0.54 pound |
244 grams
Operating Temperature -40° – 149°F
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications -FCC, CE, RoHS, IC
-EN 61000: Electromagnetic Compatibility
-EN61373: Rolling Stock
Warranty 1-Year Limited Warranty

Documentation:

Download the Pepwave MAX Transit Mini Datasheet (PDF).
