Pepwave MAX BR1 IP67
Ruggedized Single Cellular Outdoor Router

Pepwave MAX BR1 IP67

Peplink Products
Pepwave MAX BR1 IP67
MAX BR1 LTEA IP67
#MAX-BR1-LTEA-W-IP67
Get a Quote!

More pricing below, click here!

Overview:

The BR1 IP67 outdoor router offers an embedded cellular modem in a tough IP67 enclosure, making this the most accessible of our IP67 rated cellular router family.

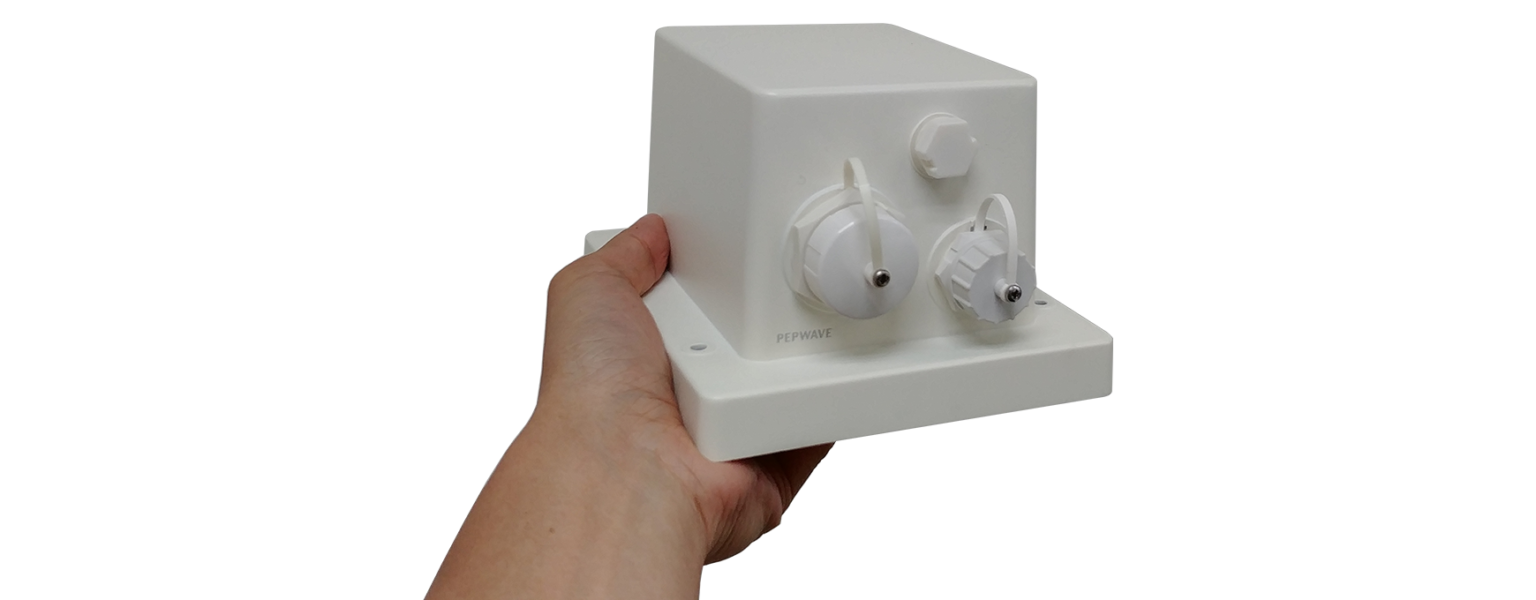

Compact Super-Duty IP67 Enclosure

The BR1 IP67 outdoor router is as small as it is tough. It has a waterproof IP67 enclosure that stands up to dust, vibration, and inclement weather.

PoE Input

Cut down on cabling and simplify deployments. The BR1 IP67 supports 802.3af PoE input, so one wire is all you need for both connectivity and power. For non-PoE enabled Ethernet cables, the 802.af PoE Injector is available as a separate accessory.

SpeedFusion Hot Failover

In case of Wi-Fi or cellular WAN failure, the BR1 IP67 supports Hot Failover between the Wi-Fi and cellular WAN connections, giving you session persistence for uninterrupted productivity.

Redundant SIM Slots

Redundant SIM slots with automatic switching for reliable connectivity. You can also set the MAX BR1 IP67 to automatically switch SIM cards when you’re in danger of exceeding a data cap. It also allows you travel across borders without changing SIM cards manually.

Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.

Application:

MAX-BR1-IP67 Application Topology

1.

The BR1 IP67 connects the outside cellular signal with the inside network using just a single PoE cable.

2.

The switch then delivers the improved connectivity to clients.

Features:


Software

  • Pepwave MAX Firmware

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • Support for Dynamic DNS services
  • WAN Port Convertible into LAN Port

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Option
  • DHCP Reservation
  • DNS Proxy for LAN Clients
  • VLAN on LAN Support

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP
  • WINS Server
  • VRRP HA support

Complete VPN Solution

  • PepVPN/SpeedFusion
    • Site-to-Site VPN
    • Hot Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    • X.509 Certificate Support
  • PPTP VPN Server
    • RADIUS, LDAP Authentication
  • IPsec VPN (Network-to-Network) 1
    • X.509 Certificate Support

Captive Portal Support

  • Support for Wired and Wireless LAN clients
  • Support RADIUS Authentication
  • Time and Usage Quotas on Open Access Mode
  • Built-in Customizable Splash Page

Advanced QoS

  • Individual Bandwidth Limit
  • Application Prioritization
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

AP Controller

  • AP Controller Support
  • Wi-Fi Usage Statistics

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Management
  • Email Notification
  • Active Client and Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Global Positioning System

  • Integrated GPS
  • Device Location Map
  • Location Tracking Data with InControl 2
  • Fleet Management with InControl 2

Security

  • Stateful Firewall
  • DoS Prevention
  • Web Blocking

Package Content

  • MAX BR1 IP67,
  • 1 x Waterproof Ethernet Connector Kit

1 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

Compact Super-Duty IP67 Enclosure The BR1 IP67 outdoor router is as small as it is tough. It has a waterproof IP67 enclosure that stands up to dust, vibration, and inclement weather.

MAX BR1 Specifications

All specifications are subject to change without notice.

Specifications:


Particulars MAX BR1 IP67
WAN Interface 1x Embedded LTE Modem with Redundant SIM Slot
LAN Interface 1x 10/100M Ethernet Port
Wifi Interface 802.11b/g/n Wi-Fi WAN or AP
Drop In Mode No
GPS Antenna Integrated
Included Antenna Built-In Omni Antenna
Wi-Fi Antenna gain: 5dBi for 2.4GHz,
Cellular Antenna gain: 3dBi for 2.4GHz
Recommended Users 1-60
Router Throughput3 100Mbps
PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES) 40 Mbps / 20 Mbps
Number of PepVPN SpeedFusion Peers 2
Dimensions
(Height x Width x Depth)
5.55 x 6.38 x 3.98 inches | 141 x 162 x 101 mm
Weight 680 g | 1.50 lb
Power Input 802.3af PoE, 48V Passive PoE
Power Consumption 12W (max.)
Operating Temperature -40° – 149°F | -40° – 65°C
Certifications FCC, CE, RoHS, IC
EN 61000: Electromagnetic Compatibility
Warranty 1-Year Limited Warranty

Documentation:

Download the Pepwave MAX BR1 IP67 (PDF).
