Peplink MAX BR1 Mini 5G
Single Cellular 5G Mobile Router

Pepwave MAX BR1 Mini
Peplink Products
Peplink Mobile Routers
Peplink Max BR1 Mini 5G Single Cellular 5G Mobile Router - No WiFi, No GPS
#MAX-BR1-MINI-5GN-T-M-PRM
Our Price: $499.00

More pricing below, click here!

Overview:


Affordable, Long-lasting 5G for Mass Deployments

4G connectivity might work fine today, but the switch to 5G is inevitable. Futureproof your network with the latest 5G technology, and keep your network running for many years to come.

A single SKU for global deployments

Extensive list of compatible 5G/LTE bands. Native 5G NSA and SA mode support.

Private 5G Support

Adding devices to your Private 5G network is no longer a hassle. Integration can be as simple as plug and play.

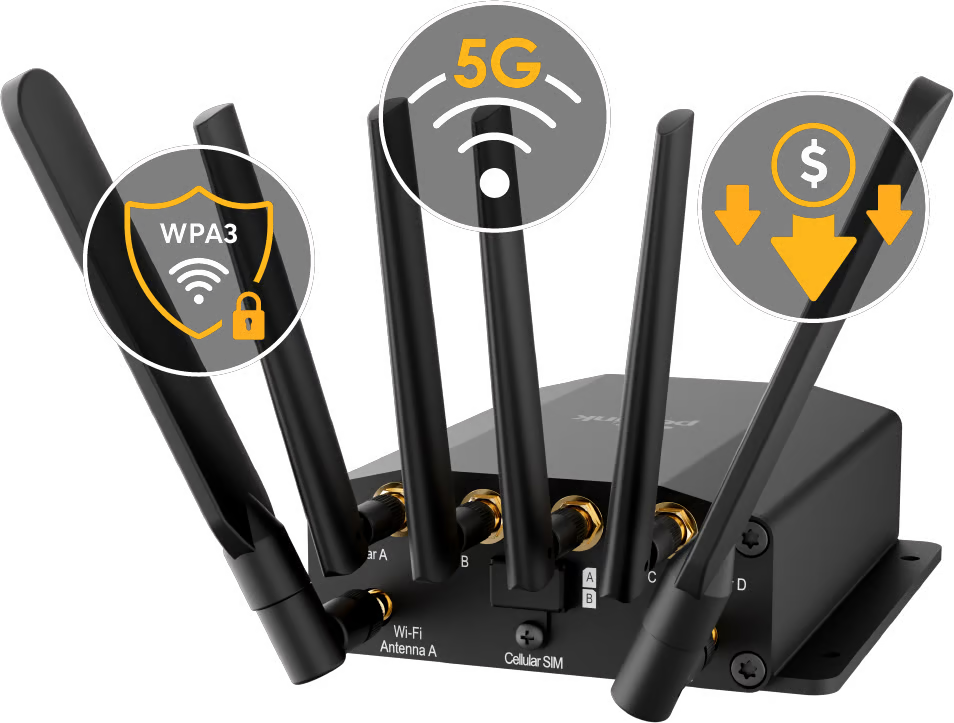

One device to do it all

Bring 5G Wi-Fi to your setup with a single compact device. This means simpler networks, lower costs and fewer points of failure.

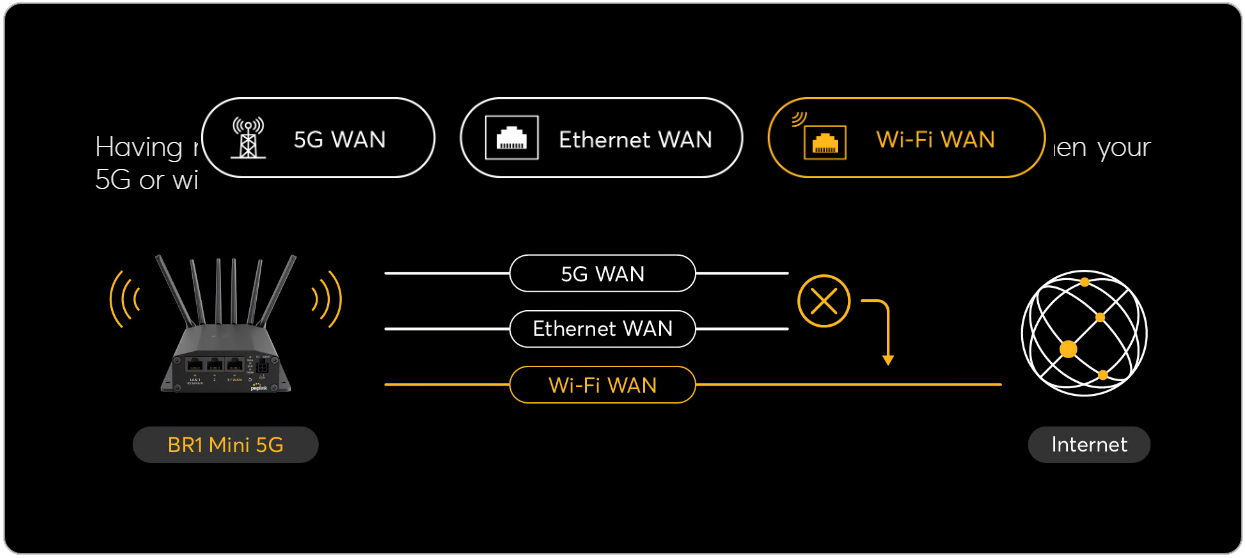

Utilize Wi-Fi WAN for Added Reliability

Take an existing Wi-Fi connection and use it as an additional WAN for yourself.

Having multiple redundant WANs helps ensure your connection stays up when your 5G or wired connection falters.

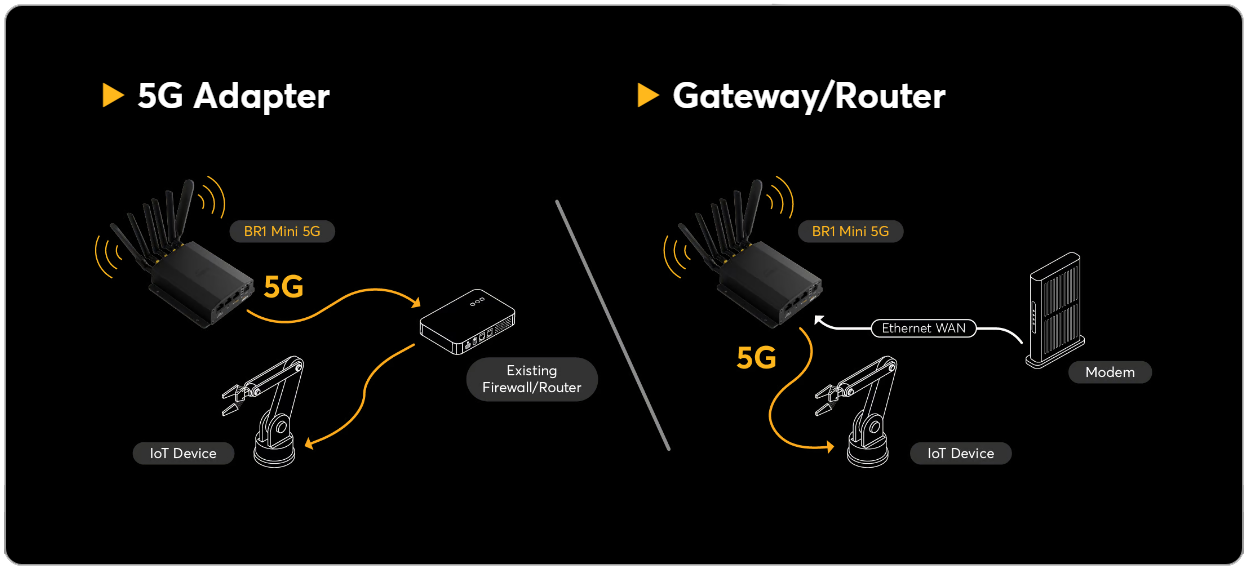

Have an existing network? Add the BR1 Mini 5G as a 5G adapter with zero hassle. Need something more? The device can also act as a gateway/router for multiple WANs.

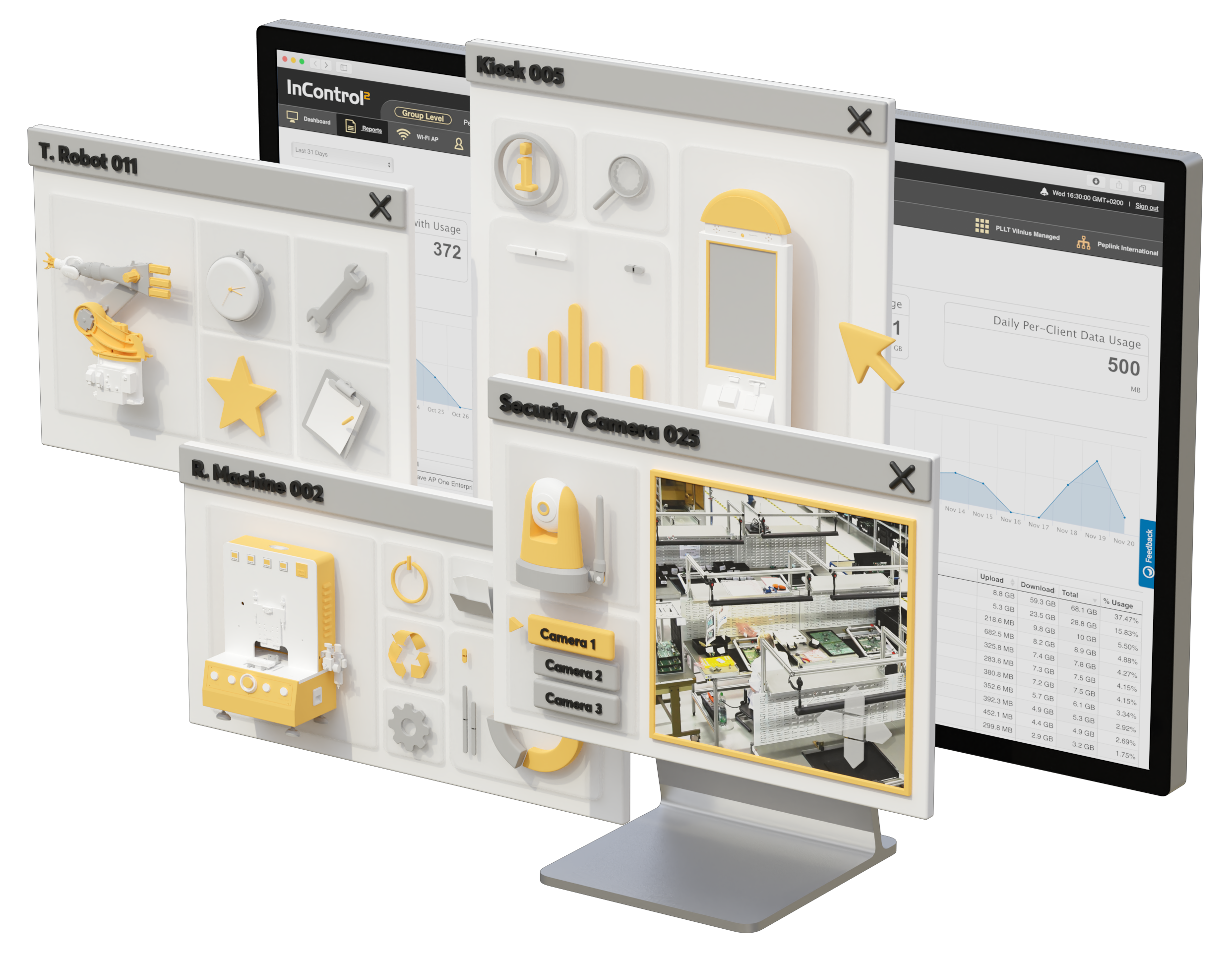

Stay in touch with InTouch

Access connected devices, like sensors and cameras, with out of band management at 5G speed.

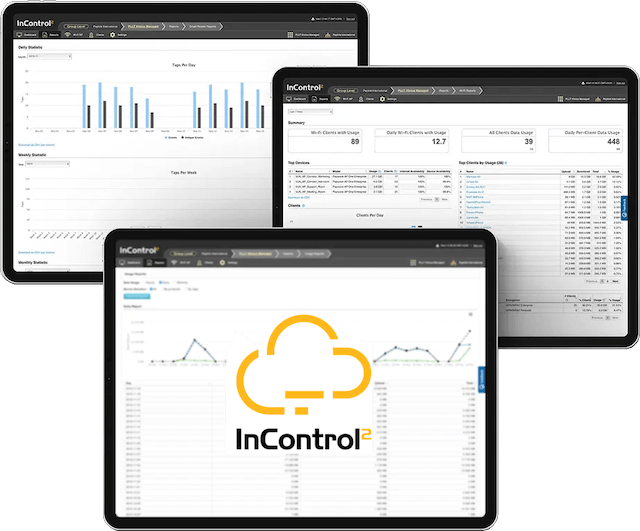

Monitor your entire network from a single screen

Remotely access your Peplink devices’ web admin with InControl 2, our cloud-based endpoint management system. Generate reports and push configurations for more effective management.

Benefits:

An exceptionally reliable, rugged 5G Cellular Router that connects your data and Internet applications – wherever they are.


#1 Future-proof Connectivity

With the latest cellular LTE and 5G via SIM or eSIM and a second optional Ethernet WAN , the BR1 Mini 5G connects your Ethernet devices with up to 300Mbps throughput.


#2 Ruggedized and Reliable

Built in a rugged & reliable metal case with fanless, ventless design certified for shock and vibration resistance for deployment virtually anywhere.


#3 Designed for Remote Operation

With central management via Peplink InControl 2 and local device management via Peplink InTouch , the BR1 Mini saves time and reduces field visits.


Specifications:

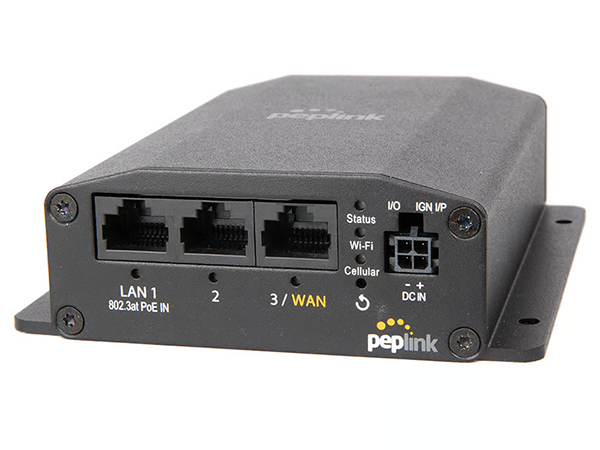

MAX BR1 Mini 5G Specifications

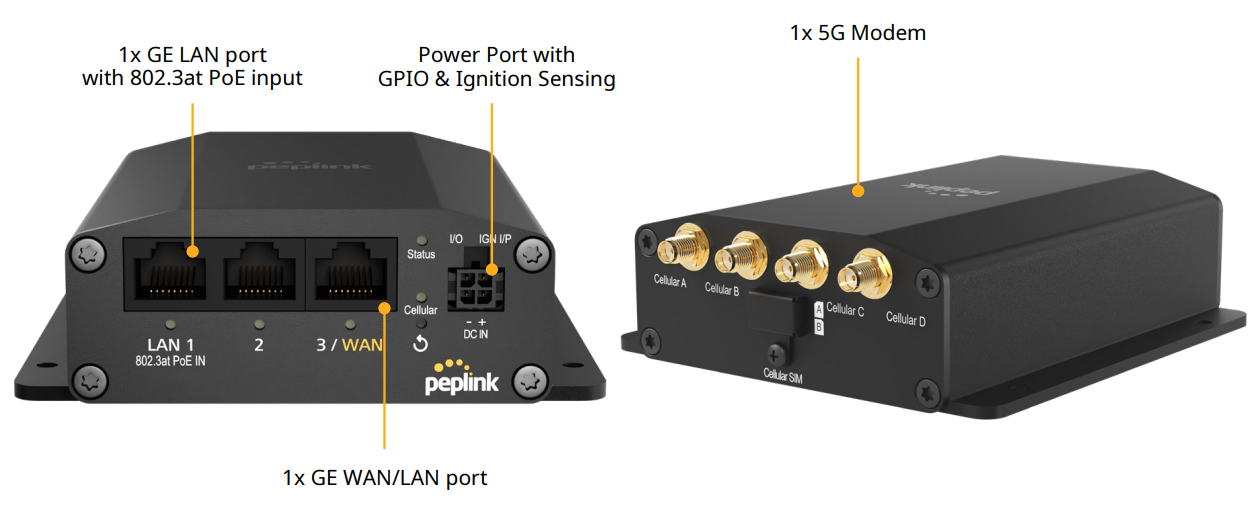

WAN Interface 1x 10/100/1000M Ethernet1
1x Embedded Cellular Modem with Redundant SIM Slots
LAN Interface 2x 10/100/1000M Ethernet
SpeedFusion features Hot Failover1 / Smoothing1 / Bandwidth Bonding1
Number of SpeedFusion VPN Peers 2 / 51
Router Throughput 300 Mbps
SpeedFusion VPN Throughput No Encryption: 80 Mbps
256-bit AES: 60 Mbps
Recommended Users 1-60
Cellular Data Rate2 (Downlink/Uplink) 5G: 3.4 Gbps / 900 Mbps
CAT-20: 1.6 Gbps / 200 Mbps

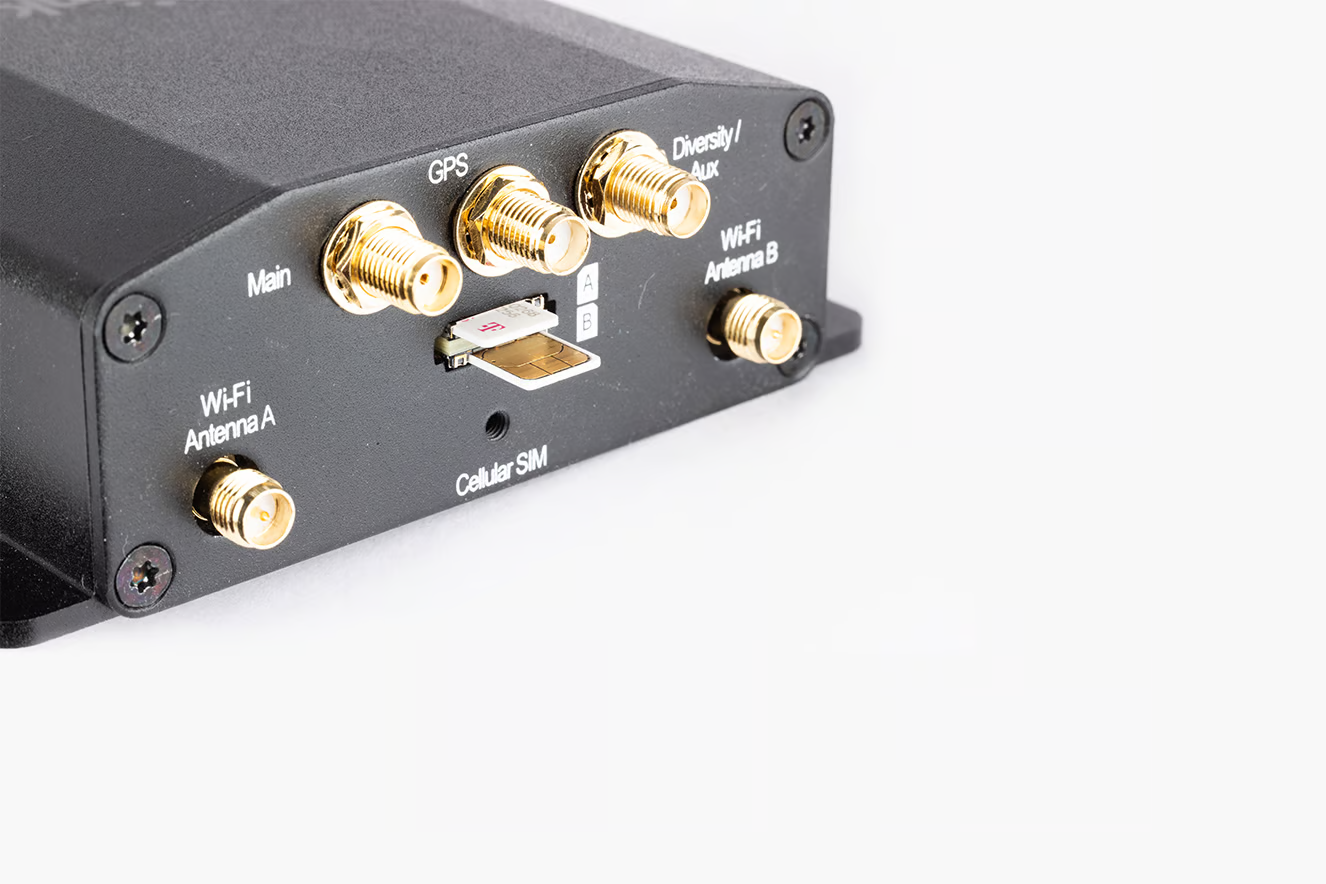

Antenna Connectors 4x SMA Cellular Antenna Connectors
Power Input Power Port: 10V – 30V DC
AC Adapter: AC Input 100V–240V / DC Output 12V
Power over Ethernet 802.3at
Power Consumption 11W (nominal) , 13W (max.)
Dimension 5.0 x 4.2 x 1.4 inches / 125.7 x 107 x 35 mm
Weight 0.93 pounds / 420 grams
Operating Temperature -40° – 149°F / -40° – 65°C
Humidity 15% – 95% (non-condensing)
Certification FCC, CE, RoHS
EN 61000 Electromagnetic Compatibility
EN 45545-2 Railway applications - Fire protection

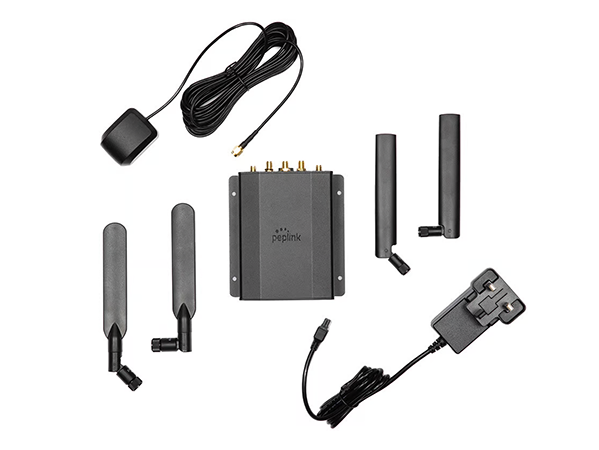

Package Content 1x BR1 Mini 5G
4x LTE/5G Antennas (ACW-235)
1x 12V 2A 4pin Power Supply (ACW-632)
SIM Options Nano-SIM (4FF)
Peplink eSIM
BYO eSIM (2 profiles)
Warranty 1-Year Limited Warranty

1 Require a PrimeCare subscription or a feature pack add-on license (MAX-BR1-MINI-LC-FP).
2 Maximum theoretical data rate.

Documentation:

Download the Peplink MAX BR1 Mini 5G Datasheet (PDF).
