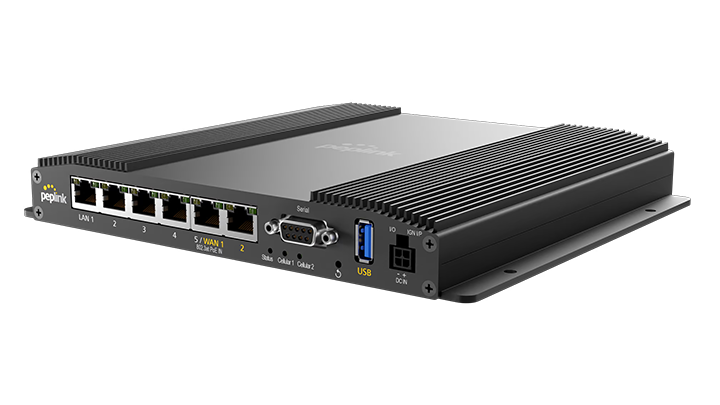

Peplink MAX BR2 Pro
2x Embedded 5G Modem
Our Price: $2,899.00
More pricing below, click here!
Overview:
Faster, Wider, Stronger
The BR2 Pro is not just designed to be tough. Its dual 5G connections, Wi-Fi 6 and PoE input ensure an unbreakable connection in any scenario.
Peace of Mind
With so many WAN options, the BR2 Pro can seamlessly failover to guarantee your flow of data, even during the most critical circumstances. The Gigabit routing speed and serial port for OOBM allow versatility for any SD-WAN deployment.
Oh, So Many WANs

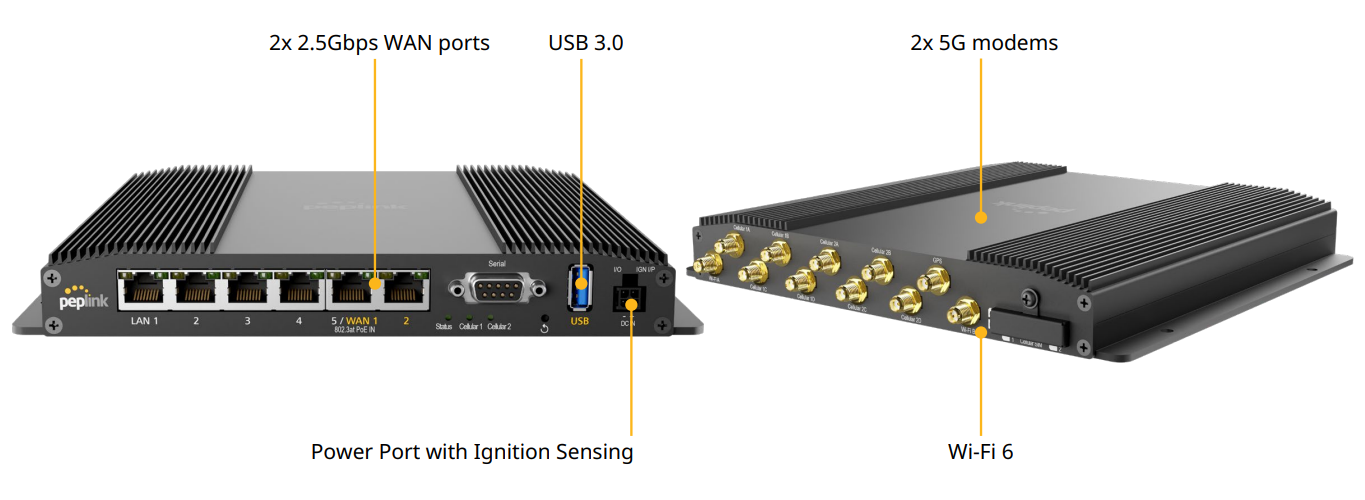

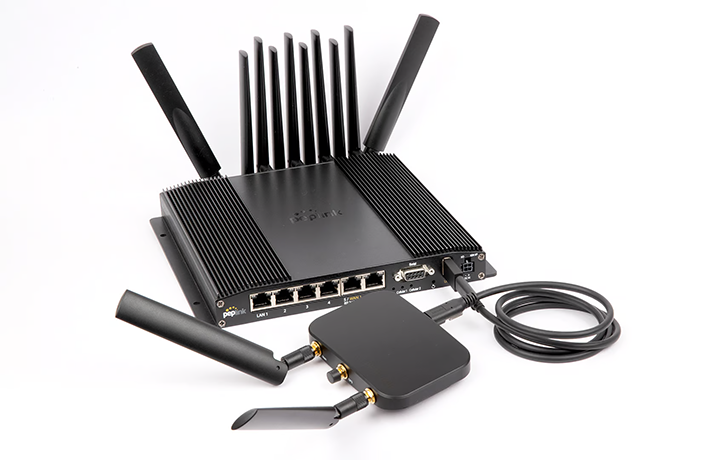

Complement any SD-WAN deployment with the Dual Ethernet WANs, Dual 5G/LTE, USB WAN, and Wi-Fi WAN. Not enough WANs? Add the MAX Adapter 5G for an instant third 5G connection. Literally, all the WANs to keep you going.
Made for Vehicle applications

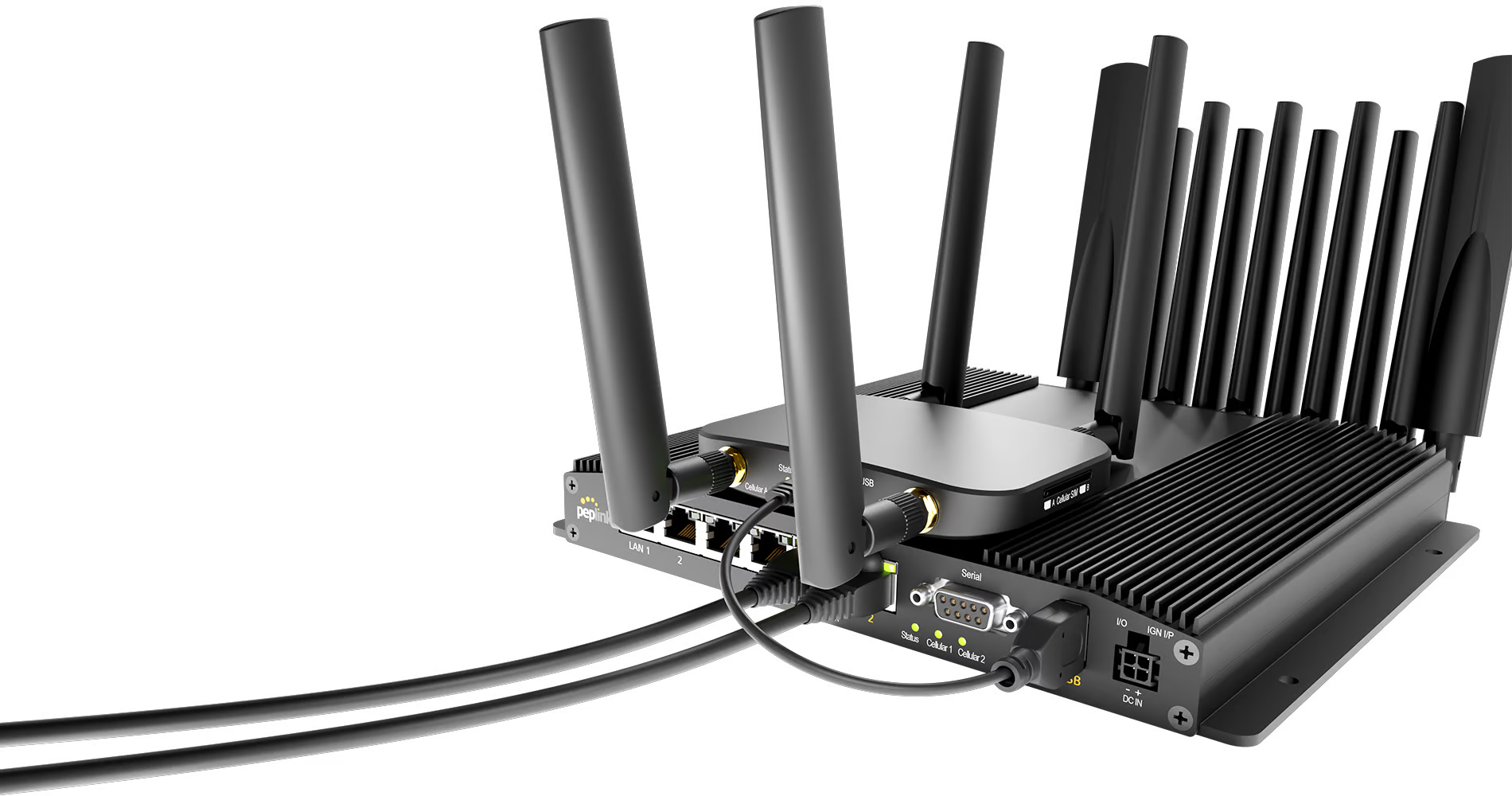

Secure your power source in mobile environments with the Molex Micro-Fit power connector. Wide input power range along with Ignition Sensing capabilities makes this a sure fit for your vehicle installs.
Effortless Cellular Extension

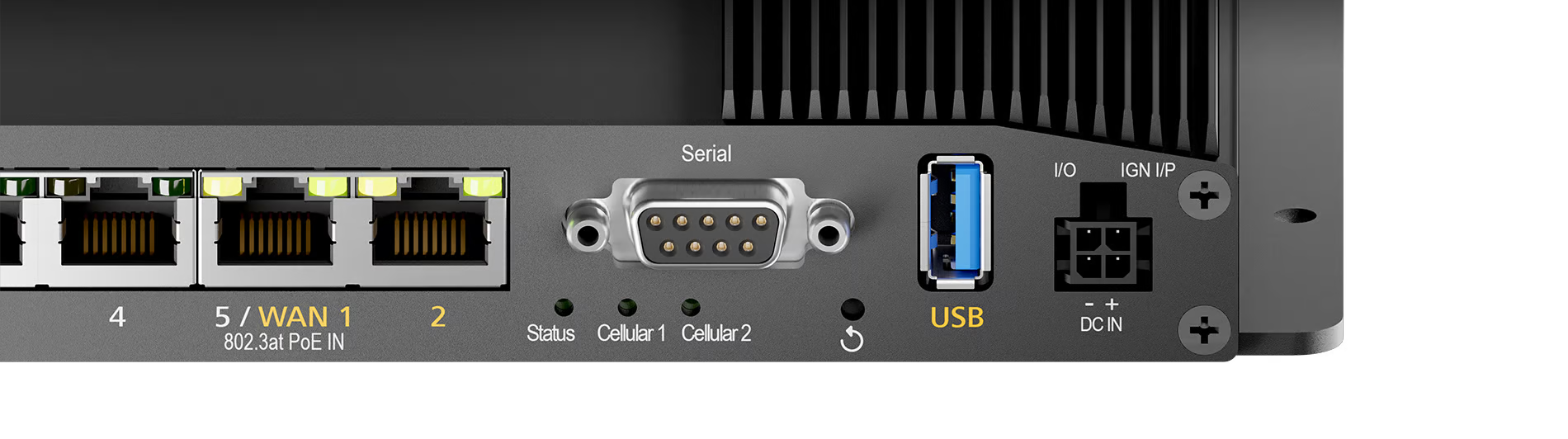

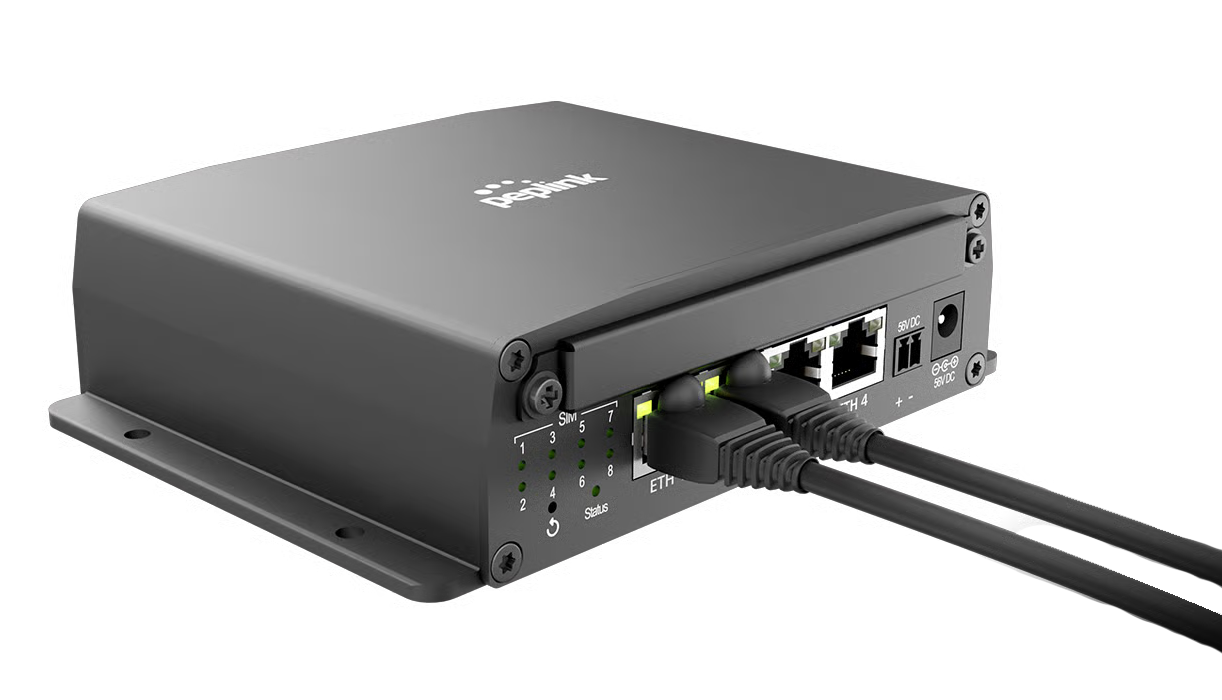

With the PoE input feature, the BR2 Pro can seamlessly extend your existing SD-WAN infrastructure to provide dual LTE/5G connectivity. One cable for both power and data, it’s that simple.
SIM-plicity as always

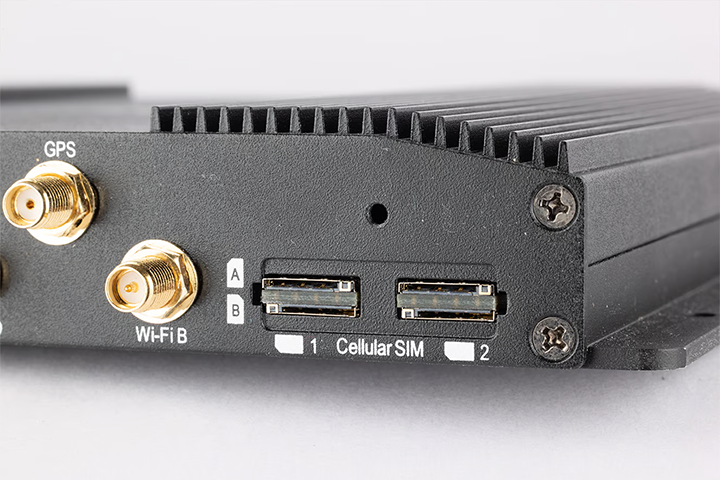

Built-in eSIM and SIM Injector support, the BR2 Pro maximizes your possibilities with flexible remote SIM management.
Running applications just got easier!
Want to run third party applications directly with your MAX BR2 Pro? Well now you can! With edge computing Docker and Python*, the possibilities are endless!
* Available in firmware 8.3.0.
Specifications:
| MAX BR2 Pro Specifications | |
|---|---|
| WAN Interface | 2x 10/100/1000/2500M Ethernet1 2x 5G Modems with Redundant SIM Slots 1x USB 3.0 Interface |

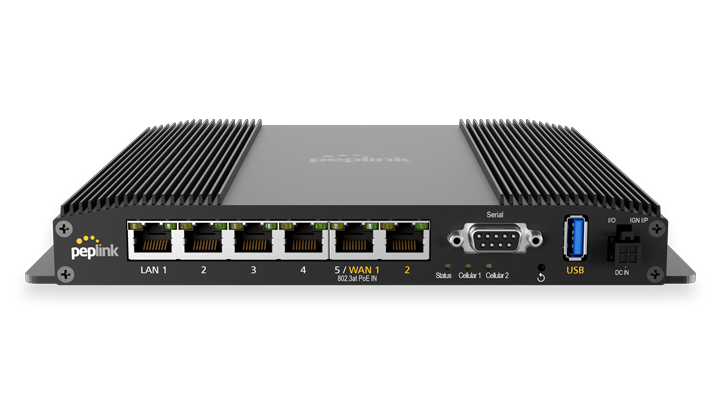

| LAN Interface | 4x 10/100/1000M Ethernet |
| Wi-Fi Interface | Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6, 2X2 MIMO Wi-Fi WAN and/or AP |
| SpeedFusion features | Hot Failover, Smoothing, Bandwidth Bonding |
| Number of SpeedFusion VPN Peers | 2 / 5 2 |
| Features | Drop-in Mode Load Balancing/Failover Ignition Sensing |
| Router Throughput | 1Gbps |
| SpeedFusion Throughput (No Encryption) | 400Mbps |
| SpeedFusion Throughput (256-bit AES) | 200Mbps |
| Recommended Users | 1-150 |
| AP Controller | Standard |
| Maximum Number of AP Supported | 30 / 50 3 |
| Cellular Data Rate4 (Downlink/Uplink) | 5G: 4.1Gbps / 900Mbps CAT-20: 2Gbps / 211Mbps |

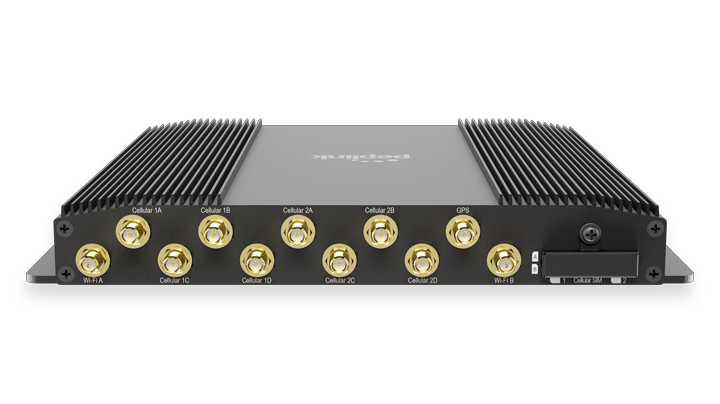

| Antenna Connectors | 8x SMA Cellular Antenna Connectors 2x RP-SMA Wi-Fi Antenna Connectors 1x SMA GPS Antenna Connector |
| Power Input | AC Adapter: AC Input 100V – 240V / DC Output 12V Power Port: 10V – 30V DC Passive PoE 48-56V Power over Ethernet 802.3at5 |
| Power Consumption | 12W (nominal), 30W (max.) |
| Dimension | 8.58 x 7.68 x 1.61 inches / 218 x 195 x 29.5 mm |
| Weight | 2.42 pounds / 1.1 kg |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certification | FCC, CE, RoHS E-Mark (Motor Vehicle) EN61373 Shock and Vibration Resistance EN50155 Railway Applications Electronic Equipment used on Rolling Stock EN61000 Electromagnetic Compatibility |

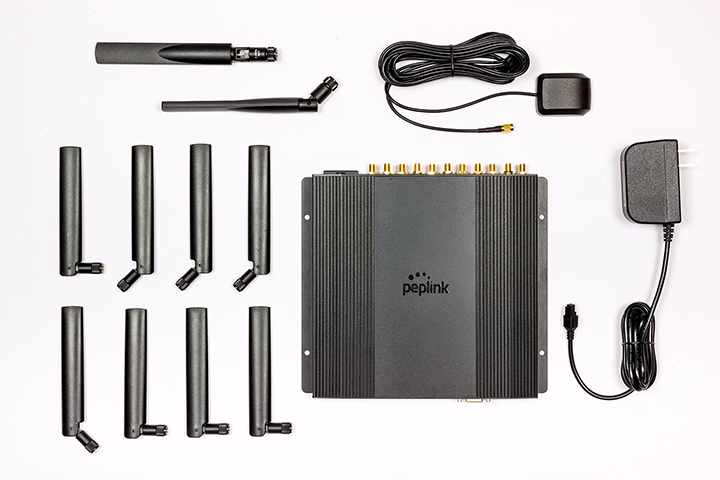

| Package Content | 1x BR2 Pro 1x 12V3A 4-Pin Power Supply (ACW-663) 8x LTE/5G Antennas (ACW-235) 2x Dual Band Wi-Fi Antennas (ACW-341) 1x GPS Antenna (ACW-232) |
| SIM Options | Nano-SIM (4FF) Peplink eSIM BYO eSIM (2 profiles per modem)6 RemoteSIM from SIM Injector7 FusionSIM |
| Warranty | 1-Year Limited Warranty |
1 The WAN port can act as a LAN port if needed.
2 Requires PrimeCare Subscription, complementary for the first year.
3 Theoretical maximum data rates.
4 Available as a licence add-on (AP-LC-50).
5 802.3at PoE port provide a power supply of 25W. If you require 30W of power budget (eg. using dual cellular WAN and USB WAN together), please empower the MAX BR2 Pro via the bundled power adapter (12V3A PSU, ACW-663), or the optional Passive PoE Injector Kit (ACW-111 + ACW-622).
6 Available with Firmware 8.4.0 or above.
7 RemoteSIM and FusionSIM compatible with hardware version 2 or above.
Documentation:
Download the Peplink MAX BR2 Pro Datasheet (PDF).
