Peplink Balance 580X
Futureproof Enterprise-Grade Branch Router


Peplink Balance 580X

Call us Today at 877-352-0546 for a price quote!

Peplink Products
Peplink Balance 580X
Peplink Balance 580X
Balance 580X, 5x GE WAN ports and 3x GE LAN ports. SpeedFusion capable
#BPL-580X
Contact us for Pricing!

More pricing below, click here!

Overview:

Peplink Failover

Experience Network Failover with LTE or 5G

If your network fails, the device will automatically switch over to the cellular connection using LTE or 5G to resume connectivity.

Peplink Out of Band Management

Out-of-Band Management

Remotely manage and troubleshoot your devices all through the convenience of a FlexModule Mini.

configuraton code

Bandwidth-on-Demand with LTE or 5G

Network can be changed from LTE to 5G simply by changing the FlexModule Mini.

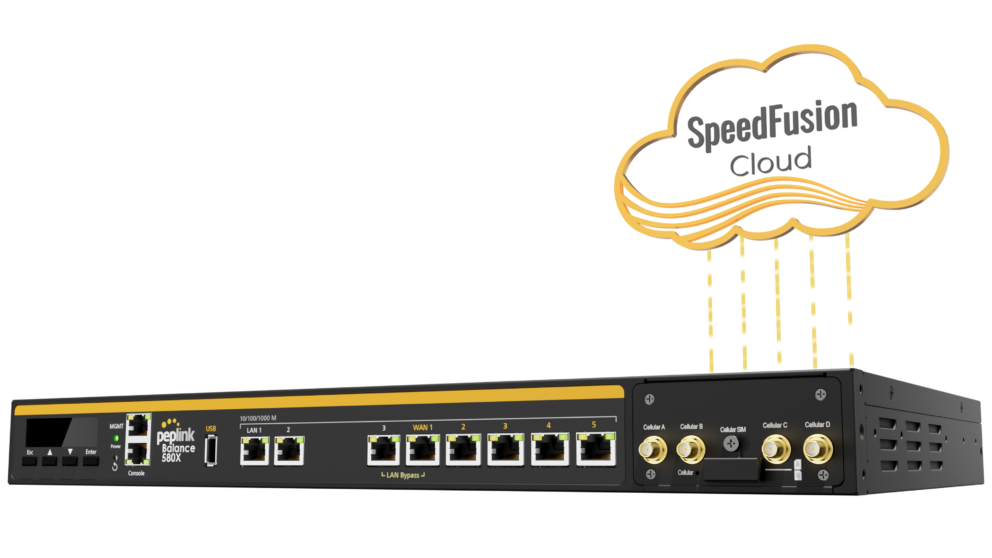

SpeedFusion Cloud meeting your deployment needs

Through just a click of button, your device will activate SpeedFusion Cloud allowing you to achieve unbreakable connectivity and removing the need for a second endpoint.

Peplink 380X

Specifications:


  Balance 380X Balance 580X
Ethernet WAN Ports 3 (GE) 5 (GE)
LAN Ports 3 (GE) 3 (GE)
USB WAN Modem Port 1 1
Expansion Modules (option) 1 1
Embedded LTE Modem No No
Recommended Users 50-500 300-1000
Stateful Firewall Throughput 3Gbps 4Gbps
Load Balancing/Failover Yes Yes
Drop-In Mode Yes Yes
Inbound Load Balancing Yes Yes
SpeedFusion Bandwidth Bonding Yes Yes
Number of SpeedFusion Peers 30/100* 50/100*
SpeedFusion Throughput 500Mbps 500Mbps
SpeedFusion Throughput (No Encryption) 500Mbps 500Mbps
L2TP / PPTP VPN Server Yes Yes
IPsec VPN (Network-to-Network) Yes Yes
Manage Pepwave AP Yes Yes
Maximum Number of AP Supported 50 100
Manage Remote AP & Multiple Config Profiles Yes^ Yes^
Bandwidth Usage Monitor Yes Yes
QoS for VoIP and E-commerce Yes Yes
User Groups Bandwidth Control Yes Yes
Web blocking Yes Yes
Web Filtering Blacklist Full Full
1U Rackmount Yes Yes
High Availability Yes Yes
LAN Bypass Yes Yes
Dual Hot Swap Power Supply No No
Power Input AC Input 100V - 240V AC Input 100V - 240V
Power Consumption 35W (for the main chassis) 35W (for the main chassis)
Dimensions 17.3 x 10.4 x1.73 inches / 440 x 265 x 44 mm 17.3 x 10.4 x1.73 inches / 440 x 265 x 44 mm
Weight 7.3 pounds / 3.3 kg 7.3 pounds / 3.3 kg
Operating Temperature 32℃ - 104 ℃F / 0℃ - 40℃C 32℃ - 104 ℃F / 0℃ - 40℃C
Humidity 10% - 85% (non-condensing) 10% - 85% (non-condensing)
Certifications FCC, CE, RoHS FCC, CE, RoHS
Warranty 1-Year Limited Warranty 1-Year Limited Warranty
Package Content Balance Router, Power Cord (ACW-614), 1 Pair of Mounting Brackets (ACW-382)

* 30/50 SpeedFusion Peers are enabled by default for Balance 380X/580X respectively. Can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100.
^ Balance 380X/580X comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN.

Documentation:

Download the Peplink Balance 580X Datasheet (PDF).
