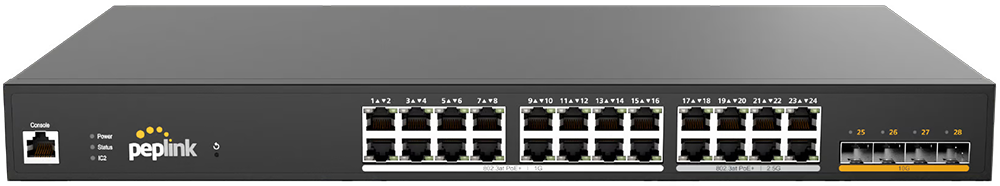

Peplink 24 PoE 2.5G Switch
Flexible managed 24-port POE switch in the Peplink ecosystem
Peplink Products
Peplink Switch
Peplink 24 PoE 2.5G Switch
16x 1GE (802.3at PoE+) RJ45 ports, 8x 2.5GE (802.3at PoE+) RJ45 ports, 4x 10GE SFP+ ports, 410W PoE power budget
16x 1GE (802.3at PoE+) RJ45 ports, 8x 2.5GE (802.3at PoE+) RJ45 ports, 4x 10GE SFP+ ports, 410W PoE power budget
#PLS-24-H2G-410W
Get a Quote!
Get a Quote!
More pricing below, click here!
Overview:
*Note: Currently, these Switches can only be configured through InControl. However, a new feature for our Peplink routers, the Switch Controller, will be available soon, enabling offline local management of multiple Switches without the need for InControl.
Simplify Networks
Centralized power up to 740w. Gigabit, Multi-gigabit and SFP+ connections.
Port Control
Port Control
VLAN
Traffic Monitoring
Individual Port Power
Specifications:
| 8 PoE 10G Switch | 24 PoE 2.5G Switch Rugged | 24 PoE 2.5G Switch | 48 PoE 2.5G Switch | |
|---|---|---|---|---|
| Interface - RJ45 | 8x 10GE l 802.3bt Type 4 PoE++ | 16x 1GE l 802.3at PoE+ 8x 2.5GE l 802.3at PoE+ |
16x 1GE l 802.3at PoE+ 8x 2.5GE l 802.3at PoE+ |
32x 1GE l 802.3at PoE+ 16x 2.5GE l 802.3at PoE+ |
| Interface - SFP+ | 4x 10G | 4x 10G | 4x 10G | 4x 10G |
| Switch Capacity | 240 Gbps | 152 Gbps | 152 Gbps | 224 Gbps |
| Max. Packet Forwarding Rate | 179 Mpps | 216 Mpps | 216 Mpps | 318 Mpps |
| MAC Address Table | 32,000 | 16,000 | 16,000 | 32,000 |
| Power Supply | 1x Internal PSU (900W) | 1x External PSU (300W) AC Input: 100-240V, 4A DC Output: 54V, 5.56A |
1x Internal PSU (480W) | 1x Internal PSU (900W |
| Power Input | 1x 100V – 240V AC | 2x Power DIN: 54V DC 1x Terminal Block: 12V - 54V DC |
1x 100V – 240V AC | 1x 100V – 240V AC |
| Power Consumption | 53W (System) | 38W (System) | 38W (System) | 64W (System) |
| Total PoE Power Budget | 750W | 250W | 410W | 740W |
| Dimensions (D x W x H) | 9.1 x 13.0 x 1.8 inches 230 x 330 x 44 mm |
10.5 x 19.1 x 1.8 inches 265 x 485 x 45mm |
10.3 x 17.3 x 1.8 inches 260 x 440 x 45 mm |
12.2 x 17.3 x 1.8 inches 310 x 440 x 45 mm |
| Weight | 6.4 pounds / 2.9 kg | 11.3 pounds / 5.1 kg | 9.0 pounds / 4.1 kg | 10.8 pounds / 4.9 kg |
| Operating Temperature | 32° – 122°F / 0° – 50°C | -40° – 149°F / -40° – 65°C | 32° – 122°F / 0° – 50°C | 32° – 122°F / 0° – 50°C |
| Humidity | 15% – 95% (non-condensing) | 15% – 95% (non-condensing) | 15% – 95% (non-condensing) | 15% – 95% (non-condensing) |
| Certification | FCC, CE, RoHS | FCC, CE, RoHS | FCC, CE, RoHS | FCC, CE, RoHS |
| Warranty | 1-Year Limited Warranty | 1-Year Limited Warranty | 1-Year Limited Warranty | 1-Year Limited Warranty |
| Package Content | 1x 8 PoE 10G Switch 1x Power Cord 1x Screw Set 1x Rubber Foot Pad Set 1 Pair of Mounting Brackets |
1x 24 PoE 2.5G Switch Rugged 1x Power Cord 1x 300W PSU 1x Screw Set 1x Rubber Foot Pad Set |
1x 24 PoE 2.5G Switch 1x Power Cord 1x Screw Set 1x Rubber Foot Pad Set 1 Pair of Mounting Brackets |
1x 48 PoE 2.5G Switch 1x Power Cord 1x Screw Set 1x Rubber Foot Pad Set 1 Pair of Mounting Brackets |
| Management/ Configuration* | InControl | InControl | InControl | InControl |
*Note: Currently, these Switches can only be configured through InControl. However, a new feature for our Peplink routers, the Switch Controller, will be available soon, enabling offline local management of multiple Switches without the need for InControl.
Documentation:
Download the Peplink Switch Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
