Pepwave AP One AX
Better Coverage and Speed with Wi-Fi 6

Pepwave AP One AX

Call us Today at 877-352-0546 for a price quote!

Pepwave Products
Pepwave AP One AX
AP One AX
#APO-AX
Contact us for Pricing!

More pricing below, click here!

Overview:

AP One Features

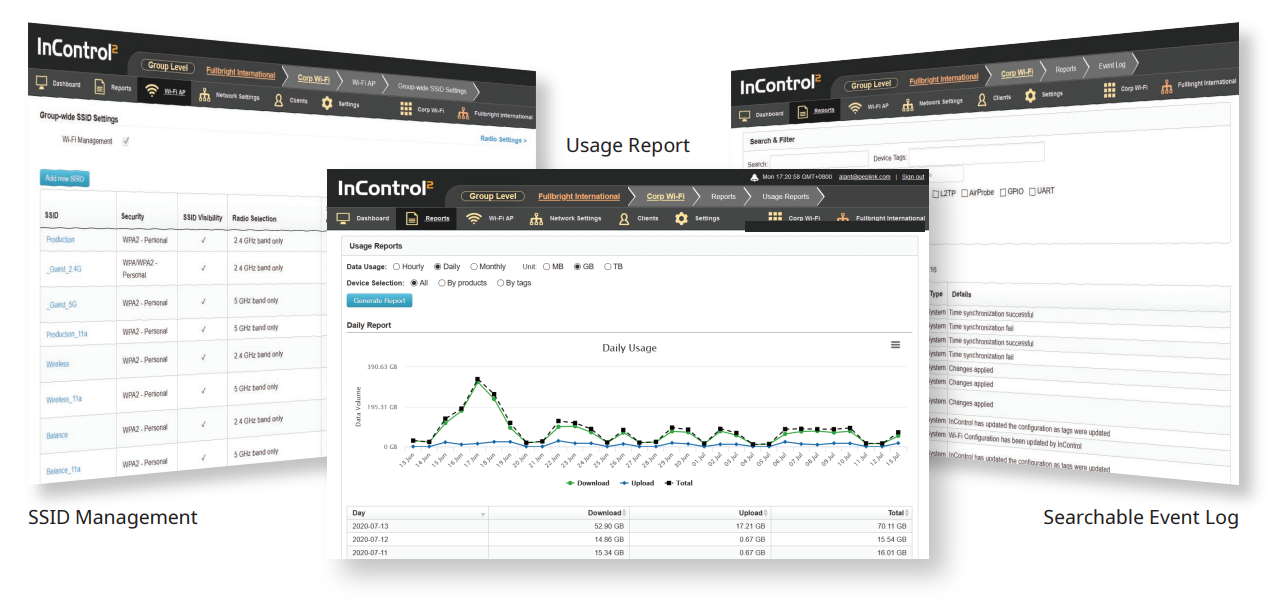

Manage Centrally, No Extra Hardware Needed

Each AP One AX comes equipped with InControl central management. View the health and data usage of your network from any web browser. Centrally manage your network’s SSID and radio settings from a single pane of glass. Use the searchable event log to quickly diagnose your entire network.

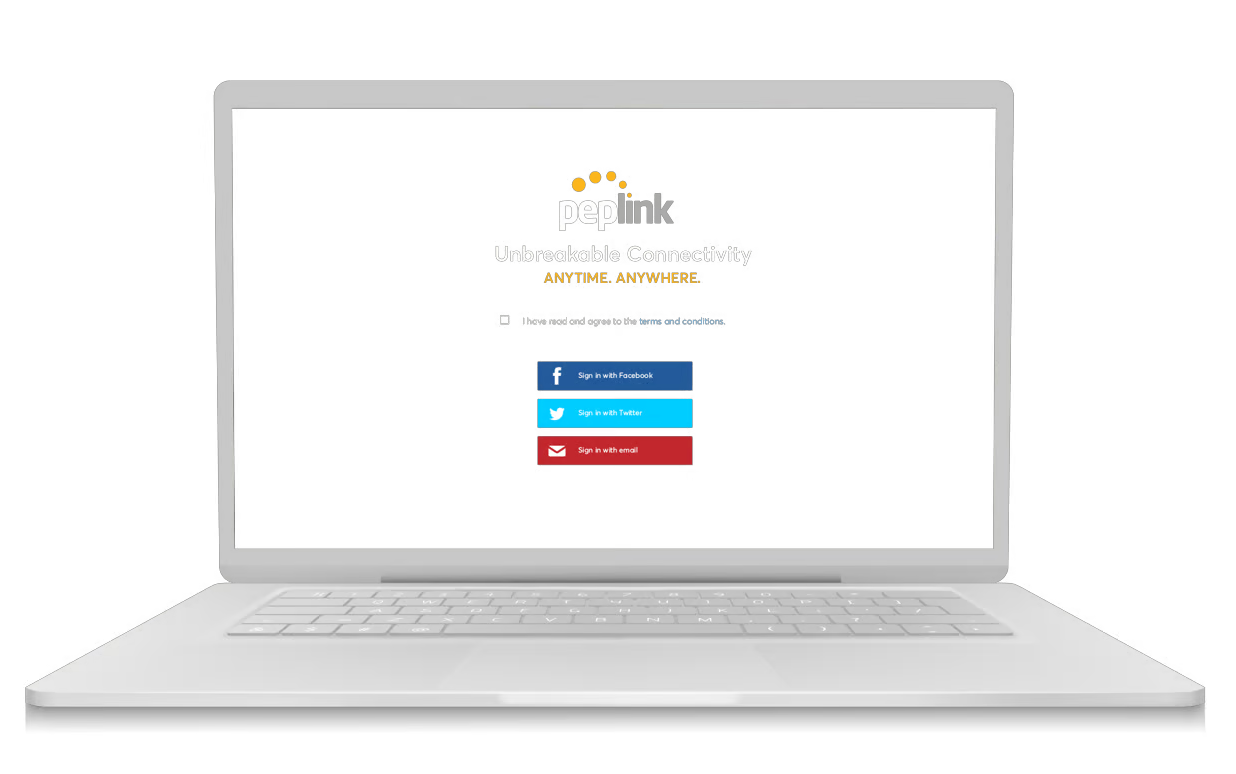

Turnkey or Custom Captive Portals

Customize your captive portal as little or as much as you would like. Right out of the box, it includes a captive portal ready for immediate use.

For a more branded user experience, you can edit every aspect of the captive portal using InControl.

Simply Better Wi-Fi

Wi-Fi 6: Faster, Better

This technology is 45% faster than Wi-Fi 5, has 4x more device capacity, and consumes less power for connected devices.

Enterprise-Grade Fast Roaming

This device supports 802.11k, v, and r, providing users with a more seamless roaming experience between access points.

Diagrams:

Seamless Peplink SD-WAN Integration

The AP One AX works seamlessly with other services in the Peplink ecosystem, providing unique network capabilities, unmatched network flexibility and ease of use.

For SMBs

1. InControl Central Management

Monitor network health on a single dashboard. Push configuration proles on multiple devices at once. Remotely access the Web Admin of any device.

2. Balance/MAX/FusionHub

Provides unbreakable connectivity by combining multiple WANs. Works with InControl to centralize VLAN, firewall, and outbound policy.

3. SD-Switch

Works with InControl to remotely configure and activate PoE ports. Monitor power consumption.

4. AP One

Works with InControl to centralize SSIDs, radio settings, and deliver captive portals.


Compare:


AP One AC Mini AP One Rugged AP One Enterprise AP One In-Wall AP One Flex 300M AP One AX
Product Code APO-AC-MINI APO-RUG APO-ENT APO-AGN2-IW-US/APO-AGN2-IW APO-FLX APO-AX
Ethernet Port 1x GE 2x GE 2x GE 1x FE Uplink 4x FE 1x FE 1x 2.5 Multigigabit Ethernet
Simultaneous 802.11ac/a/n and 802.11b/g/n Simultaneous 802.11ac/a/n and 802.11b/g/n Simultaneous 802.11ac/a/n and 802.11b/g/n Simultaneous 802.11a/n and 802.11b/g/n Simultaneous 802.11a/n and 802.11b/g/n 802.11b/g/n 802.11b/g/n/ax and 802.11a/n/ac/ax
Data Rates 2x2 MIMO 2.4 GHz: 300Mbps 5GHz: 866Mbps 3x3 MIMO 2.4GHz: 450Mbps 5GHz: 1300Mbps 3x3 MIMO 2.4GHz: 450Mbps 5GHz: 1300Mbps 2x2 MIMO 2.4 GHz: 300Mbps 5 GHz: 300Mbps 2x2 MIMO 2.4 GHz: 300 Mbps 4x4 MIMO 2.4 GHz: 1148Mbps 5GHz: 2400 Mbps
Recommended Concurrent Users Per Radio 60 60 60 60 60 256
SSID Per Radio 16 16 16 16 16 16
Transmit Power 2412 – 2472 MHz: 23dBm 5180 – 5825 MHz: 17dBm 2412 – 2472 MHz: 25dBm 5180 – 5825 MHz: 22dBm 2412 - 2472 MHz: 24dBm 5180 - 5825 MHz: 23dBm 2412 – 2472 MHz: 17dBm 5180 – 5825 MHz: 17dBm 2412 – 2472 MHz: 28dBm 2412 - 2472 MHz: 17dBm 5180 - 5825 MHz: 17dBm
Included Antenna Built-In Omni Antenna Antenna gain: 2dBi for 2.4GHz, 4dBi for 5GHz 2x Dual-Band Omni Antenna Antenna gain: 3dBi for 2.4GHz, 5dBi for 5GHz Built-in Omni antenna Antenna gain: 3dBi for 2.4GHz, 4dBi for 5GHz Built-In MIMO Omni Antenna Antenna gain: 2dBi for 2.4GHz, 4dBi for 5GHz Built-In, Switchable 10dBi MIMO Directional (75° Horizontal x 35° Vertical Beamwidths) and 4dBi MIMO Omni Antennas Built-in Omni Antenna Antenna gain: 2.7 – 5dBi for 2.4GHz, 3.8 – 5.6dBi for 5GHz
Antenna Connector N/A 2x RP-SMA Connectors N/A N/A N/A N/A
Enclosure Plenum-rated, Indoor Plastic Ruggedized Metal Plenum-rated, Indoor Plastic Plenum-rated, Indoor Plastic . Mounts Into Standard US/EU Single Gang Wall Jack Waterproof IP55 Outdoor Plenum-rated, Indoor Plastic
Weight 0.33 pound
150 grams
0.93 pound
420 grams
0.57 pound
260 grams
0.37 (US) / 0.34 pound
170 (US) / 155 grams
1.15 pounds
520 grams
1.73 pounds
785 grams

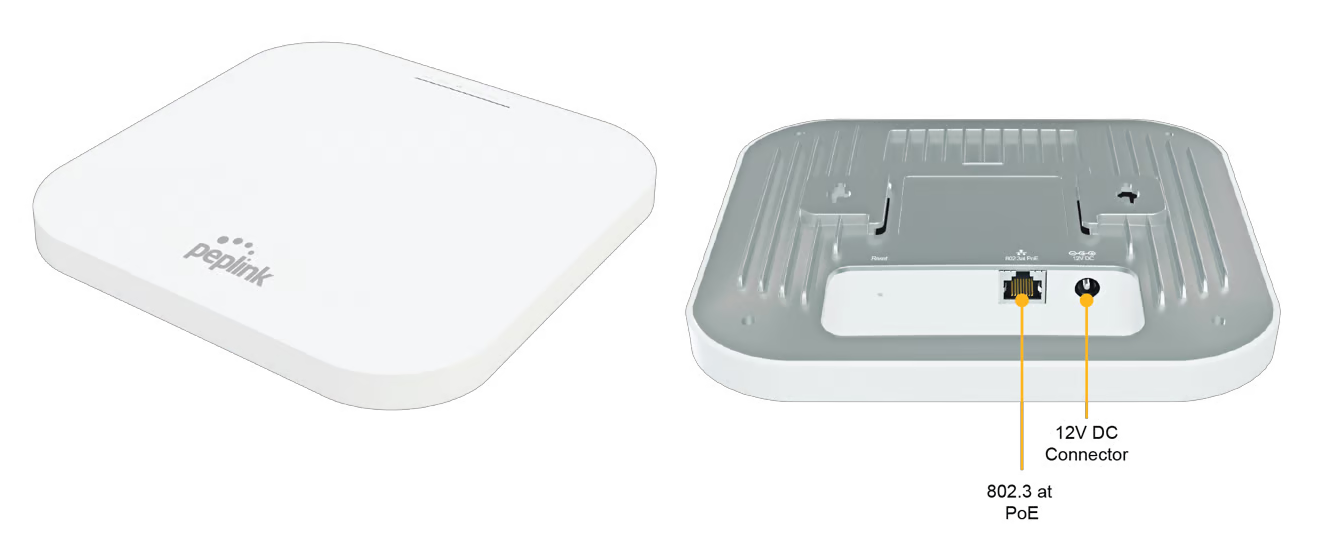

Power Input AC Adapter: AC Input 100V –
240V, DC Output 12V
802.3af PoE (Injector Not Included)
802.3af PoE (Injector Not Included) 48V DC Connector
802.3af/802.3at PoE
Pepwave Passive PoE: 12V – 48V DC
(48V Pepwave Passive PoE Input is Needed
for 802.3af or Pepwave Passive PoE Output)
DC Jack: 12V DC AC Adapter: AC Input 100V − 240V,
DC Output 12V, 3A* 802.3 at PoE
Power Consumption 12W (max.) 13W (max.) 13W (max.) 15W (max.) 15W (max.) 24W (max.)
Operating Temperature 23° - 113°F
-5° - 45°C
-4° – 149°F
-20° – 65°C
23° - 113°F
-5° - 45°C
-4° – 104°F
-20° – 40°C
-4° – 149°F
-20° – 65°C
32° - 104°F
0° - 40°C
Humidity 15% – 95% (non-condensing)
Certi cations FCC, CE, RoHS

Specifications:

AP One Specs

Technical Specifications:


Network

  • Bridge Mode
  • Router (NAT) Mode
  • Wireless Distribution System (WDS)
  • Support for PPPoE, Static IP, DHCP
  • Management VLAN (802.1p)
  • Spanning Tree Protocol (802.1d)

Radio

  • Multiple SSID
  • Auto Channel Selection
  • Transmit Power Adjustment
  • Neighbor AP Detection

AP Security

  • Open, WEP
  • WPA/WPA2/WPA3-Personal
  • WPA/WPA2-Enterprise

Client Managment

  • Per SSID
    • VLAN with QoS (802.1p/802.1q)
    • Bandwidth Control
    • MAC Address Filtering
    • Layer 2 Client Isolation
    • Limit on Max. Number of Client
  • Per Client
    • VLAN with RADIUS
    • VLAN with VLAN Pool
    • Bandwidth Control
    • Multicast Filter
    • IGMP Snooping/Multicast Enhancement

Complete VPN Solution

  • PepVPN
    • Site-to-Site VPN
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
  • PPTP VPN Server
  • RADIUS, LDAP Authentication
  • IPsec VPN (Network-to-Network) 1

Captive Portal

  • By InControl
  • By Peplink AP Controller

Device Management

  • Web Administrative Interface
  • InControl Cloud Management
  • Peplink AP Controller
  • SNMP v1, v2c and v3

Package Content

  • AP One AX
    • AP One AX
    • Ceiling Mount
    • 5dBi Omni Antenna

Certifications 2

  • FCC, CE, RoHS
1 IPsec VPN supports connection with Cisco, Juniper, Pepwave, or Peplink devices.
2 Certification differs for different models, please refer to the respective model for details.

All specifications are subject to change without notice.

Documentation:

Download the Pepwave AP One AX Datasheet (PDF).

Pricing Notes:

Peplink Products
Pepwave AP One AX
AP One AX
#APO-AX
Contact us for Pricing!
Add-ons
802.3af/at PoE Injector, compatible with MAX Hotspot and AP One AX
#ACW-107
Contact us for Pricing!
1x12V3A Power Supply, compatible with MAX HD2 and AP One AX
#ACW-602
Contact us for Pricing!
