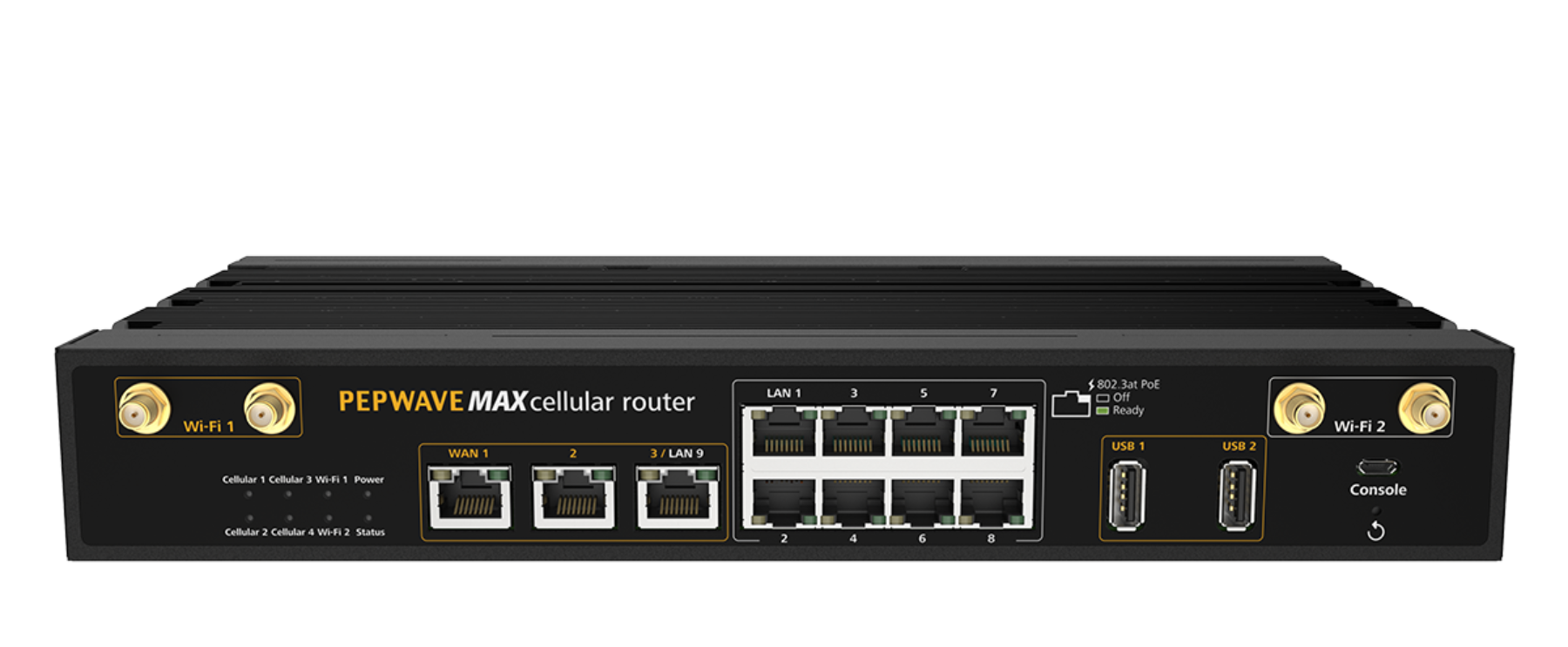

MAX HD4 MBX
Quad Cellular Gigabit LTE Mobile Powerhouse


MAX HD4 MBX
Peplink Products
Peplink MAX HD4 MBX
Peplink MAX HD4 MBX
#MAX-HD4-MBX-LTEA-R-T
Get a Quote!
MAX HD4 MBX CAT 18
#MAX-HD4-MBX-GLTE-G-T
Get a Quote!
MAX HD4 MBX LTEA
#MAX-HD4-MBX-LTEA-K-T
Get a Quote!
MAX HD4 MBX 5G
#MAX-HD4-MBX-5GD-T
Get a Quote!

More pricing below, click here!

Overview:

Quad Cellular Bandwidth Bonding

The HD4 MBX is capable of combining the bandwidth of up to 4 cellular links into an unbreakable, high-speed SD-WAN connection. The HD4 MBX supports up to 8 SIM cards, with room for another 8 with the optional SIM Injector. With up to 16 cellular providers to connect to, spotty coverage will simply not be a problem.


Ready for any Environment

The HD4 MBX is designed for industrial usage. With its fanless design, it thrives in high-particle environments that would break other fan-based routers. The HD4 MBX also comes with 8x 802.3at PoE outputs to power your IP phones, cameras, and access points. Finally, the MBX has the same dimensions as the previous HD4, so it can fit seamlessly into any of your previous deployments.


Gigabit LTE Ready for 5G

Right out of the box, the HD4 MBX supports Gigabit LTE. For future technologies, the MBX features a swappable cellular module, so when you need to upgrade to 5G, you can simply swap your old one with a new one. The MBX is also capable of 2.5Gbps of throughput, giving you plenty of bandwidth for Gigabit Ethernet, 5G, or any future mobile technologies. 2.5Gbps also gives your wired connections plenty of room to operate in concert with wireless connections, building network resilience and ensuring that your branch office stays up.


MAX HD4 MBX

Ready to Move

The HD4 MBX comes with multiple features to make it ideal for on-the-go deployments. Ignition Sensing gives it the ability to turn on and off depending on whether the vehicle has started. Upon vehicle shutdown, the MBX can also shut down after a user-defined interval, saving the battery from excessive drain.
The HD4 MBX supports the optional SIM Injector, which adds another 8 cellular providers to connect with. This mitigates weak spots in cellular coverage, ensuring consistent connectivity . If your deployment crosses national boundaries, you can also use the SIM Injector to load multiple SIM cards, preventing roaming charges. Finally, the HD4 MBX has rolling stock certification, meeting the strictest requirements of transportation deployments.


MAX HD4 MBX

Application:

The HD4 MBX Fits in a Variety of Scenarios

Branch Office Network Resilience

The HD4 MBX supports up to 8x 802.3at PoE connections, enabling you to connect your IP phones, IP cameras, and access points with minimal cabling. It also delivers 802.1ac dual-band dual-radio Wi-Fi with a customizable captive portal for guest access. The HD4 MBX comes equipped with SpeedFusion WAN Smoothing, mitigating packet loss and ensuring that your videoconferences are jitter-free.


Wi-Fi Connectivity for Employee Shuttles

Our ecosystem has other services to meet the challenges of employee bus deployments.SpeedFusion SD-WAN combines the bandwidth of 4x Gigabit LTE connections on a packet level, ensuing employee productivity remains uninterrupted when cellular connections break. Using our Smart Readers and TA app, you can control bus access and track employee usage.


Public Safety - Mobile Command

The HD4 MBX combines the bandwidth of 4x Gigabit LTE links into a fast, reliable, and secure SD-WAN connection, enabling you to stream high-definition video in real-time. This can all be achieved without investing in any infrastructure. With SpeedFusion-enabled devices on multiple vehicles and aerial resources, you can monitor the situation from multiple perspectives without needing a line-of-sight connection.


Instant Connectivity for Temporary Sites

By combining the bandwidth of up to 4x Gigabit LTE connections, you can perform fast and reliable connectivity no matter where the site is located. Quickly and safely transmit project data, emails, plans, and blueprints between personnel, sutes, and headquarters.


Event Live Streaming and Connectivity

The cellular SpeedFusion SD-WAN connection provides all the bandwidth you need to stream HD video. What’s more, our patented WAN Smoothing technology compensates for packet loss, ensuring smooth, jitter-free streaming.


Mobile Clinic - Telemedicine

Telemedicine has the potential to improve the lives of many patients, particularly those living in remote locations without access to specialist doctors. However, x-ray images and videostreams require large amounts of data, more data than a single cellular link can transfer in a timely manner. Our Solution: SpeedFusion SD-WAN. Using this technology, the HD4 MBX can combine the bandwidth of 4x Gigabit LTE connections to form a fast and reliable VPN connection that can handle the requirements of remote diagnosis. The MBX has a modular cellular modem, so it can upgrade to 5G whenever you are ready


MAX HD4 MBX

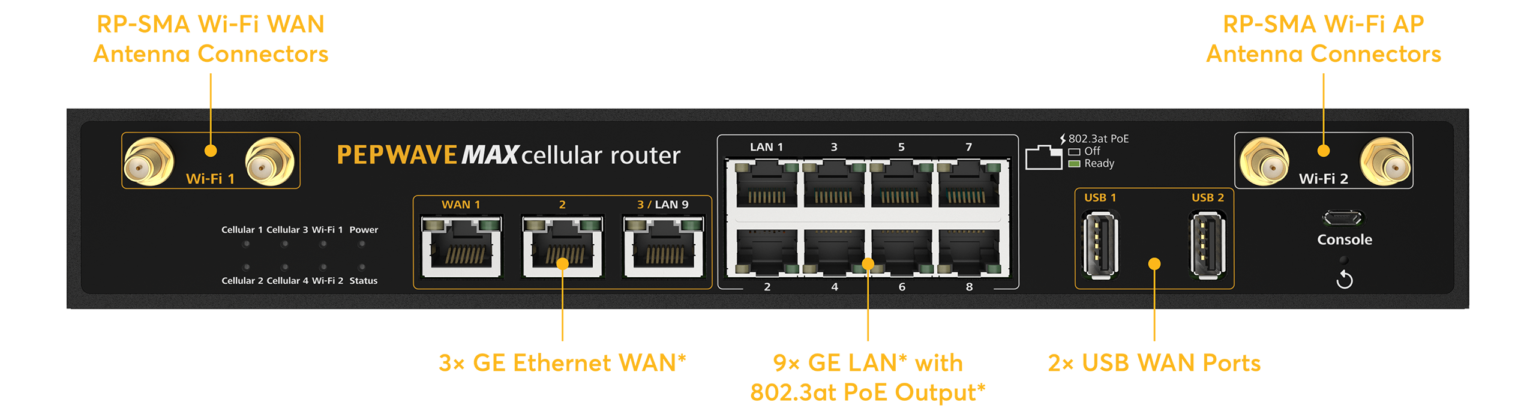

Specifications:


  MAX HD4 MBX
WAN Interface 2x USB Interface
3x GE*
4x Embedded LTE-A Pro Modems with Redundant SIM Slots
LAN Interface 9x GE*
Wi-Fi Interface 1802.11ac/a/b/g/n, 1166 Mbps 2×2 MIMO Wi-Fi WAN and/or AP
Simultaneous Dual-Band
Router Throughput @ 2.5 Gbps
Number of PepVPN 2/20
PepVPN/SpeedFusion Throughput (No Encryption) | (256-bit AES) 600 Mbps | 500 Mbps
LTE-A Pro Modems Downlink/Uplink Datarate: 600 Mbps/150 Mbps
Recommended Users 50-500
Cellular and GPS Antenna Connector 8x SMA Antenna Connectors
1x SMA GPS Antenna Connector
4x RP-SMA Wi-Fi Antenna Connectors
Power Input DC Jack/Terminal Block: 12-56 V #
Power Output Up to Eight 802.3at PoE Outputs #
Power Consumption 55W
Dimensions 1.7 x 11.5 x 7.0 inches | 43 x 292 x 177 mm
Weight 7.28 pounds | 3.3 kg
Operating Temperature -40° – 149°F | -40° – 65°C
Humidity 15% – 95% (non-condensing)
Power Requirements DC Jack: 10V – 56V
Certifications FCC, CE, RoHS
Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999
RCM, E-Mark, PTCRB
Railway Applications: EN 50155
Electromagnetic Compatibility: EN 61000
RF Port Lighting Immunity – ITU-T K.20 (+/- 1.5 kV)
Package Content MAX HD4 MBX
PSU for the MAX HD4 MBX LTEA (ACW-630)
4x Dual Band Wi-Fi Antennas (ACW-341)
1x GPS Active Antenna (ACW-232)
8x 2dBi 4G LTE Antennas (ACW-234)
1 Pair of Mounting Brackets (ACW-513)
1x SIM Cover
Warranty 1-Year Limited Warranty

Documentation:

Download the MAX HD4 MBX (PDF).
