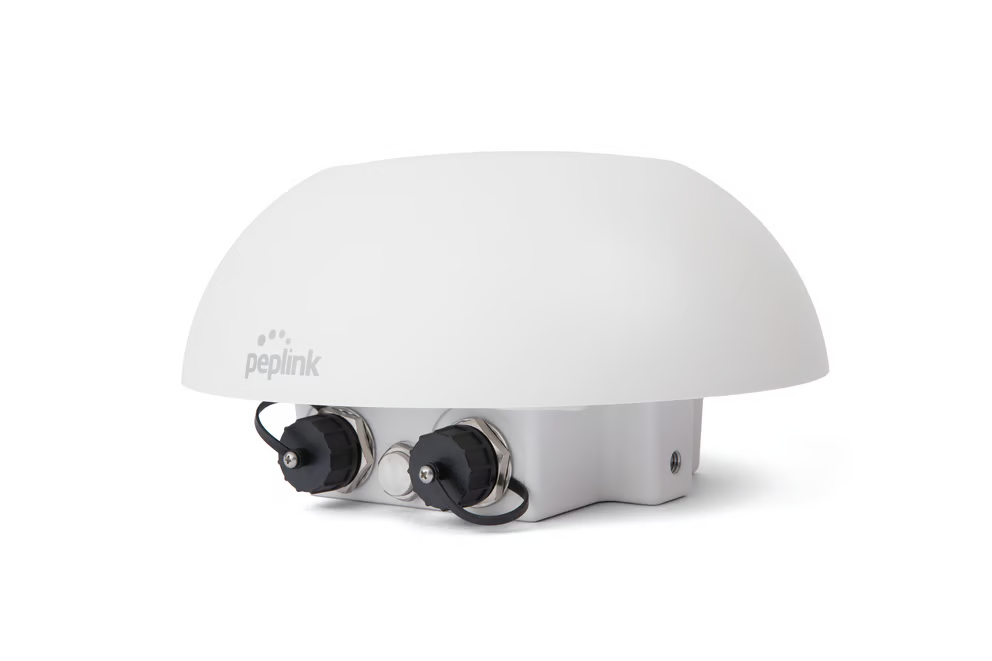

Peplink Dome Pro Duo
Dual 5G Cellular Router for Outdoor Deployments
More pricing below, click here!
Overview:
A refinement in outdoor interconnectivity

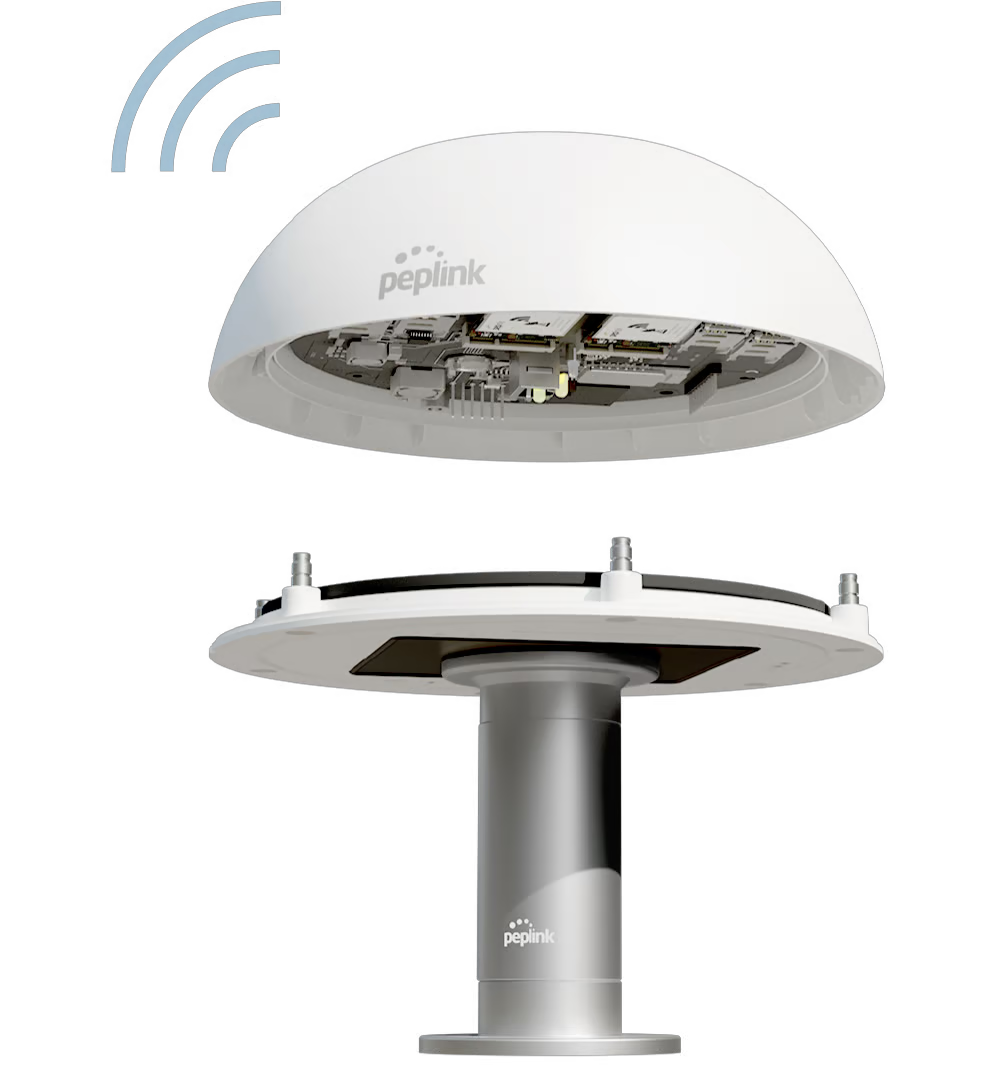

The Dome Pro Duo adapts to the flexible nature of outdoor deployments, offering powerful speeds, with refined Wi-Fi options. The 5G modem, with its embedded cellular antennas, ensures minimal cable loss and offers the finest signal quality.

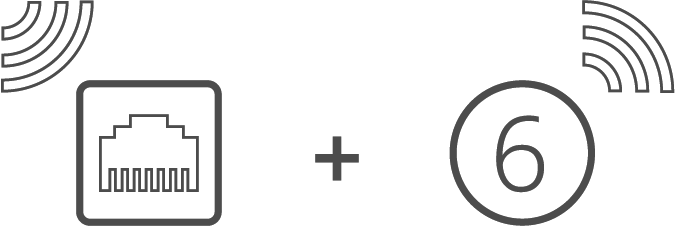

Wi-Fi as WAN Wi-Fi 6
The Wi-Fi 6 and Wi-Fi as WAN support can optimize your network and provide versatility as and when required. Leverage bandwidth costs and easily expand your network. Experience no more interruptions with SpeedFusion’s hot failover options.
A design that’s made to meet your needs

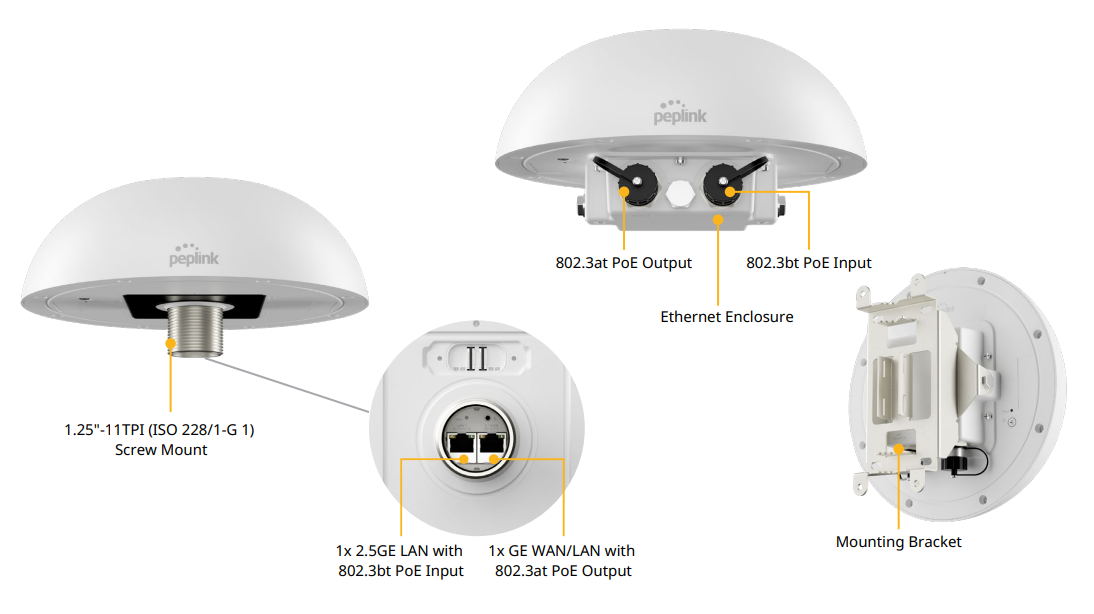

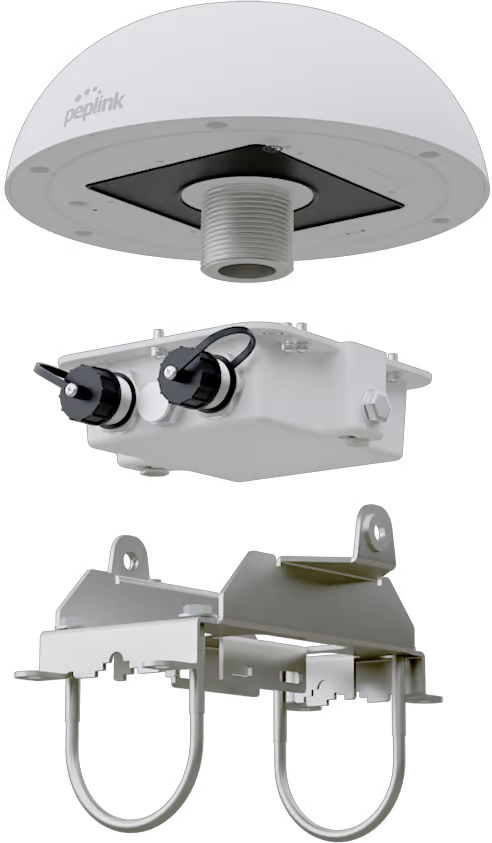

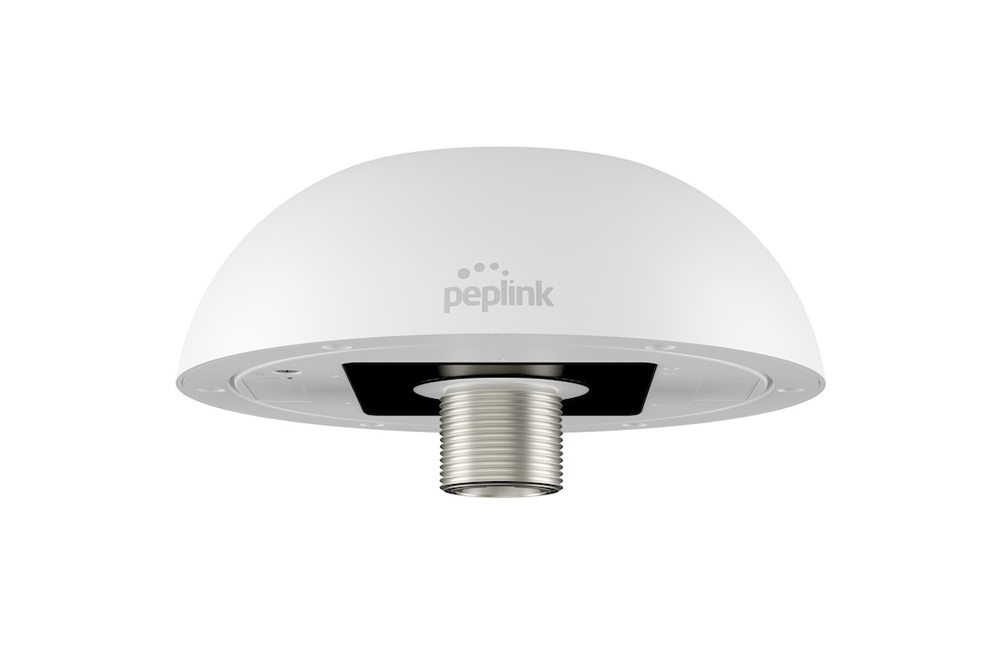

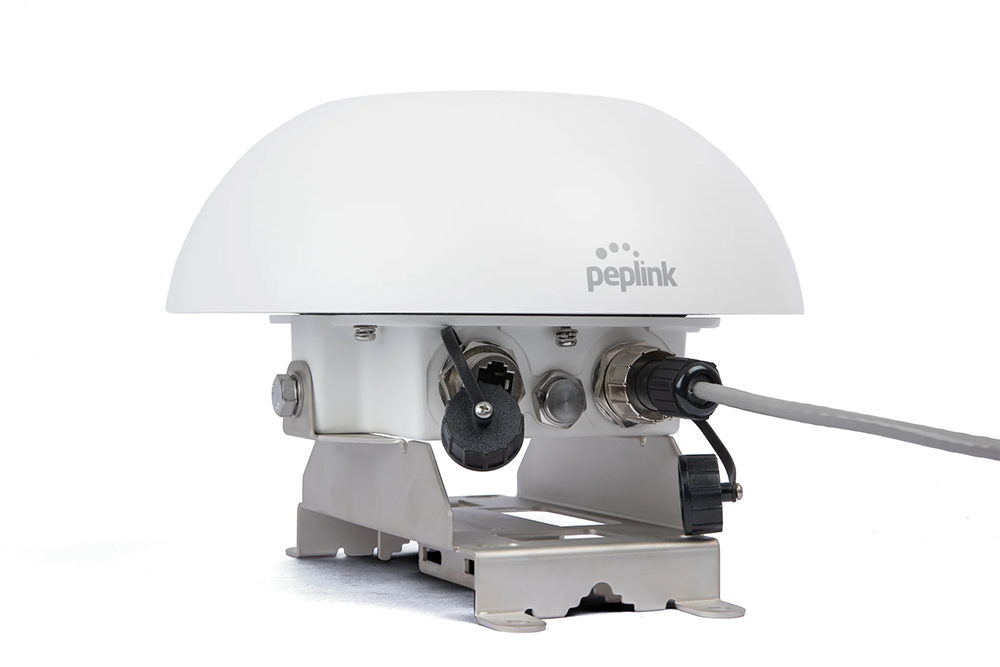

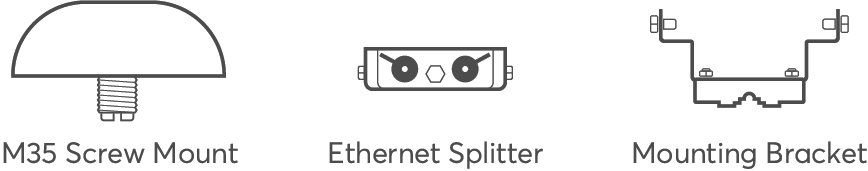

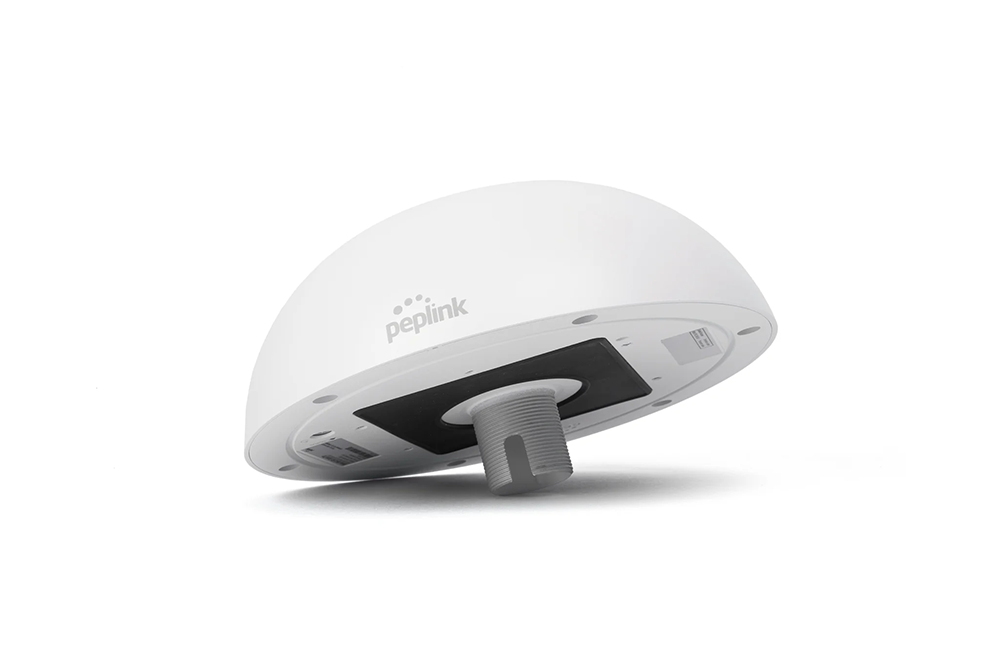

It’s simple design offers a multitude of installation options. The Dome Pro Duo includes an M35 screw mount and Ethernet splitter, making it easy for wall or pole mount. If mounting is not needed, simply connect an Ethernet cable and it’s good to go.
Together it works

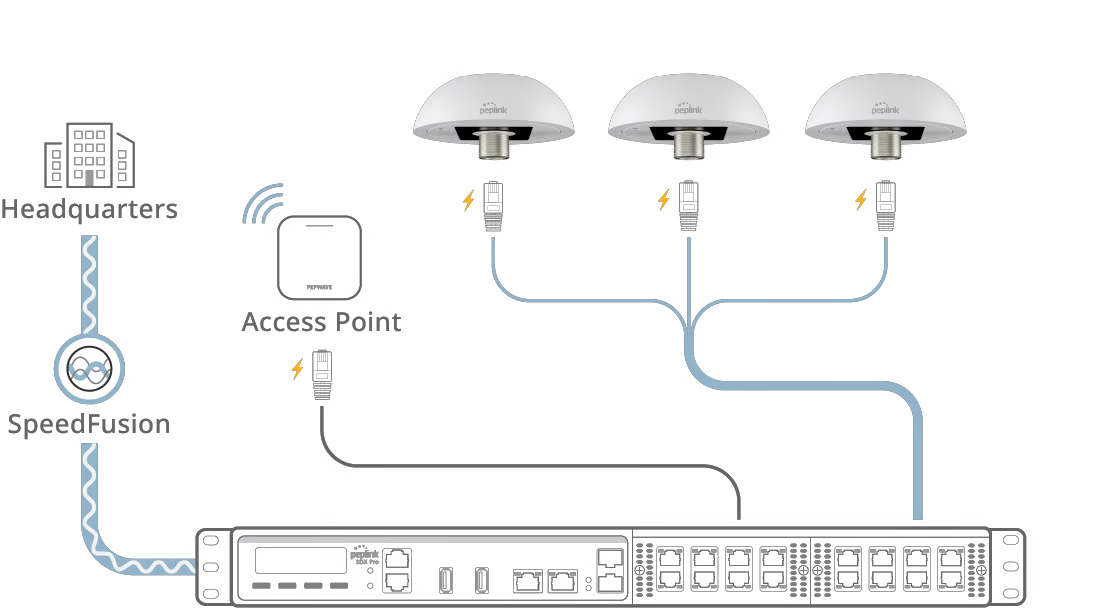

The Dome Pro Duo can optimize network performance with its PoE functionality. Leverage the power of SpeedFusion by simply connecting Peplink PoE routers, for a mega-bandwidth channel, with the simplest failover option. Or alternatively, extend the Wi-Fi range by connecting an external access point.
Instant flexibility with the SIM injector

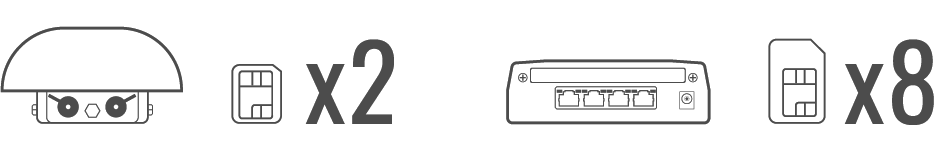

Simply connect an Ethernet cable between the SIM injector^ and the Dome Pro Duo to manage up to 10 physical SIMs.
With remote network management available via Peplink’s cloud-based management system, InControl 2, accessibility worries are a thing of the past.
^For a limited time only, we are now offering bundle value when purchased together. Contact your point of sales for more information.
Specifications:
| Dome Pro Duo Specifications | |
|---|---|
| WAN Interface | 1x 10/100/1000M Ethernet 2x 5G Modems with Redundant SIM Slots |
| LAN Interface | 1x 10/100/1000M Ethernet |
| Wi-Fi Interface | Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6, 2X2 MIMO Wi-Fi WAN and/or AP |
| Number of SpeedFusion VPN Peers | 2 |
| Enclosure | Rugged outdoor IP67 (with Ethernet Splitter) |
| Recommended Users | 150 |
| Cellular Data Rate (Downlink / Uplink) | 5G: 3.4 Gbps / 900 Mbps CAT-20: 1.6 Gbps / 200 Mbps |
| Antenna | 8X8 Internal Cellular Antennas 2X2 Internal Wi-Fi Antennas 1x Internal GPS Antenna |
| Power Input | 1x 802.3at PoE+ (without PoE output) / 1x 802.3bt PoE+ + (with PoE output) |
| Power Output | 1x 802.3at PoE+ |
| Power Consumption | 24 W (max., without PoE output) |
| Dimensions | 5.12 inches (radius) x 4.79 inches (height) 130 mm (radius) x 122 mm (height) |
| Weight | With Ethernet Enclosure: 4.19 pounds / 1.9 kg Without Ethernet Enclosure: 3.53 pounds / 1.6 kg |
| Operating Temperature | -40°– 149°F / -40°– 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications | FCC, CE, RoHS, EN 50124-1 Railway Application - Insulation Coordination EN 50155 Railway Application - Rolling Stock - Electronic Equipment EN 61000 Electromagnetic Compatibility |

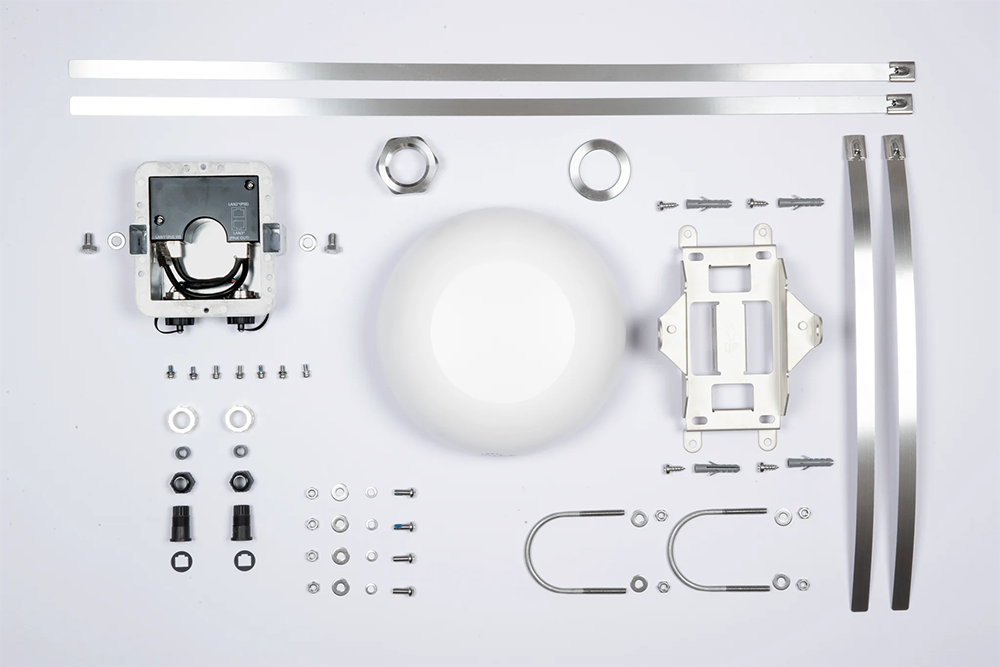

| Package Content | Dome Pro Duo, Ethernet Splitter, 2x Waterproof Ethernet Connector (ACW-112), Mounting Kit Set |

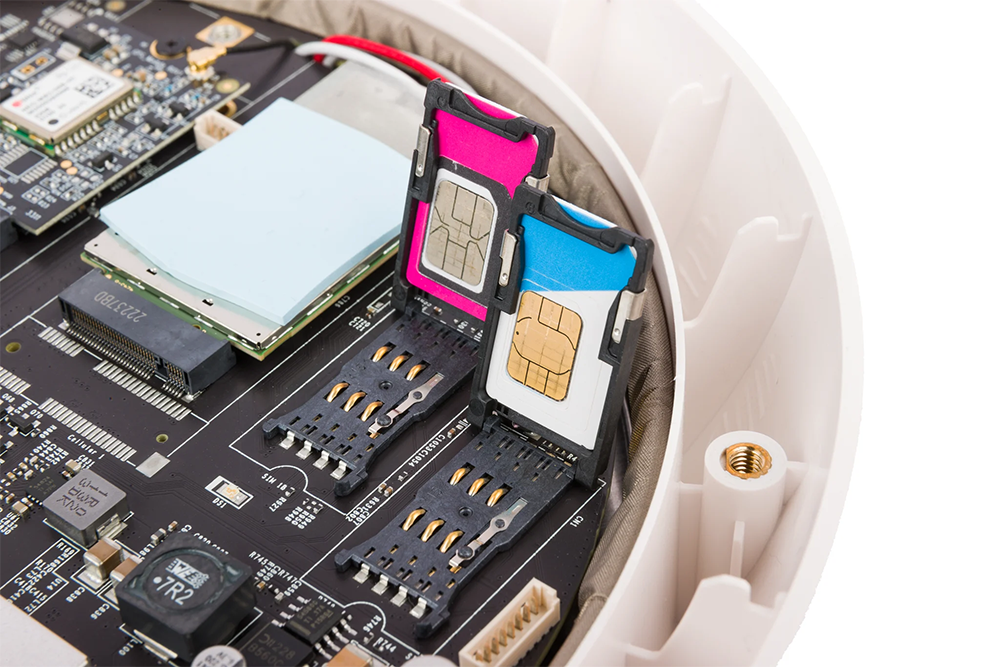

| SIM Options | Nano-SIM (4FF) Peplink eSIM BYO eSIM (2 profiles) RemoteSIM from SIM Injector FusionSIM |
| Warranty | 1-Year Limited Warranty |
1 Maximum theoretical data rates.
Documentation:
Download the Peplink Dome Pro Duo Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
