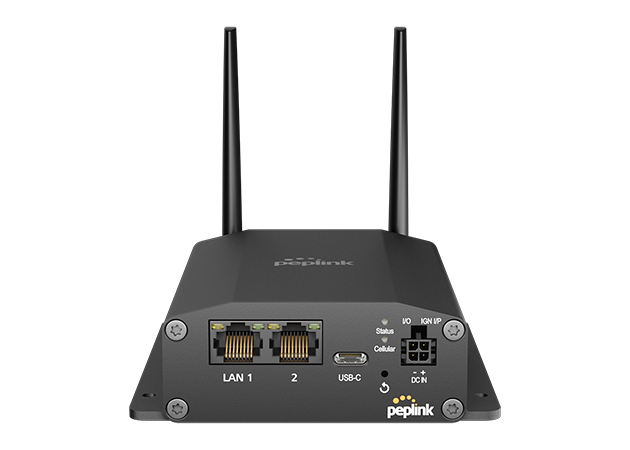

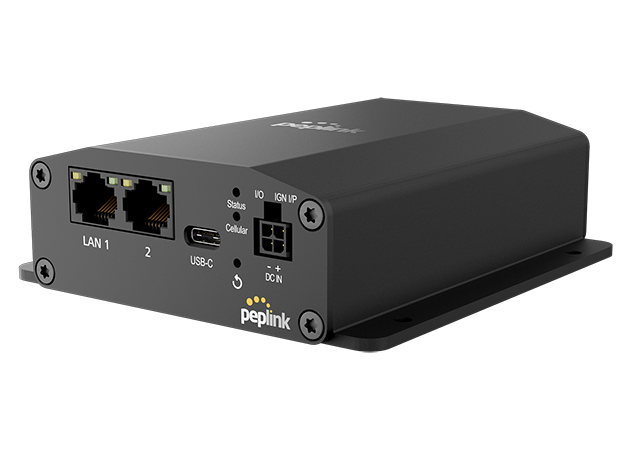

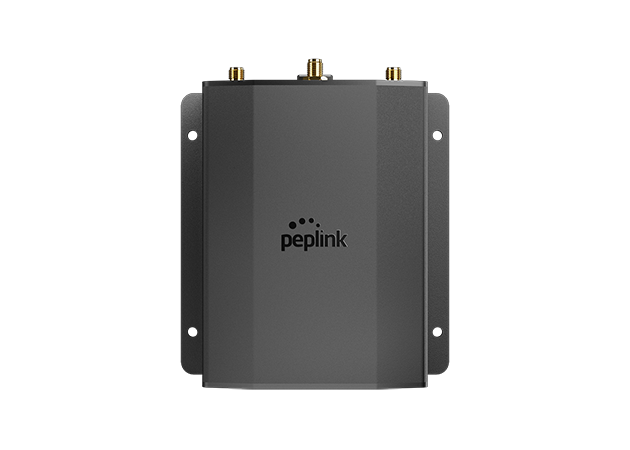

Peplink MAX Adapter
An Economical, Flexible LTE Cellular Modem
Peplink Products
Peplink Adapters
More pricing below, click here!
Overview:
Instant configurability

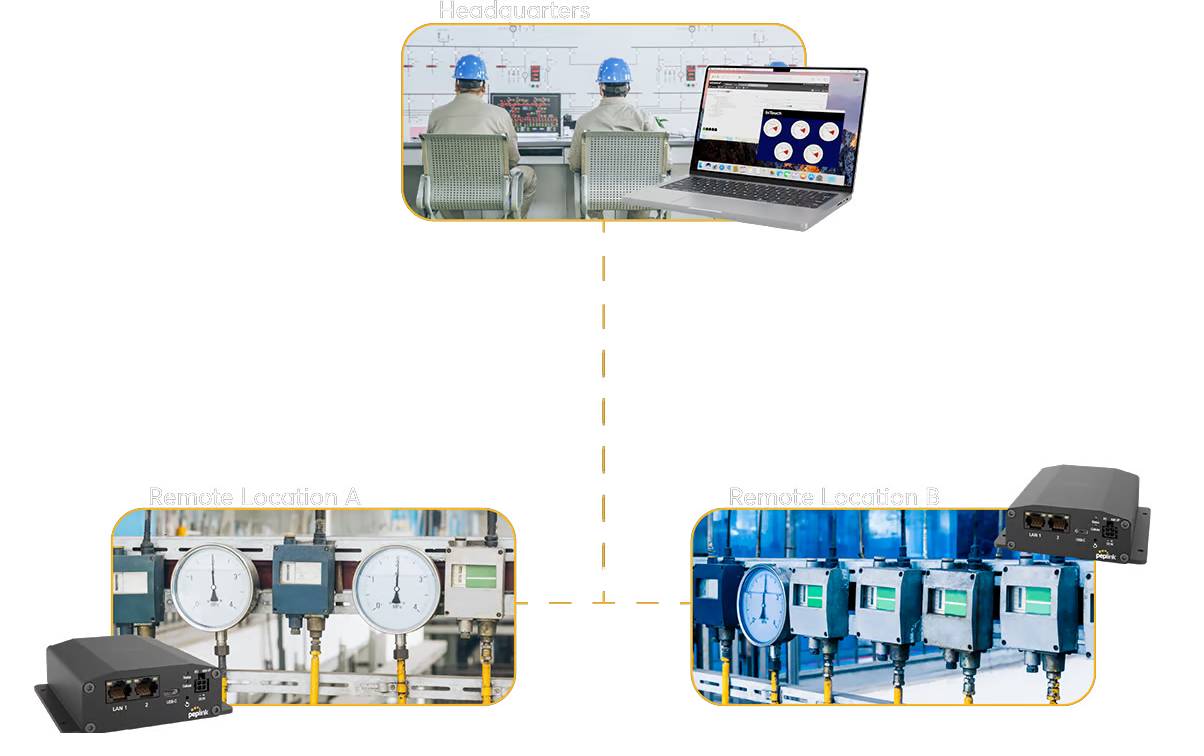

Remote device management with Peplink’s InControl and InTouch eliminates the need for pre-staging configurations and eliminates truck rolls.

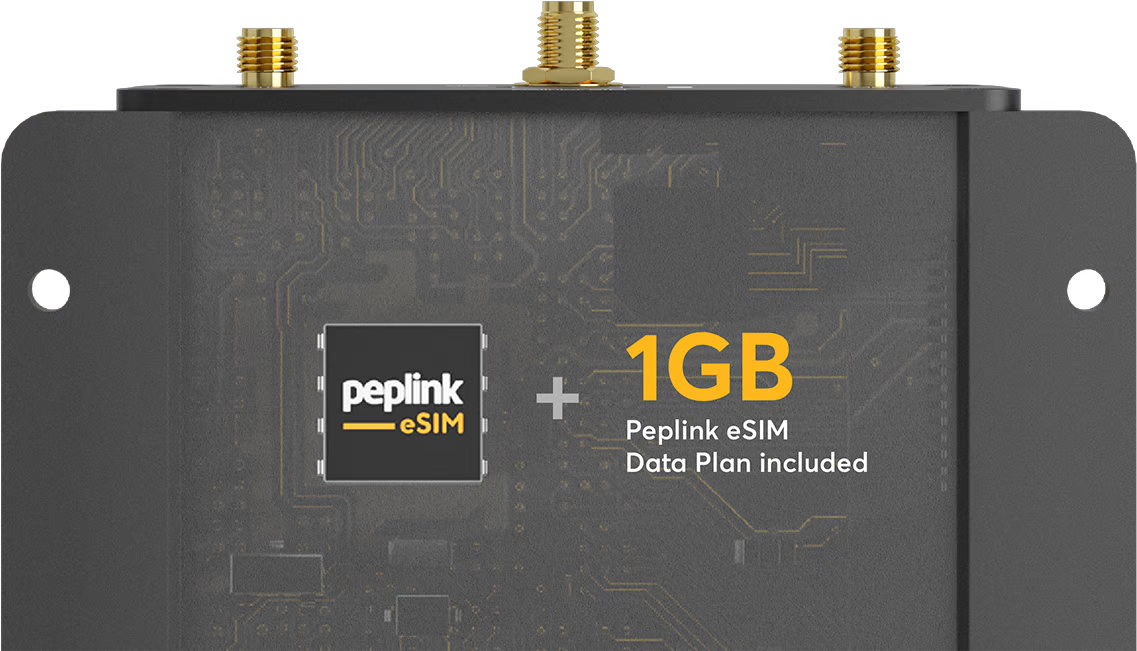

The MAX Adapter comes with 1GB of Peplink’s eSIM Data Plan. Connect the device to InControl and download your own eSIMs straight out of the box for quick and easy deployments.

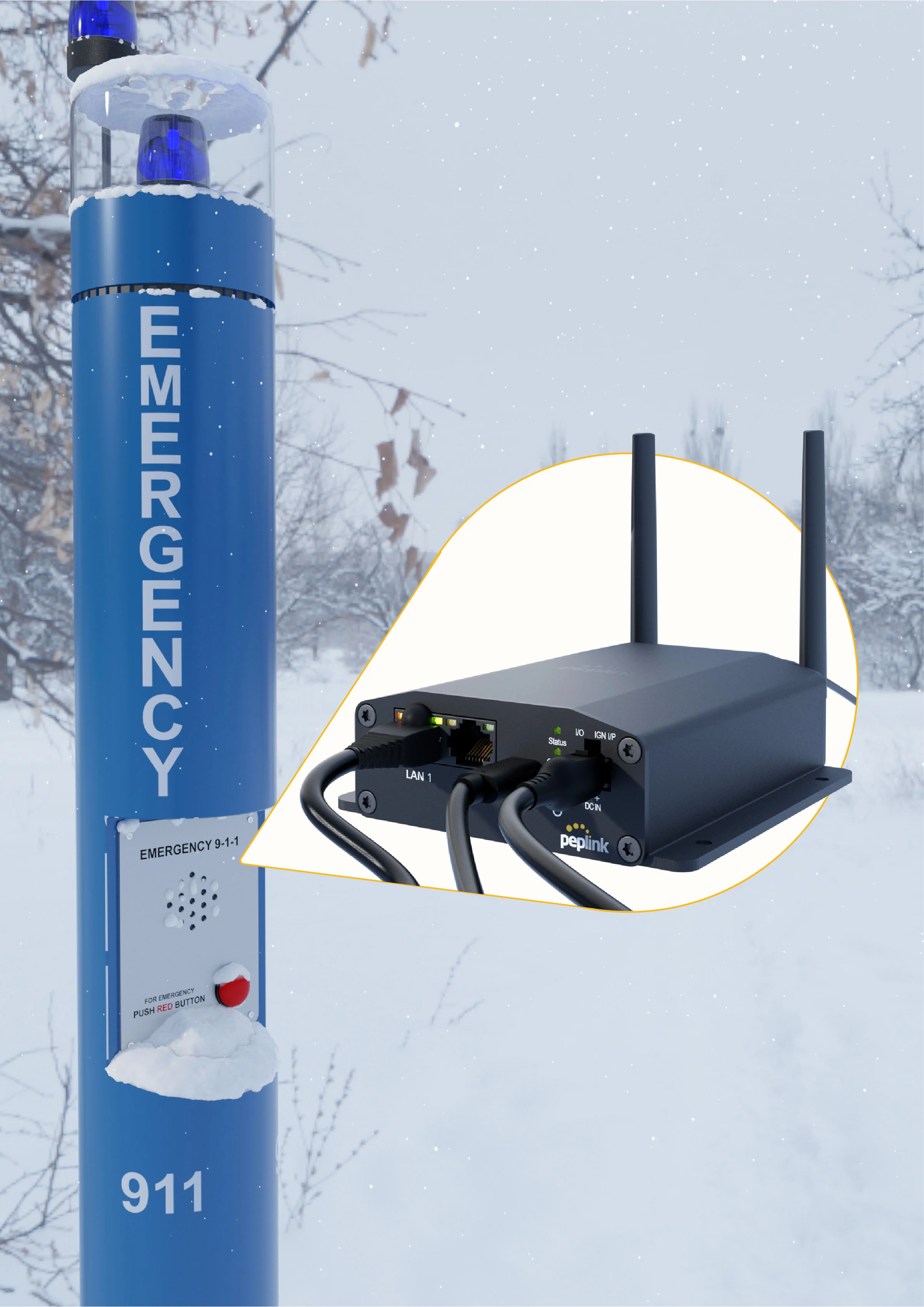

Add rugged, reliable cellular to your network anywhere it’s needed
- Metal, ventless case design
- Wide temperature operation range
-22° – 149°F / -30° – 65°C

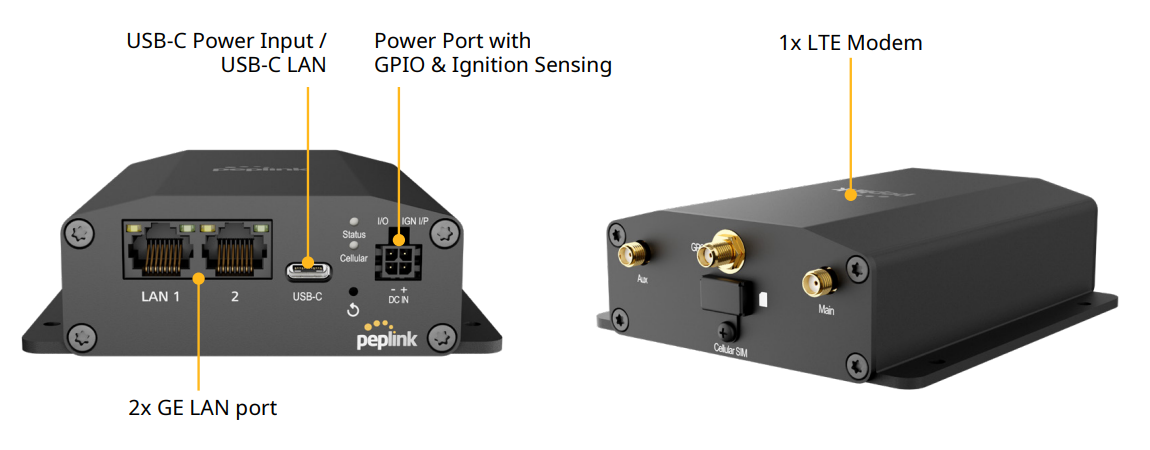

Better connectivity to your devices

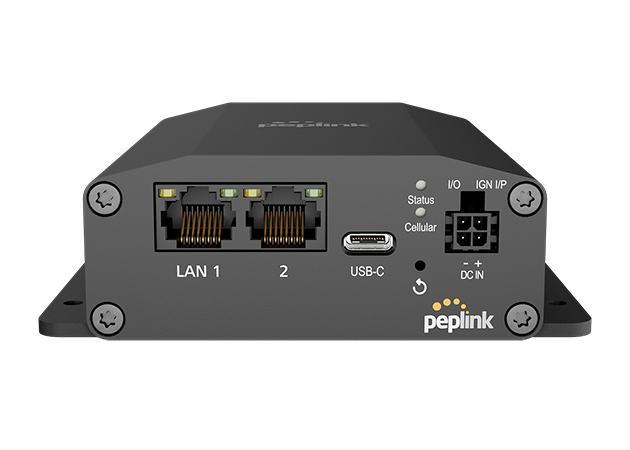

- Ethernet LAN port
- USB-C LAN port
CAT-4 Cellular modem
Certified with all major US Carriers
- T-Mobile
- Verizon
- AT&T
- FirstNet

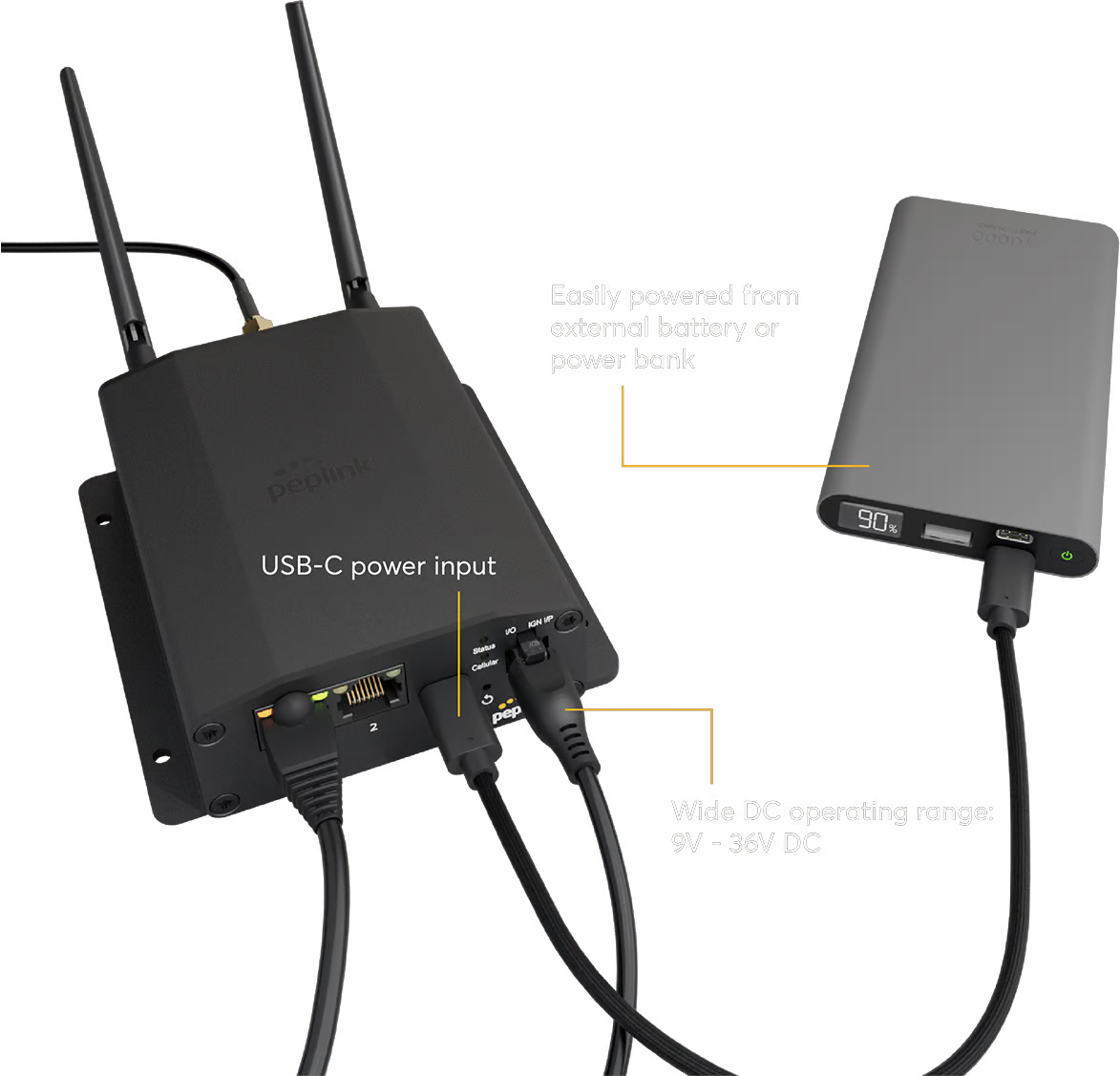

Flexible powering options
Low power input requirement and fast bootup time
Specifications:
| MAX Adapter Specifications | |
|---|---|
| WAN Interface | 1x Embedded Cellular Modem |
| LAN Interface | 2x 10/100/1000M Ethernet 1x USB-C1 |
| Feature | GPIO, Ignition Sensing |
| Recommended Users | 1-60 |
| Cellular Data Rate2 (Downlink/Uplink) | CAT-4: 150 Mbps/50 Mbps |

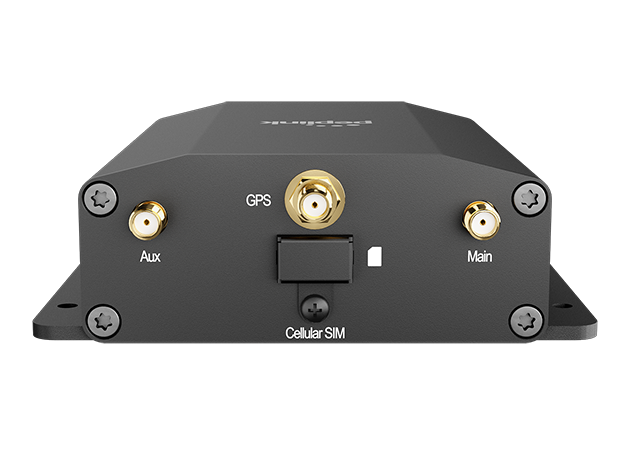

| Antenna Connectors | 2x SMA Cellular Antenna Connectors 1x SMA GPS Antenna Connector |
| Power Input | AC Adapter: AC Input 100V–240V / DC Output 12V Power Port: 9V – 36V DC USB-C Port: 5V 2A DC |
| Power Consumption | 2.2W (nominal), 5.7W (max.) |
| Dimensions | 5.0 x 4.2 x 1.4 inches / 125.7 x 107 x 35 mm |
| Weight | 0.78 pounds / 355 grams |
| Operating Temperature | -22° – 149°F / -30° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications | FCC, CE, RoHS EN 61000 Electromagnetic Compatibility |
| Package Content | 1x MAX Adapter 2x LTE Antennas (ACW-234) 1x GPS Active Antenna 1x 12V 2A 4-pin Power Supply |

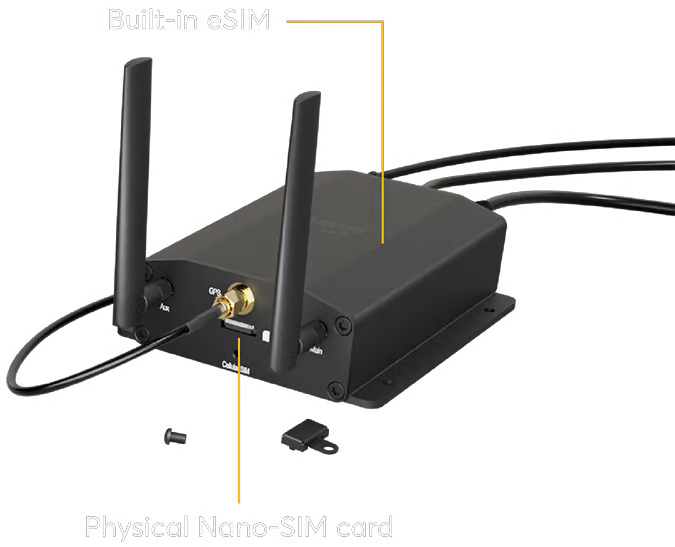

| SIM Options | Nano-SIM (4FF) Peplink eSIM BYO eSIM (1 profile) |
| Warranty | 1-Year Limited Warranty |
1 USB-C port supports RNDIS driver for virtual ethernet.
2 Maximum theoretical data rate.
Documentation:
Download the Peplink MAX Adapter Datasheet (PDF).
