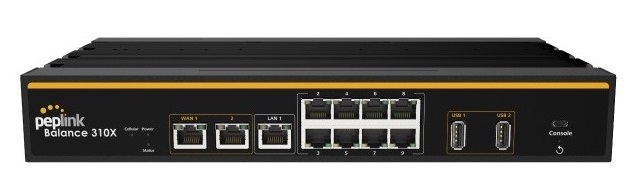

Peplink Balance 310X
Futureproof Enterprise-Grade Branch Router
Balance 310X, 1x GE WAN ports, 4x GE LAN ports and 1x LTE modem (CAT 4)
Get a Quote!
Enterprise SD-WAN router for Medium Branches
Get a Quote!
More pricing below, click here!
Overview:
Extreme Performance
As a member of our “X” series, the Balance 310X offers extreme performance and futureproof design at a practical price point. With 12 Gbps of throughput, the 20X can handle the bandwidth requirements of any enterprise branch network. The SDX also supports a FlexModule, enabling you to customize the router with your choice of ports, as well as instantly apply new technology as we release new modules.
Affordable High Performance
Add Cellular Backup
Back up your xDSL with a cellular link (up to two with the FlexModule Mini) and redundant SIM cards. When a line goes down, your office won’t even notice.

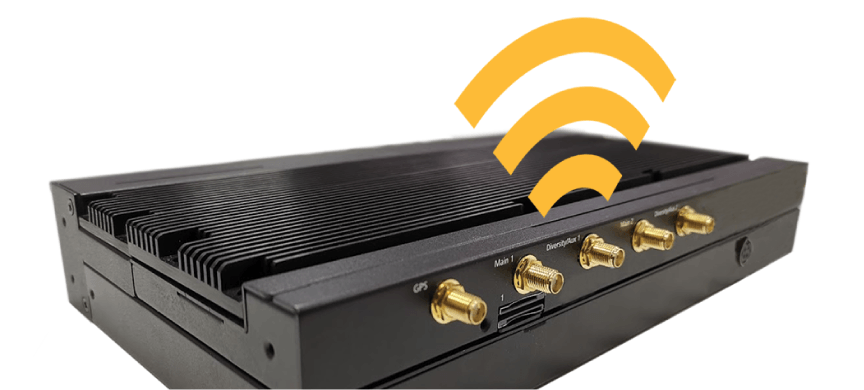

Unbreakable Connectivity with LTE
The Balance 310X provides built-in LTE for seamless failover. Patented SpeedFusion technology combines multiple connections for jitter-free calls and high-speed transfers.
Better with PrimeCare
Everything’s Included:
PrimeCare includes everything you need to provide your office with unbreakable, scalable connectivity

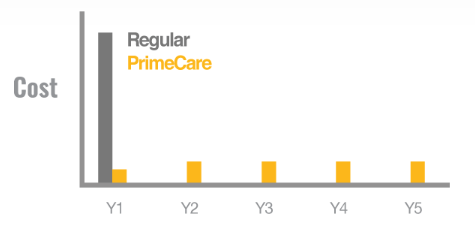

Pay Less Upfront:
PrimeCare lowers the entry cost of getting the device you want. Annual subscription gets you a wide range of services.
Specifications:
| Balance 310X | |
|---|---|
| WAN Interface | 2x USB Interface 2x GE 1x Embedded LTE-A Modem with Redundant SIM Slot |
| SpeedFusion Hot Failover | |
| SpeedFusion WAN Smoothing | |
| SpeedFusion Bandwidth Bonding | |
| Number of PepVPN SpeedFusion Peers | 2/30 |
| LAN Interface | 9x GE |
| Router Throughput | 2.5 Gbps |
| PepVPN/SpeedFusion Throughput | No Encryption: 600 Mbps 256-bit AES: 500 Mbps |
| LTE Modem | LTE Advanced Pro CAT-12/ CAT-18 CAT 12: Downlink/Uplink Datarate: 600 Mbps/150 Mbps CAT 18: Downlink/Uplink Datarate: 1.2 Gbps/150 Mbps |
| Recommended Users | 50-500 |
| Cellular and GPS Antenna Connector |
2x SMA Antenna Connectors (for CAT-12) 4x SMA Antenna Connectors (for CAT-18) 1x SMA GPS Antenna Connector |
| Power Input | Power Din DC: 12V - 30V |
| Power Consumption | 30W (max.) |
| Dimension (W x D x H) |
1.7 x 11.5 x 7.0 inches 43 x 292 x 177 mm |
| Weight | 7.28 pounds 3.3 kg |
| Operating Temperature | -40° – 149°F -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications | CE, FCC, RoHS |
| Warranty | 1-Year Limited Warranty |
Compare:
| Small Office / Branch | 20 | 20X | 30 LTE | 30 PRO | ONE | TWO | 210 | 310X |
|---|---|---|---|---|---|---|---|---|
| Product Code | BPL-021 | BPL-021X- LTE |
BPL-031- LTE |
BPL-031- LTEA |
BPL-ONE | BPL-TWO | BPL-210 | BPL-310X |
| Capacity | ||||||||
| Ethernet WAN Ports | 2 (GE) + | 1 (GE) | 2 (GE) | 2 (GE) | 2/5 (GE) # | 2 (GE) | 2 (GE) + | 2 (GE) |
| LAN Ports | 4 (GE) | 4 (GE) | 4 (GE) | 4 (GE) | 8/5 (GE) # | 4 (GE) | 7 (GE) | 9 (GE) |
| Simultaneous Dual-Band 802.11ac/a/b/g/n Wi-Fi AP | No | Yes | No | Yes | Yes | No | No | No |
| Embedded 4G LTE | No | Yes | Yes | Yes | No | No | No | Yes |
| SIM Card Size | No | Mini-SIM (2FF) | Mini-SIM (2FF) | Mini-SIM (2FF) | No | No | No | Mini-SIM (2FF) |
| USB WAN Modem Port1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| Recommended Users2 | 1-60 | 1-60 | 1-60 | 1-60 | 1-60 | 25-150 | 25-150 | 50-500 |
| Stateful Firewall Throughput3 | 150Mbps | 900Mbps | 200Mbps | 400Mbps | 600Mbps/ 400Mbps # |
1Gbps | 350Mbps | 2.5Gbps |
| Core Functionality | ||||||||
| 802.1q VLANs Supported | 16 | 6 | 16 | 16 | 128 | 128 | 128 | 1024 |
| Port-Based VLAN | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Load Balancing & Failover | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Load Balancing Algorithms | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Drop-In Mode | No | Yes | No | No | No | No | Yes | Yes |
| Inbound Load Balancing | No | No | No | No | No | No | Yes | Yes |
| InControl Cloud Management | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PepVPN/SpeedFusion Functionality | ||||||||
| PepVPN | Yes % | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| SpeedFusion Hot Failover | No | Yes | No | Yes | No* | No* | Yes | Yes |
| SpeedFusion WAN Smoothing | No | Yes* | No | No* | No* | No* | Yes | Yes |
| SpeedFusion Bandwidth Bonding | No | Yes* | No | No* | No* | No* | Yes | Yes |
| Number of PepVPN/SpeedFusion Peers4 | 2/5 ! | 2/5 ! | 2/5 ! | 2/5 ! | 2/5/20 ~^ | 2/5/20 ~^ | 2/5 ! | 2/30 & |
| PepVPN Throughput (256-bit AES)3 | 30Mbps | 60Mbps | 55Mbps | 55Mbps | 30Mbps | 150Mbps | 80Mbps | 500Mbps |
| PepVPN Throughput (No Encryption)3 | 60Mbps | 100Mbps | 120Mbps | 120Mbps | 60Mbps | 150Mbps | 150Mbps | 600Mbps |
| IPsec/L2TP/PPTP VPN Functionality | ||||||||
| IPsec VPN (Network-to-Network)5 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Number of IPsec Tunnels | 2 | 5 | 2 | 2 | 2 | 2 | 2 | 5 |
| Remote User Access | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| L2TP VPN Server | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| OpenVPN Server | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PPTP VPN Server | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Maximum PPTP/L2TP/OpenVPN Users | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| GRE (Network-to-Network) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| AP Controller Functionality | ||||||||
| Pepwave AP Series Management | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Maximum Number of AP Supported | 10 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Remote AP & Multiple Config Profiles Management6 | No | No | No | No | No | No | No | No |
| Advanced QoS Functionality | ||||||||
| Bandwidth Usage Monitor | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| QoS for VoIP and E-Commerce | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| User Groups Bandwidth Control | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Web Blocking | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Web Filtering Blacklist | No | Lite | No | No | Lite | Lite | Lite | Full |
| Hardware | ||||||||
| Operating Temperature | -40° – 149°F -40° – 65°C |
14° – 113°F -10° – 45°C |
-40° – 149°F -40° – 65°C |
-40° – 149°F -40° – 65°C |
23° – 113°F -5° – 45°C |
32° – 104°F 0° – 40°C |
-40° – 149°F -40° – 65°C |
-40° – 149°F -40° – 65°C |
| LACP (802.3ad) NIC Bonding | No | No | No | No | No | No | No | No |
| Power Consumption | 15W | 28W | 28W | 28W | 15W | 40W (max.) | 15W | 30W |
| 1U Rackmount | No | No | No | No | No | No | Yes | Yes |
| High Availability | No | No | No | No | No | No | Yes | Yes |
| LAN Bypass | No | No | No | No | No | No | No | No |
| Dual Hot Swap Power Supply | No | No | No | No | No | No | No | No |
| Certifications | ||||||||
| FCC, CE, RoHS | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Warranty | 1-Year Limited Warranty | |||||||
[1] For a list of supported modems, please refer to https://www.peplink.com/technology/4g3g-modem-support/.
[2] Recommendation for sizing purposes only. No software restrictions applied.
[3] Router Throughput and PepVPN/SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
[4] Number of peer Peplink or Pepwave devices you can connect using SpeedFusion VPN.
[5] IPsec only supports connection with Cisco, Juniper, Peplink or Pepwave devices.
[6] Balance 20/30 LTE/One/210/310 comes with AP Controller Standard, which supports up to two configuration profiles with multiple SSIDs, meaning that all APs will share the same configuration, and you can only manage APs on the local physical LAN. Balance 305/380/580/710/1350/2500 comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN.
+ Balance 20 and 210 have an extra WAN port which can be activated through license key. Click here to learn more.
# If the WAN Activation License (BPL-ONE-LC-5WAN) is activated, router throughput will be changed to 400Mbps, both number of WAN and LAN will become 5.
^ PepVPN is supported on all models. SpeedFusion is an optional feature.
* Balance 2500 are available different configurations. Please refer to ordering information for details.
% Balance 20/30 LTE requires firmware 6.1 to support PepVPN.
! 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05.
& 2 SpeedFusion Peers are enabled by default. Can be increased to 30 Peers with purchase of SpeedFusion Bonding License SFN-LC-30.
~ 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05 or to 20 Peers using license MAX-HD-020-SPF.
@ 30/50 SpeedFusion Peers are enabled by default for Balance 380/580 respectively. Can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100.
Documentation:
Download the Peplink Balance 310X Datasheet (PDF).
