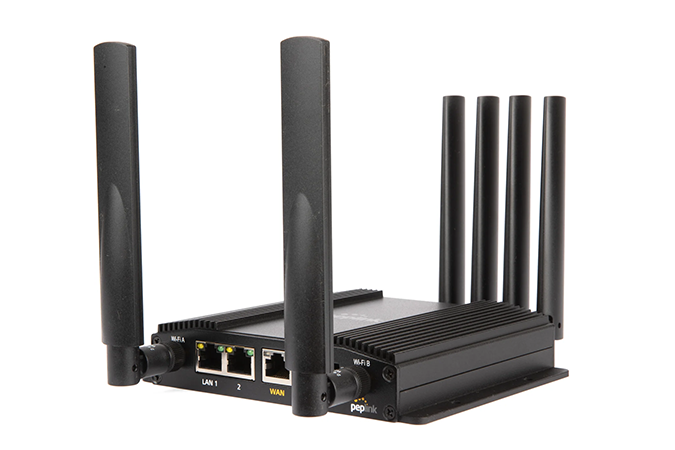

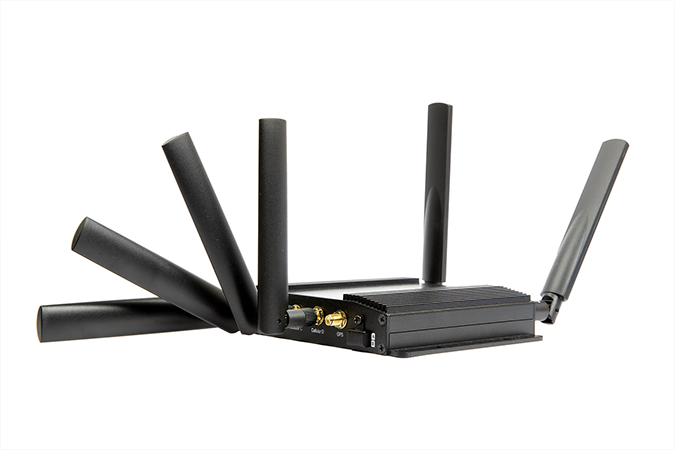

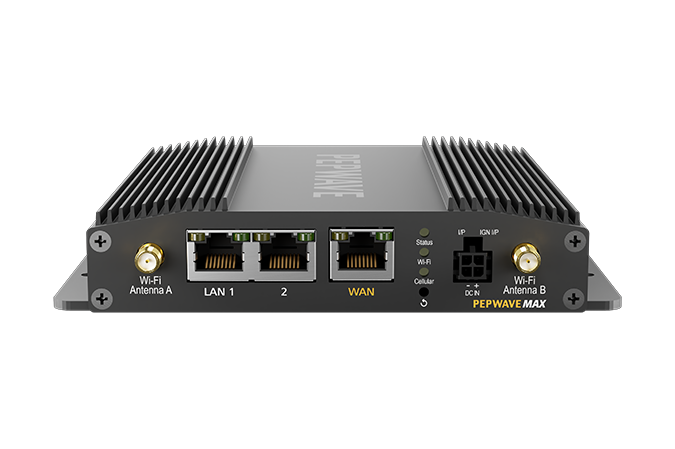

Peplink MAX BR1 Pro CAT-20
Single Cellular Cat 20 Mobile Router
Our Price: $699.00
More pricing below, click here!
Overview:
Wi-Fi just got better
Connect multiple devices simultaneously, and experience faster throughput speeds and better bandwidth congestion with the latest Wi-Fi 6, all with less interference.
SpeedFusion Ready
Enable the endless possibilities of SpeedFusion technology just by simply connecting to SpeedFusion Connect from wherever you are.

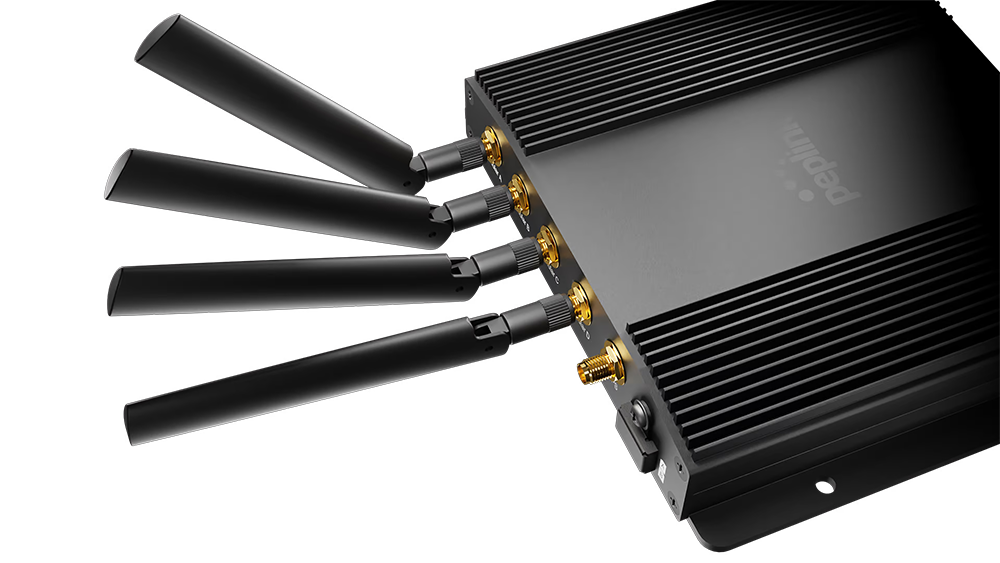

Performance Boost
The BR1 Pro has been boosted with a CAT-20 modem which can achieve speeds of up to 800% faster than the original BR1 Pro.

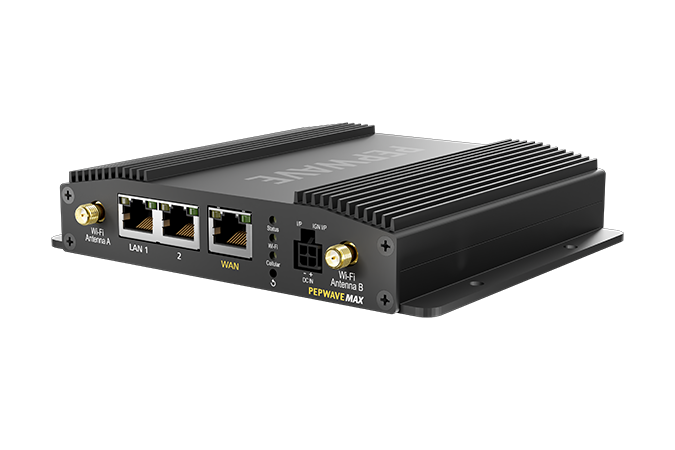

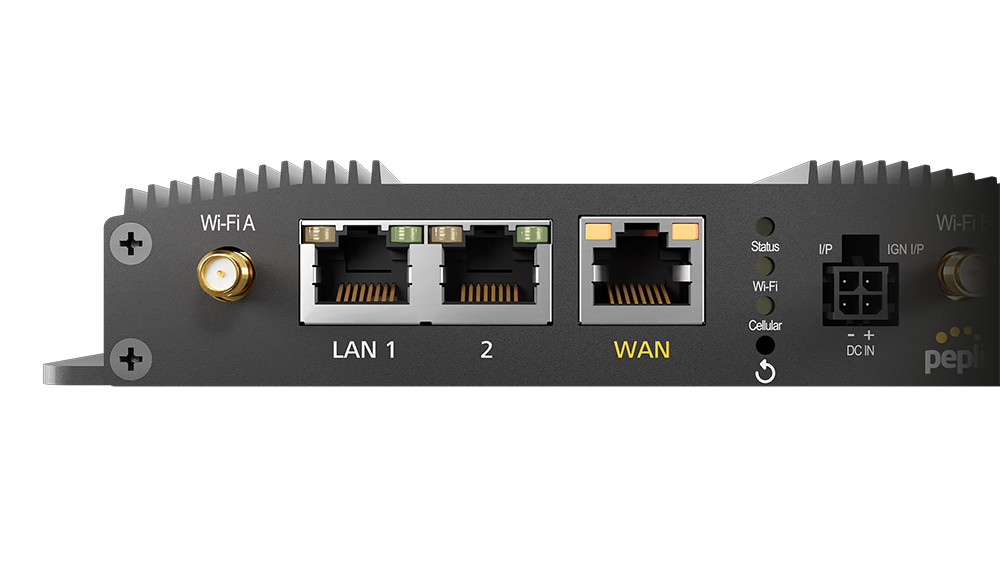

Hardcore Capabilities

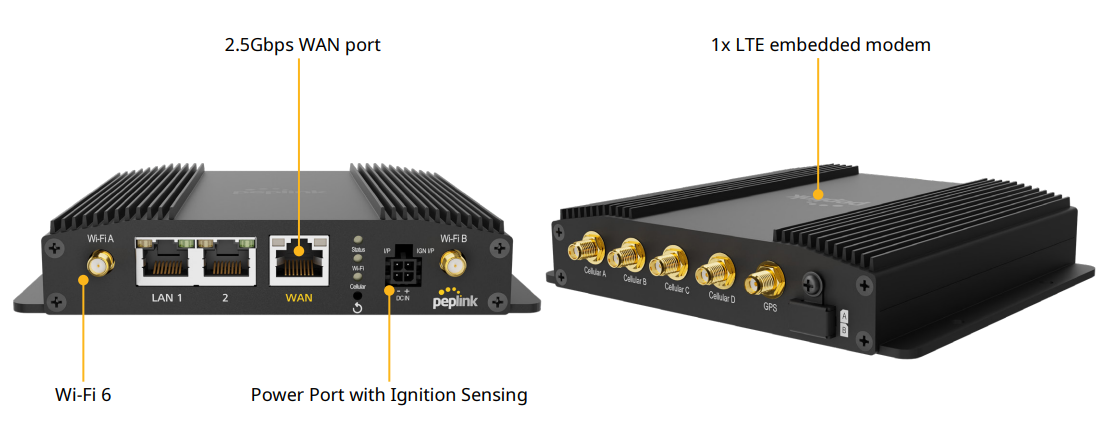

The BR1 Pro comes equipped with a 2.5Gbps Ethernet port, making it compatible for your network devices to run at their designated speeds without limitations.
Deploy Anywhere
Certified toughness and wide operating temperatures mean you can just deploy, forget, and enjoy the benefits.
Specifications:
| MAX BR1 Pro CAT-20 Specifications | |
|---|---|
| WAN Interface | 1x 10/100/1000/2500M Ethernet1 1x LTE-A Pro Modem with Redundant SIM Slots |
| LAN Interface | 2x 10/100/1000M Ethernet |
| Wi-Fi Interface | Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6, 2X2 MIMO Wi-Fi WAN and/or AP |
| SpeedFusion features | Hot Failover2, WAN Smoothing2, Bandwidth Bonding2 |
| Number of SpeedFusion VPN Peers | 2 / 5 3 |
| Features | Drop-in Mode Load Balancing/Failover Ignition Sensing |
| Router Throughput | 1Gbps |
| SpeedFusion Throughput (No Encryption) | 400Mbps |
| SpeedFusion Throughput (256-bit AES) | 200Mbps |
| Recommended Users | 1-150 |
| AP Controller | Standard4 |
| Maximum Number of AP Supported | 30 4 |
| Cellular Data Rate5 (Downlink/Uplink) | CAT-20: 2 Gbps / 211 Mbps |

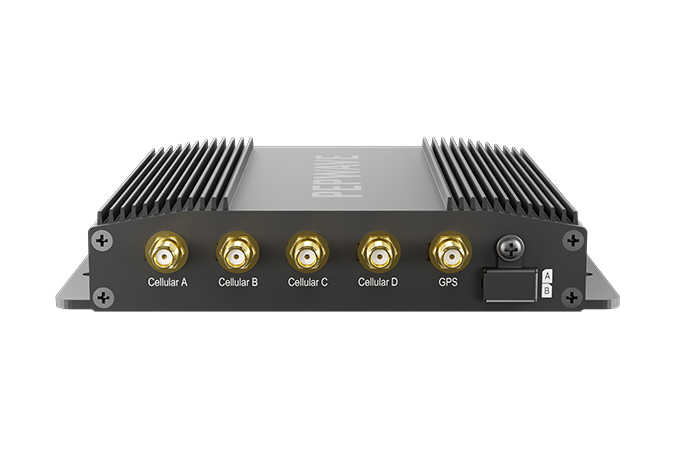

| Antenna Connectors | 4x SMA Cellular Anetenna Connectors 2x RP-SMA Wi-Fi Antenna Connectors 1x SMA GPS Antenna Connector |
| Power Input | 10 - 30V |
| Power Consumption | 8W (nominal), 19W (max.) |
| Dimension | 5.78 x 5.08 x 1.15 inches / 146.8 x 129 x 29.3 mm |
| Weight | 1.5 pounds / 680 grams |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certification | FCC, CE, RoHS E-Mark (Motor Vehicle)6 EN61373 Shock and Vibration Resistance6 EN50155 Railway Applications Electronic Equipment used on Rolling Stock EN61000 Electromagnetic Compatibility EN45545-2 Railway applications - Fire protection |

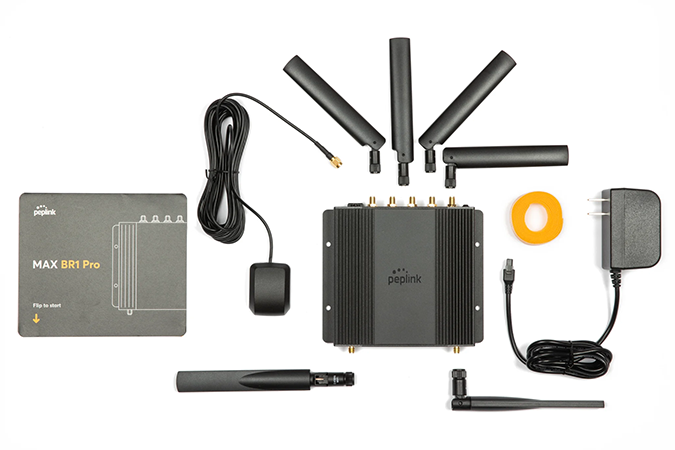

| Package Content | 1x MAX BR1 Pro CAT-20 4x LTE/5G Antennas (ACW-234) 2x Dual Band Wi-Fi Antennas (ACW-341) 1x GPS Active Antenna (ACW-232) 1x 12V 2A 4pin Power Supply (ACW-632) |
| SIM Options | Nano-SIM (4FF) |
| Warranty | 1-Year Limited Warranty |
1 The WAN port can act as a LAN port if needed.
2 Requires a PrimeCare subscription, complimentary for the first year.
3 2 SpeedFusion VPN Peers are enabled by default. 5 SpeedFusion VPN Peers are enabled with PrimeCare Subscription, complimentary for the first year
4 Will be supported in a future firmware upgrade.
5 Theoretical maximum data rates.
6 Certifications Pending.
Documentation:
Download the Peplink MAX BR1 Pro CAT-20 Datasheet (PDF).
