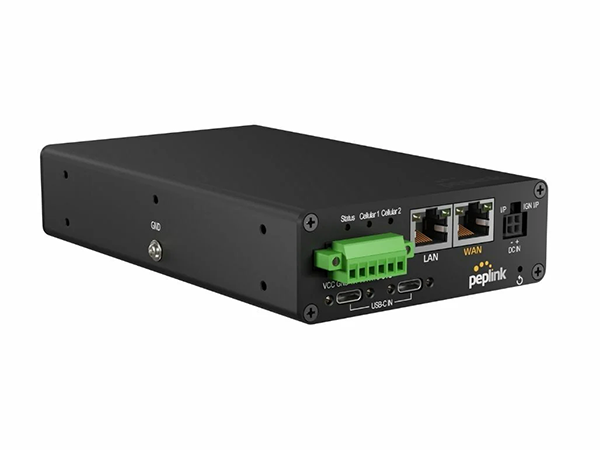

Peplink MAX Transit Duo Pro
Cat 7 LTE Advanced Router
Get a Quote!
More pricing below, click here!
Overview:
Wait no more, experience the new fast

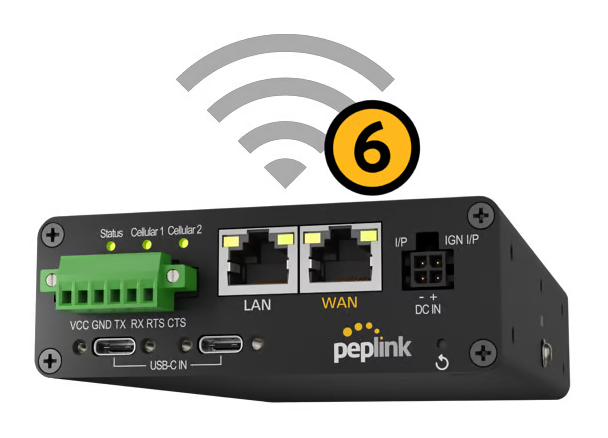

Why settle for less advanced Wi-Fi, throughput and SpeedFusion speed? Experience it all, but faster with Wi-Fi 6!
It’s got the power!

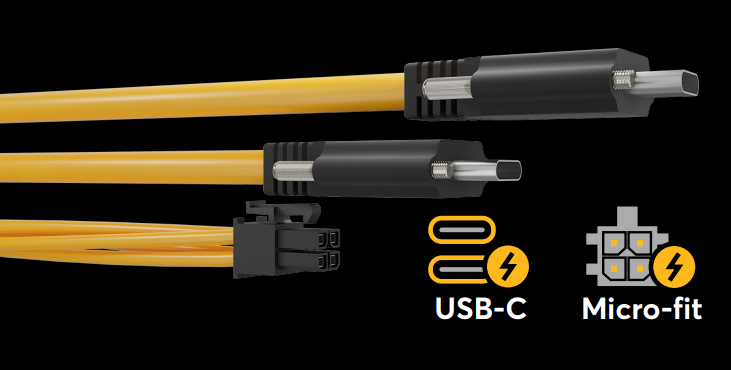

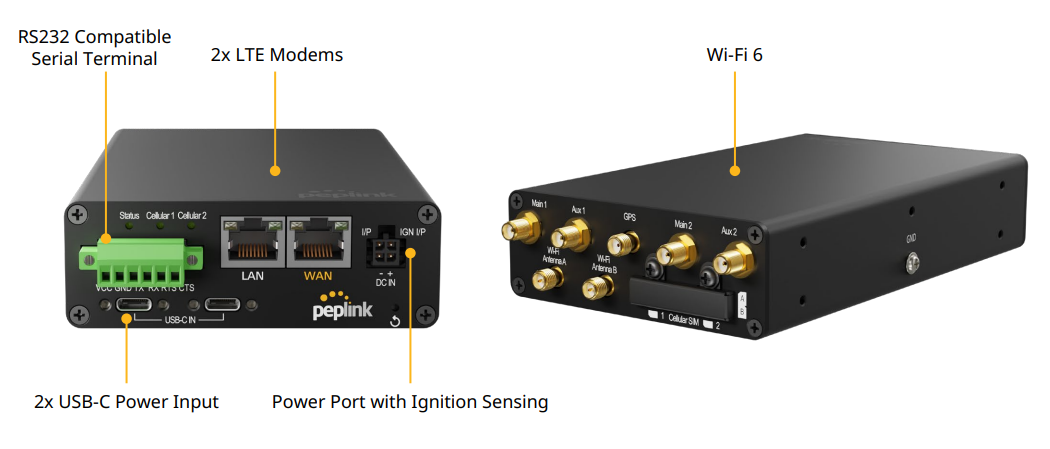

Achieve non-stop power for fixed deployments or on-the-go mobile deployments with duo USB-C power bank input ports. Equipped with a Micro-Fit power connector to secure your power source, ensuring that your device remains powered on with no outage. Believe it’s got the power!
Poor connectivity? No problem!
A simple connection to SpeedFusion Cloud keeps your connection unbreakable. With intricately placed endpoints globally, it ensures you remain connected wherever you are.
Elevate the way you manage SIMs
Elevate the way you manage SIMs with eSIM support and sophisticated hardware like the SIM Injector. Manage SIMs more efficiently from anywhere, at any time.
Safeguard your applications
MAX Transit Duo Pro offers flexibility in the ways you can create SpeedFusion VPN tunnels, enabling 256-bit AES Encryption to ensure your applications are kept protected, so that you can browse with confidence.
Running applications just got easier!
Want to run third party applications directly with your MAX Transit Duo Pro? Well now you can! With edge computing Docker and Python*, the possibilities are endless!
Bundle Offer
Receive a complimentary SpeedFusion Connect Pack with the purchase of any additional PrimeCare plan (available in 2 or 4 year options).^ The SFC Pack includes SFC Protect and a bucket of SFC LTE/5G with global access.#
^ Contact your reseller for more information.
# The SFC pack includes 2.5TB SFC Protect and 30GB SFC 5G/LTE

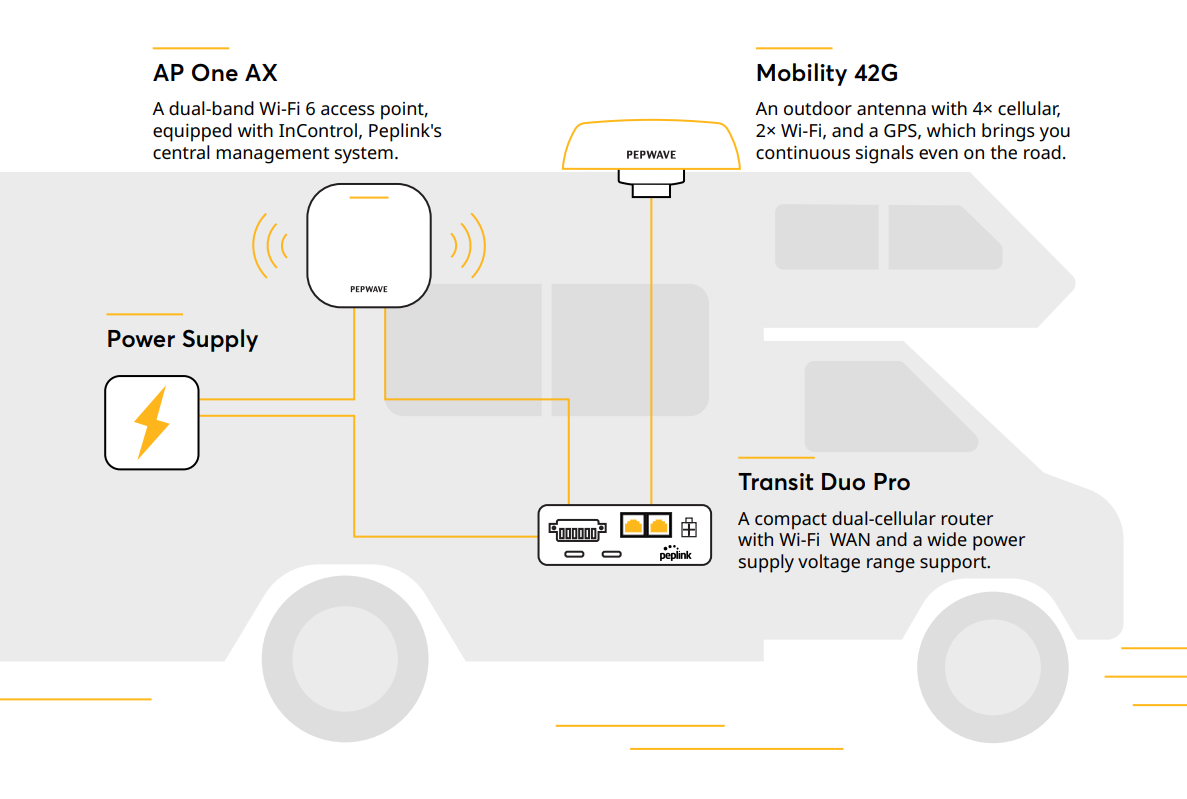

Recreational Vehicle Application
Specifications:
| Transit Duo Pro Specifications | |
|---|---|

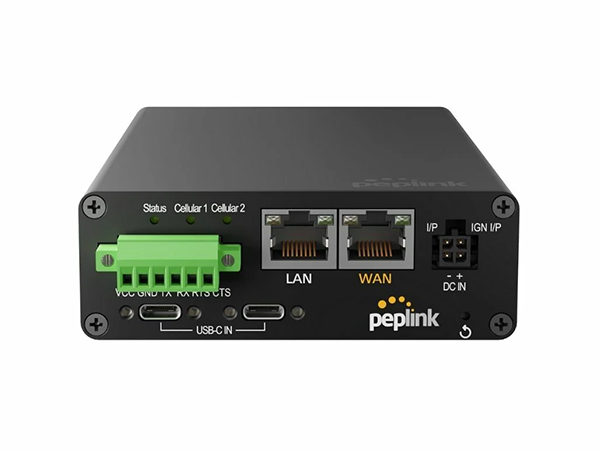

| WAN Interface | 2x 10/100/1000M Ethernet 2x Embedded Cellular Modems with Redundant SIM Slots |
| LAN Interface | 1x 10/100/1000M Ethernet |
| Wi-Fi Interface | Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6, 2X2 MIMO Wi-Fi WAN and/or AP |
| SpeedFusion features | Hot Failover1 / Smoothing1 / Bandwidth Bonding1 |
| Number of SpeedFusion VPN Peers | 2 / 5 2 |
| Features | Edge Computing with 8GB Storage Ignition Sensing |
| Router Throughput | 1Gbps |
| SpeedFusion Throughput (No Encryption) | 400Mbps |
| SpeedFusion Throughput (256-bit AES) | 200Mbps |
| Recommended Users | 25-150 |
| Cellular Data Rate3 (Downlink/Uplink) | CAT-12: 600 Mbps / 150 Mbps CAT-7: 300 Mbps / 150 Mbps |

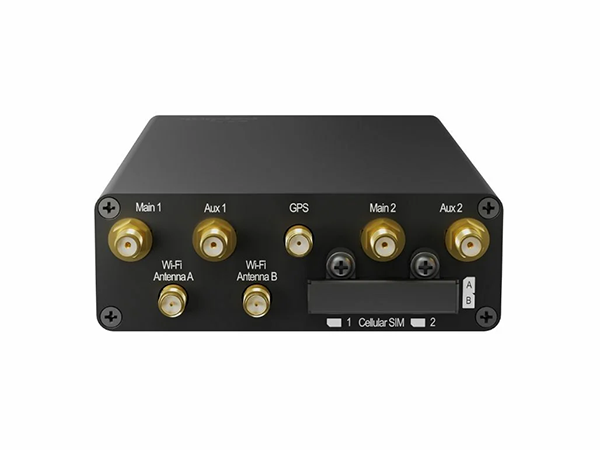

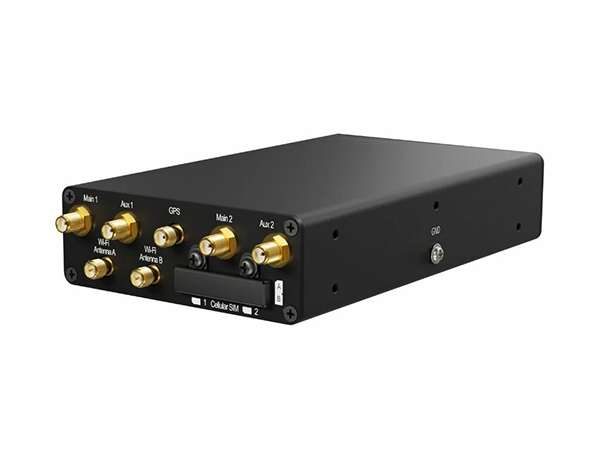

| Antenna Connectors | 4x SMA Cellular Antenna Connectors 2x RP-SMA Wi-Fi Antenna Connectors 1x SMA GPS Antenna Connector |
| Power Input | Power Port: 12V – 56V DC AC Adapter: AC Input 100V–240V / DC Output 12V 2x USB-C 20V, 3A each for Power Input Terminal Block: 12V – 56V DC |
| Power Consumption | 10W (nominal), 18W (max.) |
| Dimension | 6.3 x 3.8 x 1.3 inches / 160 x 97 x 33.5 mm |
| Weight | 1.61 pounds / 730 grams |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certification | FCC, CE, RoHS E-Mark EN61373 Shock and Vibration Resistance EN50155 Railway Applications Electronic Equipment used on Rolling Stock EN61000 Electromagnetic Compatibility |

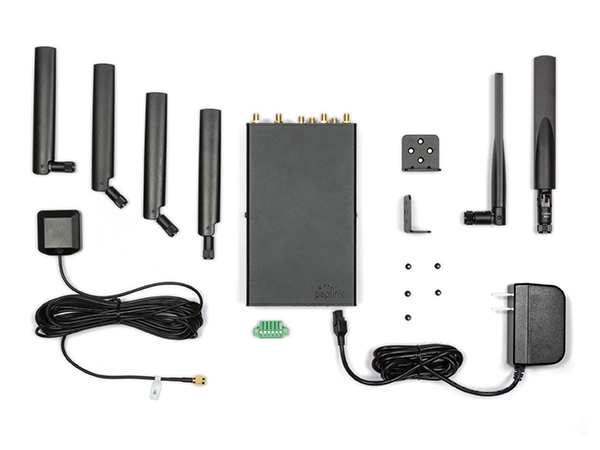

| Package Content | 1x Transit Duo Pro 4x LTE Antennas (ACW-234) 2x Wi-Fi Dual Band Antennas (ACW-341) 1x GPS Active Antenna (ACW-232) 1x 12V 2A 4 Pin Power Supply (ACW-632) 1x 6 Pin Terminal Block Connector 1 Pair of Mounting Brackets (ACW-724) |
| SIM Options | Nano-SIM (4FF) Peplink eSIM BYO eSIM (2 profiles per modem)4 RemoteSIM from SIM Injector FusionSIM |
| Warranty | 1-Year Limited Warranty |
1 Requires a PrimeCare subscription, complimentary for the first year. Enabled by default since Firmware 8.5.0 or above.
2 5 SpeedFusion VPN Peers are enabled for PrimeCare models which requires a PrimeCare subscription, complimentary for the first year.
3 Maximum theoretical data rates.
4 Available with Firmware 8.4.0 or above
Documentation:
Download the Peplink MAX Transit Duo Pro Datasheet (PDF).
