Peplink EPX
Industry's Highest Performing SD-WAN Platform

Peplink EPX
Pepwave Products
Peplink EPX
Peplink EPX
EPX Main chassis, Base Model, supports 8 expansion modules, 1x LCD Module
#EPX-M8
Contact us for Lowest Price!
Expansion Modules
Peplink EPX Expansion Module
Expansion Module with 1TB SSD, Features Content Hub, Docker Support and LCD Controls (Replaces existing LCD module)
#EXM-LCDT
Contact us for Lowest Price!
Expansion Module with 3x LTE-A Pro modems (CAT-12)
#EXM-3LTEA-R
Contact us for Lowest Price!
Expansion Module with 3x LTE-A modems (CAT-6)
#EXM-3LTEA-W
Contact us for Lowest Price!
Expansion Module with 4x SFP+ ports
#EXM-4F
Contact us for Lowest Price!
Expansion Module with 8x GE PoE ports
#EXM-8C
Contact us for Lowest Price!
Add-Ons
Peplink EPX- License Key
License Key to enable MediaFast with Content Hub and Docker (requires own disk drive to mount to the LCD Module).
#EPX-LC-MFA
Contact us for Lowest Price!

More pricing below, click here!

Overview:

Introducing the industry's highest performing SD-WAN platform. The EPX is a rapidly deployable, powerful, and versatile SD-WAN router that connects a wide range of WAN options from LTE-A, satellite modems, to fixed line networks. At a 19" 2U rack mountable form factor, it can combine up to 18x LTE-A connections for absolute connection reliability.

Disk Cloning

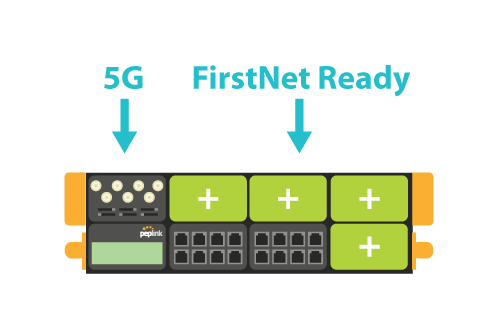

Futureproof and Scalable
Purchase just the modules for the connectivity you need. When you need more in the future, you can expand anytime. When future technologies like 5G and Firstnet appear, we will have modules to connect with those as well.

Archive Storage

Gigabit Bandwidth On-The-Go
In its cellular configuration, the EPX is the most powerful wireless SD-WAN router in the industry. It can combine the bandwidth of up to 18 connections, supporting 36 SIM cards and providing gigabits of bandwidth on-the-go.

File Storage

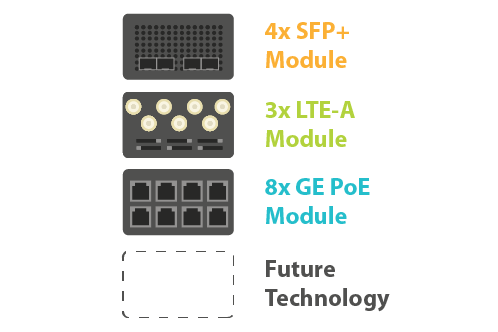

Multiple Module Types
The EPX can support different technologies depending on which modules you purchase. Also, when 5G technology appears, there will be modules for it too, ensuring that your investment is futureproof.

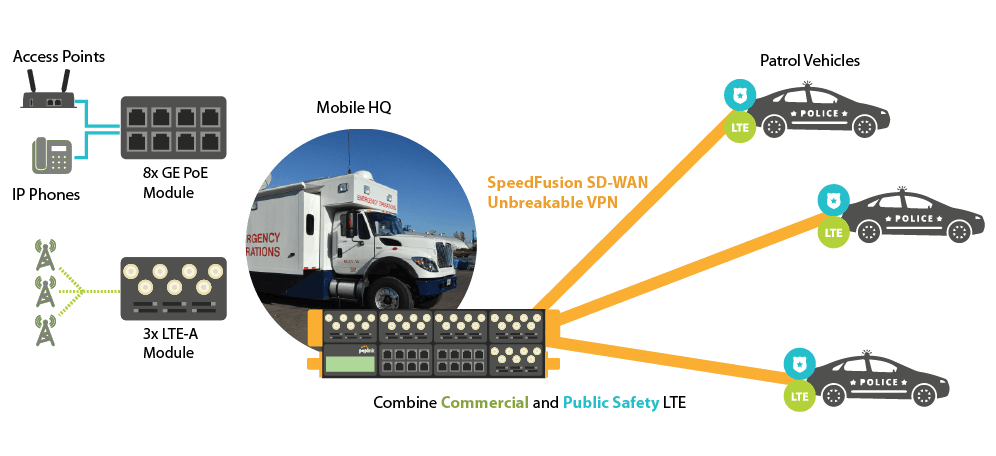

Rapidly Deployable, Scalable, Unbreakable Connectivity for Mobile Command.

Mobile Command

Equipped with an EPX, mobile headquarters can combine private LTE, commercial LTE and satellite links to form a fast, unbreakable VPN connection to headquarters and to patrol vehicles. With this configuration, patrol vehicles benefit from increased cellular coverage. Even if they are outside the range of one cellular provider, they will still be within the range of others. In addition, each cellular modem supports 2 SIM cards, effectively doubling the number of providers supported.

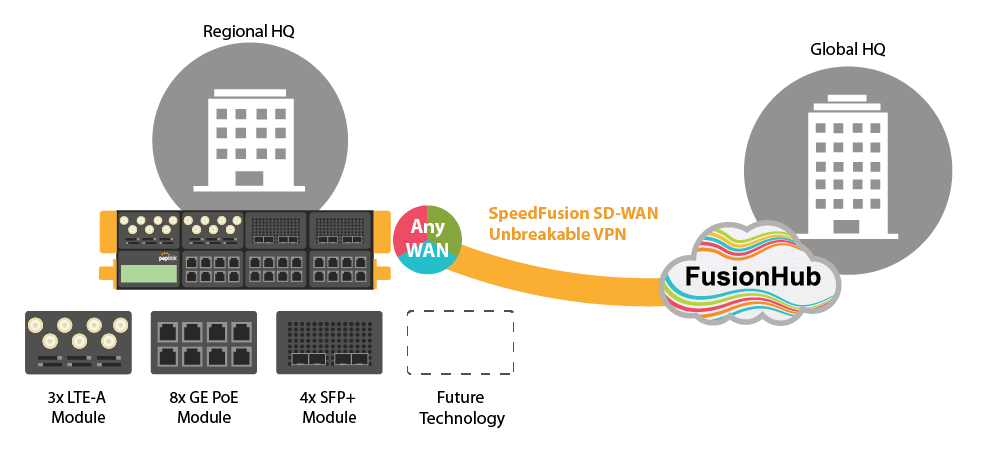

Future Proof, Scalable, Unbreakable Cellular Backup for Regional Offices.

Backup for regional offices

With its modular construction, the EPX enables regional offices to add WAN connections of any type as they grow in size. With the ability to add cellular modules, the EPX also provides as much cellular connectivity as needed for the company network to operate at full speed even if land lines lose connectivity. In the future when 5G gains popularity, there will be modules for it too. This makes the EPX futureproof for both bandwidth demand and for upcoming technology.

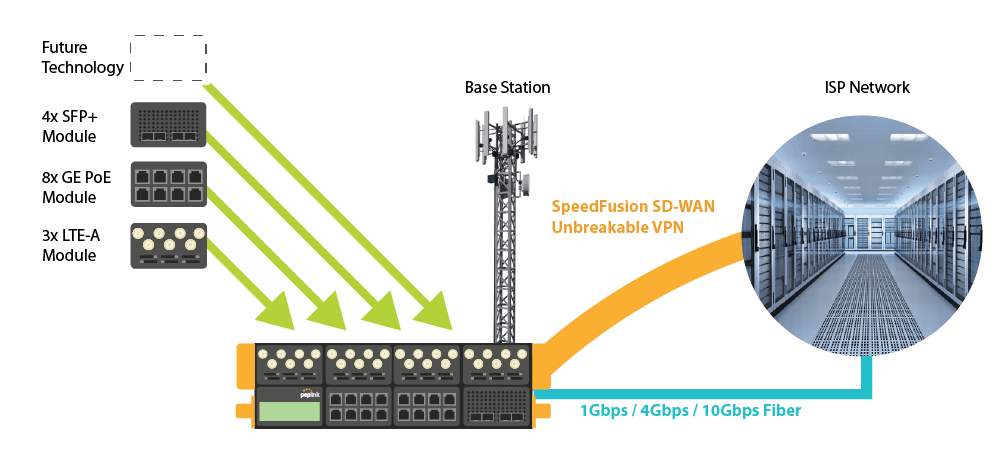

Add Flexible SD-WAN Backhaul to Any Network.

Flexible SD-WAN

Whether providing Internet service with a SLA, or building a video surveillance streaming network, ensuring service continuity is crucial. The EPX enables service providers to build a flexible SD-WAN backhaul to the main network, incorporating as many Ethernet, Fiber, and cellular links as needed to provide fast and solid connectivity. What’s more, Peplink’s cloud-based management software provides you with complete visibility and control of WAN usage.

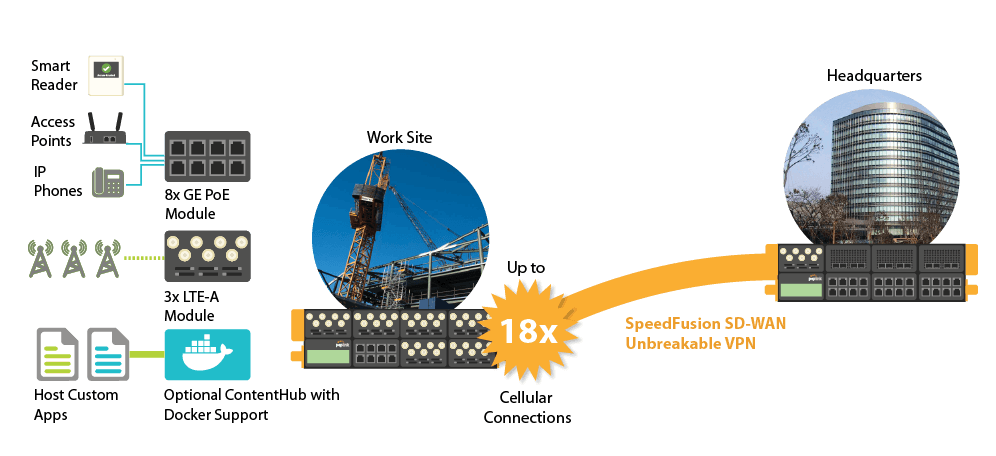

Instant Connectivity and Application Hosting for Work Sites and Events

Instant Connectivity

Getting a connection to a work site or to an event normally involves building a landline, potentially taking months. With the EPX, temporary sites could get connected in minutes. The EPX can combine up to 18 cellular connections for high-definition video streaming and high-volume data transfers. The EPX can also host docker containers, giving you the ability to host your own custom apps onsite to simplify management.


Specifications:

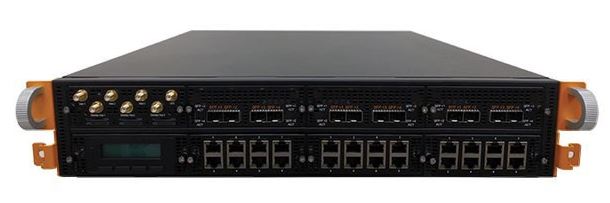

  EPX Main Chassis
Power Input AC Input 100V - 240V
Power Consumption 215W
Throughput 30Gbps
PepVPN Throughput (No Encryption) 4Gbps
PepVPN Throughput (256-bit AES) 2Gbps
Recommended Users 5000-20000+
Max. PepVPN/SpeedFusion Peers 4000
Dimensions 18.9 x 21.7 x 3.6 inches
480 x 550 x 90 mm
Weight (No Modules) 31.3 pounds
14.2 kilograms
Operating Temperature 32° – 113°F (0° – 45°C)
Humidity 5% – 90% (non-condensing)
Certifications FCC, IC, CE-RED
EN 50155: Railway Applications
EN 61373:1999 IEC 61373:1999 : Shock and Vibration Resistance
EN 50121: Rolling Stock EMC, Signalling and Telecom Apparatus
Warranty 1-Year Limited Warranty

Specifications - Expansion Modules

3x LTE-A Module (EXM-3LTEA)
Interface 3x Embedded LTE-A Cellular Modems
with Redundant SIM Slots
Antenna Connectors 6x SMA Cellular Antenna Connectors
1x SMA GPS Antenna Connector
Downlink/Uplink Datarate 300Mbps/50Mbps (LTE-A Modem)
600Mbps/150Mbps (LTE-A Pro Modem)
Power Consumption 20W
Weight 0.83 pounds
375 grams
8x GE PoE Module (EXM-8C)
Interface 8x 10/100/1000M Ethernet Ports
Capable of PoE+
Power Consumption 15W (255W max. with 802.3at/af PoE+ Output^)
Dimensions 4.1 x 7.4 x 1.5 inches
103 x 188 x 38 mm
Weight 1.1 pounds
475 grams
4x SFP+ Module (EXM-4F)
Interface 4x SFP+ Ports
Power Consumption 11W
Dimensions 4.1 x 7.4 x 1.5 inches
103 x 188 x 38 mm
Weight 0.83 pounds
375 grams

Documentation:

Download the Peplink EPX Datasheet (PDF).
