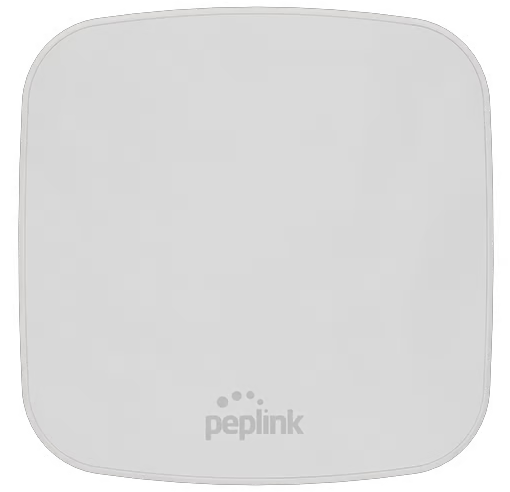

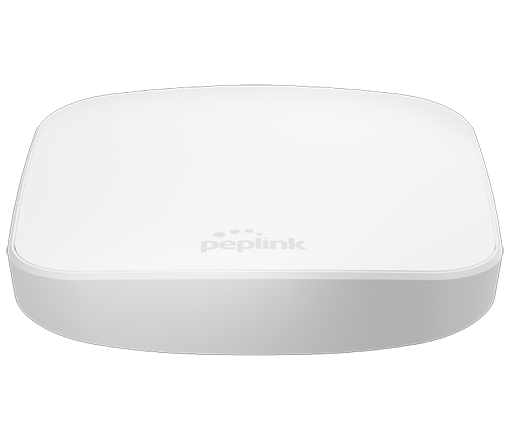

Peplink AP One Mini
11ac Wave 2 Access Point
Simultaneous Dual-Band 802.11ac/a/b/g/n Wave 2. Built-in omni antenna included.
Our Price: $179.00
More pricing below, click here!
Overview:
AP One Mini is an 802.11ac Wave 2 access point that delivers one of the fastest 11ac yet, and comes with multi-user MIMO (MU-MIMO) upgrade your network to 11ac wave 2 Wi-Fi. Our access points are compatible with the latest iPhone as well as other smartphones.

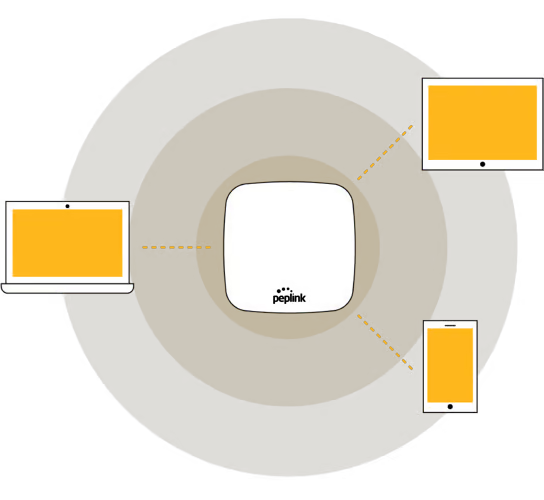

MU – MIMO
MU-MIMO offers significantly increased efficiency to your network. Now multiple client devices can receive data simultaneously through AP One Mini MU-MIMO and beamforming antenna technology, which concentrates and steers radio signals towards specific client devices.
Small Form Factor
Get big performance and durability from this 11ac access point. The plenum-rated, flame-resistant AC mini measures only 3.9″ x 3.9″ x 0.8″, so it fits just about anywhere.
Boost your Network
Upgrade your network to 11ac wave 2 Wi-Fi. Increase your wireless speeds with AP One Mini

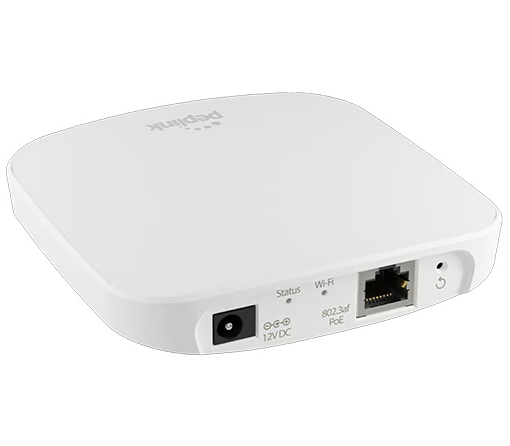

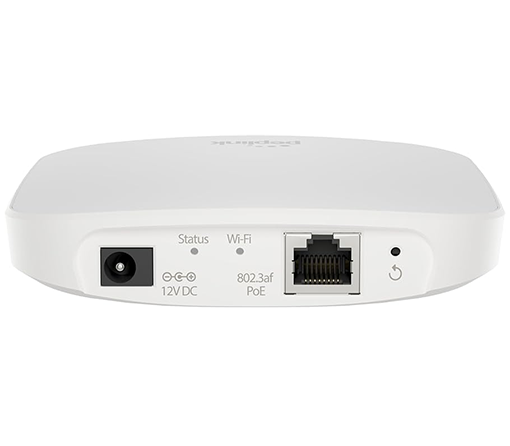

Built-in PoE
Ease your mind with 802.3af PoE input – say farewell to power cables.
User Access Control
Control network access with separate logins for each user group. AP One access points support up to 16 SSIDs, each with independent bandwidth limits and web blocking.
Social Wi-Fi Hotspot
Guests can now access your Wi-Fi hotspot with their Facebook login. In exchange, you can learn more about your customer base with insightful reports.

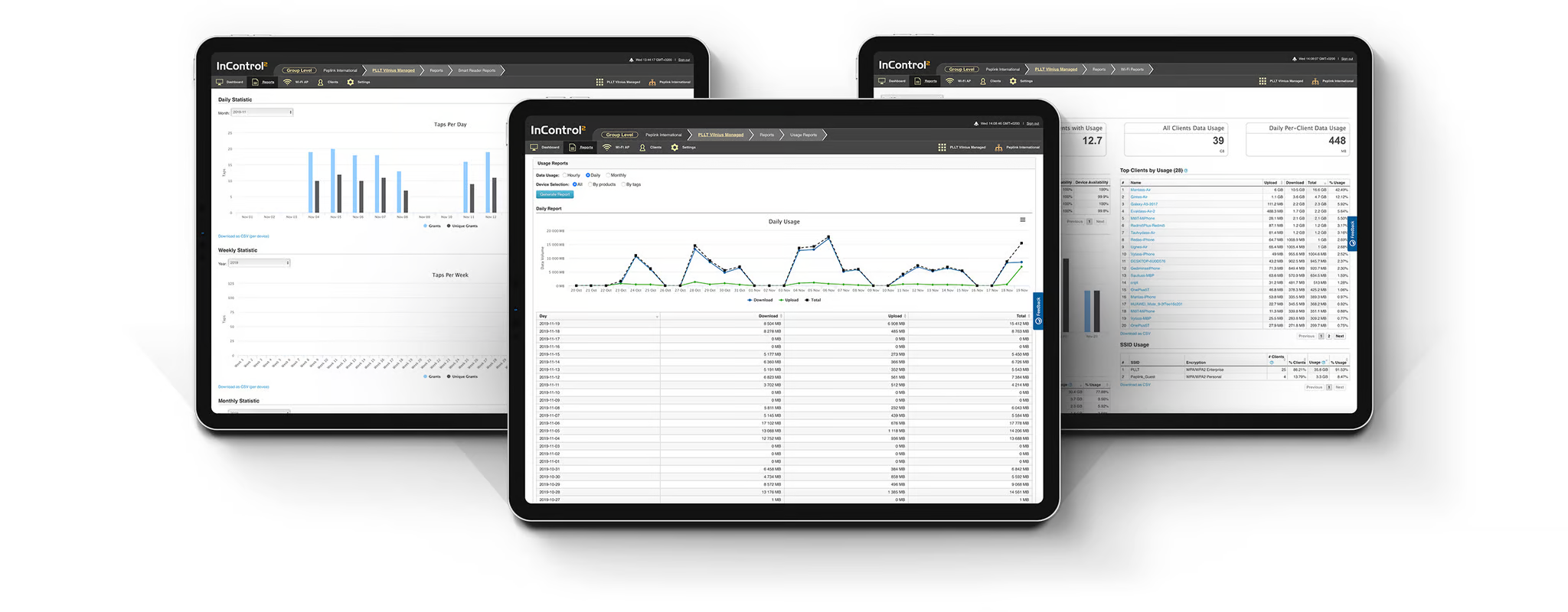

Centralized Management
Configure AP One access points onsite or from the cloud. Our AP Controller lets you locally manage access points from your Balance router, while InControl 2 offers a complete cloud-based solution accessible from any web-browser.

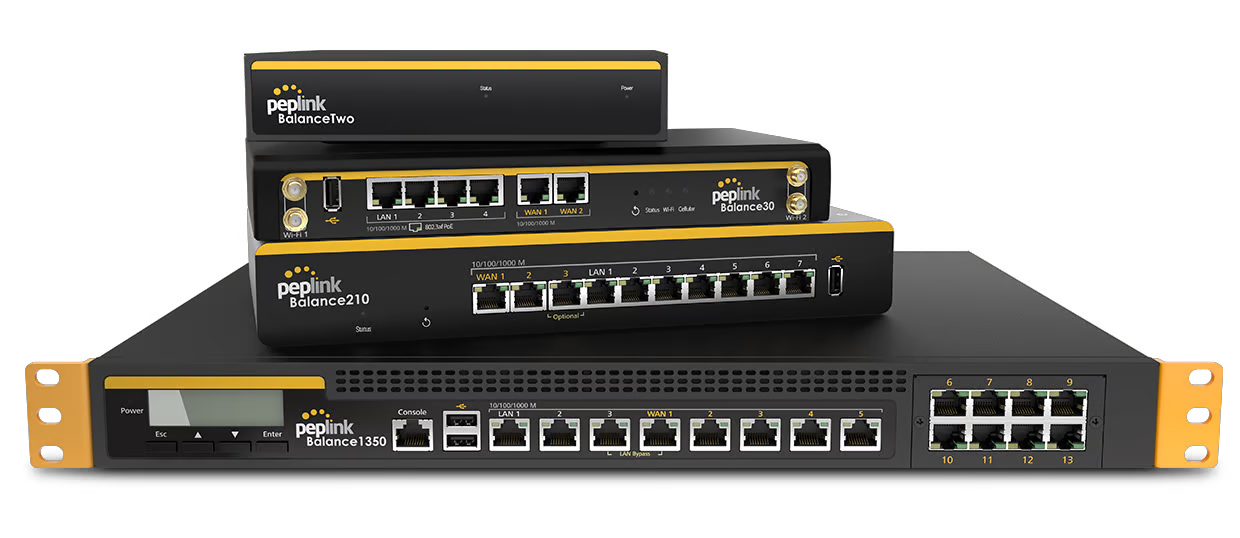

Complete Network Solution
Enjoy better network integration and performance. AP One access points are a perfect complement to Balance routers, together providing blazing speed and superior reliability across your entire network.
Specifications:
| AP One Mini Specifications | |
|---|---|
| Ethernet Port | 1x GE |
| Wi-Fi Standard | Simultaneous 802.11ac wave 2 /ac/a/n and 802.11b/g/n |
| Data Rates | 2x2 MU-MIMO 2.4 GHz: 300Mbps 5GHz: 866Mbps |
| Recommended Concurrent Users Per Radio | 60 |
| SSID Per Radio | 16 |
| Transmit Power | 2412 – 2472 MHz: 22dBm 5180 – 5825 MHz: 23dBm |
| Included Antenna | Built-In Omni Antenna Antenna gain: 2.2dBi for |
| Antenna Connector | N/A |
| Enclosure | Plenum-rated, Indoor Plastic |
| Dimensions | 3.9 x 3.9 x 0.8 inches 98 x 98 x 19.7 mm |
| Weight | 0.33 pounds / 150 grams |
| Power Input | AC Input 100V – 240V, DC Output 12V, 802.3af PoE (Injector Not Included) |
| Power Consumption | 9.5W (max) |
| Operating Temperature | 23°– 113°F / -5°– 45°C |
| Humidity | 15% – 95% (non-condensing) |
| Package Content | AP One Mini 12V2A Power Supply (ACW-601) 1x Mounting Bracket |
| Warranty | 1-Year Limited Warranty |
Documentation:
Download the Peplink AP One Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
