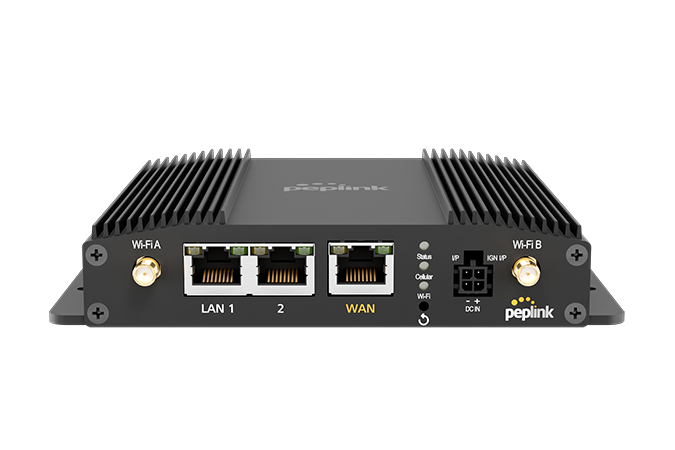

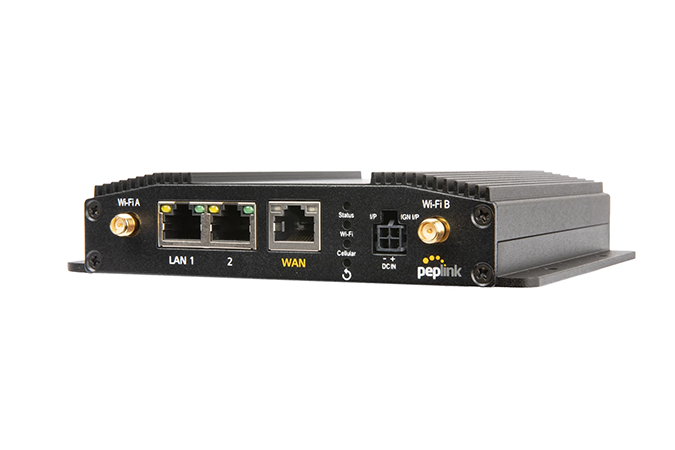

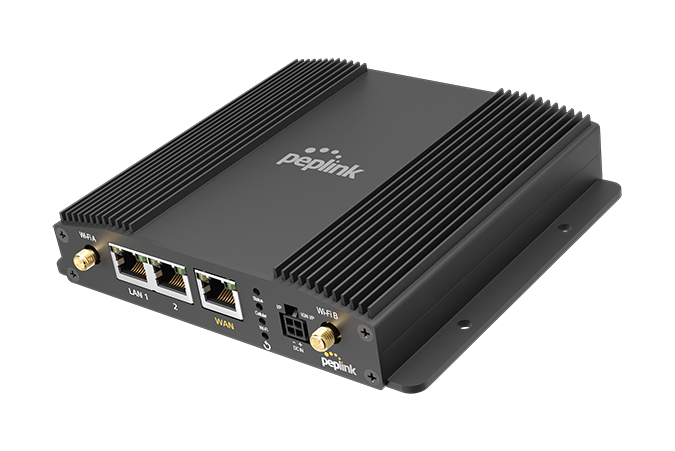

Peplink MAX BR1 Pro 5G
Single Cellular 5G Mobile Router
Our Price: $999.00
Our Price: $999.00
More pricing below, click here!
Overview:
Sonic for a Reason
The ‘classic goes sonic’, why? The BR1 Pro 5G is integrated with the new generation multi-core CPU ensuring delivery of gigabit speeds. Achieving 8 times faster than the original BR1 classic.
Why Settle For An Adapter When You Can Get The Full Suite?
5G Adapter
Need a simple 5G adapter? Add a 5G WAN to any existing router or firewall without the need to replace any of your devices.
5G Router / Gateway
Why stop there? It can also serve as a powerful 5G router for your network. No matter if it’s C-Band or LTE, you’ll be able to add cellular connectivity easily to your network.
Fixed or Mobile
Supercharged with SpeedFusion, use the BR1 Pro 5G as the central router for your branch network. Guarantee unbreakable connections for important applications, like video calls, POS systems and more.
Wi-Fi 6
Experience less interference and connect to multiple devices simultaneously.
Deploy with Confidence
Just like the original BR1 Classic, the BR1 Pro 5G has also been certified to meet the standards of a wide array of deployment criterias.
Low-Profile Form Factor
At 1.15 inches short, the BR1 Pro 5G is 25% slimmer than the BR1 Classic.
Specifications:
| MAX BR1 Pro 5G Specifications | |
|---|---|

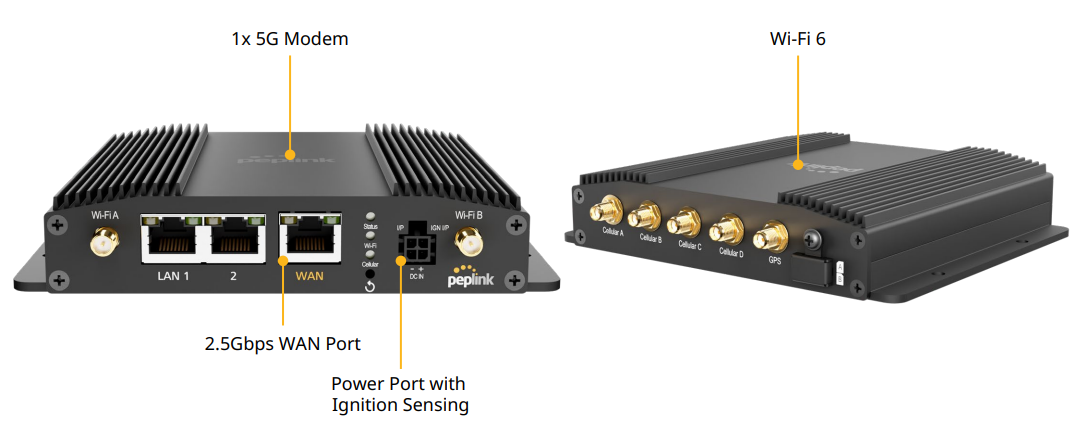

| WAN Interface | 1x 10/100/1000/2500M Ethernet1 1x Embedded Cellular Modem with Redundant SIM Slots |
| LAN Interface | 2x 10/100/1000M Ethernet1 |
| Wi-Fi Interface | Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6, 2X2 MIMO Wi-Fi WAN and/or AP |
| SpeedFusion features | Hot Failover, Smoothing, Bandwidth Bonding |
| Number of SpeedFusion VPN Peers | 2 / 51 |
| Router Throughput | 1Gbps |
| SpeedFusion Throughput (No Encryption) | 400Mbps |
| SpeedFusion Throughput (256-bit AES) | 200Mbps |
| Recommended Users | 1-150 |
| AP Controller | Standard |
| Maximum Number of AP Supported | 30 / 503 |
| Cellular Data Rate4 (Downlink/Uplink) | 5G: 3.4 Gbps / 900Mbps CAT-20: 1.6 Gbps / 200 Mbps |

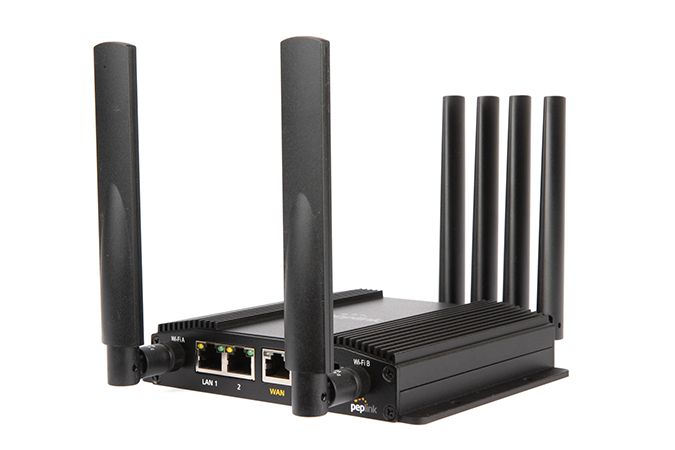

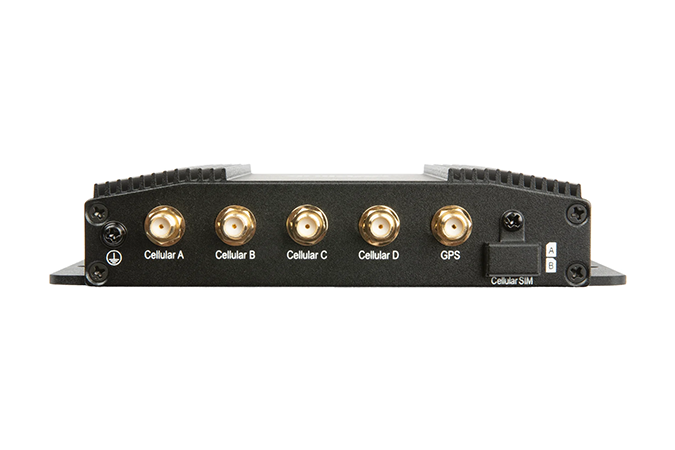

| Antenna Connectors | 4x SMA Cellular Anetenna Connectors 2x RP-SMA Wi-Fi Antenna Connectors 1x SMA GPS Antenna Connector |
| Power Input | AC Adapter: AC Input 100V-240V / DC Output 12V 10V – 30V DC |
| Power Consumption | 8W (nominal), 19W (max.) |
| Dimension | 5.78 x 5.08 x 1.15 inches / 146.8 x 129 x 29.3 mm |
| Weight | 1.5 pounds / 680 grams |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certification | FCC, CE, RoHS, E-Mark EN61373 Shock and Vibration Resistance EN50155 Railway Applications Electronic Equipment used on Rolling Stock EN61000 Electromagnetic Compatibility EN45545-2 Railway applications - Fire protection |

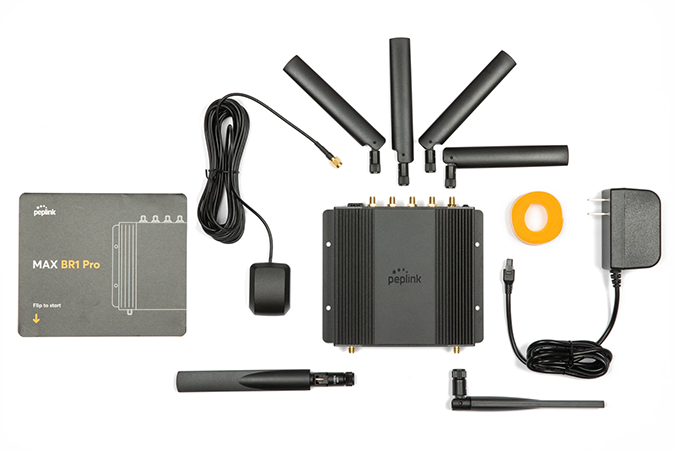

| Package Content | 1x BR1 Pro 5G 4x LTE/5G Antennas (ACW-235) 2x Dual Band Wi-Fi Antennas (ACW-341) 1x GPS Active Antenna (ACW-232) 1x 12V 2A 4pin Power Supply (ACW-632) |
| SIM Options | Nano-SIM (4FF) Peplink eSIM BYO eSIM (2 profiles) 5 |
| Warranty | 1-Year Limited Warranty |
1 Ethernet ports include surge and ESD protection circuits to protect against over-voltage transients.
2 Requires a PrimeCare subscription, complimentary for the first year.
3 Available as a licence add-on (AP-LC-50).
4 Maximum theoretical data rates.
5 Available with Firmware 8.4.0 or above
Documentation:
Download the Peplink MAX BR1 Pro 5G Datasheet (PDF).
