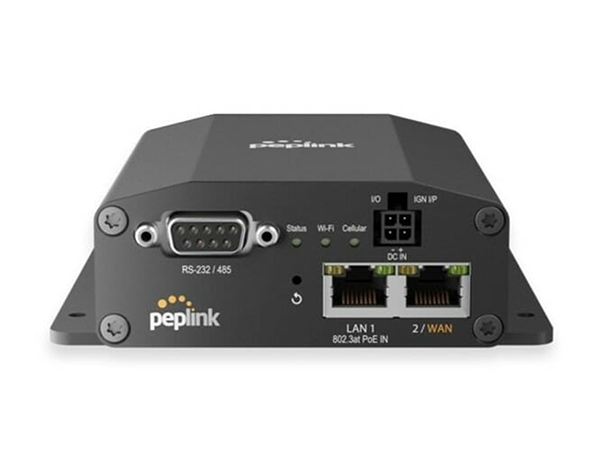

Peplink MAX BR1 Mini M2M
Single Cellular Mobile Router with RS-232/RS-485 serial port
Our Price: $399.00
More pricing below, click here!
Overview:
Engineered toward Industrial Devices

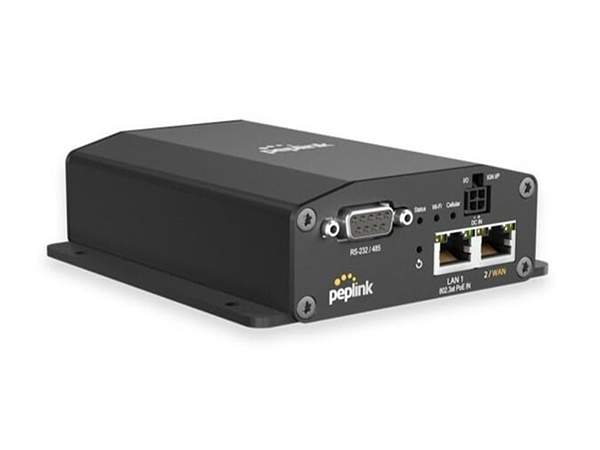

Featuring an RS-232/RS-485 serial port, the BR1 Mini M2M is your best solution to bring connectivity to versatile industrial equipment and IoT device.

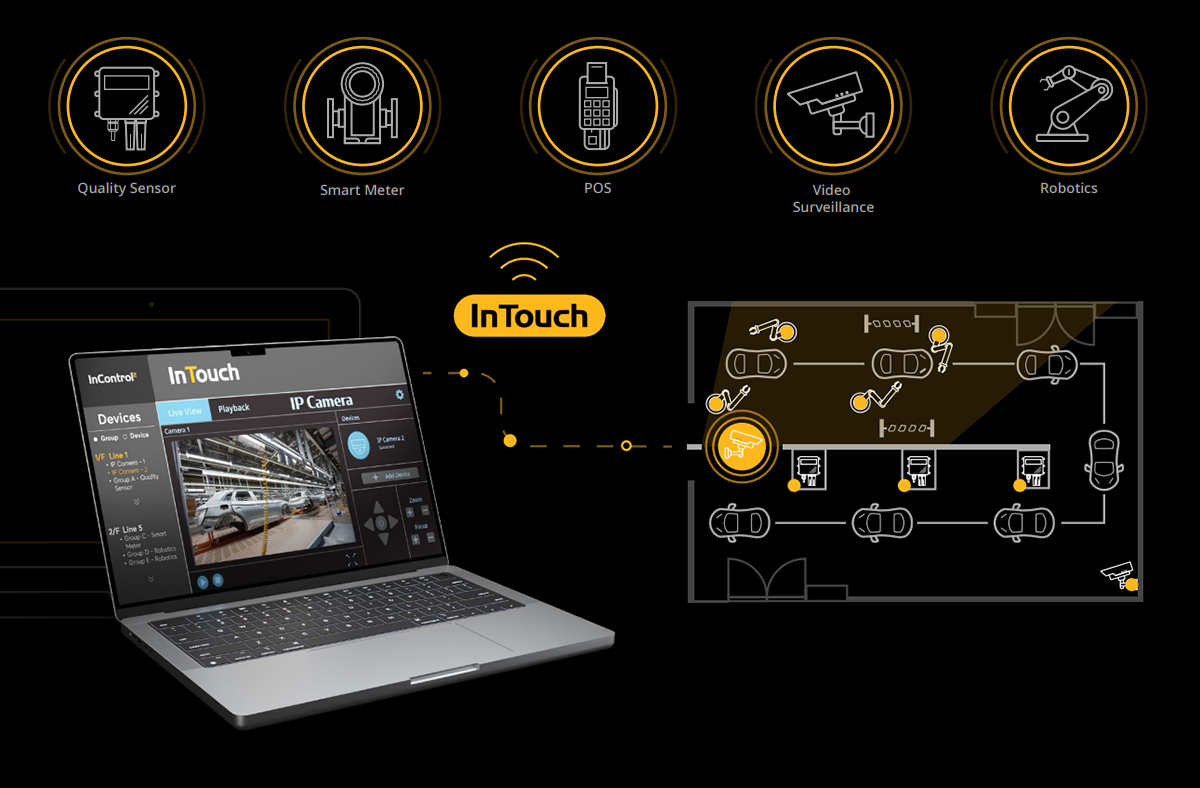

Our advanced InTouch technology allows for secure remote monitoring and management of your linked industrial device through a single cloud platform.

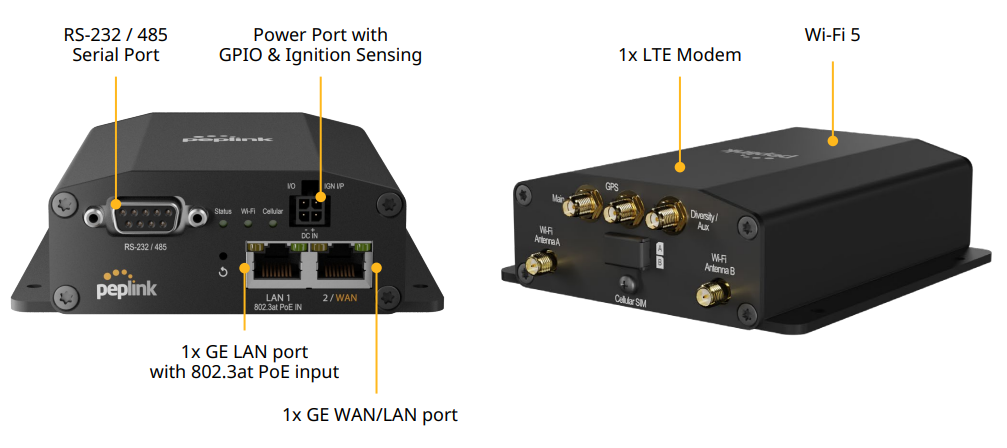

Flexibility in Power and Ports

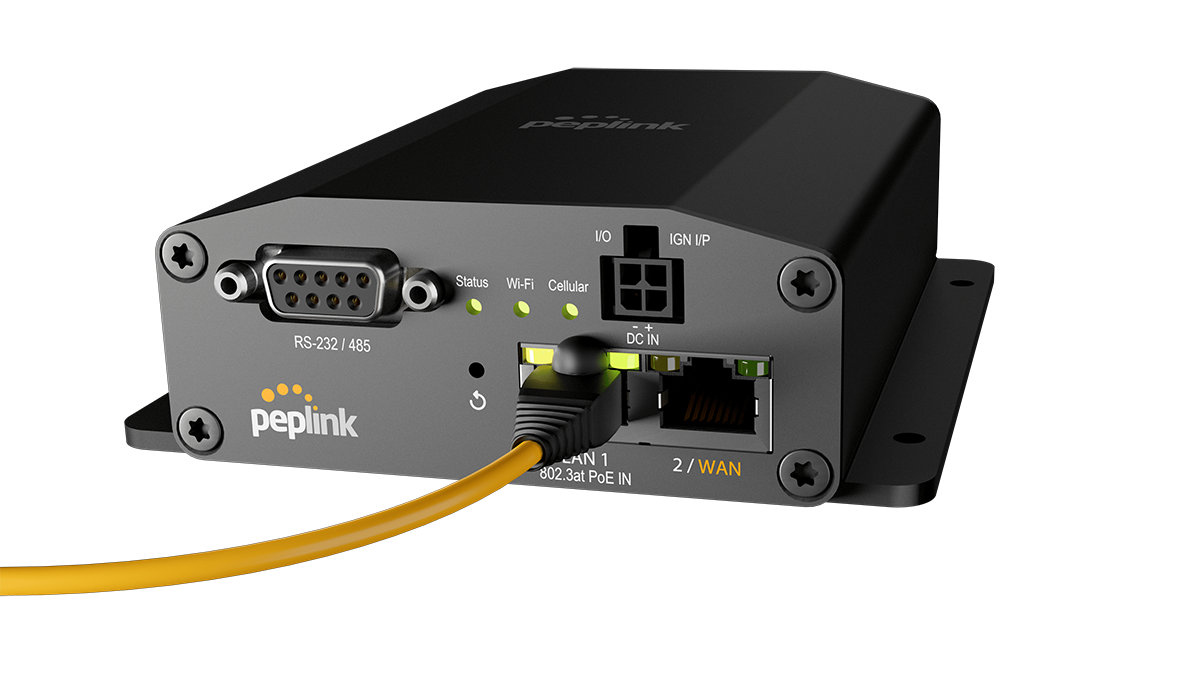

Power the device with PoE, Micro-Fit or our 4-pin to USB-C power cable allowing for flexible installations and portable deployments.

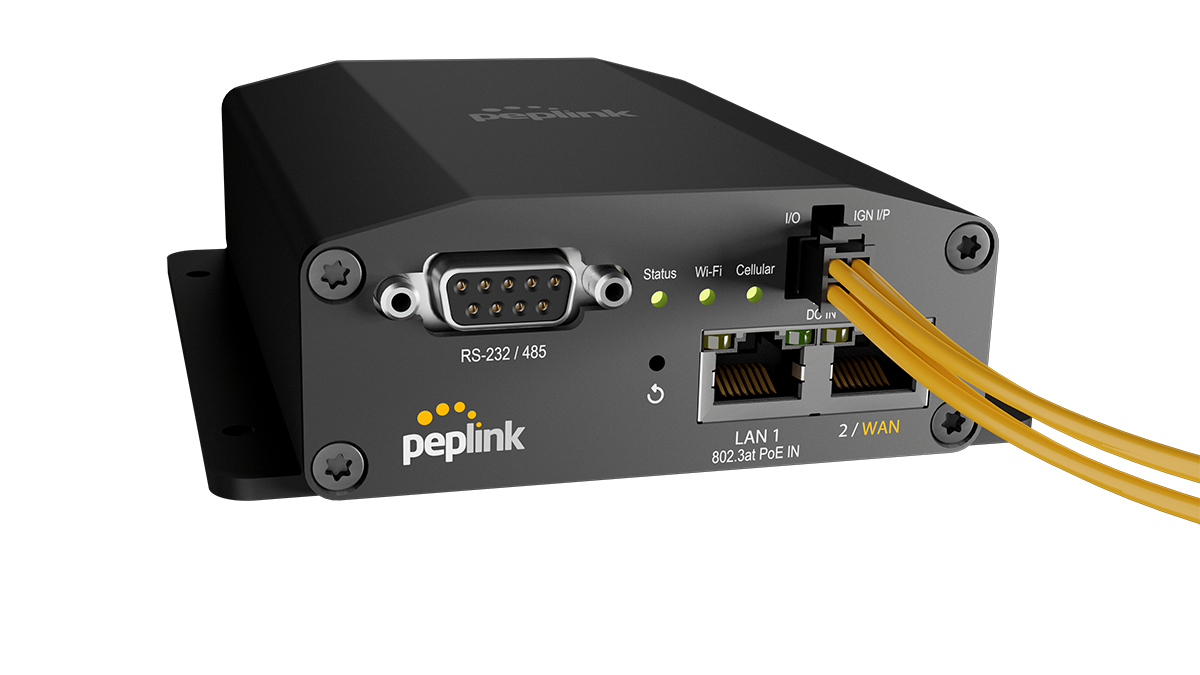

Micro-Fit
PoE

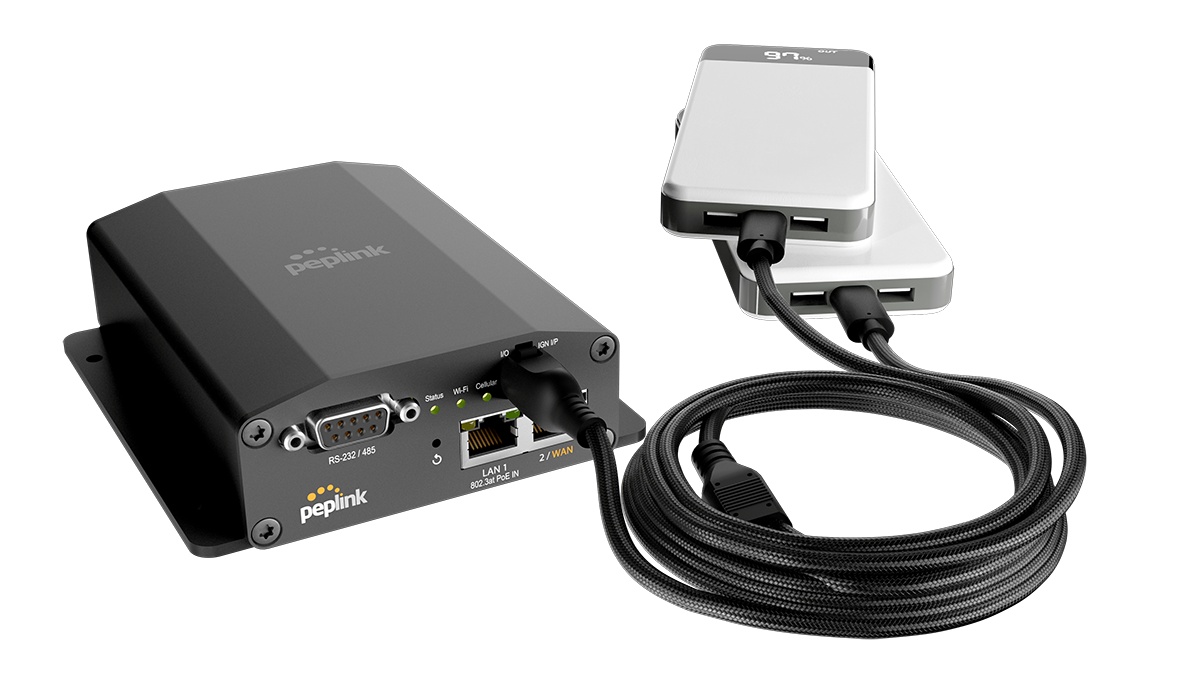

Peplink 4-pin to USB-C power cable

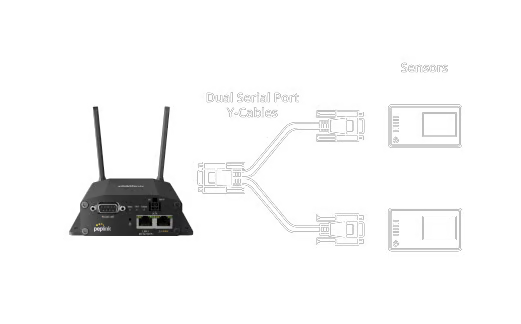

Don’t limit yourself to a single device. The BR1 Mini M2M supports dual serial port Y-cables for even more efficiency.

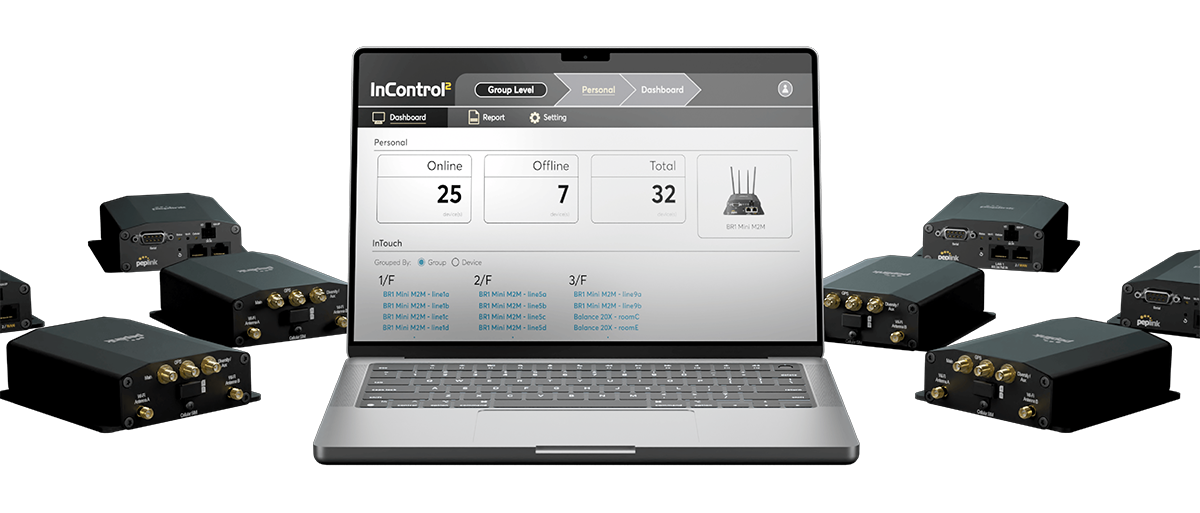

Instant Connectivity
Gone are the days of agonizing over which cellular service to choose or needing to manage physical SIM cards. Experience instant cellular connectivity with a subscription to our eSIM-based SFC 5G/LTE data plans. Leave the troubles to us while you concentrate on what truly matters.
Improved Dual-band Wi-Fi
Deploy more devices in the same location with no worry of network congestion. Have the option to collect data from your IoT machines from afar, helping admins save time and stay safe.
Ruggedized and Reliable
The BR1 Mini M2M is built for maintaining a stable connection while withstanding tough environments, such as factories, power plants and outdoor deployments.
*Certification pending.
Specifications:
| MAX BR1 Mini M2M Specifications | |
|---|---|
| WAN Interface | 1x 10/100/1000M Ethernet1 1x Embedded Cellular Modem with Redundant SIM Slots |
| LAN Interface | 1x 10/100/1000M Ethernet |
| Wi-Fi Interface | Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 5, 2X2 MIMO Wi-Fi WAN1 and/or AP |
| Number of SpeedFusion VPN Peers | 2 / 51 |
| Feature | GPIO, Ignition Sensing, Serial communication (RS-232 / 485) |
| Router Throughput | 300 Mbps |
| SpeedFusion VPN Throughput (No Encryption) | 80Mbps |
| SpeedFusion VPN Throughput (256-bit AES) | 60Mbps |
| Recommended Users | 1-60 |
| Cellular Data Rate2 (Downlink/Uplink) | CAT-4: 150 Mbps/50 Mbps |

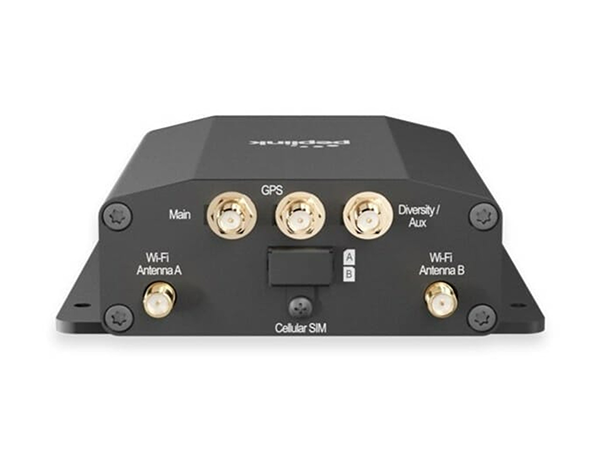

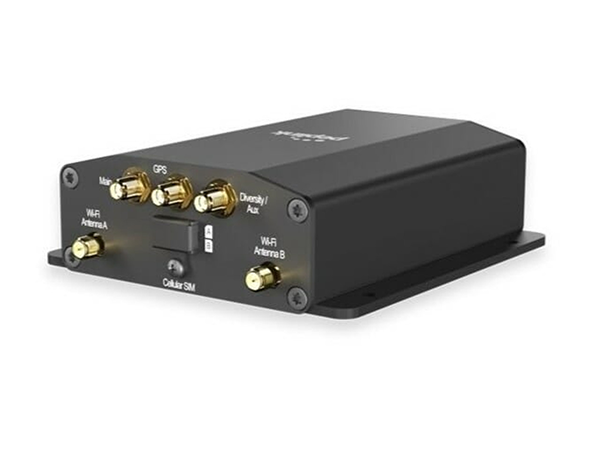

| Antenna Connectors | 2x SMA Cellular Anetenna Connectors 2x RP-SMA Wi-Fi Antenna Connectors 1x SMA GPS Antenna Connector |
| Power Input | Power Port: 10V – 30V DC AC Adapter: AC Input 100V–240V / DC Output 12V Power over Ethernet 802.3at |
| Power Consumption | 13W (nominal), 18W (max.) |
| Dimension | 5.1 x 4.2 x 1.4 inches / 129.5 x 107 x 35 mm |
| Weight | 1 pound / 455 grams |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certification | FCC, IC C1D2 UL+CUL (60950-1 / 62368-1) |
| Package Content | 1x BR1 Mini M2M 2x LTE Antennas (ACW-235) 2x Dual Band Wi-Fi Antennas (ACW-342) 1x GPS Active Antenna (ACW-232) 1x 12V 2A 4pin Power Supply (ACW-632) |
| SIM Options | Nano-SIM (4FF) Peplink eSIM 3 BYO eSIM (2 profiles) 3 |
| Warranty | 1-Year Limited Warranty |
1 Require a PrimeCare subscription or a feature pack add-on license (MAX-BR1-MINI-LC-FP).
2 Maximum theoretical data rate.
3 Models with selected SKU support eSIM.
Documentation:
Download the Peplink MAX BR1 Mini M2M Datasheet (PDF).
