Peplink AP Pro AX
2x2 MU-MIMO Wi-Fi 6 Super Rugged Enterprise-Grade Access Point
Simultaneous Dual-Band 802.11a/b/g/n/ac/ax, Industrial-grade in metallic waterproof and dust-tight IP67 outdoor enclosure.
Our Price: $699.00
More pricing below, click here!
Overview:

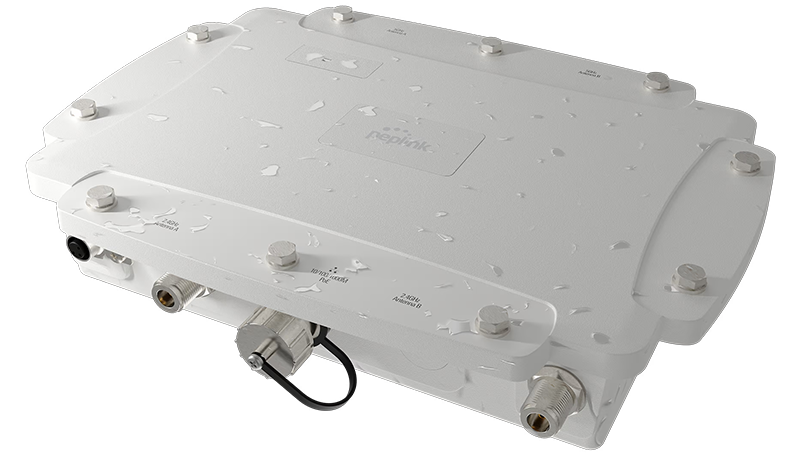

Built like a Tank
A metal IP67 enclosure provides a solid exterior to protect not only the device, but your connection as well.

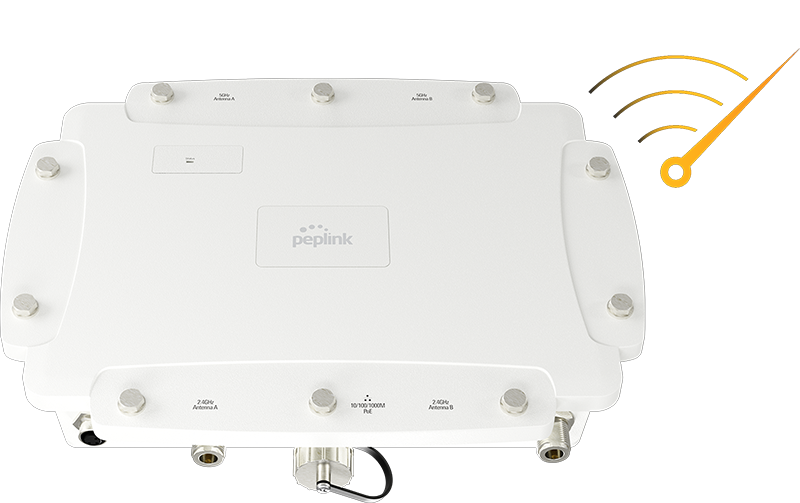

Enterprise-Grade Roaming Speeds
Bring in an unbreakable connection wherever you need it. Experience the speed of an office network even while you’re on the field.

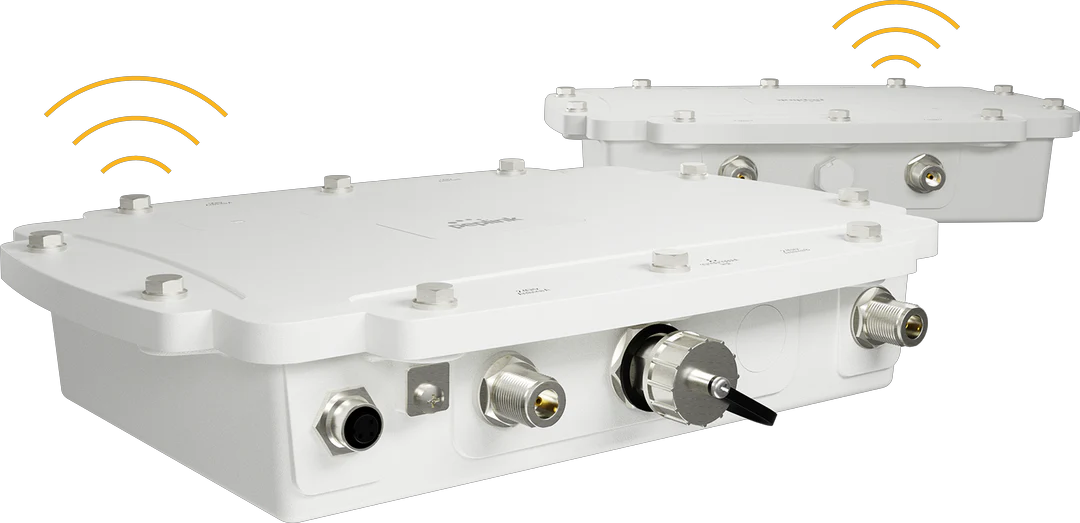

Mesh Capability
With Wi-Fi mesh support, have the flexibility to deploy the device wherever it’s needed and eliminate all the blindspots in your network.

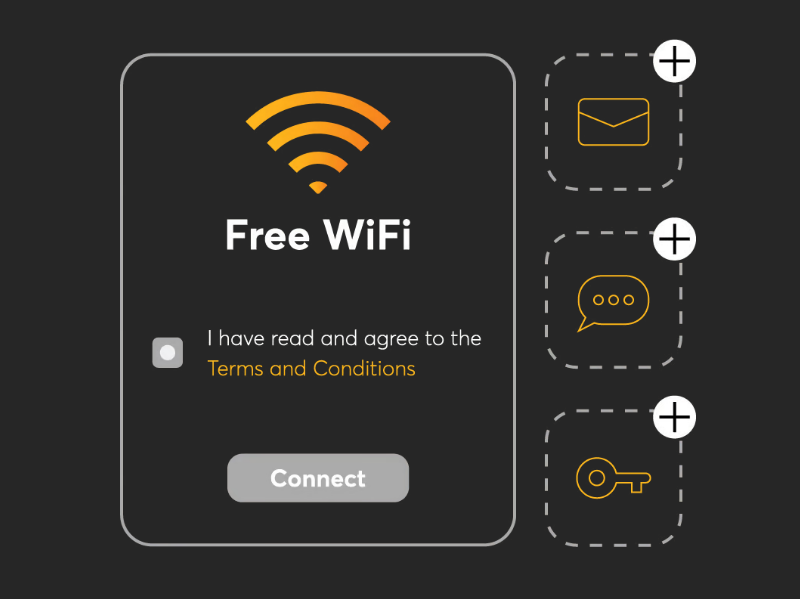

Turnkey Captive Portals
Captive portals are simple to create and easy to customize. Implement a guest network with just a few clicks.

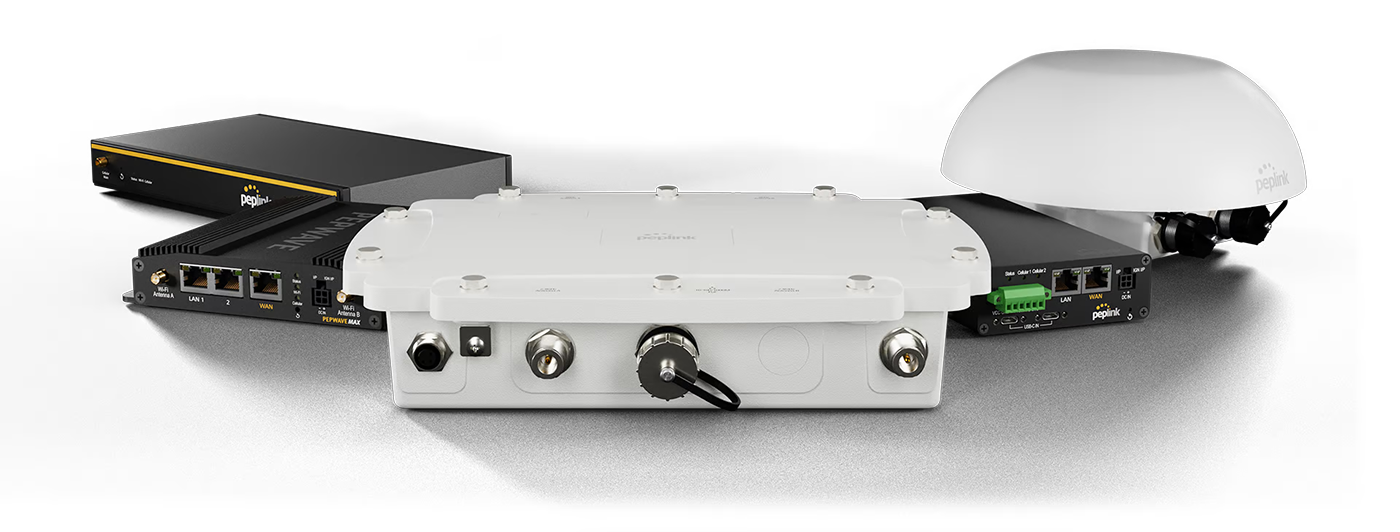

Seamless Integration within Peplink’s Ecosystem
Built for use in the Peplink Ecosystem, link up the new access point to the rest of your Peplink network for instant connectivity.
Perfect for Demanding Deployments
Provide Wi-Fi 6 connections to factories, construction sites or harbor sides. No matter the weather, no matter the conditions.
Specifications:
| AP Pro AX Specifications | |
|---|---|
| Ethernet Port | 1x 10/100/1000M Ethernet |
| Wi-Fi Standard | Simultaneous Dual-Band (2.4GHz/5GHz) Wi-Fi 6 2X2 MIMO |
| Data Rates | 2.4 GHz: up to 574 Mbps 5 GHz: up to 1200 Mbps |
| Channel Width | 20/40/80 MHz |
| Recommended Concurrent Users Per Radio | 256 |
| SSID Per Radio | 16 |
| Transmit Power | 2.4GHz: 24dBm 5GHz: 25dBm |
| Antenna | External Omni Directional Antennas1 2x 8dBi - 2.4GHz 2x 8dBi - 5GHz |

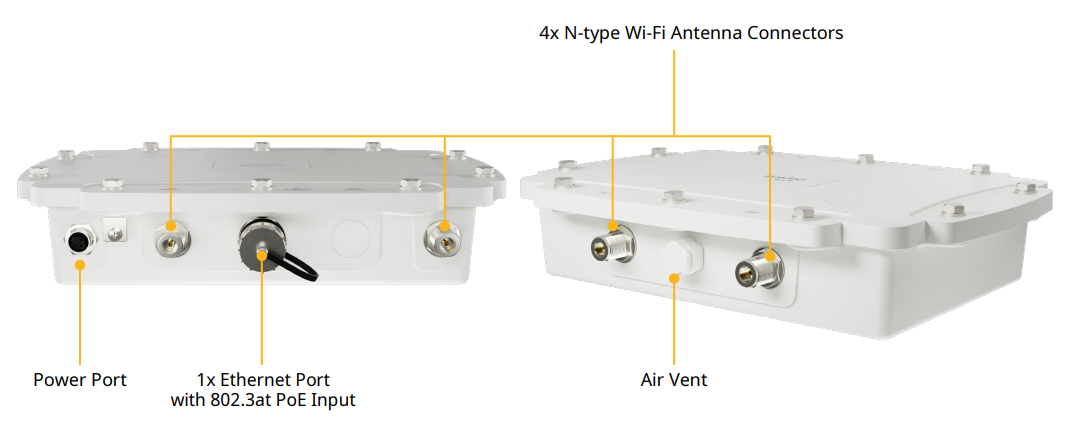

| Connector type | 4x Female N-Type Wi-Fi Antenna Connectors |
| Enclosure | Plenum-rated enclosure |
| Dimensions | 9.0 x 12.2 x 2.6 inches 230 x 310 x 66 mm |
| Weight | 4.85 pounds / 2.2 kg |
| Power Input | 802.3at PoE+2 Power Port: 12V DC |
| Power Consumption | 14.5W (max) |
| Operating Temperature | -40ºF - 149ºF / -40ºC - 65ºC |
| Package Content | AP Pro AX Water Proof DC Power Plug for IP67 (ACW-636) 1x Waterproof Ethernet Connector Kit (ACW-112) Mounting Kit (ACW-723) |
| Warranty | 1-Year Limited Warranty |
Network
Bridge Mode
Router (NAT) Mode
Mesh
Wireless Distribution System (WDS)
Support for PPPoE, Static IP, DHCP
Management VLAN
Spanning Tree Protocol
Radio
Multiple SSID
Auto Channel Selection
Transmit Power Adjustment
Neighbor AP Detection
Client Management
Per SSID
VLAN with QoS (802.1p/802.1q)
Bandwidth Control
MAC Address Filtering
Layer 2 Client Isolation
Limit on Max. Number of Clients
Per Client
VLAN with RADIUS
VLAN with VLAN Pool
Bandwidth Control
Multicast Filter
IGMP Snooping/Multicast Enhancement
Captive Portal by InControl
AP Security
Open
WPA/WPA2/WPA3-Personal
WPA/WPA2-Enterprise
Device Management
Web Administrative Interface
InControl Cloud Management
Peplink AP Controller
SNMP v1, v2c and v3
* AC/DC adapter and PoE Injector are not included.
Documentation:
Download the Peplink AP Pro AX Datasheet (PDF).
