Rapid-Deployment Quad Gigabit LTE Powerhouse
Ruggedized Portable One-Device Cellular Connectivity
Contact us For Lowest Price

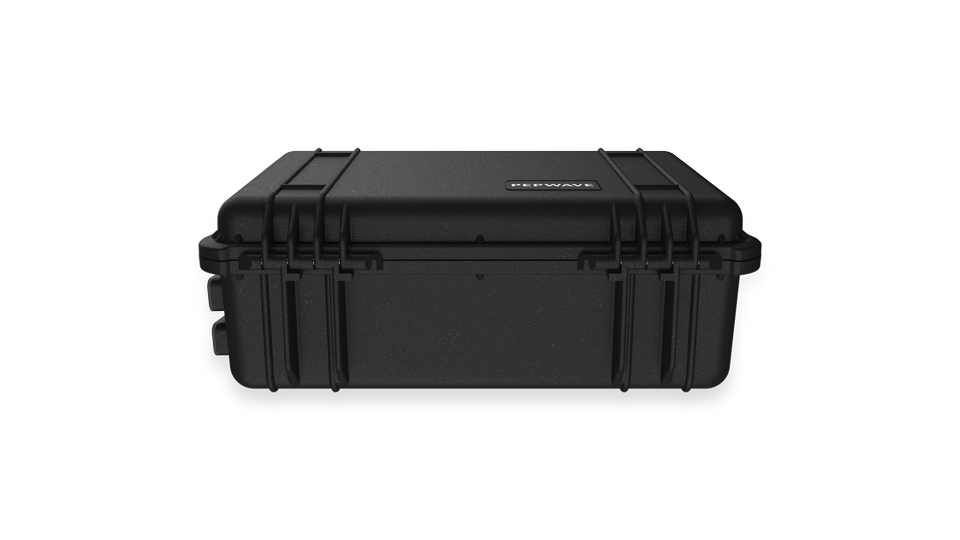

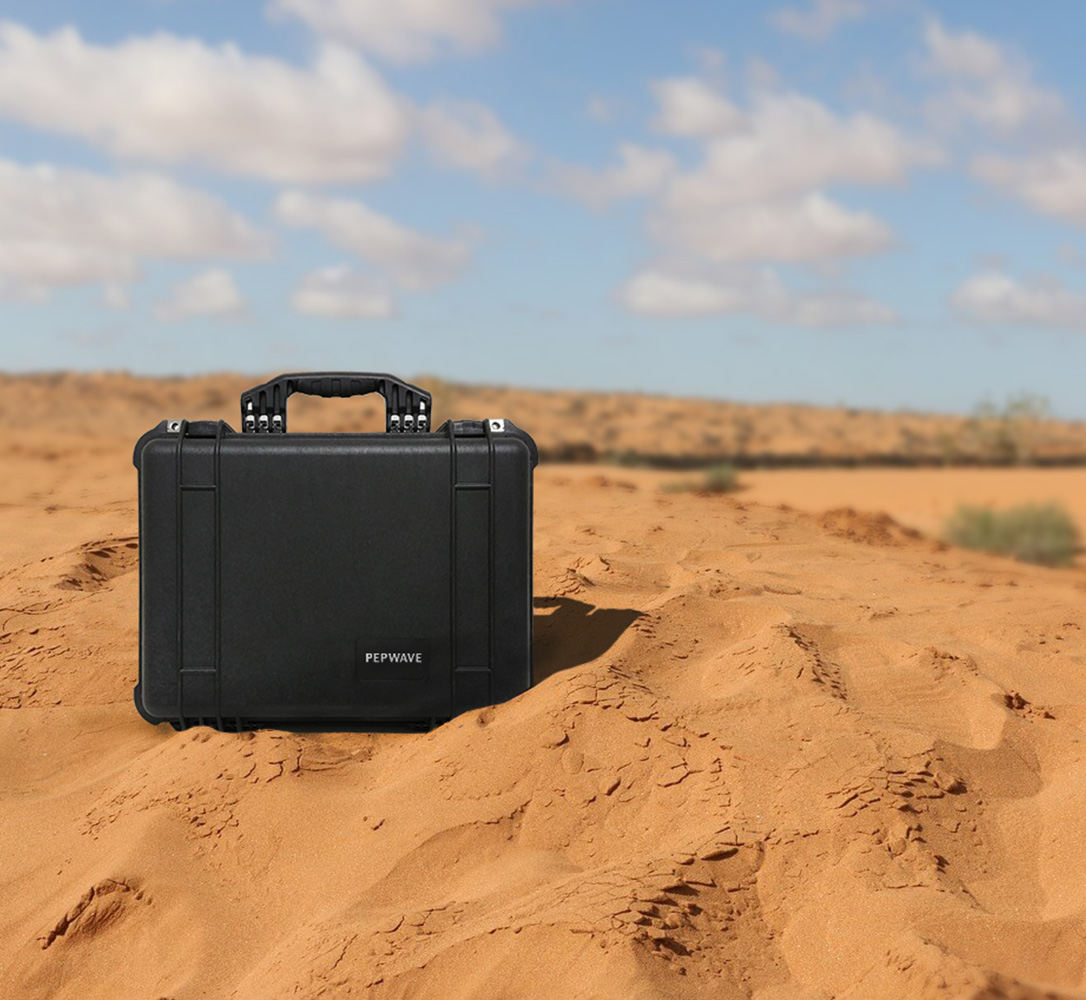

The PDX is a portable, rapid deployment router designed to provide stable and secure connection from remote locations. It comes with a quad-cellular router, both cellular and GPS antennas, and batteries; all seamlessly integrated into a rugged enclosure capable of withstanding the rigors of the outdoors.
Rated at 7.7G vibration resistance by the military MIL-STD-810H standard. Wide -40° – 113°F (-40° – 45°C) Temperature range.
The PDX has optional batteries, so it can operate independently for up to 9 hours.
Redundant SIM Slots
Quad Cellular Modems and Redundant SIM slots allow you to use up to four different cellular providers for bandwidth bonding, data overage protection or eliminating blind spots.
The PDX has a quad-cellular router, antennas, and batteries all seamlessly integrated into a rugged enclosure. Ifyou want more cellular connections and frequencies, the PDX can also integrate SpeedFusion Engines.
Apply different SpeedFusion VPN technologies to traffic from different applications. Apply Hot Failover to ERP traffic while applying WAN Smoothing to VoIP and Videoconferencing.
Deployable within minutes, the PDX offers Public Safety personnel the ability to immediately establish stable and secure communications to headquarters from any emergency site. Equipped with built-in interfaces for WAN, LAN, and Wi-Fi, as well as antennas for cellular and GPS, the PDX can be used in remote and volatile situations.
SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot
The PDX provides you with rapid deployment connectivity from the moment boots hit the ground. Combining the bandwidth of up to 4x Gigabit LTE connections, the PDX provides fast and reliable connectivity regardless of site location. Quickly and safely transmit project data, emails, plans, and blueprints between personnel, sites, and headquarters.
Keep your event connected and your cameras streaming. The PDX supports 4x Gigabit LTE connections to keep your event connected no matter where it is held. With 7x 802.3af PoE ports, you can simplify your cabling when connecting and powering your devices. The PDX comes with a 802.11ac Wi-Fi which supports a customizable captive portal with advertisements.
PDX is supported by InControl2, Peplinks Cloud-Based SD-WAN Network Management Platform. Setup SpeedFusion networks, make bulk configuration changes, determine Firmware policy, build a custom captive portal. Do all this and more remotely using the InControl2.
|WAN Interface||2x GE Ports*
4x Embedded LTE-A Modems with Redundant SIM Slots
|LAN Interface||7x GE Ports*|
|Wi-Fi Interface||802.11ac/a/b/g/n, 1166 Mbps 2×2 MIMO Wi-Fi WAN and/or AP Simultaneous Dual-Band|
|PDX Throughput||2.5 Gbps|
|Number of PepVPN||7x GE Ports*||PepVPN Throughput (No Encryption) | (256-bit AES)||600 Mbps | 500 Mbps|
|LTE-A Pro Modems||Downlink/Uplink Per Modem:
600 Mbps/150 Mbps
|Cellular and GPS Antenna||8x Cellular Antennas (Embedded)
1x GPS Antenna (Embedded)
4x Wi-Fi Antennas (Embedded)
|Power Input||DC: 12V – 56V, AC: 100V – 240V|
|Power Output||Up to 7x 802.3af PoE, 1x USB Power Outputs|
|Power Consumption||38W (max)|
|Dimensions||19.7 x 14.8 x 7.7 inches | 500 x 375 x 195 mm|
|Weight||28.7 pounds | 13 kg|
|Operating Temperature||-40° – 113°F | -40° – 45°C|
|Humidity||15% – 95% (non-condensing)|
|Certifications|| FCC, IC, CE
7.7G Vibration resistance, MIL-STD-810H 514.8E-1 Cat24, IP55/65^, Verizon@, FirstNet%
|Warranty||1-Year Limited Warranty|
* 2x GE port is configured as a LAN port by default, configuration is changeable on the Web Admin. ^ IP55 certified. IP65 certification testing in progress.
^ IP55 certified. IP65 certification testing in progress.
@ Certification Pending.
% Tests completed, under FirstNet final review.
# Router Throughput and PepVPN/SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision. The throughput result is tested with DHCP/Static IP WAN
Download the PDX Datasheet (PDF).
