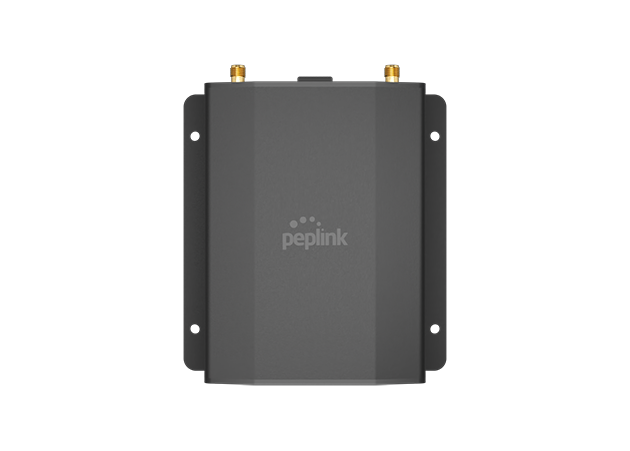

Peplink POTS Adapter
Convert your hard-to-maintain Plain Old Telephone System to cost-effective VoLTE infrastructure
More pricing below, click here!
Overview:
Made for Industrial Use
With certifications for alarms, elevators and communications systems, the adapter can squeeze into any deployment without worry. The POTS Adapter’s low power consumption makes it suitable for solar powered deployments.

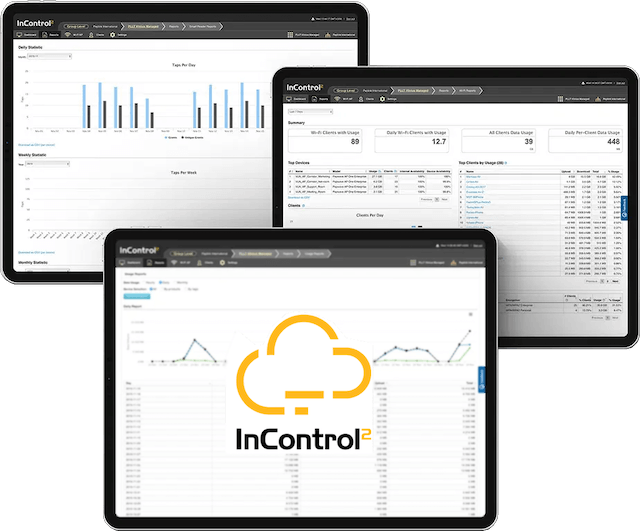

InControl Remote Management
Track and manage the status of all your devices remotely, all from the same management system. Automatically send email alerts to admins when changes to connection strength or power supply are detected. Receive Peplink support via remote assistance. No physical presence needed for troubleshooting.

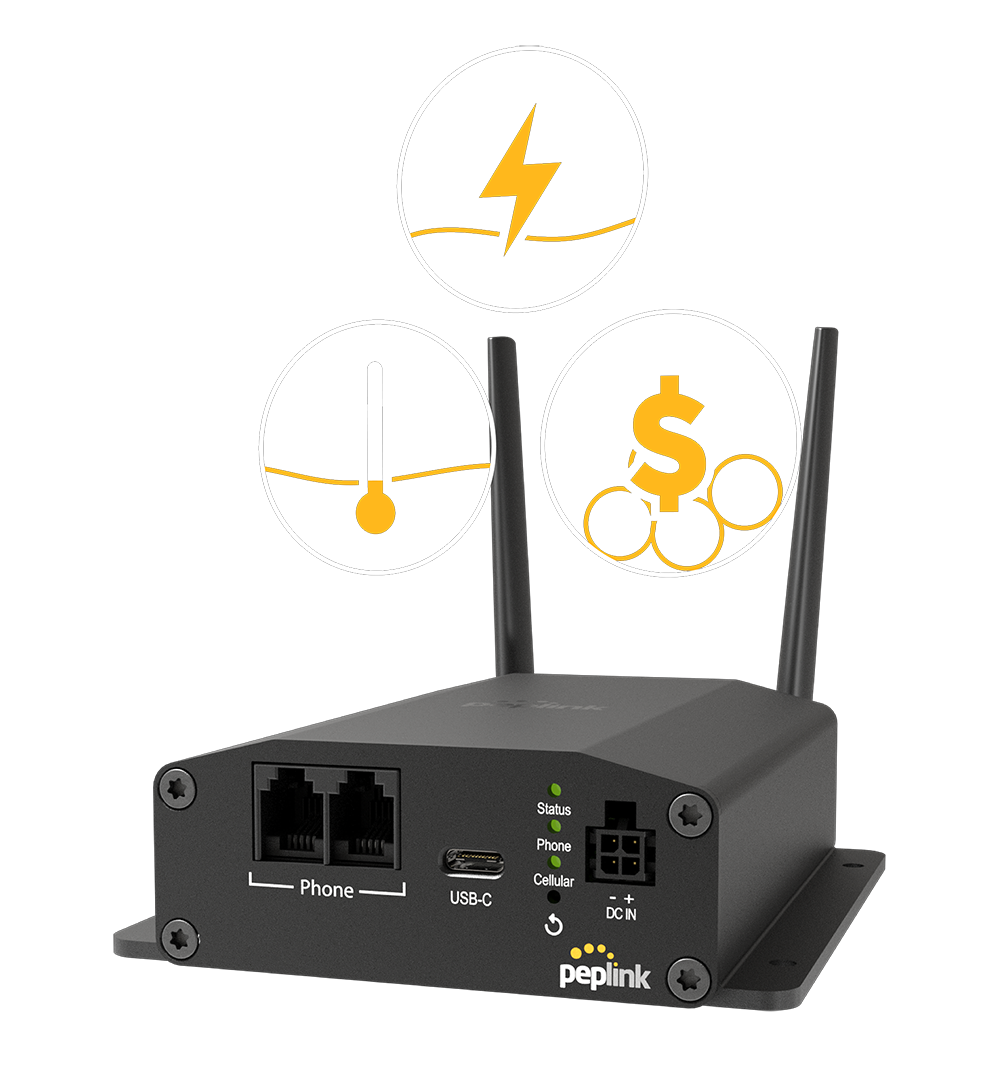

Minimal Power Consumption
Low power consumption translates to reduced operating costs and less heat generation, increasing the device’s longevity and reliability.

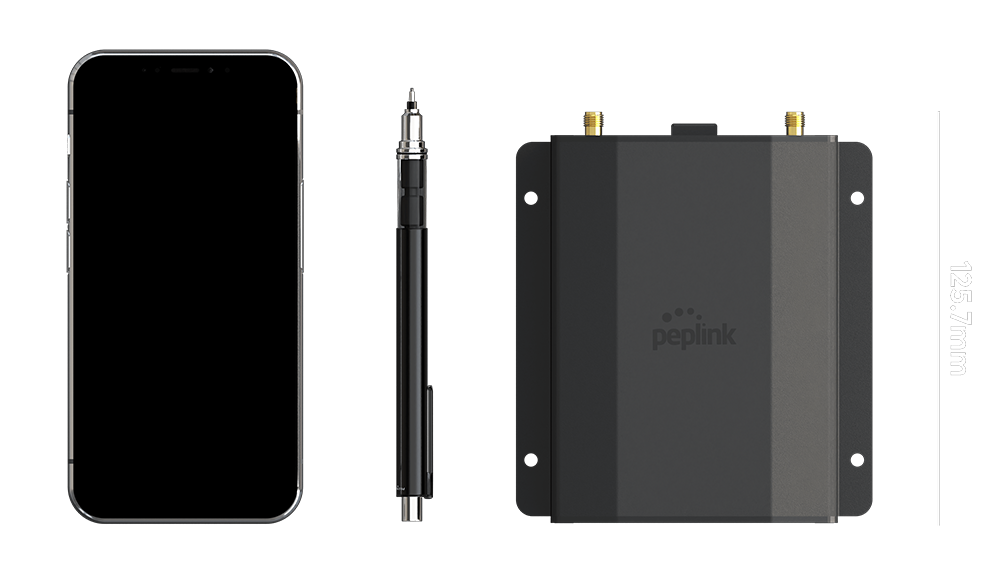

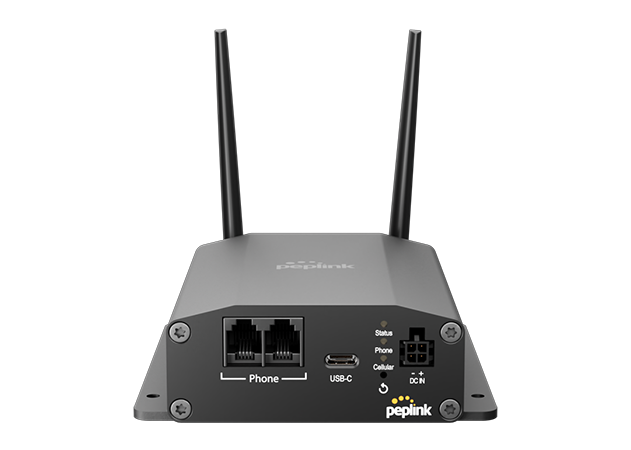

Built for Flexibility

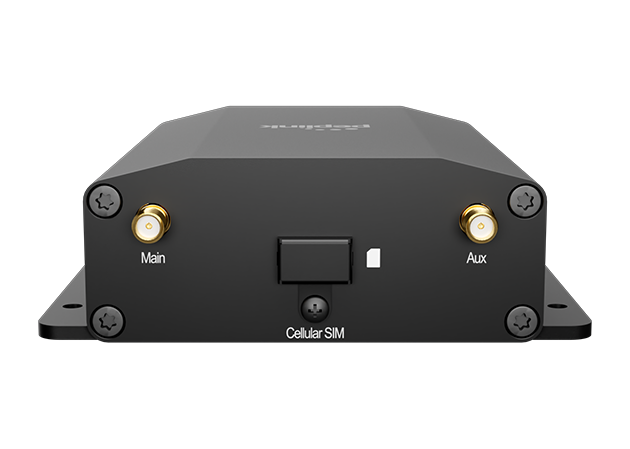

The POTS Adapter is designed to be small, lightweight, and mountable on a DIN Rail. Connect an external antenna to maximize performance in secluded installs.

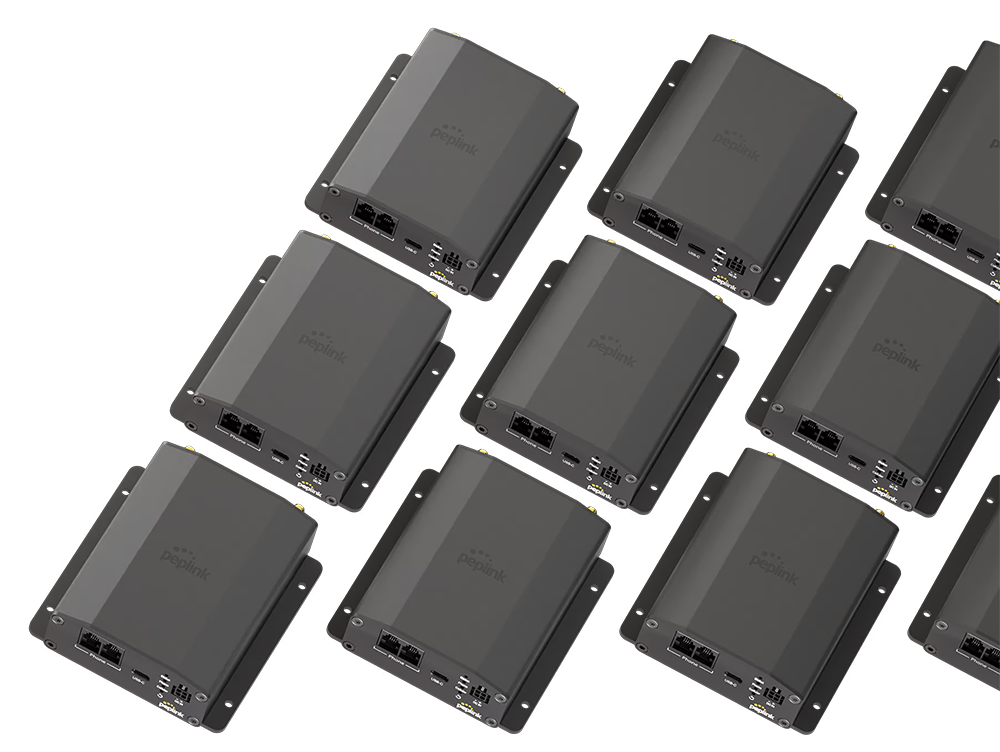

Easily Scalable
Bring VoLTE to numerous deployments without breaking the bank.

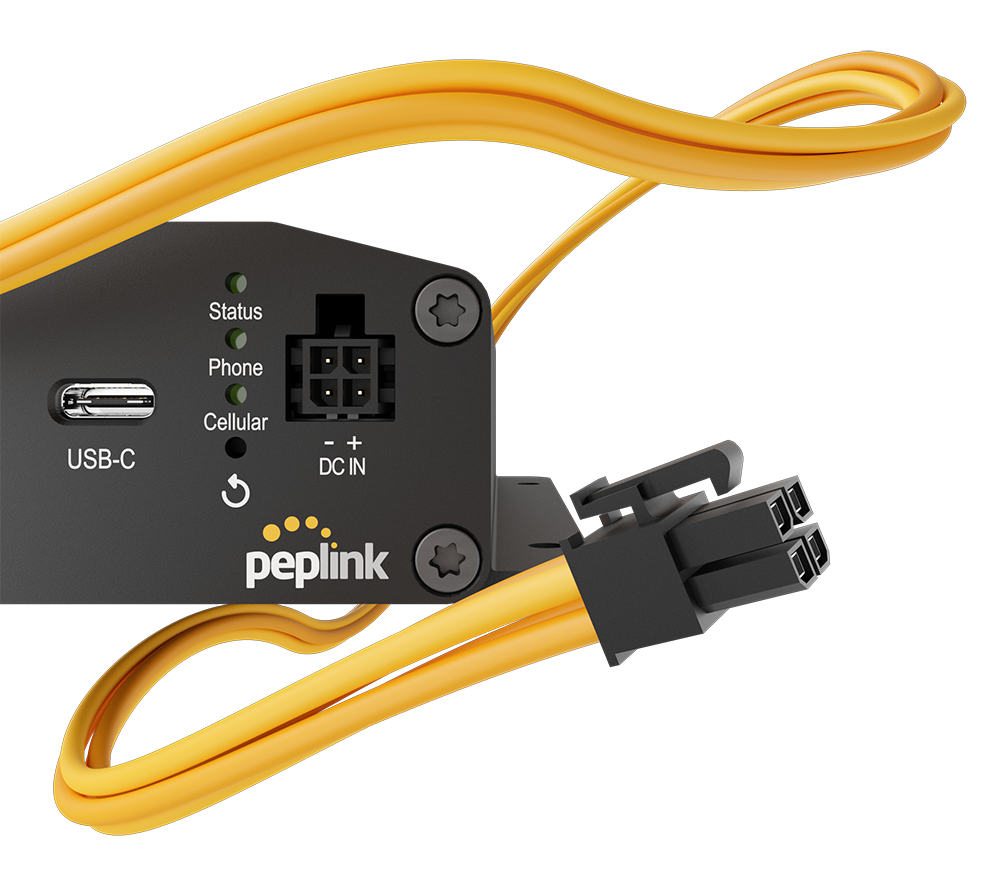

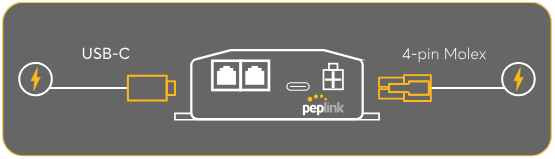

Flexible Power Options

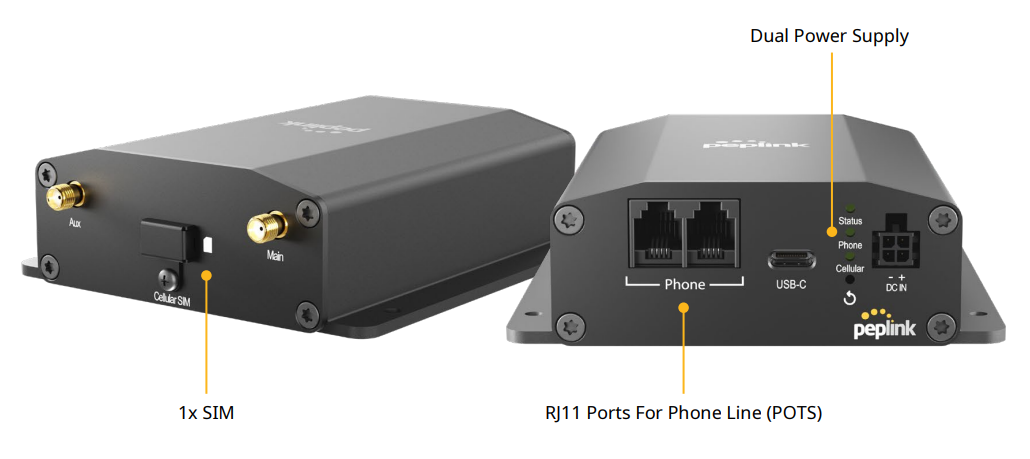

Power the device via USB-C or 4-pin Molex depending on available resources on-site. Or use both at the same time for extra redundancy.
Primary Benefits:
Easily Convert your Plain Old Telephone System (POTS) connections to LTE Cellular.
Plug and Play
Drop in Peplink’s POTS to Cellular Adapter to update your legacy analog phone line connections to cellular. Requires only a power source and cellular network signal.
Certified for industrial and commercial applications
Alarm systems, elevators, remote door/gate systems and other legacy applications utilizing analog phone lines. Rugged, low power consumption and operates across wide temperature range.
Reliable and cost effective
Deploys standalone, no additional network equipment or setup required. Complete central management and alerting through Peplink InControl2 reduces deployment and troubleshooting costs.
Specifications:
| POTS Adapter Specifications | |
|---|---|
| WAN Interface | 1x LTE Embedded Cellular Modem |
| Configuration Interface | USB-C Port |
| POTS line | Up to 3 REN Line Load 55 Vrms Ring Voltage 500ft Loop Length Support |
| Backup power by UPS 1 | 3000 mAh UPS will ensure: - 24 Hours Standby Usage - 4 Hours Under Line Usage |
| Voice Features | Audio notifications Call Forwarding (CFU/CFB/CFNRy/CFNRc) Call Hold Call Waiting 3-Way Conference CLIR per Call Speed Dial 8/30 Call Return Call Blocking Do Not Disturb Caller ID VMWI DTME |
| Communication Protocols | Contact ID Pulse 4/2 Voice: G.711, G.729, AMR, AMR-WB Fax: ITU-T.30, V.17, V.29, V.27ter, V.21 |
| Antenna Connectors | 2x SMA Cellular Antenna Connectors |
| Power Input | Power Port: 9-16V DC USB-C Port: 5V DC |
| Power Consumption | 1.7W (nominal), 3.5W (max.) |
| Dimensions | 5.0 x 4.2 x 1.4 inches / 124 x 107 x 35 mm |
| Weight | 0.70 pound / 0.32kg |
| Operating Temperature | -22° – 149°F / -30° – 65°C |
| Humidity | 15% – 90% (non-condensing) |
| Certifications | FCC, RoHS, UL |
| Package Content | POTS-ADP-LTE-US-T-PRM 1x POTS Adapter 2x LTE Antennas 1x 12V 2A 4-Pin Power Supply (ACW-632) POTS-ADP-LTE-US-DC-T-PRM 1x POTS Adapter 2x LTE Antennas 1x 10ft DC Power Cable (ACW-634) |
| SIM Options 2 | 1x Nano-SIM (4FF) |
| Warranty | 1-Year Limited Warranty |
1 UPS is not included into packing list.
2 Data-only SIM is not supported.
Documentation:
Download the Peplink POTS Adapter Datasheet (PDF).
