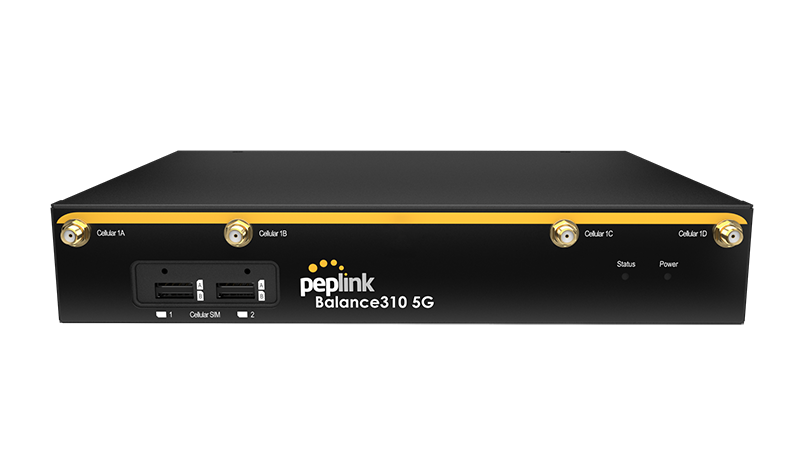

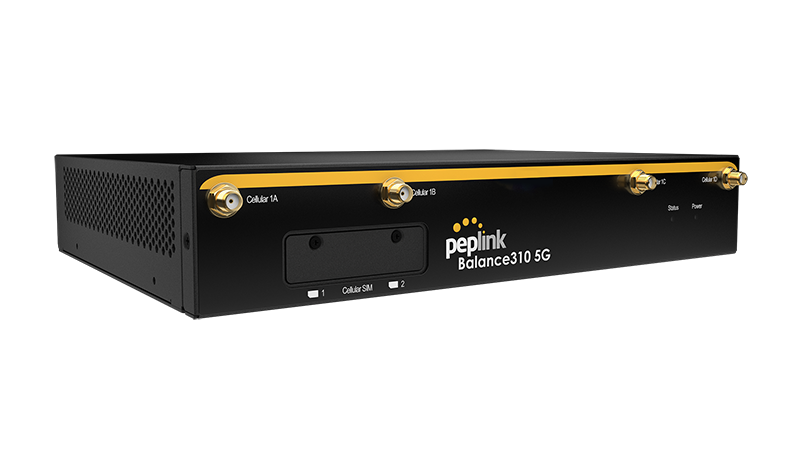

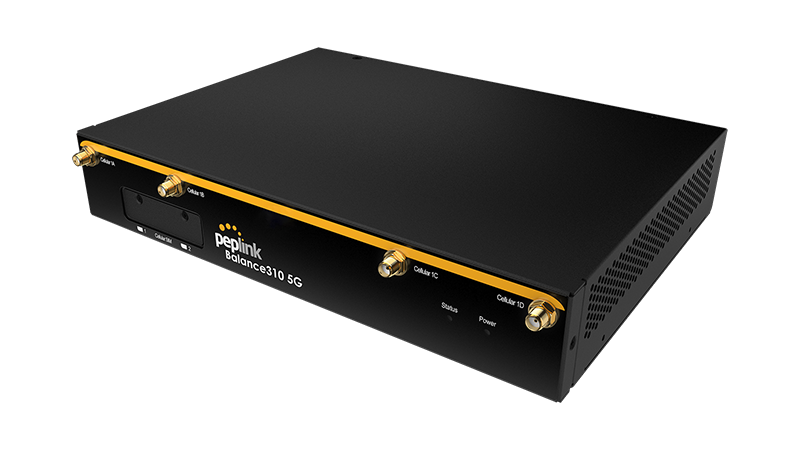

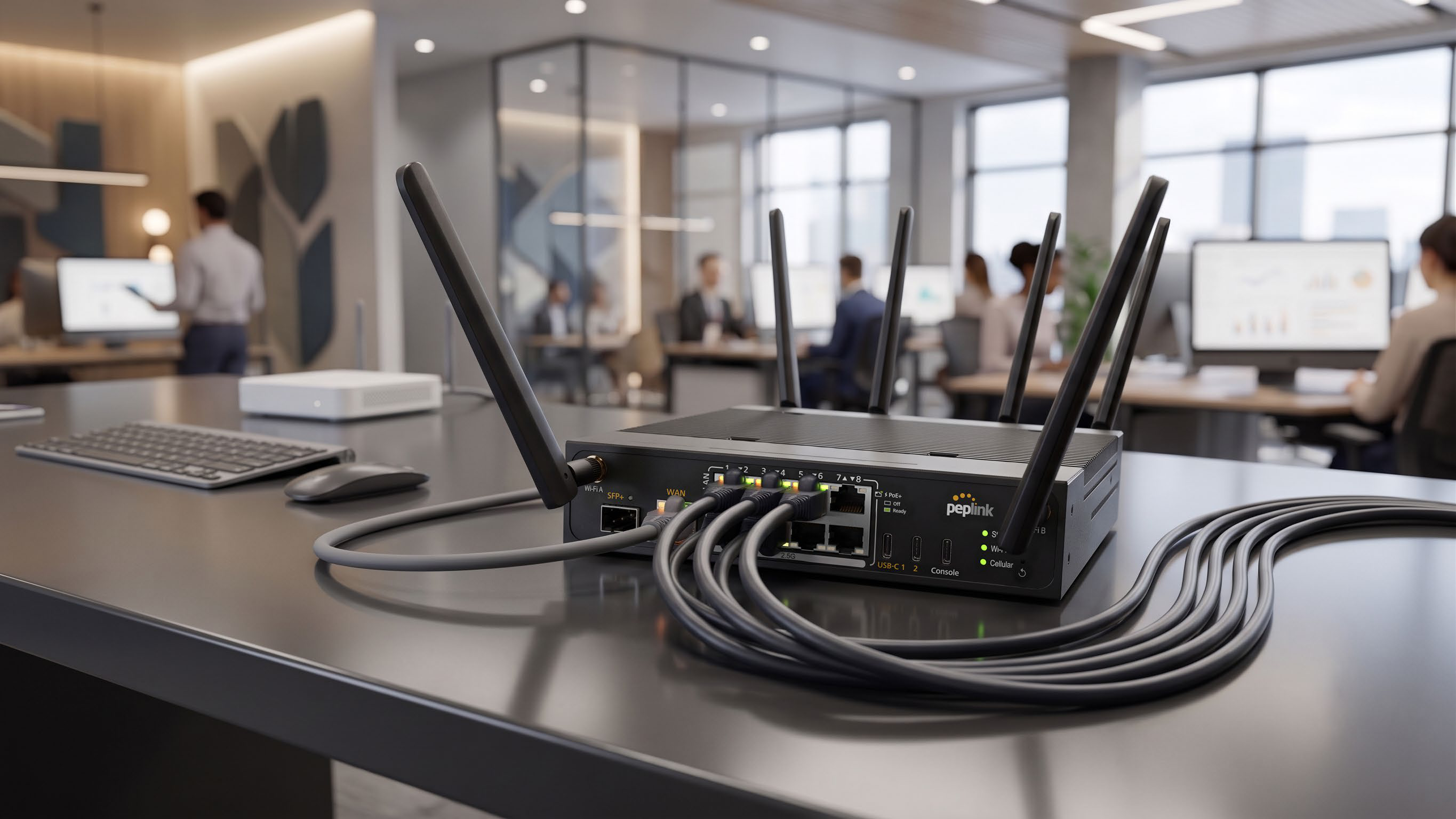

Peplink Balance 310 5G
5G Hybrid Enterprise Branch Connectivity
Peplink Products
Peplink Multi-WAN Routers
More pricing below, click here!
Overview:

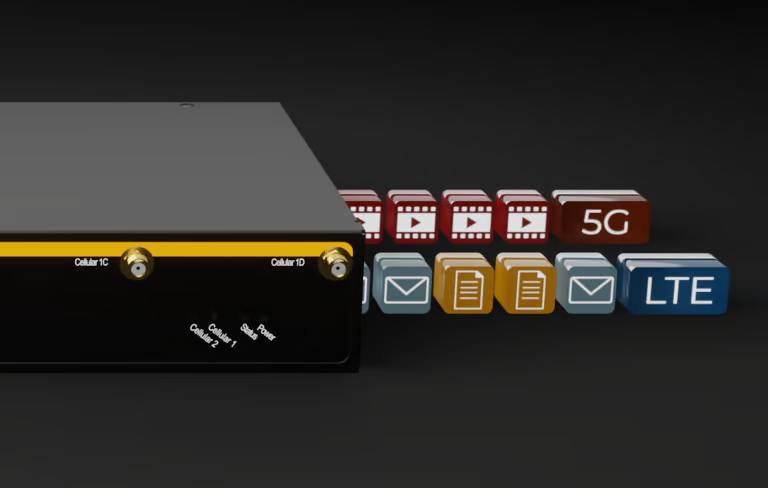

Balance Your Fixed Network with 5G Wireless WAN
With SpeedFusion Cloud you can utilize traffic steering. A technology whereby connections are controlled based on the application, limiting data wastage and traffic.
Enjoy Speed and Reliability without Having to Compromise

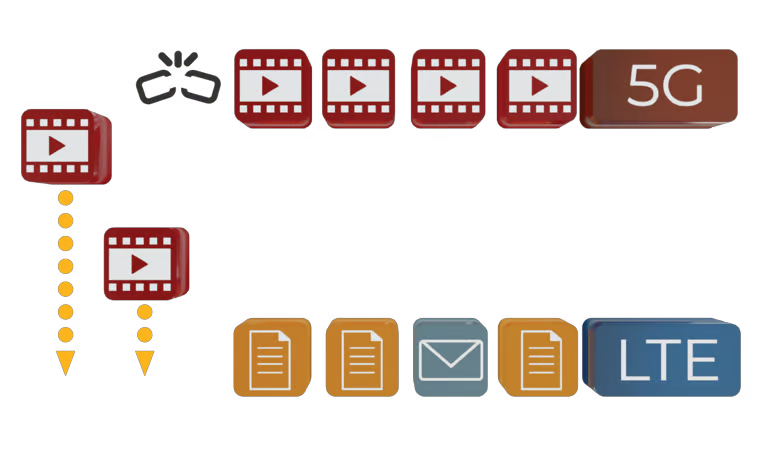

Multi-radio combined with our SpeedFusion Hot Failover technology allows connections of 5G and LTE networks to work simultaneously.
Control Anytime Anywhere
Remote Central Management with private controller or cloud management.
Specifications:
| Balance 310 Fiber 5G Specifications | |
|---|---|

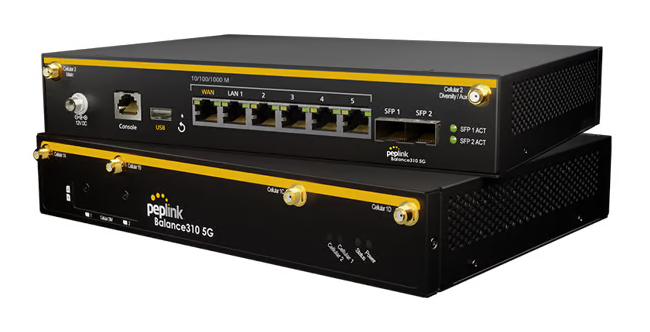

| WAN Interface | 1x 10/100/1000M Ethernet 1x USB Interface 2x Embedded Cellular Modems with Redundant SIM Slots |

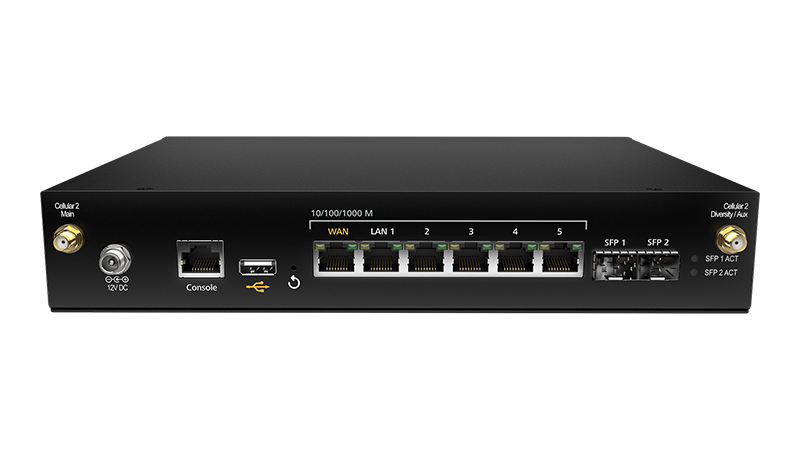

| LAN Interface | 5x 10/100/1000M Ethernet 1x SFP |
| Router Throughput | 1 Gbps |
| PepVPN Throughput (No Encryption) |
600 Mbps |
| PepVPN Throughput (256-bit AES) |
500 Mbps |
| Cellular 1 Data Rate* (Downlink/Uplink) |
5G: 4 Gbps / 700 Mbps LTE CAT-20: 2 Gbps / 150 Mbps |
| Cellular 2 Data Rate* (Downlink/Uplink) |
LTE CAT-12: 600 Mbps / 150 Mbps |
| SpeedFusion Features | Hot Failover, WAN Smoothing, Bandwidth Bonding |
| Number of PepVPN SpeedFusion Peers | 2/30^ |
| Recommended Users | 50-500 |
| Cellular Antenna Connector | 6x SMA Cellular Antenna Connectors |
| Power Input | 12V DC Connector |
| Power Consumption | 17 W (nominal), 40 W (max.) |
| Dimensions | 9.9 x 7.1 x 2.0 inches 252 x 180 x 50 mm |
| Weight | 1.65 kg 3.6 pounds |
| Operating Temperature | 32°– 104 °F 0°– 40°C |
| Humidity | 10% – 85% (non-condensing) |
| Certifications | FCC, CE, RoHS |

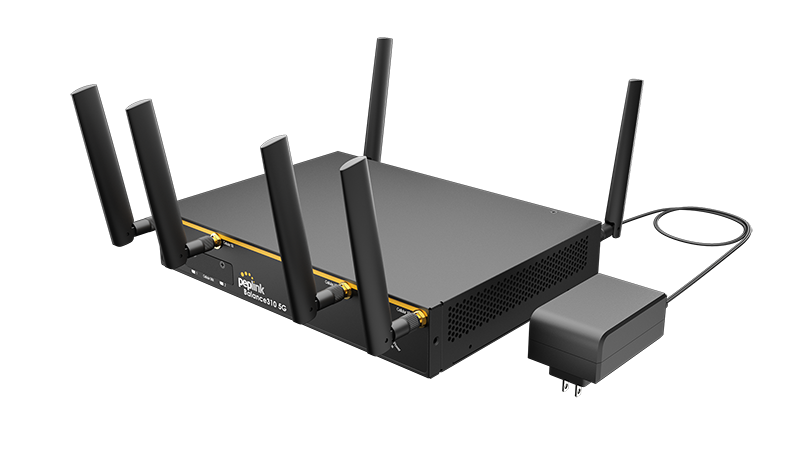

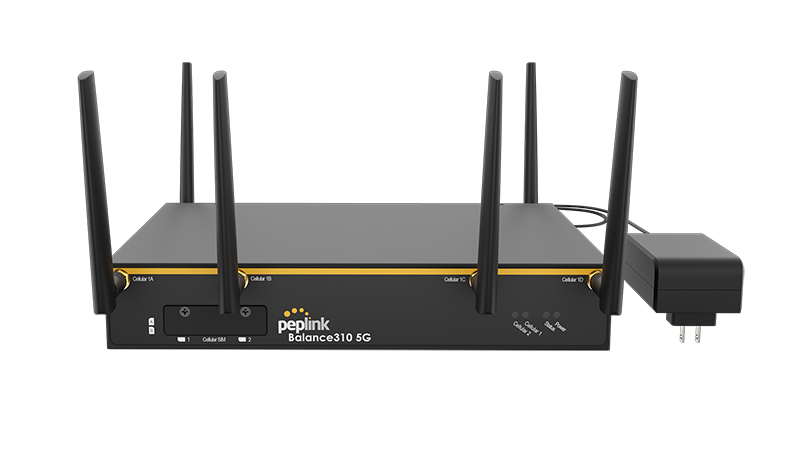

| Package Content | 1x Balance 310 5G 1x 12V5A PSU 1x Power Cord (ACW-614) 6x LTE/5G Antennas (ACW-235) Rubber Foot Pad Set |
| SIM Options | Nano-SIM (4FF) Peplink eSIM BYO eSIM (2 profiles) # RemoteSIM from SIM Injector FusionSIM |
*Theoretical maximum data rates.
^ Requires PrimeCare Subscription, complimentary for the first year.
# Available with Firmware 8.4.0 or above.
Documentation:
Download the Peplink Balance 310 5G Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
