Peplink MAX BR2 Micro
2x Embedded CAT 4 LTE Modem

Pepwave MAX BR1 Mini Core
Pepwave MAX BR2 Micro Pepwave MAX BR2 Micro Pepwave MAX BR2 Micro Pepwave MAX BR2 Micro
Peplink Products
Peplink Mobile Routers
Peplink Max BR2 Micro Cellular Router with 2x Embedded CAT 4 LTE Modems
#MAX-BR2-MICRO-LTE-US-PRM
Get a Quote!
Get a Quote

More pricing below, click here!

Overview:


Unbreakable cellular connectivity in the smallest footprint possible


Dual-cellular modems

Built-in routing

SpeedFusion technology for high reliability connections

Reliable routing that fits virtually anywhere

Smaller than a stack of 3 decks of cards, the BR2 Micro fits where no others can.

Ruggedized Metal Enclosure

with flexible, low power options.

Instant Configurability

Built-in eSIM enables zero-touch provisioning, configuration and management.

Remote Device Management

Peplink InControl and InTouch eliminates the need for pre-staging configurations.

Specifications:

MAX BR2 Micro Specifications

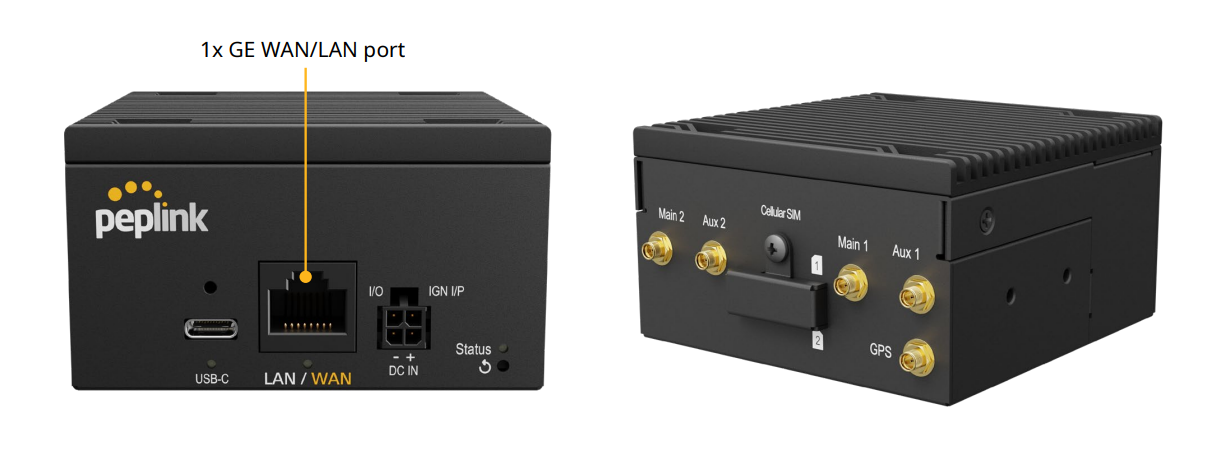

WAN Interface 1x 10/100/1000M Ethernet1
2x Embedded Cellular Modems
LAN Interface 1x 10/100/1000M Ethernet1
1x USB-C2
SpeedFusion features Hot Failover, Smoothing, Bandwidth Bonding
Number of SpeedFusion VPN Peers 2 / 5 3
Router Throughput 300Mbps
SpeedFusion Throughput (No Encryption) 80Mbps
SpeedFusion Throughput (256-bit AES) 60Mbps
Recommended Users 1-60
Cellular Data Rate4 (Downlink/Uplink) CAT-4: 150 Mbps / 50 Mbps

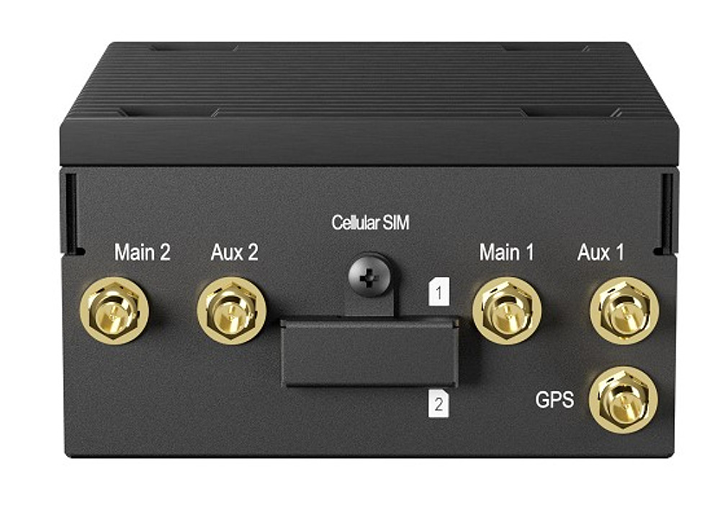

Antenna Connectors 4x MMCX Cellular Antenna Connectors
1x MMCX GPS Antenna Connector
Power Input AC Adapter: AC Input 100V–240V / DC Output 12V
Power Port: 10V – 30V DC
USB-C Port: 9V DC
Power Consumption 8W (nominal), 13W (max.)
Dimension 2.99 x 3.25 x 1.69 inches / 76 x 83 x 43 mm
Weight 0.77 pounds / 350 grams
Operating Temperature -40° – 149°F / -40° – 65°C
Humidity 15% – 95% (non-condensing)
Certification FCC, CE, RoHS
EN61000 Electromagnetic Compatibility
Package Content 1x BR2 Micro
1x 12V 2A 4 Pin Power Supply (ACW-632)
1x USB-C to USB-C Cable with Screw Locking (ACW-620)
1x USB-C to USB-A Adapter (ACW-622)
4x M2.5 x 3mm Screws
1 pair of Mounting Brackets
SIM Options Nano-SIM (4FF)
Peplink eSIM
BYO eSIM (2 profiles per modem)
RemoteSIM from SIM Injector
FusionSIM
Warranty 1-Year Limited Warranty

1 WAN port can be configured as LAN port via the Web Admin.
2 The USB-C LAN interface is equipped with Ethernet to USB Adapter based on the AX88179 chipset, enabling virtual Ethernet connectivity for any device through a USB connection. Please ensure the appropriate drivers are installed.
3 Requires a PrimeCare subscription, complimentary for the first year.
4 Theoretical maximum data rates.

Documentation:

Download the Peplink MAX BR2 Micro Datasheet (PDF).
