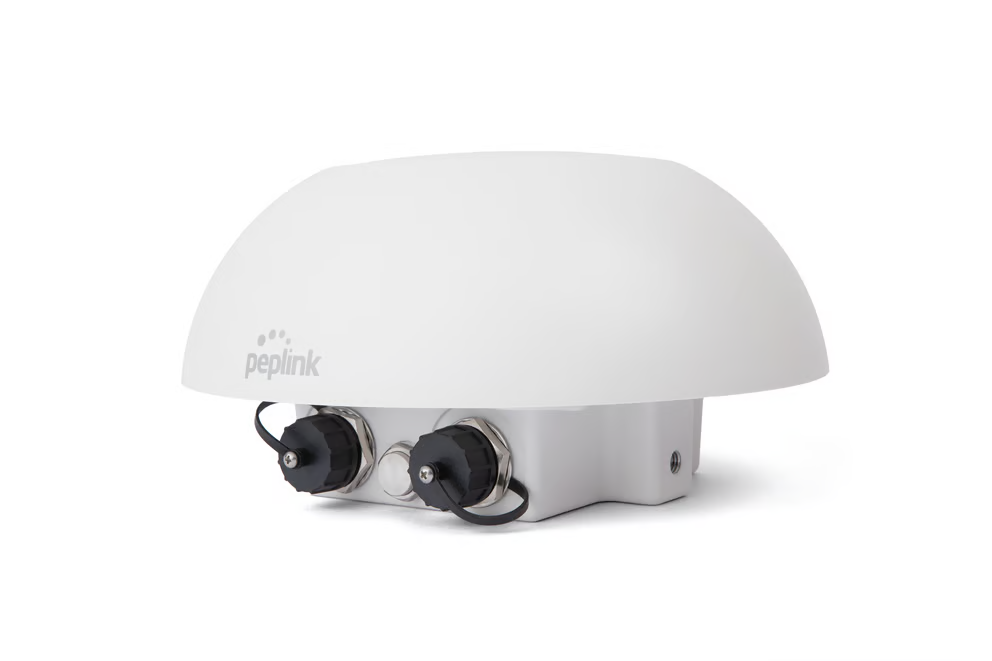

Peplink HD1 Dome Pro
5G Cellular Router for Outdoor Deployments
Our Price: $2,799.00
More pricing below, click here!
Overview:
A refinement in outdoor interconnectivity
The HD1 Dome Pro adapts to the flexible nature of outdoor deployments, offering powerful speeds, with refined Wi-Fi options. The 5G modem, with its embedded cellular antennas, ensures minimal cable loss and offers the finest signal quality.
Wi-Fi as WAN Wi-Fi 6
The Wi-Fi 6 and Wi-Fi as WAN support can optimize your network and provide versatility as and when required. Leverage bandwidth costs and easily expand your network. Experience no more interruptions with SpeedFusion’s hot failover options.
A design that’s made to meet your needs

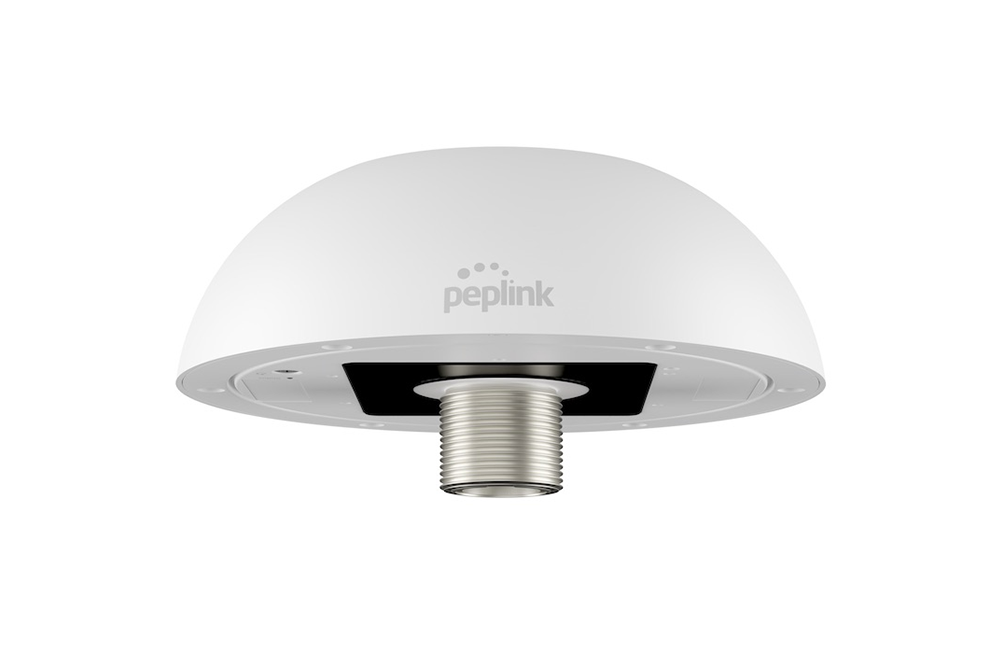

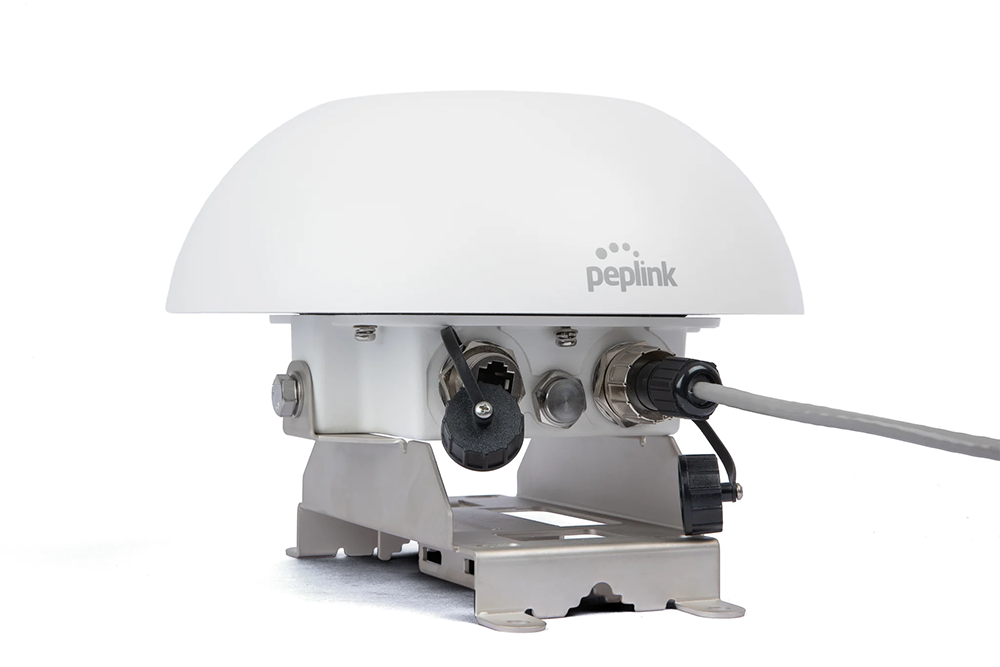

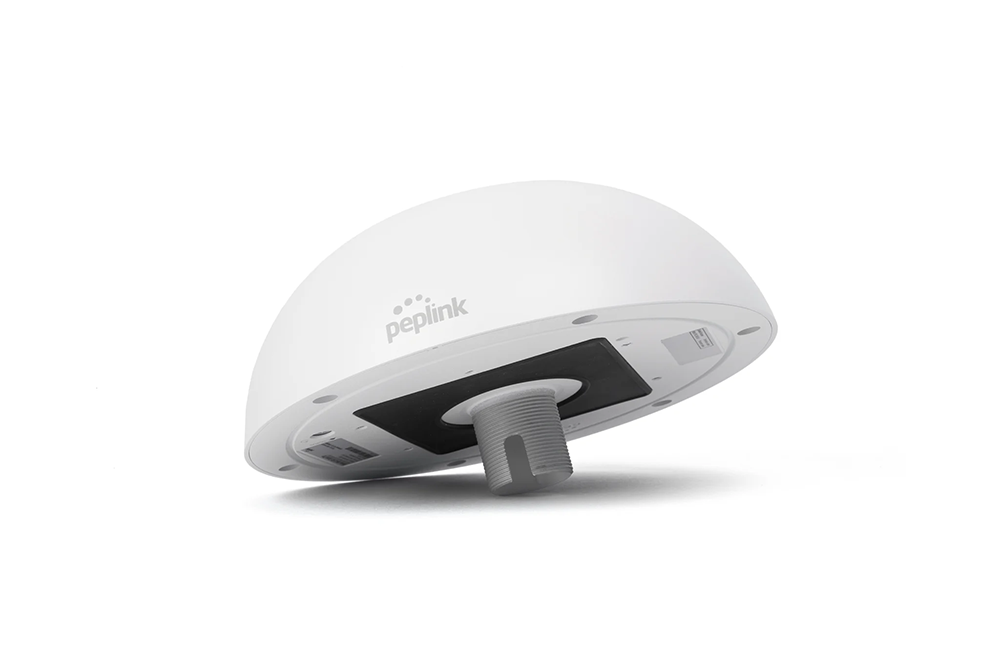

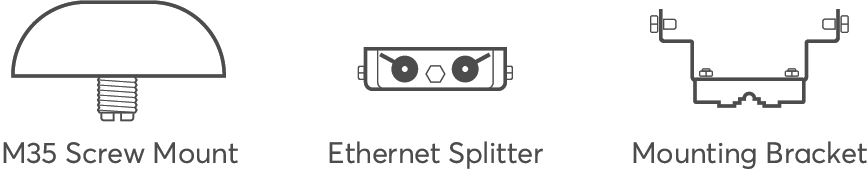

It’s simple design offers a multitude of installation options. The HD1 Dome Pro includes an M35 screw mount and Ethernet splitter, making it easy for wall or pole mount. If mounting is not needed, simply connect an Ethernet cable and it’s good to go.
Together it works

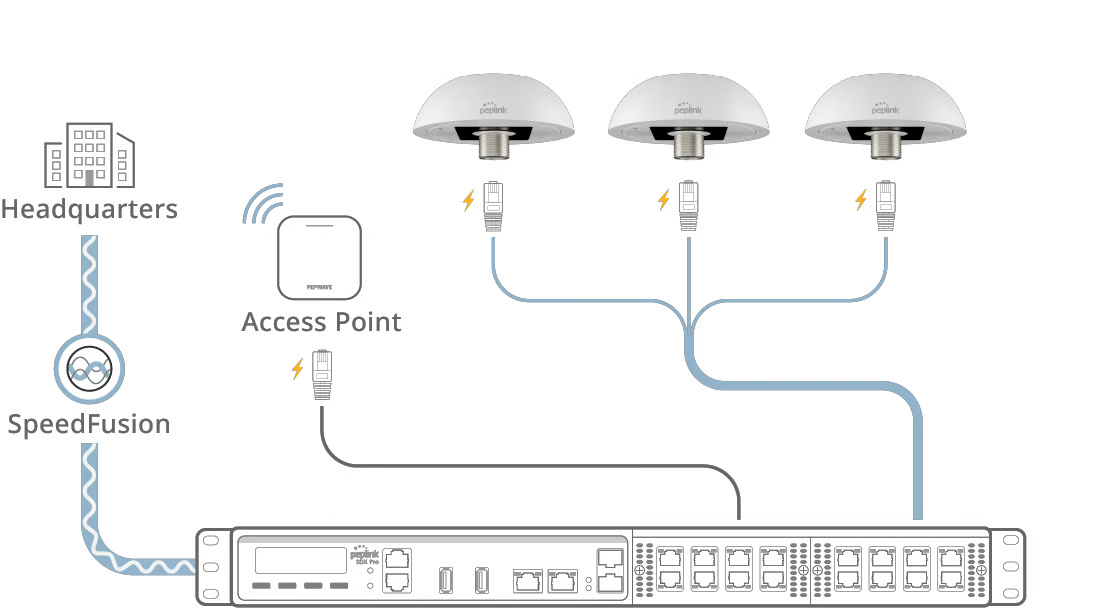

The HD1 Dome Pro can optimize network performance with its PoE functionality. Leverage the power of SpeedFusion by simply connecting Peplink PoE routers, for a mega-bandwidth channel, with the simplest failover option. Or alternatively, extend the Wi-Fi range by connecting an external access point.

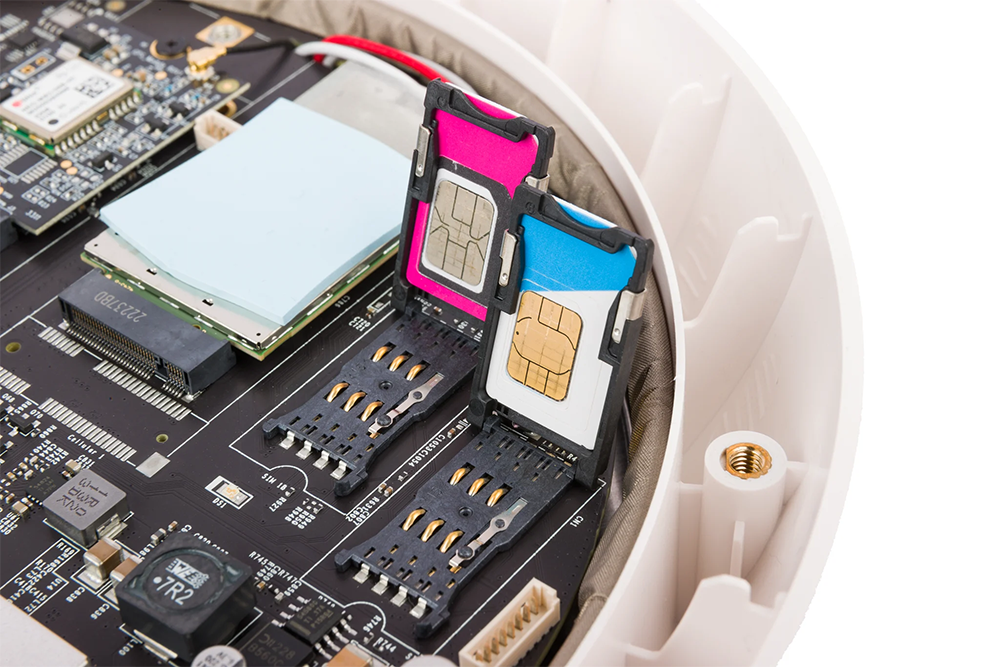

Instant flexibility with the SIM injector

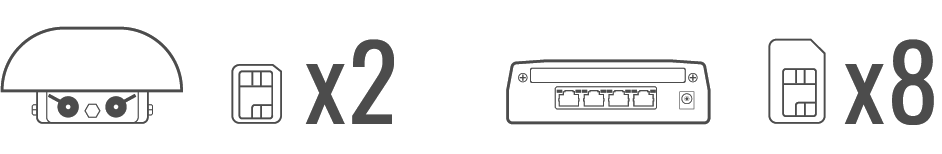

Simply connect an Ethernet cable between the SIM injector^ and the HD1 Dome Pro to manage up to 10 physical SIMs.
With remote network management available via Peplink’s cloud-based management system, InControl 2, accessibility worries are a thing of the past.
^For a limited time only, we are now offering bundle value when purchased together. Contact your point of sales for more information.
Specifications:
| HD1 Dome Pro Specifications | |
|---|---|
| WAN Interface | 1x 5G/LTE Modem with Redundant SIM Slots 1 |
| LAN Interface | 1x 10/100/1000M Ethernet 2 3 |
| Wi-Fi Interface | Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6, 2X2 MIMO Wi-Fi WAN and/or AP |
| Number of SpeedFusion VPN Peers | 2 |
| Enclosure | Rugged outdoor IP67 (with Ethernet Splitter) |
| Recommended Users | 150 |
| Cellular Data Rate (Downlink / Uplink) | 5G: 3.4 Gbps / 900 Mbps |
| Antenna | 4x4 Internal MIMO Cellular Antennas 2x2 Internal MIMO Wi-Fi Antennas 1x Internal GPS Antenna |
| Power Input | 1x 802.3at PoE+ |
| Power Output | 1x 802.3af PoE (with Ethernet Splitter) |
| Power Consumption | 20 W (max., without PoE output) |
| Dimensions | 4.33 inches (radius) x 4.53 inches (height) 110 mm (radius) x 115 mm (height) |
| Weight | With Ethernet Splitter: 3.75 pounds / 1.7 kg Without Ethernet Splitter: 2.65 pounds / 1.2 kg |
| Operating Temperature | -40°– 149°F / -40°– 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications | FCC, CE, RoHS, EN 50124-1 Railway Application - Insulation Coordination EN 50155 Railway Application - Rolling Stock - Electronic Equipment EN 61000 Electromagnetic Compatibility |

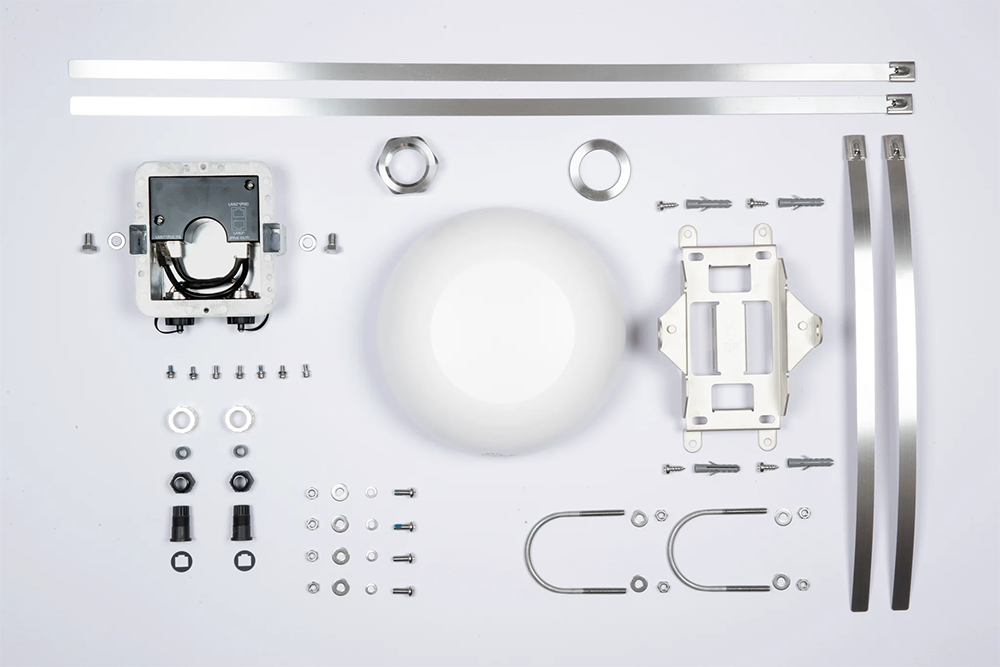

| Package Content | MAX HD1 Dome Pro, Ethernet Splitter, 2x Waterproof Ethernet Connector (ACW-112), Mounting Kit Set |
| SIM Options | Nano-SIM (4FF) Peplink eSIM BYO eSIM (2 profiles) 5 RemoteSIM from SIM Injector FusionSIM |
| Warranty | 1-Year Limited Warranty |
1 SIM Injector is available separately.
2 Ethernet LAN port can be split into two LAN ports using the included splitter (1x LAN 802.3af PoE out, 1x LAN 802.3at PoE+ in).
3 Ethernet port includes surge and ESD protection circuits to protect against over-voltage transients.
4 Certification Pending.
5 Available with Firmware 8.4.0 or above.
Documentation:
Download the Peplink HD1 Dome Pro Datasheet (PDF).
