Peplink MAX BR2
2x Embedded CAT 4 LTE Modem
Our Price: $599.00
More pricing below, click here!
Overview:

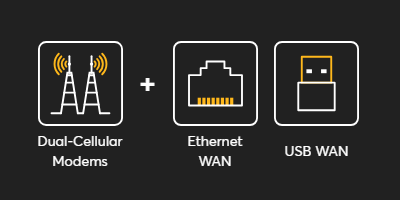

Multiple Backup WANs for Added Reliability
Built-in dual-cellular modems plus external WAN options ensures unbreakable connectivity while on the go and in the most remote locations.
Simple Installation for Mass Deployments
For truly remote and industrial applications, its built-in eSIM and remote SIM configuration allows for zero-truck-roll provisioning, configuration and management.
Remotely manage and configure all devices in your network with InControl and InTouch . No pre-staging configurations necessary.
Eliminate truck rolls
Build in eSIM
Central Management

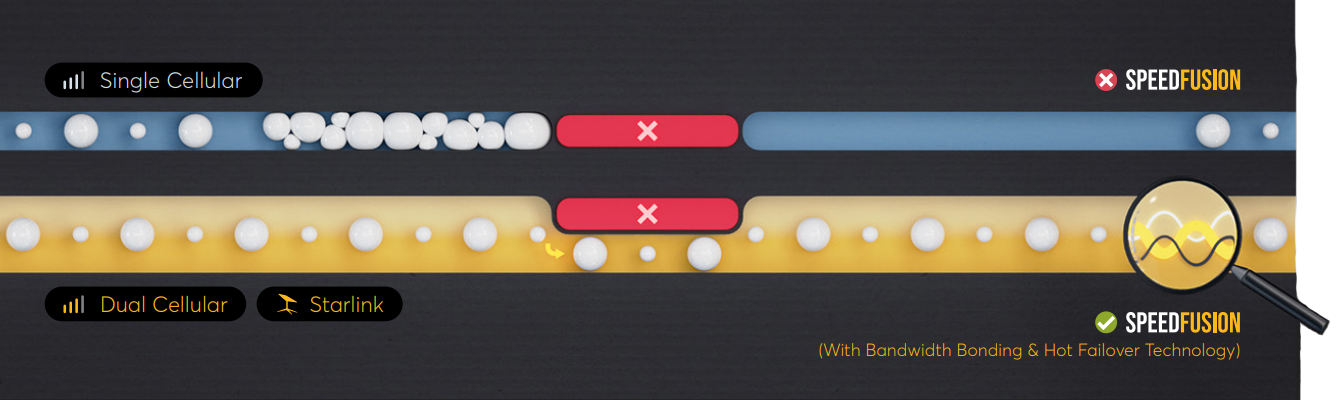

Advanced SpeedFusion Technology
SpeedFusion technology seamlessly bonds multiple Internet connections into a single more-reliable Internet feed achieve zero interruption.

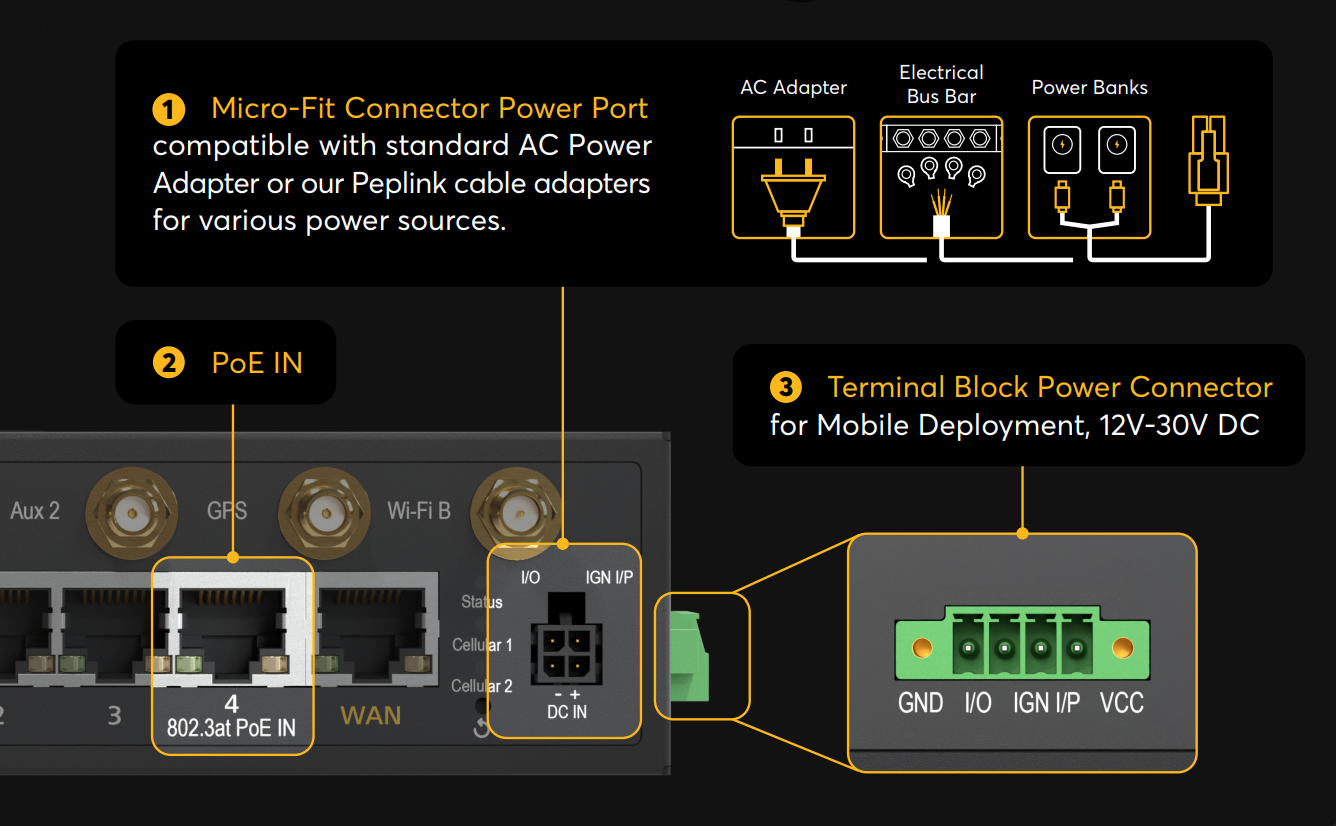

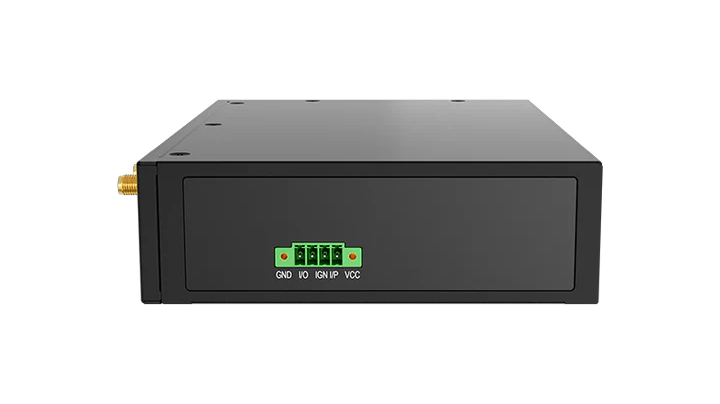

Flexible Power and Port Options
The BR2 supports a fanless design that can be powered in three different ways:
Specifications:
| MAX BR2 Specifications | |
|---|---|

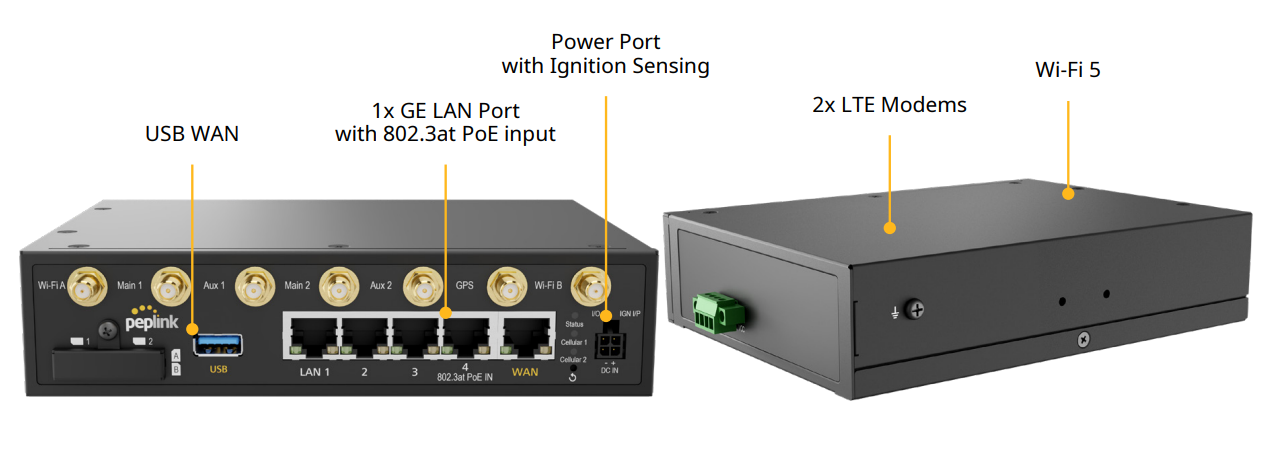

| WAN Interface | 1x 10/100/1000M Ethernet 2x Embedded Cellular Modems with Redundant SIM Slots 1x USB Interface |
| LAN Interface | 4x 10/100/1000M Ethernet |
| Wi-Fi Interface | Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6, 2X2 MIMO Wi-Fi WAN and/or AP |
| SpeedFusion features | Hot Failover1 / Smoothing1 / Bandwidth Bonding1 |
| Number of SpeedFusion VPN Peers | 2 / 5 1 |
| Router Throughput | 300Mbps |
| SpeedFusion Throughput (No Encryption) | 80Mbps |
| SpeedFusion Throughput (256-bit AES) | 60Mbps |
| Recommended Users | 1-60 |
| Cellular Data Rate4 (Downlink/Uplink) | CAT-4: 150 Mbps / 50 Mbps |

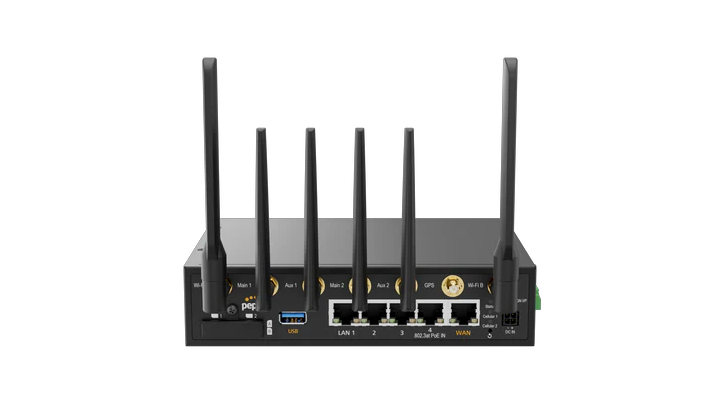

| Antenna Connectors | 4x SMA Cellular Antenna Connectors 2x RP-SMA Wi-Fi Antenna Connectors 1x SMA GPS Antenna Connector |
| Power Input | Power Port: 12V – 30V DC AC Adapter: AC Input 100V–240V / DC Output 12V Terminal Block: 12V – 30V DC Power over Ethernet 802.3at |
| Power Consumption | 8W (nominal) / 13W (max. without USB output) |
| Dimension | 6.89 x 5.12 x 1.61 inches / 175mm x 130mm x 41mm |
| Weight | 2.43 pounds / 1.1 kg |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certification | FCC, CE, RoHS EN 61000 Electromagnetic Compatibility |
| Package Content | 1x BR2 4x LTE Antennas (ACW-237) 2x Dual Band Wi-Fi Antennas (ACW-342) 1x GPS Active Antenna (ACW-232) 1x 12V 2A 4pin Power Supply |
| SIM Options | Nano-SIM (4FF) Peplink eSIM3 BYO eSIM (2 profiles per modem)3 RemoteSIM from SIM Injector FusionSIM |
| Warranty | 1-Year Limited Warranty |
1 Requires a PrimeCare subscription, complimentary for the first year.
2 Maximum theoretical data rate.
3 Models with selected SKU support eSIM.
Documentation:
Download the Peplink MAX BR2 Datasheet (PDF).
