Peplink Balance 5000 EC
Next Generation Enterprise Router
More pricing below, click here!
Overview:
Extreme Performance
The Core Router for Large Enterprises
A true enterprise powerhouse, built to handle the most demanding networks. With up to 110 Gbps of total stateful throughput, it delivers seamless multi-site connectivity and multi-cloud networking. Whether it’s for large-scale deployments or mission-critical operations, the Balance 5000 EC will keep your enterprise running at full capacity — without compromise.
Up to
110 Gbps
Total Throughput
Cloud-Based
InControl 2
Remote Management Platform
SpeedFusion
Pushed to its Absolute Limits
SpeedFusion
Full-Speed Protection for SD-WAN Network
Speed alone isn’t enough — resiliency is just as important. Peplink’s SpeedFusion technology intelligently bonds multiple connections for seamless, fail-proof networking. Say goodbye to packet loss, disruptions, and slow failovers — as your network stays on and runs at full speed.
Up to
30 Gbps
SpeedFusion VPN Throughput

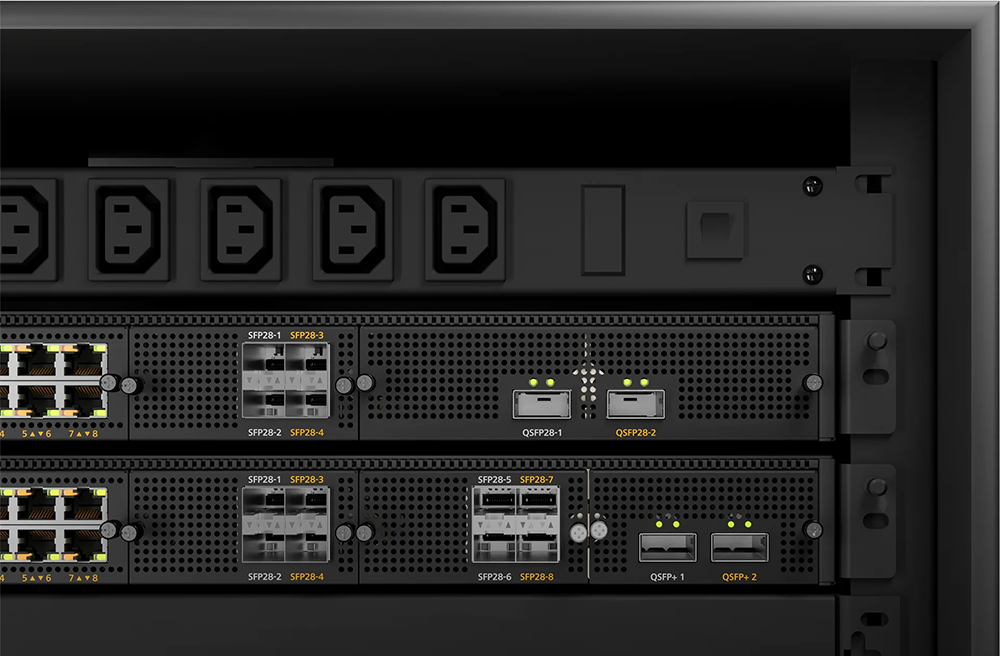

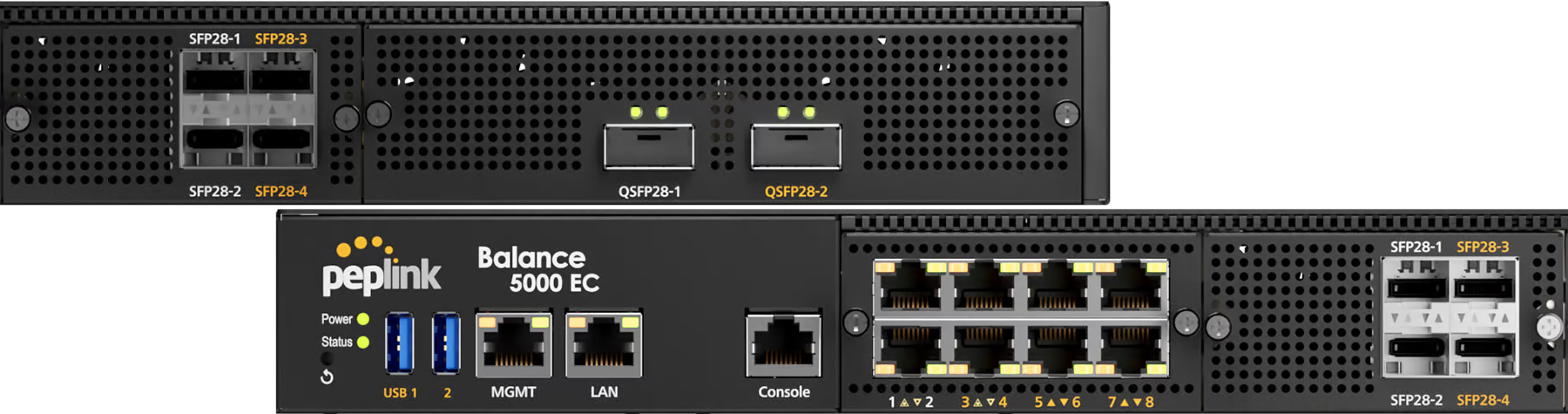

Future-Proof
High-Speed Interfaces for Scalable Networks
40G/100G QSFP
Built for ultra-high-speed data center backbones, large-scale data aggregation, and seamless core network scaling.
25G/10G SFP
Ideal for high-speed fiber interconnects between regional hubs, enterprise WANs, core switches, and direct cloud on-ramps.
2.5G/1G Ethernet
Optimized for LAN aggregation, Wi-Fi access points, access switches and high-performance workstations.
Built for 24/7 Uptime
Enterprise-Grade Reliability
Dual Hot-Swappable Power Supplies
Ensure nonstop operations with backup power sources.
High Availability
Hardware redundancy for mission-critical operations.
LAN Bypass for Uninterrupted Traffic
Keep your network running smoothly during unexpected downtime.
Empower Enterprise Networks
with Intelligent Edge Computing
Real-Time Data Processing
Analyze, filter, and optimize traffic before reaching core infrastructure, reducing latency and improving efficiency.
Seamless Application Hosting
Run Docker and KVM virtual machines directly on the router, enabling security tools, traffic monitoring, network automation, and analytics apps at the edge.
Specifications:

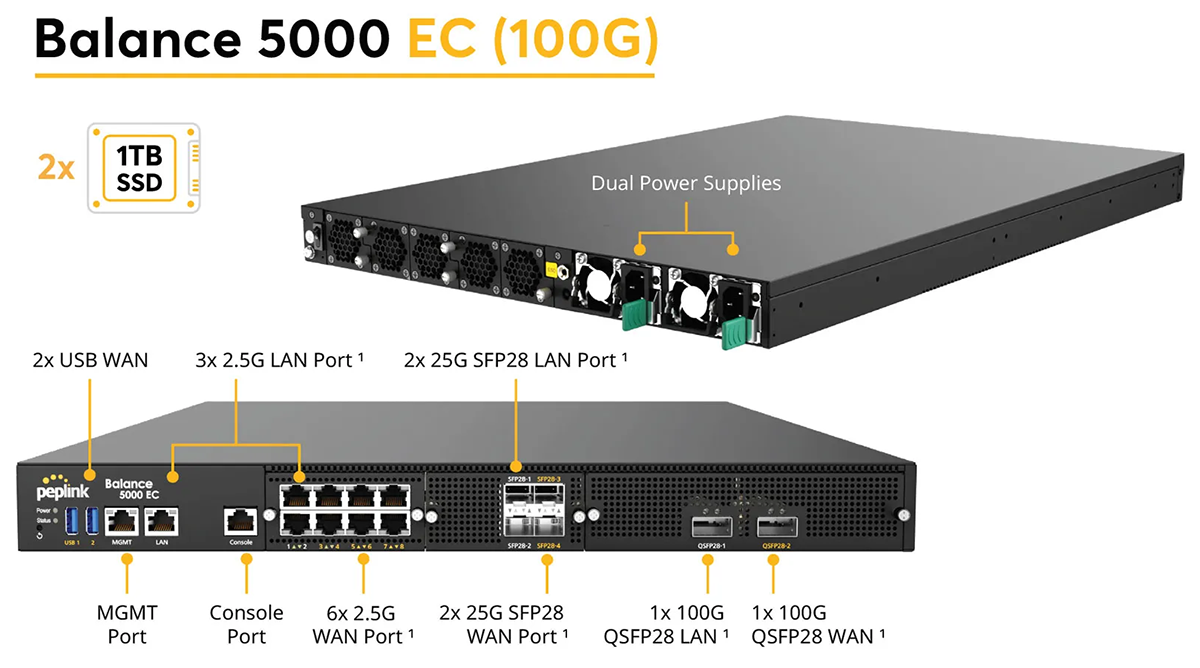

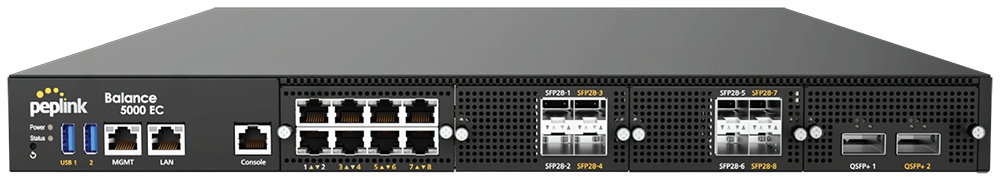

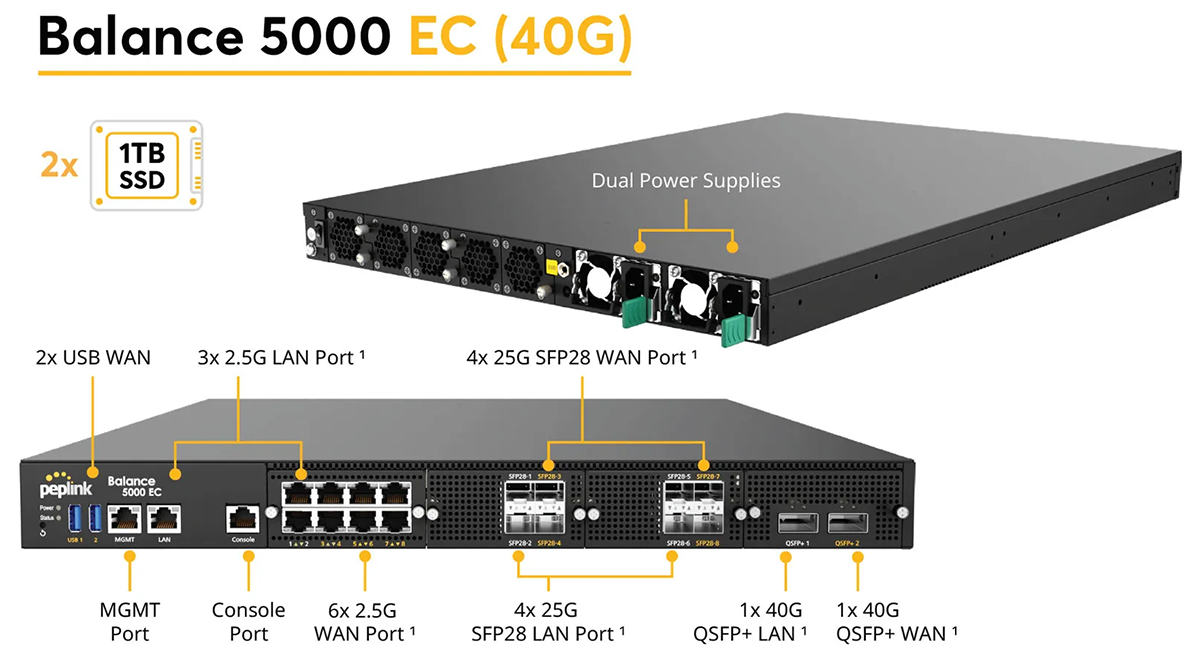

| Balance 5000 EC (40G) | Balance 5000 EC (100G) | |
|---|---|---|
| WAN Interface | Up to 8 x 10/100/1000/2500M Etherne t1 Up to 8 x 25G SFP28 1 Up to 2 x 40G QSFP+ 1 2x USB Interface |
Up to 8 x 10/100/1000/2500M Etherne t1 Up to 4 x 25G SFP28 1 Up to 2 x 40G QSFP+ 1 2x USB Interface |
| LAN Interface | Up to 9 x 10/100/1000/2500M Ethernet 1 Up to 8 x 25G SFP28 1 Up to 2 x 40G QSFP+ 1 |
Up to 9 x 10/100/1000/2500M Ethernet 1 Up to 4 x 25G SFP28 1 Up to 2 x 40G QSFP+ 1 |
| Router Throughput | 70 Gbps | 110 Gbps |
| SpeedFusion VPN Throughput (No Encryption) |
30 Gbps | 30 Gbps |
| SpeedFusion VPN Throughput (256-bit AES) |
30 Gbps | 30 Gbps |
| Recommended Users | 10000 - 20000+ | 10000 - 20000+ |
| Number of SpeedFusion VPN Peers | 4000 | 4000 |
| Maximum Number of AP Supported | 2000 | 2000 |
| SpeedFusion Features | Hot Failover, WAN Smoothing, Bandwidth Bonding | Hot Failover, WAN Smoothing, Bandwidth Bonding |
| Central Management | InControl 2 | InControl 2 |
| Drop-In Mode | Yes | Yes |
| High Availability | Yes | Yes |
| Content Filtering | Full | Full |
| Peplink AP Series Management | Yes | Yes |
| Remote AP & Multiple Config Profiles Management | Yes | Yes |
| Edge Computing | 2x 1TB SSD | 2x 1TB SSD |
| LAN Bypass | Yes 2 | Yes 2 |
| Remote User Access | Yes | Yes |
| LACP (802.3ad) NIC Bonding | Yes | Yes |
| Dual Hot Swap Power Supply | Yes | Yes |
| 1U Rack-mount | Yes | Yes |
| Power Input | AC Input 110V - 220V | AC Input 110V - 220V |
| Power Consumption | 196W (nominal), 596W (max.) | 203W (nominal), 595W (max.) |
| Dimensions | 17.2 x 25.6 x 1.73 inches / 438 x 650 x 44 mm | |
| Weight | 52.8 pounds / 24 kg | |
| Operating Temperature | 32°– 104° F / 0°– 40° C | |
| Humidity | 10% to 90% (non-condensing) | |
| Certifications | FCC, CE, RoHS | |
| Package Content | 1x Balance 5000 EC (40G) 2x Power Cords 1x Ethernet cable 1x Rack Mount Rails 1x Short Ear Rack Mount Kit with screws |
1x Balance 5000 EC (100G) 2x Power Cords 1x Ethernet cable 1x Rack Mount Rails 1x Short Ear Rack Mount Kit with screws |
| Warranty | 1-Year Limited Warranty | 1-Year Limited Warranty |
1 SFP28 port 3,4, QSFP28 port 2 and Ethernet port 3-8 are configured as WAN ports ; SFP28 port 1,2, QSFP28 port 1 and Ethernet port 1-2 are configured as LAN ports. WAN/LAN Configuration is changeable on the Web Admin.
2 LAN Bypass is available for Internet traffic from LAN 1 to WAN 3 and from LAN 2 to WAN 4.
Documentation:
Download the Peplink Balance 5000 EC Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
