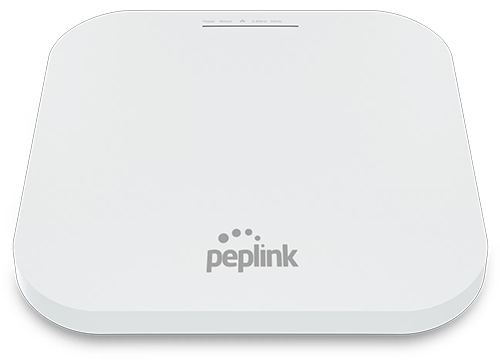

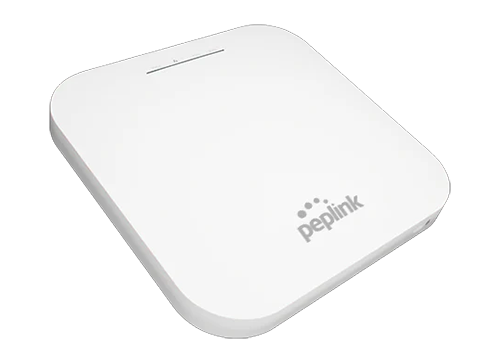

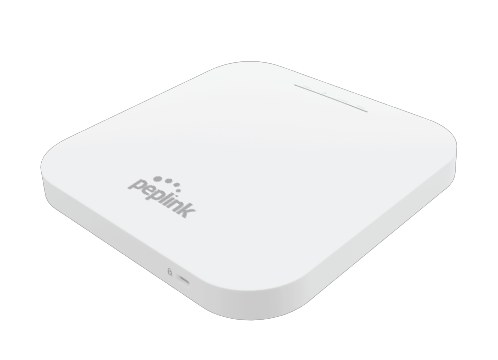

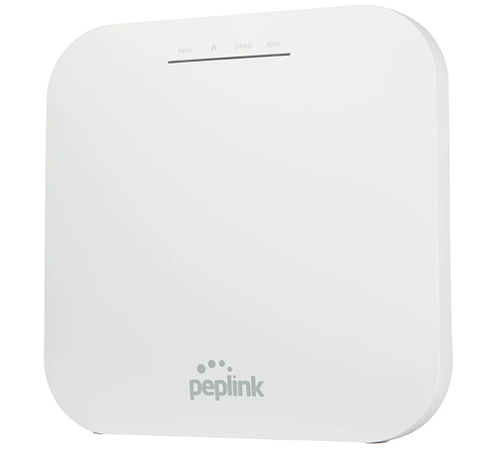

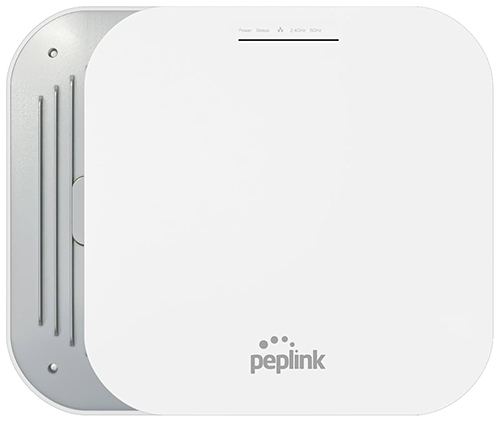

Peplink AP One AX Lite
2x2 MU-MIMO Wi-Fi 6 Access Point
Simultaneous Dual-Band 802.11ax/ac/b/g/n
Our Price: $299.00
More pricing below, click here!
Overview:

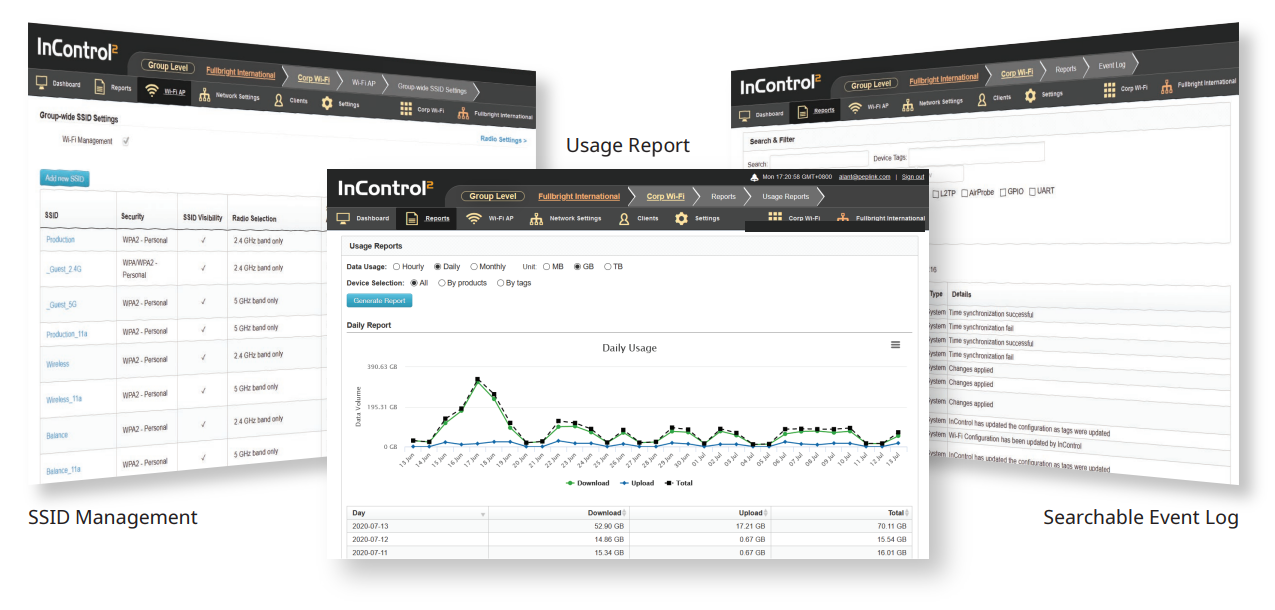

Manage Centrally, No Extra Hardware Needed
AP One AX Lite comes equipped with InControl central management. Giving users the ability to control and monitor their network from any web browser. Manage network SSIDs, radio settings, and search event logs with ease to diagnose the entire network.
Wi-Fi Just Got Better
Integrated Wi-Fi 6 is 45% faster than the average Wi-Fi 5, has 4 more device capacity and consumes less power for connected devices.
Enterprise-Grade Roaming Speeds
Supports 802.11k/v/r, providing users a seamless roaming experience between access points.

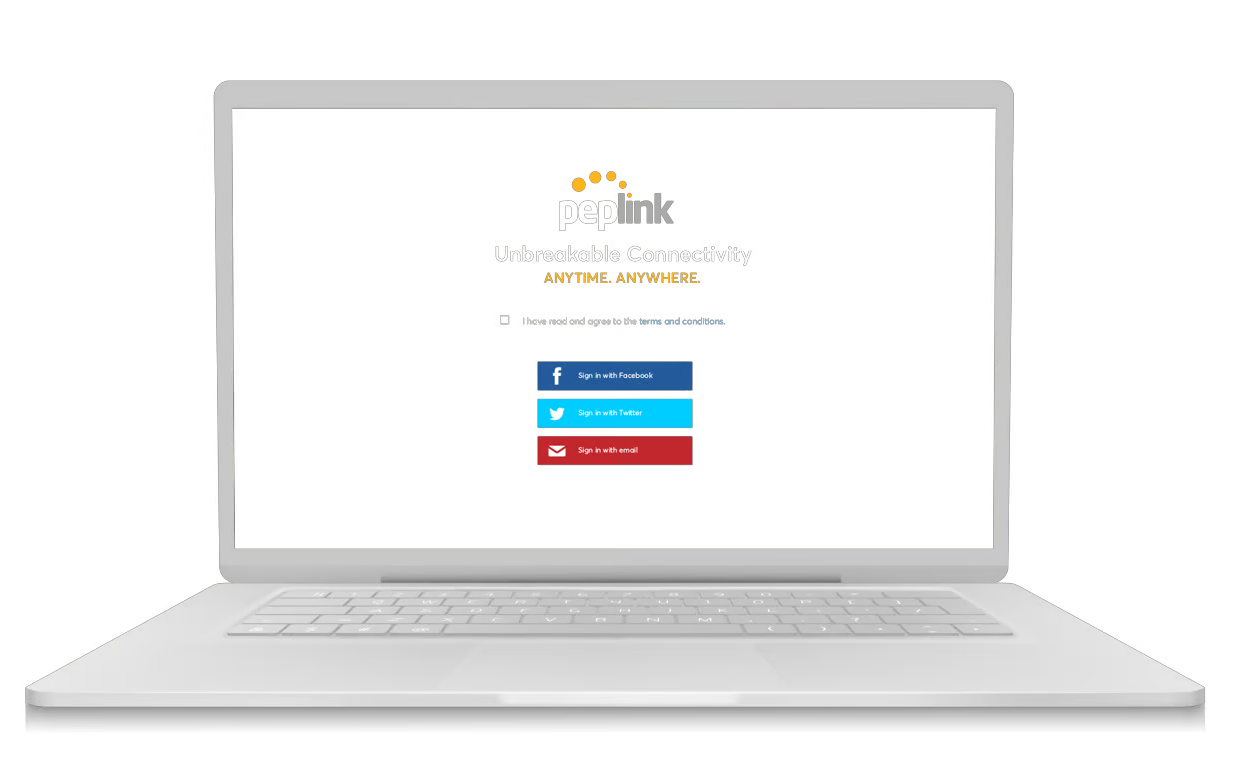

Turnkey or Custom Captive Portals
Offer users a more branded experience by customizing captive portals through InControl.
Seamless Peplink SD-WAN Integration
Effortlessly integrate Peplink solutions with AP One AX Lite to provide unique network capabilities and network flexibility, making the whole experience more user friendly.
Monitor network health on a single dashboard. Push configuration profiles on multiple devices at once. Remotely access the Web Admin of any device.
Provides unbreakable connectivity by combining multiple WANs. Works with InControl to centralize VLAN, firewall, and outbound policy.
Works with InControl to remotely configure and activate PoE ports. Monitor power consumption.
Works with InControl to centralize SSIDs, radio settings, and deliver captive portals.
Specifications:
| AP One AX Lite Specifications | |
|---|---|
| Ethernet Port | 1 x 1Gbps Gigabit Ethernet |
| Wi-Fi Standard | Simultaneous 1 x 2.4GHz 802.11b/g/n/ax 1 x 5GHz 802.11a/n/ac/ax |
| Radio Chains/Streams | 2 x 2:2 |
| Data Rates | 2.4 GHz: up to 574 Mbps 5 GHz: up to 1200 Mbps |
| Channel Width | 20/40/80 MHz |
| Recommended Concurrent Users Per Radio | 256 |
| SSID Per Radio | 16 |
| Transmit Power | 2412 – 2472 MHz: 24dBm 5180 – 5825 MHz: 25dBm |
| Antenna | Built-in Omni antenna: 2 x 3dBi - 2.4GHz 2 x 3dBi - 5GHz |
| Enclosure | Plenum-rated enclosure |
| Dimensions | 5.9 x 5.9 x 1.3 inches 160 x 160 x 33 mm |
| Weight | 0.84 pounds / 382 grams |

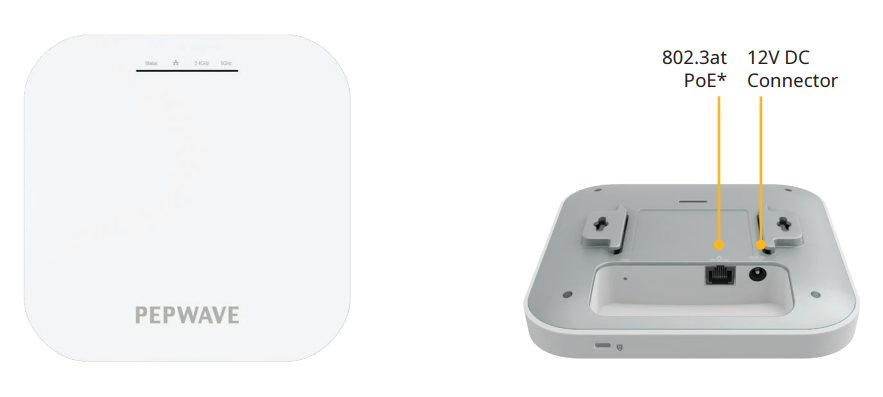

| Power Input | 12V DC Jack (Plug 5.5 x 2.1 mm, center positive)* 802.3at PoE* |
| Power Consumption | 14.5W (max) |
| Operating Temperature | 32ºF - 104ºF / 0ºC - 40ºC |
| Certifications | FCC, CE, RoHS |
| Package Content | AP One AX Lite Ceiling Mount Base (9/16” T-Rail) Ceiling Mount Base (15/16” T-Rail) Mounting Screw Set |
| Warranty | 1-Year Limited Warranty |
Network
Bridge Mode
Router (NAT) Mode
Mesh
Wireless Distribution System (WDS)
Support for PPPoE, Static IP, DHCP
Management VLAN
Spanning Tree Protocol
Radio
Multiple SSID
Auto Channel Selection
Transmit Power Adjustment
Neighbor AP Detection
Client Management
Per SSID
VLAN with QoS (802.1p/802.1q)
Bandwidth Control
MAC Address Filtering
Layer 2 Client Isolation
Limit on Max. Number of Clients
Per Client
VLAN with RADIUS
VLAN with VLAN Pool
Bandwidth Control
Multicast Filter
IGMP Snooping/Multicast Enhancement
Captive Portal by InControl
AP Security
Open
WPA/WPA2/WPA3-Personal
WPA/WPA2-Enterprise
Device Management
Web Administrative Interface
InControl Cloud Management
Peplink AP Controller
SNMP v1, v2c and v3
* AC/DC adapter and PoE Injector are not included.
Documentation:
Download the Peplink AP One AX Lite Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
Simultaneous Dual-Band 802.11ax/ac/b/g/n
Our Price: $299.00
Includes IC2 subscription
Our Price: $49.00
Includes IC2 subscription
Our Price: $98.00
Includes IC2 subscription, 24/7 email ticket support, and AHR
Our Price: $69.00
Includes IC2 subscription, 24/7 email ticket support, and AHR
Our Price: $118.00
Includes IC2 subscription, 24/7 email ticket support, and AHR
Our Price: $194.00
Our Price: $79.00
Our Price: $29.00
