Overview:

The Peplink Transit Pro E is a rugged mobile 5G router with Edge Compute Engine. The Peplink router provides a fast and stable 5G internet connection with speeds of up to 3.4 Gbps download and 900Mbps upload. The Transit Pro E is backwards compatible with 4G LTE CAT-20.

Simultaneous Dual-Band (2.4Ghz / 5GHz) WiFi-6 2x2 MiMo gives you two independent networks that also work together, to optimise throughput for your users. InControl2 can be used for insightful reporting and usage demographics.

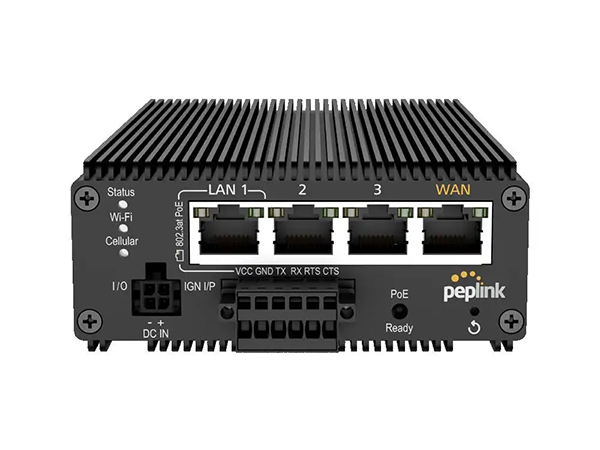

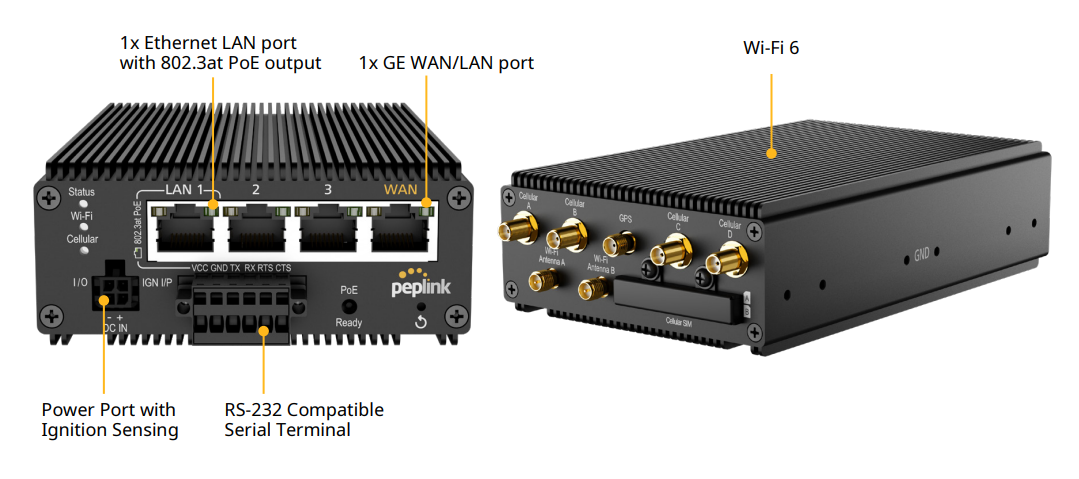

The Transit Pro E has 4 Gigabit Ethernet ports (3x LAN, 1x WAN) with PoE (Power over Ethernet) 802.3at support on one LAN port, allowing compatible devices such as IP cameras or access points to be powered directly via the Ethernet port.

The Peplink Transit Pro E is an advanced router that is perfect for businesses and individuals who need robust, fast and stable Internet access on the move. With 5G connectivity and Wi-Fi 6 technology, it guarantees fast, reliable performance even in the most challenging environments.

Integrated GPS and Dead Reckoning

Track vehicle locations with precision using integrated GPS and dead reckoning capabilities. Ideal for fleet management and asset tracking.

Multiple SIM options

The router supports two physical Nano-SIM cards and eSIM support. This adds extra flexibility, making it ideal for critical applications such as emergency response.

Remote managment

Use Peplink's intuitive InControl to easily manage and monitor your network and external devices from anywhere. This ensures optimal performance and security.

Rugged design

The Transit pro E has a weatherproof housing that can withstand harsh conditions. This makes the router suitable for use in vehicles, boats and outdoor applications.

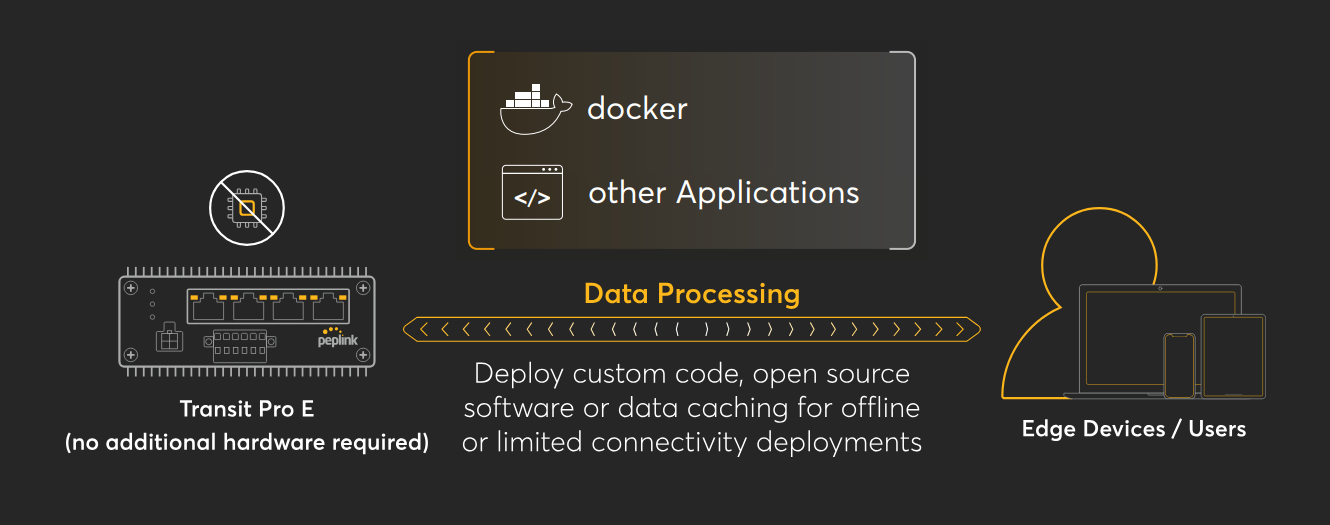

Built-in Edge Computing (8GB storage)

Run containerized software without additional hardware. Deploy custom code, open source software or data caching for offline or limited connectivity deployments.

Specifications:

Transit Pro E Specifications
WAN Interface 1x 10/100/1000M Ethernet
1x Embedded Cellular Modems with Redundant SIM Slots
LAN Interface 3x 10/100/1000M Ethernet
Wi-Fi Interface Simultaneous Dual-Band (2.4GHz / 5GHz)
Wi-Fi 6, 2X2 MIMO
Wi-Fi WAN and/or AP
SpeedFusion features Hot Failover, Smoothing, Bandwidth Bonding
Number of SpeedFusion VPN Peers 2 / 5 2
Features GPIO
Ignition Sensing
Edge Computing with 8GB Storage
Location tracking with GPS and Dead Reckoning
Router Throughput 1Gbps
SpeedFusion Throughput (No Encryption) 400Mbps
SpeedFusion Throughput (256-bit AES) 200Mbps
Recommended Users 25-150
Cellular Data Rate3 (Downlink/Uplink) 5G: 3.4 Gbps / 900 Mbps
CAT-20: 1.6 Gbps / 200 Mbps

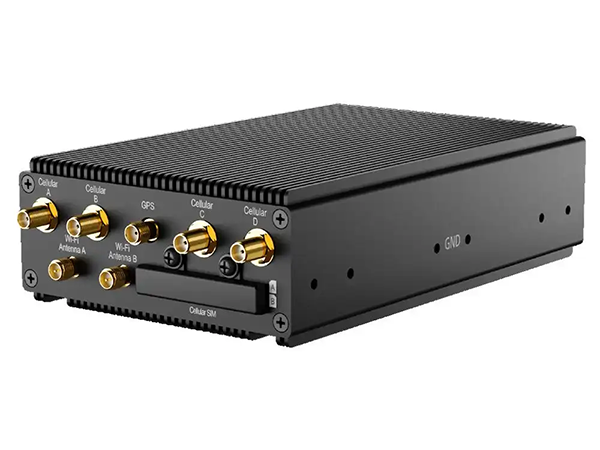

Antenna Connectors 4x SMA Cellular Antenna Connectors
2x RP-SMA Wi-Fi Antenna Connectors
1x SMA GPS Antenna Connector
Power Input Power Port: 12V – 56V DC
AC Adapter: AC Input 100V–240V / DC Output 12V
Terminal Block: 12V – 56V DC
Power Output Power over Ethernet 802.3at3
Power Consumption 12W (nominal), 19W (max.)
Dimension 6.3 x 4.0 x 1.7 inches / 160 x 101 x 43.5 mm
Weight 2.1 pounds / 900 grams
Operating Temperature -40° – 158°F / -40° – 70°C
Humidity 15% – 95% (non-condensing)
Certification CE, RoHS, RCM, UKCA
Package Content 1x Transit Pro E
4x 5G/LTE Antennas (ACW-235)
2x Dual Band Wi-Fi Antennas (ACW-815)
1x GPS Active Antenna (ACW-232)
1x 12V 2A 4 Pin Power Supply (ACW-632)
1x 6 Pin Terminal Block Connector (ACW-131)
1 Pair of Mounting Brackets (ACW-724)
SIM Options Nano-SIM (4FF)
Peplink eSIM
BYO eSIM (2 profiles per modem)
RemoteSIM from SIM Injector
FusionSIM
Warranty 1-Year Limited Warranty

1 5 PepVPN Peers are enabled for PrimeCare models which requires a PrimeCare subscription, complimentary for the first year.
2 Maximum theoretical data rates.
3 A 48V-54V DC power supply is required to support the PoE output.

Documentation:

Download the Peplink MAX Transit Pro E Datasheet (PDF).
