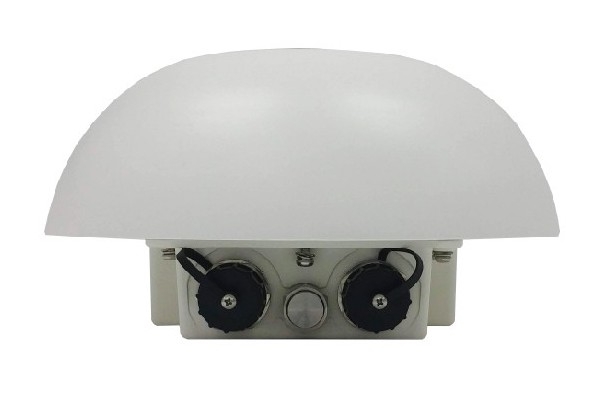

Pepwave MAX HD2 Dome
Dual Cellular Router for Mobile Deployments

Pepwave MAX HD2 Dome

Sorry, this product is no longer available, please contact us for a replacement.


More pricing below, click here!

Overview:

Dual-Cellular Connectivity, No Expensive RF Cable, Zero Cable Loss

The HD2 Dome provides dual-cellular Bandwidth Bonding in an IP67 enclosure that has a minimal profile on the rooftop while providing maximum signal. With redundant SIM, the HD2 Dome supports two cellular radios and four SIM cards. Combine the HD2 Dome with the SIM Injector, and the number of cards increases to twelve.


Minimum Cable Loss, Best Cellular Signal Quality

Most outdoor deployments require a centrally placed router attached to strategically placed antennas. With the HD2 Dome, the antennas are placed in the same integrated enclosure as the cellular radios. This arrangement minimizes cable loss, giving you the best signal possible.

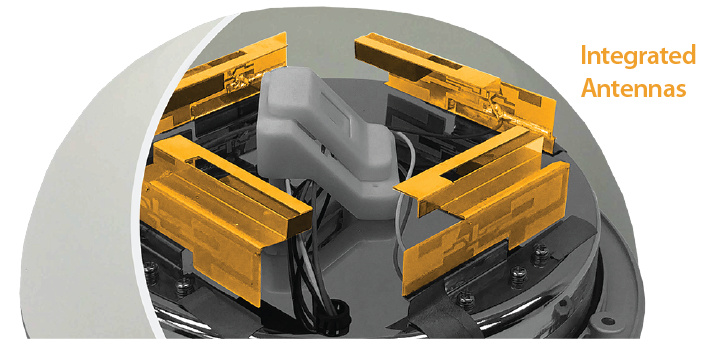

Integrated Antennas

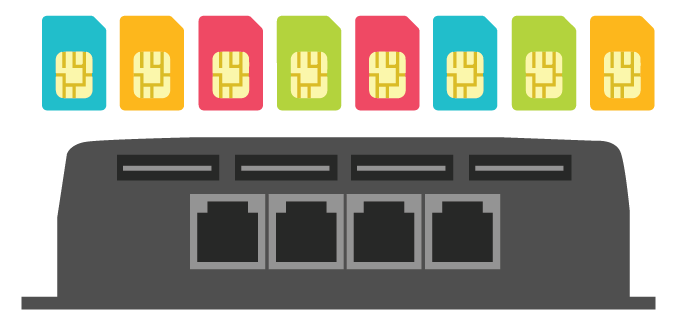

Sim Injector

Choose Between 8 Additional SIM With the SIM Injector. Anywhere, Anytime.

With the addition of the SIM Injector, the HD2 Dome can support up to 12 SIM at your fingertips. Simply connect an Ethernet cable between the SIM Injector and the HD2 Dome. The SIM Injector is capable of PoE output, so you don’t need to add another PoE switch to your deployment.

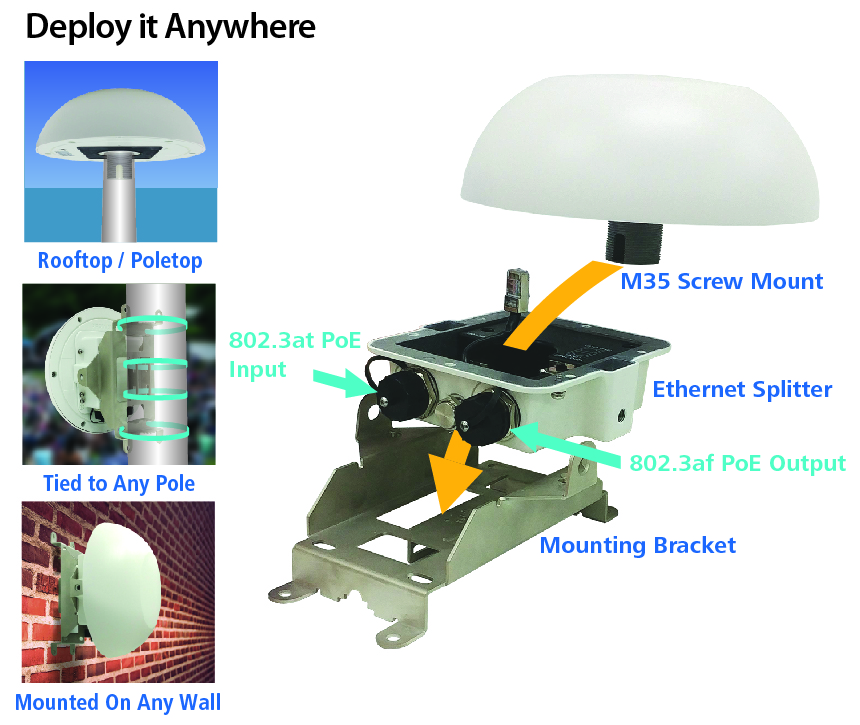

Multiple Mounting Options

The HD2 Dome offers significant deployment flexibility due to its modular construction. By itself, it has an M35 thread, making it easy to mount on top of any pole or on the rooftop of any vehicle.

The HD2 Dome comes with an Ethernet splitter that enables an additional GE LAN output. With the splitter installed, the HD2 Dome can then be used with the included mounting bracket to fix onto any wall, or to securely tie onto any pole.

The HD2 Dome, Ethernet splitter, and the mounting bracket are all included, so you can deploy this device just about anywhere.

Deploy it Anywhere

Sim Injector

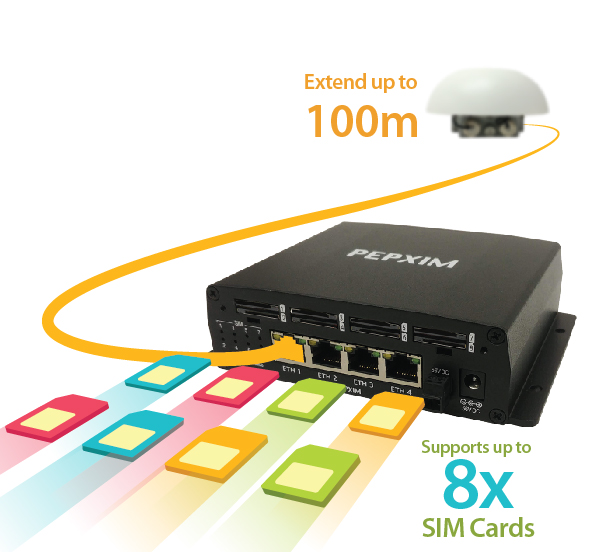

SIM Injector – More SIM, More Range

Using the SIM injector, you can add an additional eight SIM cards to your deployment. What’s more, these SIM cards can be located separately from the router.

This means you could mount the HD2 Dome outdoors in a high up place, while comfortably managing your SIM cards from an indoor location or from ground level. In addition, the SIM Injector also works as a PoE switch, powering up the HD2 Dome directly.

Together, the HD2 Dome and SIM Injector can make deployments significantly easier to set up and manage.


Specifications:


  MAX HD2 Dome
WAN Interface 2x Embedded LTE Modems with Redundant SIM Slots#
LAN Interface 1x 10/100/1000M Ethernet Port^
Downlink/Uplink Datarate 100/50Mbps (LTE)
300/50Mbps (LTE-A)
600/150Mbps (LTE-A Pro)
Enclosure Rugged outdoor IP67
Recommended Users 150
Cellular Antenna 2x2 Internal MIMO Antennas
1x Internal GPS Antenna
Power Input 1x Power over Ethernet 802.3at
Power Consumption 20W (max.)
Dimensions 4.33in. (radius) x 4.53in. (height)
110mm (radius) x 115mm (height)
Weight With Ethernet Splitter (1700 grams, 3.75 pounds))
Without Ethernet Splitter (1200 grams, 2.65 pounds)
Operating Temperature -40° – 149°F
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications FCC, CE, RoHS
RF Port Lightning Immunity: ITU-T K.20 (+/- 1.5 kV)
Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999
Warranty 1-Year Limited Warranty

Documentation:

Download the Pepwave MAX HD2 Dome Datasheet (PDF).

Pricing Notes:

Peplink Products
Add-ons
SIM Injector
SIM Injector Purchased with the HD2 Dome
#SIM-BK8-4E-56V-DOM
