Pepwave MAX BR1 Mini Core
Single Cellular Mobile Router with OOBM support

Pepwave MAX BR1 Mini Core

Peplink Products
Pepwave MAX BR1 Mini Core
MAX BR1 Mini Core
#MAX-BR1-MINI-LTE-US-T-M
Get a Quote!

More pricing below, click here!

Overview:

Unbreakable Connectivity. Unbeatable Price.


High Security

To minimize the attack surface, some enterprise deployments require routers to have no Wi-Fi or GPS. The BR1 Mini Core fulfills these requirements while providing high functionality at a low price point.

Max BR1 Mini Core


Constant Connectivity

With the BR1 Mini Core, there is always a way to connect. Use a combination of cellular and Ethernet# to provide users with constant connectivity.
# Sold Separately


Deploy Anywhere

The BR1 Mini Core is designed to function where other routers can’t.

  • Certified for vibration resis-tance and rolling stock
  • Accepts multiple power inputsand a wide voltage range.
  • Has an optional mount for Class 1 Div 2 support*
  • Can function in extreme temperatures
  • Max BR1 Mini Core


    Max BR1 Mini Core

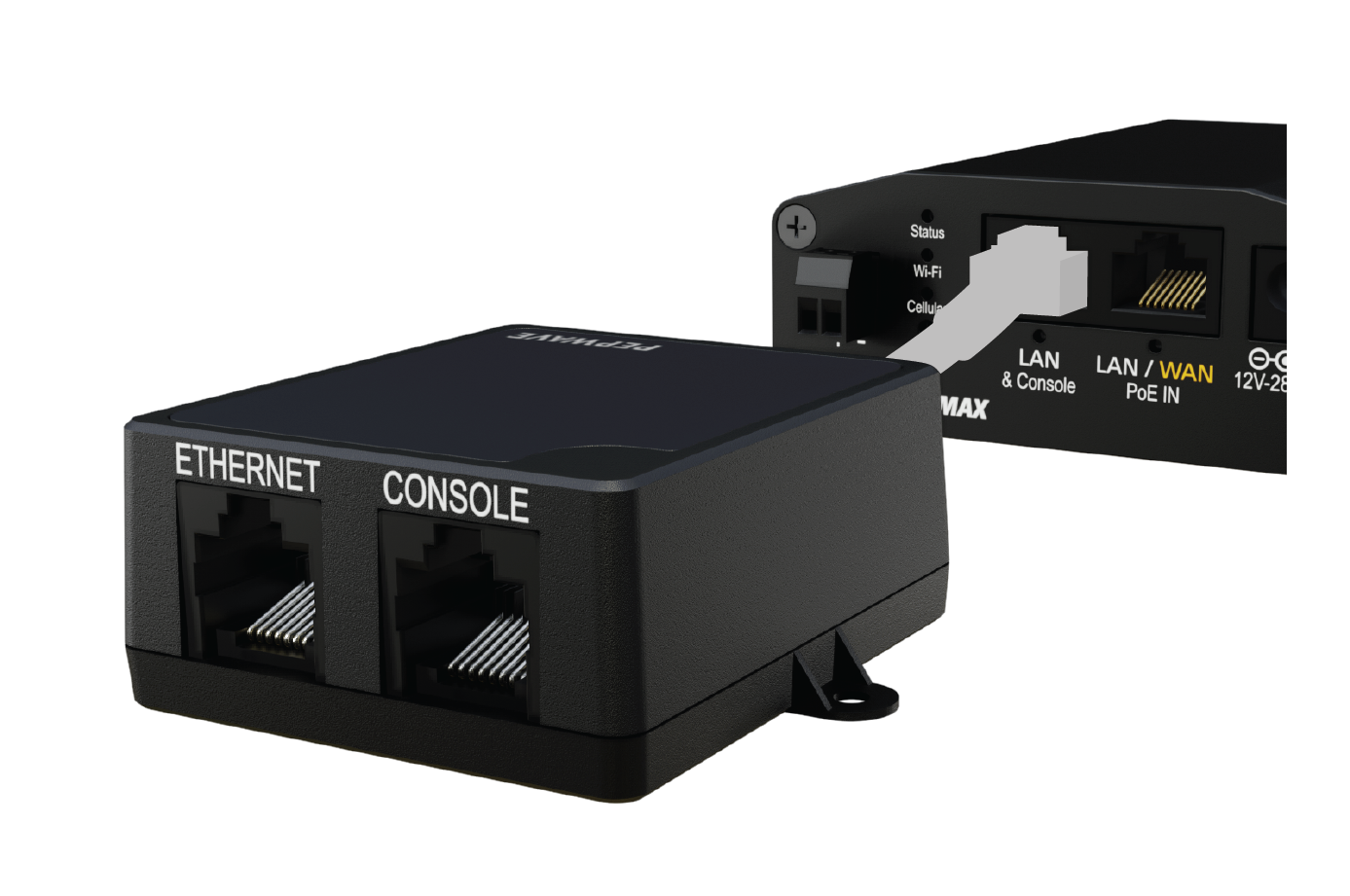

    OOBM Support

    Create a modern out-of-band network to manage all your equipment. Give yourself console and Ethernet connectivity to all of your devices. Display your devices console interface over the cloud via InControl so you can securely manage from anywhere without the usual headaches.

    Features:


    Software

    • Pepwave MAX Firmware

    WAN

    • Support for PPPoE, Static IP, DHCP
    • WAN Link Health Check
    • Bandwidth Allowance Monitor
    • Support for Dynamic DNS services
    • WAN Port Convertible into LAN Port

    LAN

    • DHCP Server for LAN Clients
    • Extended DHCP Option
    • DHCP Reservation
    • DNS Proxy for LAN Clients
    • VLAN on LAN Support

    Networking

    • NAT and IP Forwarding
    • Static Routes
    • Port Forwarding
    • Many to One, One to One NAT
    • NAT Pool
    • SIP ALG, H.323 ALG
    • UPnP, NAT-PMP



    Complete VPN Solution

    • PepVPN/SpeedFusion Hot Failover
      • Site-to-Site VPN
      • Hot Failover
      • 256-bit AES Encryption
      • Pre-shared Key Authentication
    • IPsec VPN (Network-to-Network)

    Captive Portal Support

    • Support for Wired and Wireless LAN clients
    • Support RADIUS Authentication
    • Time and Usage Quotas on Open Access Mode
    • Built-in Customizable Splash Page

    Advanced QoS

    • Individual Bandwidth Limit
    • Application Prioritization
      • SIP, HTTPS, VPN QoS
      • Custom Application QoS



    Security

    • Stateful Firewall
    • DoS Prevention
    • Web Blocking

    Device Management

    • Web Administrative Interface
    • Command Line Interface
    • InControl Cloud Management
    • Email Notification
    • Active Client and Session Lists
    • Bandwidth Usage Statistics
    • Syslog Service
    • SNMP v1, v2c and v3

    Package Content

    • MAX BR1 MINI Core
    • 12V2A Power Supply
    • 2x 2dBi 4G LTE Antennas



    MAX BR1 Mini Core Specifications

    All specifications are subject to change without notice.

    Specifications:


      MAX BR1 Mini Core

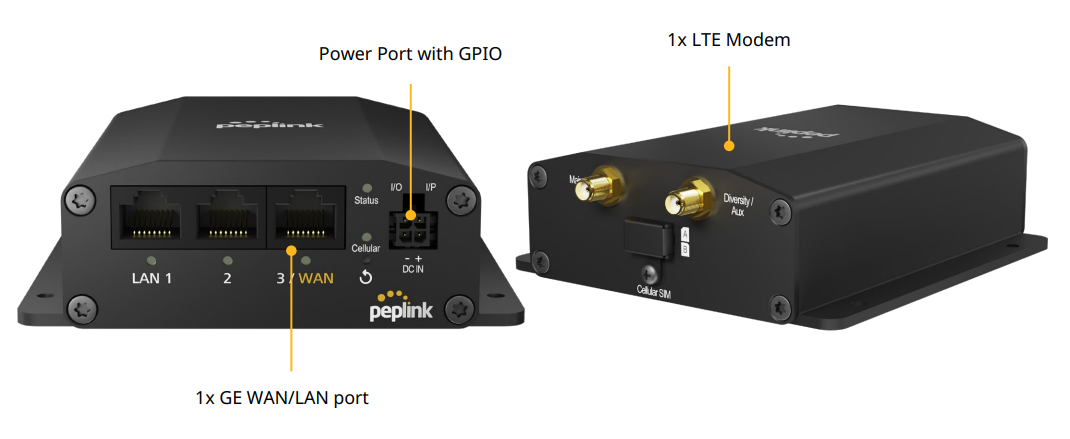

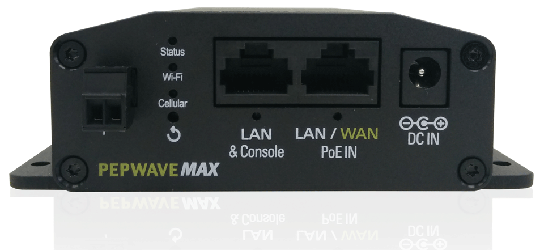

    WAN Interface 1x 10/100M Ethernet Port ^
    LAN Interface 3x 10/100M Ethernet Port
    (1x WAN Port shared with LAN Interface)
    (1x Serial Port shared with LAN Interface)
    Cellular WAN Interfaces Single LTE Modem
    Redundant SIM Slots Yes
    SpeedFusion Hot Failover Yes^
    Drop-In Mode Yes
    Wi-Fi Interface 802.11b/g/n Wi-Fi WAN or AP
    Downlink/Uplink Data Rate: 600Mbps/150Mbps
    Recommended Users 60
    Stateful Firewall Throughput 100Mbps
    Antenna Connectors 2x SMA Cellular, 1x SMA GPS, 1x RP-SMA Wi-Fi

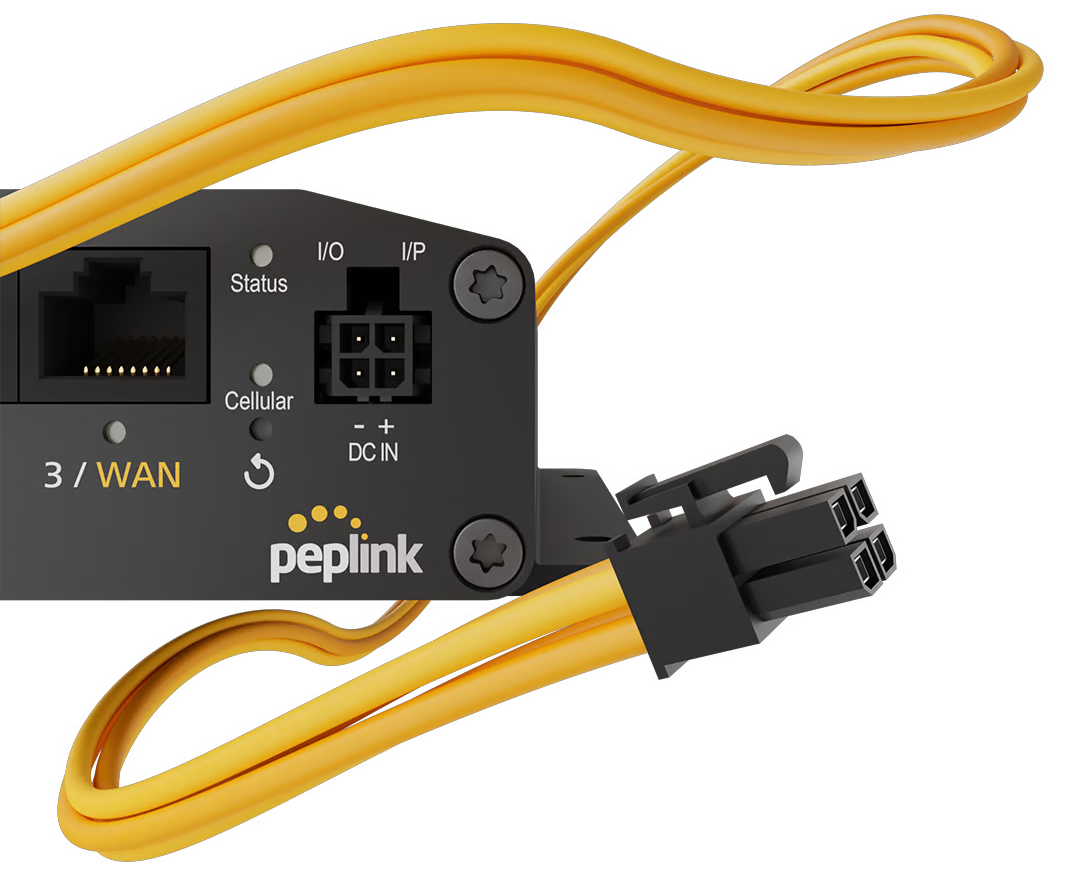

    Power Input Passive PoE Input (WAN Port, 12V – 28V DC) / Power + GPIO
    Power Consumption 12W (max.)
    Dimensions 4.1 x 4.3 x 1.2 inches |
    Weight 0.54 pound |
    244 grams
    Operating Temperature -40° – 149°F
    -40° – 65°C
    Certifications CE, RoHS, ESN
    Warranty 1-Year Limited Warranty

    Documentation:

    Download the Pepwave MAX BR1 Mini Core Datasheet (PDF).
