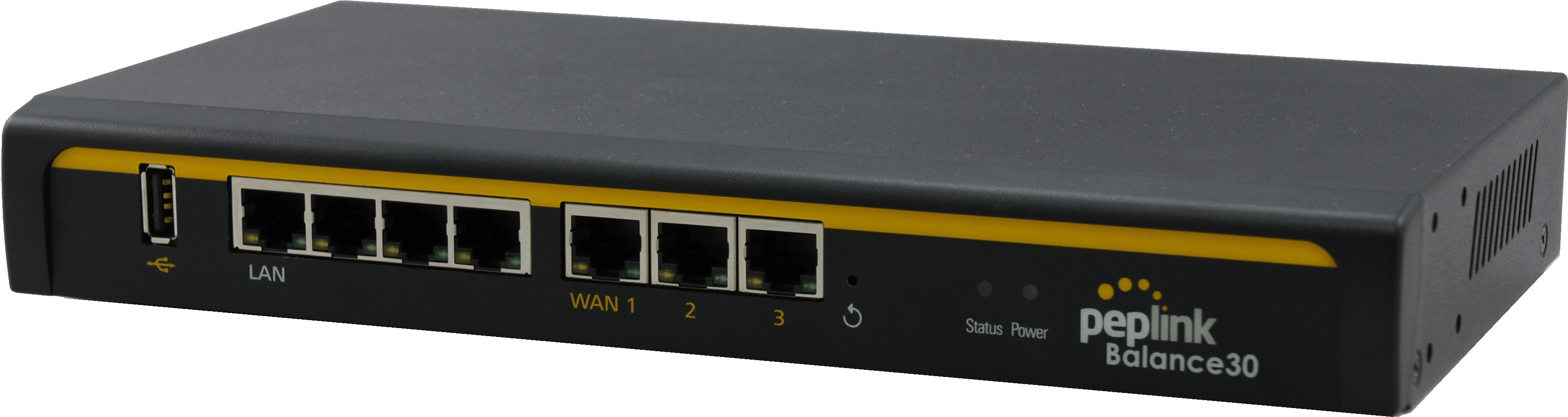

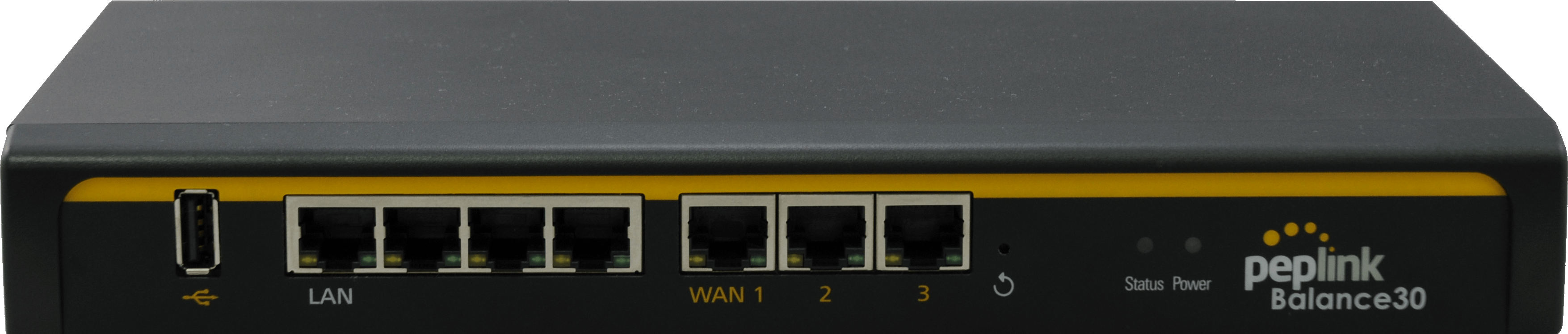

Peplink Balance 30
Multi-WAN Routers - Now for every network!
Sorry, this product is no longer available, replaced by Peplink Balance 30 LTE.
Overview:
Peplink Balance Multi-WAN Bonding Router Overview:
 |
 |
 |
FastCombine the bandwidth of up to 13 Internet connections. Add and remove connections on the fly. Get speed when you need it. Pay less when you don’t. |
AffordableBreak free of costly MPLS and other private circuits. Make the move to low-cost DSL, cable, satellite, and cellular connections without sacrificing a thing. |
ReliableCount on uptime and stability under the heaviest loads. Get the Balance and get connections that are rock-solid, fast, and reliable to the core. |
The Peplink Balance multi-WAN router delivers Unbreakable VPN, SpeedFusion™ bandwidth bonding, and a host of other innovative technologies that let you take control of your WAN and improve Internet connectivity, all with one easy-to-manage device.
Connect Up to 13 Links from Multiple Providers
Connect any combination of DSL, cable, 4G LTE , and 3G links – up to 13 of them, from any ISP for anytime, anywhere connectivity. Whatever mix of connections you choose, the Balance intelligently distributes network traffic over all links connected anywhere on the network. You can also customize traffic flow and service availability with outbound policies and inbound load balancing settings, so you’re always in control. And with the Balance’s instant, automatic failover between links, you’re always online, too.
Reduce MPLS Costs up to 90%
With the Balance and SpeedFusion, you can bond multiple links connected anywhere on your network for VPNs that can add speed and reliability to expensive MPLS deployments or replace them entirely. Because you can combine a variety of affordable DSL, MPLS, cellular, and other WAN links into one secure, high-bandwidth tunnel, you get unprecedented reliability and performance while saving big on connectivity costs.
SpeedFusion-powered Unbreakable VPN
The Balance can bond affordable DSL, cable, cellular, and other WAN links into a single secure and fast VPN tunnel using SpeedFusion technology. Packet-level failover across WANs within VPN tunnels is instant and seamless, so your voice calls and RDP sessions won’t be interrupted when the Balance automatically switches between connections.
Monitor AP Usage Report and Create Guest Hotspot Easily from Your Balance
Our AP Controller makes it easy to manage your wireless network from a convenient, intuitive user interface built right into your Balance. You can easily manage your AP with graphical usage reports, and detailed event logs. Setting up a guest hotspot? The Balance’s included captive portal and splash screen help you provide a secure, fast, and customized Internet experience for everyone.
Benefits:
Break Internet Bandwidth Limits. Higher Speed. Extreme Reliability.
Internet Load Balancing
Boost network data rates, reliability, and flexibility while slashing connectivity costs with Peplink Internet Load Balancing technology. The Peplink Balance can distribute the traffic of up to 13 Internet links and route data using seven intelligent algorithms. It all adds up to high speeds and rock-solid dependability at a savings of up to 90% compared to solutions built on leased lines and other expensive links.
With the Peplink Balance, all your cable, DSL, leased line, cellular, and other links will work together to handle even the most demanding traffic, without lags or downtime. When you need more speed, add more connections.
Prioritize and Balance Traffic by Type or Application
The Peplink Balance incorporates 7 advanced link load balancing algorithms and customizable rules that put you in complete control of network data priorities. Just set your traffic priorities, including VoIP and custom application traffic, with a few clicks and let
Peplink take care of the load balancing and optimization details – day in, day out.
Count on 100% Uptime with Automatic Failover
Automatic Failover keeps your network up and running by continually checking the health of all connected links and routing traffic around inactive or intermittent connections. You can even customize Automatic Failover's behavior, specifying conditional or dedicated backup links that dynamically respond to network status.
Replace MPLS with a Bonded VPN. SpeedFusion Shifts VPN Traffic into High Gear.
VPN for Branch Networking
Shift WAN data transfer, video delivery, VPNs, and more into overdrive with Peplink SpeedFusion. Peplink's patent-pending SpeedFusion true bandwidth bonding technology combines the bandwidth of up to 13 cable, DSL, 4G LTE/3G, and other links to drive high-speed, high-reliability, and high-security networking – all at a lower cost, with fewer maintenance headaches. Whether you’re transferring a single file or sharing dozens of documents, video feeds, and VoIP conversations, SpeedFusion teams up all your links to make it happen faster and more dependably.
Maximum Performance. Minimum Hassle.
SpeedFusion increases performance across the board with intelligent bonding algorithms, advanced QoS, and video stream optimization. With SpeedFusion, your network stays up and running smoothly, without micromanagement, even when network traffic's at its heaviest.
Ditch Expensive MPLS.
Looking for an alternative to expensive leased lines? SpeedFusion bonds the bandwidth of up to 13 cable/DSL, 4G LTE/3G, WiMAX, and other Internet connections from multiple providers, boosting transfer speeds and reliability while saving you money compared to single-line MPLS.
Mobile Bandwidth Bonding. Turbocharge Mobile VPNs.
4G LTE/3G Bandwidth Bonding
SpeedFusion, the technology at the heart of every Balance Multi-WAN and MAX Mobile router, bonds the bandwidth from multiple cellular connections. You get faster and more reliable mobile VPNs in every application. Plus, all your data is secured by military-grade encryption, and data volume is monitored and controlled to keep you under your usage cap and within budget.
Get the Speed You Need on the Road.
SpeedFusion Bandwidth Bonding automatically aggregates all connected 4G LTE/3G/WiMAX links to give you fast data transfers, smooth HD video, and blazing performance wherever you go. Need more speed? Just add cellular connections and let SpeedFusion take care of the details.
Enjoy Wired Reliability without the Wires.
SpeedFusion bonds cellular connections from multiple providers, continuously monitoring link connectivity and automatically switching to healthy connections in the event of link failure. Your network stays up and running, and you stay open for business.
Do More on the Road with SpeedFusion.
The speed, reliability, and security delivered by SpeedFusion open up a wide range of new mobile VPN applications in demanding, mission-critical fields, such as newscasting and public safety. In addition, transferring large files, such as those generated by digital production, photography, and POS activities, becomes practical and profitable wherever your mobile workforce roams.
All-in-One WLAN Solution. Manage hundreds of APs. Built-in Captive Portal.
Business WLAN Solution
Peplink’s business WLAN solution combines an enterprise-grade wireless access point and centralized access point management in one easy-to-use and affordable package. Now you can manage wireless LAN networks of up to 500 Pepwave AP One devices using a single Peplink Balance. With Peplink’s WLAN solution, all your mobile devices, including iPhones, iPads, and Android devices, get the same reliable Internet connection that you’ve come to expect from Peplink – without the wires!
Built-in WLAN Controller
Simplify your network management by controlling your AP One access points using a centralized admin interface built into the Peplink Balance. Just connect an AP One to the network and it will be discovered by the Balance automatically, allowing you manage and set-up your access point instantly!
Easy Wi-Fi Portal
Peplink’s WLAN solution features a built-in captive portal, which allows you to provide Wi-Fi hotspot service to your customers or Wi-Fi access to your guests in a corporate environment. From showing a splash screen for free users to accept service terms to creating a user login for your paid customers, you can easily customize your Wi-Fi portal in just a few clicks.
Unified Network Management
With our WLAN solution, you can manage all network connections, local client access, and user bandwidth policy using one single package. Administrators can monitor and generate reports on AP activity and bandwidth consumption, giving you complete and easy control over your network.
Maintenance:
Installation Without Headache, Maintenance Without Sweat.
Network configuration can be complicated. Peplink Balance is equipped with Drop-In Mode which transparently adds the multi-WAN router into your network without modifying other network hardware configurations. Setting up the Balance is easier than you think, with no more pressure for on command recall. Our Web Admin allows you to modify every configuration easily and intuitively.
Your Internet Watchdog.
Peplink Balance will send out an email notification when an Internet link is down. A free reporting service is also available with each Peplink Balance, giving you reports on usage and uptime of your Internet links. Peplink Balance also supports major reporting protocol such as Syslog and SNMP, letting you monitor your network with the utility of your choice.
Need Help? Don't Panic.
Peplink has provided extensive support coverage to assist you in using the Peplink Balance. Knowledge Base contains tips and guide to common questions. If that isn't enough, the complementary email support will bring your attention to our expert support staff. Give yourself extra peace of mind by purchasing the Peplink TotalCare and gain access to telephone support, firmware upgrades, and protect your investment when the unpredictable occurs.
Compare:
| Small Office / Branch | 20 | 20X | 30 LTE | 30 PRO | ONE | TWO | 210 | 310X |
|---|---|---|---|---|---|---|---|---|
| Product Code | BPL-021 | BPL-021X- LTE |
BPL-031- LTE |
BPL-031- LTEA |
BPL-ONE | BPL-TWO | BPL-210 | BPL-310X |
| Capacity | ||||||||
| Ethernet WAN Ports | 2 (GE) + | 1 (GE) | 2 (GE) | 2 (GE) | 2/5 (GE) # | 2 (GE) | 2 (GE) + | 2 (GE) |
| LAN Ports | 4 (GE) | 4 (GE) | 4 (GE) | 4 (GE) | 8/5 (GE) # | 4 (GE) | 7 (GE) | 9 (GE) |
| Simultaneous Dual-Band 802.11ac/a/b/g/n Wi-Fi AP | No | Yes | No | Yes | Yes | No | No | No |
| Embedded 4G LTE | No | Yes | Yes | Yes | No | No | No | Yes |
| SIM Card Size | No | Mini-SIM (2FF) | Mini-SIM (2FF) | Mini-SIM (2FF) | No | No | No | Mini-SIM (2FF) |
| USB WAN Modem Port1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| Recommended Users2 | 1-60 | 1-60 | 1-60 | 1-60 | 1-60 | 25-150 | 25-150 | 50-500 |
| Stateful Firewall Throughput3 | 150Mbps | 900Mbps | 200Mbps | 400Mbps | 600Mbps/ 400Mbps # |
1Gbps | 350Mbps | 2.5Gbps |
| Core Functionality | ||||||||
| 802.1q VLANs Supported | 16 | 6 | 16 | 16 | 128 | 128 | 128 | 1024 |
| Port-Based VLAN | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Load Balancing & Failover | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Load Balancing Algorithms | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Drop-In Mode | No | Yes | No | No | No | No | Yes | Yes |
| Inbound Load Balancing | No | No | No | No | No | No | Yes | Yes |
| InControl Cloud Management | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PepVPN/SpeedFusion Functionality | ||||||||
| PepVPN | Yes % | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| SpeedFusion Hot Failover | No | Yes | No | Yes | No* | No* | Yes | Yes |
| SpeedFusion WAN Smoothing | No | Yes* | No | No* | No* | No* | Yes | Yes |
| SpeedFusion Bandwidth Bonding | No | Yes* | No | No* | No* | No* | Yes | Yes |
| Number of PepVPN/SpeedFusion Peers4 | 2/5 ! | 2/5 ! | 2/5 ! | 2/5 ! | 2/5/20 ~^ | 2/5/20 ~^ | 2/5 ! | 2/30 & |
| PepVPN Throughput (256-bit AES)3 | 30Mbps | 60Mbps | 55Mbps | 55Mbps | 30Mbps | 150Mbps | 80Mbps | 500Mbps |
| PepVPN Throughput (No Encryption)3 | 60Mbps | 100Mbps | 120Mbps | 120Mbps | 60Mbps | 150Mbps | 150Mbps | 600Mbps |
| IPsec/L2TP/PPTP VPN Functionality | ||||||||
| IPsec VPN (Network-to-Network)5 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Number of IPsec Tunnels | 2 | 5 | 2 | 2 | 2 | 2 | 2 | 5 |
| Remote User Access | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| L2TP VPN Server | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| OpenVPN Server | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PPTP VPN Server | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Maximum PPTP/L2TP/OpenVPN Users | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| GRE (Network-to-Network) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| AP Controller Functionality | ||||||||
| Pepwave AP Series Management | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Maximum Number of AP Supported | 10 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Remote AP & Multiple Config Profiles Management6 | No | No | No | No | No | No | No | No |
| Advanced QoS Functionality | ||||||||
| Bandwidth Usage Monitor | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| QoS for VoIP and E-Commerce | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| User Groups Bandwidth Control | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Web Blocking | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Web Filtering Blacklist | No | Lite | No | No | Lite | Lite | Lite | Full |
| Hardware | ||||||||
| Operating Temperature | -40° – 149°F -40° – 65°C |
14° – 113°F -10° – 45°C |
-40° – 149°F -40° – 65°C |
-40° – 149°F -40° – 65°C |
23° – 113°F -5° – 45°C |
32° – 104°F 0° – 40°C |
-40° – 149°F -40° – 65°C |
-40° – 149°F -40° – 65°C |
| LACP (802.3ad) NIC Bonding | No | No | No | No | No | No | No | No |
| Power Consumption | 15W | 28W | 28W | 28W | 15W | 40W (max.) | 15W | 30W |
| 1U Rackmount | No | No | No | No | No | No | Yes | Yes |
| High Availability | No | No | No | No | No | No | Yes | Yes |
| LAN Bypass | No | No | No | No | No | No | No | No |
| Dual Hot Swap Power Supply | No | No | No | No | No | No | No | No |
| Certifications | ||||||||
| FCC, CE, RoHS | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Warranty | 1-Year Limited Warranty | |||||||
[1] For a list of supported modems, please refer to https://www.peplink.com/technology/4g3g-modem-support/.
[2] Recommendation for sizing purposes only. No software restrictions applied.
[3] Router Throughput and PepVPN/SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
[4] Number of peer Peplink or Pepwave devices you can connect using SpeedFusion VPN.
[5] IPsec only supports connection with Cisco, Juniper, Peplink or Pepwave devices.
[6] Balance 20/30 LTE/One/210/310 comes with AP Controller Standard, which supports up to two configuration profiles with multiple SSIDs, meaning that all APs will share the same configuration, and you can only manage APs on the local physical LAN. Balance 305/380/580/710/1350/2500 comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN.
+ Balance 20 and 210 have an extra WAN port which can be activated through license key. Click here to learn more.
# If the WAN Activation License (BPL-ONE-LC-5WAN) is activated, router throughput will be changed to 400Mbps, both number of WAN and LAN will become 5.
^ PepVPN is supported on all models. SpeedFusion is an optional feature.
* Balance 2500 are available different configurations. Please refer to ordering information for details.
% Balance 20/30 LTE requires firmware 6.1 to support PepVPN.
! 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05.
& 2 SpeedFusion Peers are enabled by default. Can be increased to 30 Peers with purchase of SpeedFusion Bonding License SFN-LC-30.
~ 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05 or to 20 Peers using license MAX-HD-020-SPF.
@ 30/50 SpeedFusion Peers are enabled by default for Balance 380/580 respectively. Can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100.
Specifications:
Specs and Weight        |
Software
|
Networking
|
7 Features not available on Balance 20/30.
8 Features available on the Balance 20/30 as an upgrade.
9 AP Controller lite comes standard with the Balance 20,30,210, and 310. AP Controller pro comes standard with the Balance 305, 380 and above.
10 This feature is only available on the Balance 305, 380 and above.
11 IPsec only supports connection with Cisco, Juniper, Peplink or Pepwave devices.
12 Only valid for customers who have purchased Peplink Balance devices directly from Peplink.
Documentation:
Download the Peplink Balance Datasheet (PDF).
