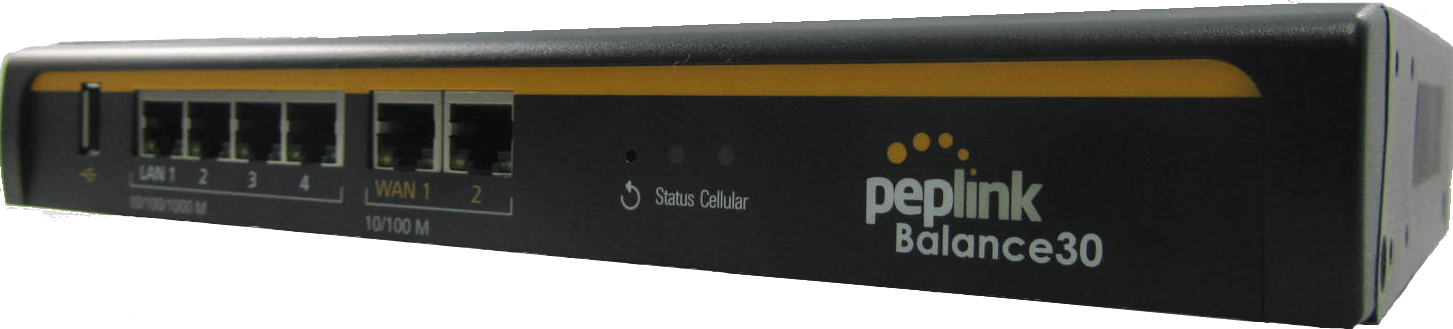

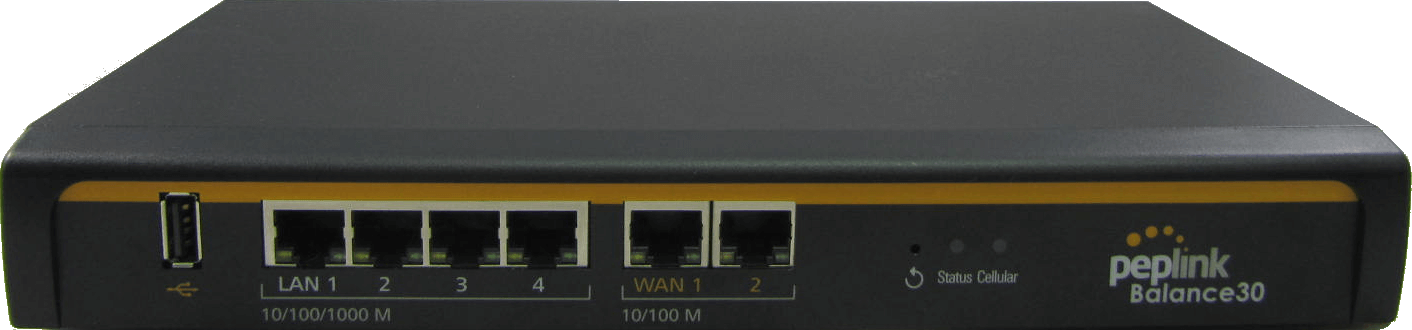

Peplink Balance 30 LTE
Multi-WAN Routers - Now for every network!
Sorry, this product is no longer available, please contact us for a replacement.
More pricing below, click here!
Overview:
Peplink Balance SD-WAN Router
The Peplink Balance SD-WAN router lets you take control of your WAN and achieve unbreakable Internet connectivity. Centralized cloud management simplifies network setup, configuration, and maintenance.
Greater Speeds, Absolute Reliability, up to 90% Cost Reduction
Using SpeedFusion™ bandwidth bonding technology, you can combine multiple DSL, cable, 4G LTE , and 3G links – up to 13 of them into a single high-speed SD-WAN connection. This enables you to access headquarters at greater speeds than you could achieve with a single link.
With each link you add, the SD-WAN connection increases its reliability. Use multiple connection technologies from diverse ISPs to provide connectivity resilience at a fraction of what it would cost using traditional WAN alone.
Intelligent VPN Traffic Routing
Guarantee the session integrity of sensitive applications such as point-of-sale or credit card transactions using Hot failover. Stream HD videos and have smooth videoconferences using SpeedFusion VPN technology. Use your commodity links to offload for your bulk traffic to the public Internet, while saving your critical traffic for private links.
Simple, Powerful Cloud Management
Using InControl, our powerful SD-WAN controller, you can easily perform a multitude of tasks from a browser. Set up a star, mesh, or point-to-point VPN with just a couple of clicks. Configure groups of devices at once to save time. Schedule automatic firmware updates for your devices.

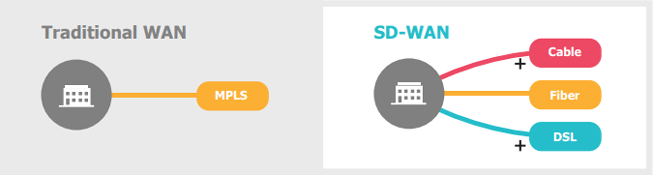

Flexibility and Routing Intelligence Through WAN Virtualization.
Greater Flexibility: Peplink routers are capable of taking multiple Internet links and turning them into a single connection. To increase speed or reliability, simply add more links.
Application-Awareness: Set-up your traffic priorities, including VoIP and custom application traffic, with a few clicks. Once configured, all traffic is managed automatically by the software defined rules set on the device – no human interaction is required.
Automatic Failover: Peplink Routers keep your network up and running by continually checking the health of all connected links and routing traffic around inactive or intermittent connections.
Higher Reliability, Lower Costs MPLS Replacement Success Stories.
Town Of Tonawanda, New York
The Town of Tonawanda, New York needed dependable and
secure VPN for its VoIP system. They initially looked into MPLS
options, but the costs were staggering. Instead, they installed
Peplink routers in 9 critical locations, with a municipal police
station acting as HQ.
“To date, my devices have been up and running continuously with no intervention for 114 days with zero issues.”- Andrew W. Pudlak, IT Manager
Harrington Industrial Plastics
Harrington, the US’s largest distributor of industrial plastic piping,
required peak performance at its 43 busy branches. Using Peplink
routers, Harrington was able to seamlessly replace their MPLS
network by bonding cost-effective Cable, Fiber, and DSL
connections. They couldn’t be happier:
“We are saving 100K annually as compared to dedicated T1 and MPLS costs. Not to mention we are now getting 4 times the bandwidth!”- Charles Miller, Systems Engineering

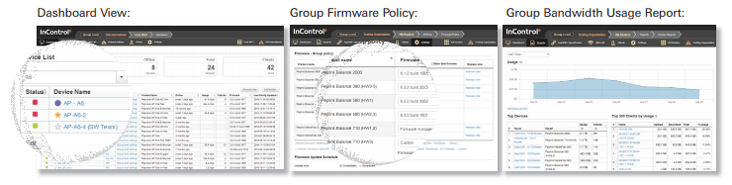

InControl SD-WAN Controller For Simplified Network Management.
Comprehensive Reporting
Using InControl, branch offices can be monitored and managed
centrally, giving network administrators full control over their
networks using a single interface. Monitor your network’s
bandwidth consumption, connection status, connected clients and
more in an easy to use bird-eye view.
Easy Management
Remotely access the Web Admin of any router in your network,
and make configuration changes without going onsite. Push a
configuration profile to multiple devices, and set-up groupwide
firmware updates to save time.

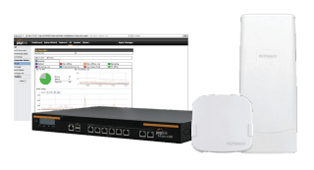

All-in-One AP Controller Solution.
Cost-Effective Branch Office AP Management. Built-in Captive Portal.
Built Into All Balance Routers
AP Controller software comes standard with every Peplink router,
making it a cost-effective AP management solution for small to
medium locations.
Easier Management
Control and monitor your Pepwave AP using a centralized admin
interface. Just connect a Pepwave AP to the network and it will be
discovered by the Balance automatically. Manage all network
connections, local client access, and user bandwidth policy.
Easy Wi-Fi Portal
Peplink’s AP Controller solution features a built-in captive portal,
which allows you to provide Wi-Fi hotspot service to your
customers or Wi-Fi access to your guests in a corporate
environment. From showing a splash screen for free users to
accept service terms to creating a user login for your paid
customers, you can easily customize your Wi-Fi portal in just a few
clicks.
Specifications:
Balance 30 LTE Specifications | |
Designed For | Power User & Home Office |
Ethernet WAN Ports | 2 |
LAN Ports | 4 (GE) |
USB WAN Modem Port | 1 |
Embedded LTE Modem | 1 |
Wi-Fi Interface | |
Recommended Users | 1-60 |
Router Throughput | 200Mbps |
Load Balancing/Failover | |
Drop-In Mode | |
Inbound Load Balancing | |
SpeedFusion Bandwidth Bonding | |
Number of SpeedFusion Peers | |
SpeedFusion Throughput | |
L2TP / PPTP VPN Server | |
IPsec VPN (Network-to-Network) | |
Manage Pepwave AP | |
Maximum Number of AP Supported | 10 |
Manage Remote AP & Multiple Config Profiles | |
Bandwidth Usage Monitor | |
QoS for VoIP and E-commerce | |
User Groups Bandwidth Control | |
Web Blocking | |
1U Rackmount | |
High Availability | |
LAN Bypass | |
Dual Hot Swap Power Supply |
Compare:
Small Office / Branch | 20 | 20X | 30 LTE | 30 PRO | ONE | TWO | 210 | 310X |
---|---|---|---|---|---|---|---|---|
Product Code | BPL-021 | BPL-021X- LTE |
BPL-031- LTE |
BPL-031- LTEA |
BPL-ONE | BPL-TWO | BPL-210 | BPL-310X |
Capacity | ||||||||
Ethernet WAN Ports | 2 (GE) + | 1 (GE) | 2 (GE) | 2 (GE) | 2/5 (GE) # | 2 (GE) | 2 (GE) + | 2 (GE) |
LAN Ports | 4 (GE) | 4 (GE) | 4 (GE) | 4 (GE) | 8/5 (GE) # | 4 (GE) | 7 (GE) | 9 (GE) |
Simultaneous Dual-Band 802.11ac/a/b/g/n Wi-Fi AP | No | Yes | No | Yes | Yes | No | No | No |
Embedded 4G LTE | No | Yes | Yes | Yes | No | No | No | Yes |
SIM Card Size | No | Mini-SIM (2FF) | Mini-SIM (2FF) | Mini-SIM (2FF) | No | No | No | Mini-SIM (2FF) |
USB WAN Modem Port1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
Recommended Users2 | 1-60 | 1-60 | 1-60 | 1-60 | 1-60 | 25-150 | 25-150 | 50-500 |
Stateful Firewall Throughput3 | 150Mbps | 900Mbps | 200Mbps | 400Mbps | 600Mbps/ 400Mbps # |
1Gbps | 350Mbps | 2.5Gbps |
Core Functionality | ||||||||
802.1q VLANs Supported | 16 | 6 | 16 | 16 | 128 | 128 | 128 | 1024 |
Port-Based VLAN | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Load Balancing & Failover | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Load Balancing Algorithms | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
Drop-In Mode | No | Yes | No | No | No | No | Yes | Yes |
Inbound Load Balancing | No | No | No | No | No | No | Yes | Yes |
InControl Cloud Management | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
PepVPN/SpeedFusion Functionality | ||||||||
PepVPN | Yes % | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
SpeedFusion Hot Failover | No | Yes | No | Yes | No* | No* | Yes | Yes |
SpeedFusion WAN Smoothing | No | Yes* | No | No* | No* | No* | Yes | Yes |
SpeedFusion Bandwidth Bonding | No | Yes* | No | No* | No* | No* | Yes | Yes |
Number of PepVPN/SpeedFusion Peers4 | 2/5 ! | 2/5 ! | 2/5 ! | 2/5 ! | 2/5/20 ~^ | 2/5/20 ~^ | 2/5 ! | 2/30 & |
PepVPN Throughput (256-bit AES)3 | 30Mbps | 60Mbps | 55Mbps | 55Mbps | 30Mbps | 150Mbps | 80Mbps | 500Mbps |
PepVPN Throughput (No Encryption)3 | 60Mbps | 100Mbps | 120Mbps | 120Mbps | 60Mbps | 150Mbps | 150Mbps | 600Mbps |
IPsec/L2TP/PPTP VPN Functionality | ||||||||
IPsec VPN (Network-to-Network)5 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Number of IPsec Tunnels | 2 | 5 | 2 | 2 | 2 | 2 | 2 | 5 |
Remote User Access | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
L2TP VPN Server | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
OpenVPN Server | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
PPTP VPN Server | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Maximum PPTP/L2TP/OpenVPN Users | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
GRE (Network-to-Network) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
AP Controller Functionality | ||||||||
Pepwave AP Series Management | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Maximum Number of AP Supported | 10 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
Remote AP & Multiple Config Profiles Management6 | No | No | No | No | No | No | No | No |
Advanced QoS Functionality | ||||||||
Bandwidth Usage Monitor | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
QoS for VoIP and E-Commerce | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
User Groups Bandwidth Control | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Web Blocking | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Web Filtering Blacklist | No | Lite | No | No | Lite | Lite | Lite | Full |
Hardware | ||||||||
Operating Temperature | -40° – 149°F -40° – 65°C |
14° – 113°F -10° – 45°C |
-40° – 149°F -40° – 65°C |
-40° – 149°F -40° – 65°C |
23° – 113°F -5° – 45°C |
32° – 104°F 0° – 40°C |
-40° – 149°F -40° – 65°C |
-40° – 149°F -40° – 65°C |
LACP (802.3ad) NIC Bonding | No | No | No | No | No | No | No | No |
Power Consumption | 15W | 28W | 28W | 28W | 15W | 40W (max.) | 15W | 30W |
1U Rackmount | No | No | No | No | No | No | Yes | Yes |
High Availability | No | No | No | No | No | No | Yes | Yes |
LAN Bypass | No | No | No | No | No | No | No | No |
Dual Hot Swap Power Supply | No | No | No | No | No | No | No | No |
Certifications | ||||||||
FCC, CE, RoHS | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Warranty | 1-Year Limited Warranty |
[1] For a list of supported modems, please refer to https://www.peplink.com/technology/4g3g-modem-support/.
[2] Recommendation for sizing purposes only. No software restrictions applied.
[3] Router Throughput and PepVPN/SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
[4] Number of peer Peplink or Pepwave devices you can connect using SpeedFusion VPN.
[5] IPsec only supports connection with Cisco, Juniper, Peplink or Pepwave devices.
[6] Balance 20/30 LTE/One/210/310 comes with AP Controller Standard, which supports up to two configuration profiles with multiple SSIDs, meaning that all APs will share the same configuration, and you can only manage APs on the local physical LAN. Balance 305/380/580/710/1350/2500 comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN.
+ Balance 20 and 210 have an extra WAN port which can be activated through license key. Click here to learn more.
# If the WAN Activation License (BPL-ONE-LC-5WAN) is activated, router throughput will be changed to 400Mbps, both number of WAN and LAN will become 5.
^ PepVPN is supported on all models. SpeedFusion is an optional feature.
* Balance 2500 are available different configurations. Please refer to ordering information for details.
% Balance 20/30 LTE requires firmware 6.1 to support PepVPN.
! 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05.
& 2 SpeedFusion Peers are enabled by default. Can be increased to 30 Peers with purchase of SpeedFusion Bonding License SFN-LC-30.
~ 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05 or to 20 Peers using license MAX-HD-020-SPF.
@ 30/50 SpeedFusion Peers are enabled by default for Balance 380/580 respectively. Can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100.
Documentation:
Download the Peplink Balance Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
