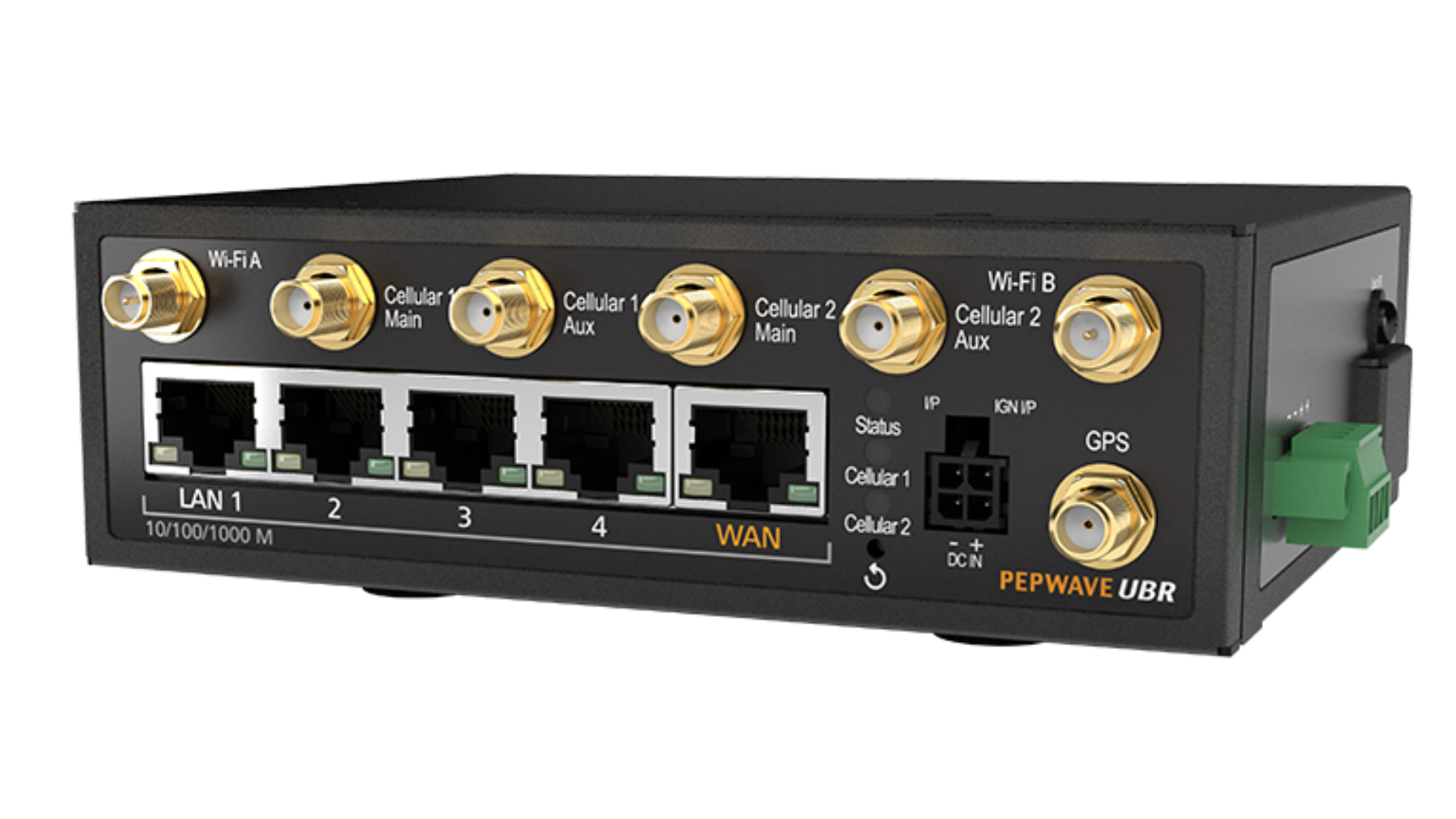

Pepwave UBR LTE
Unbreakable Connectivity Right Out of the Box
Get a Quote!
More pricing below, click here!
Overview:
Affordable Unbreakable Connectivity
Build to Last
DIN mounts and Molex power connectors let the UBR LTE integrates seamlessly with your existing equipment racks. In addition, the fanless, ruggedized chassis supports an extended operating temperature range.
All in One SpeedFusion

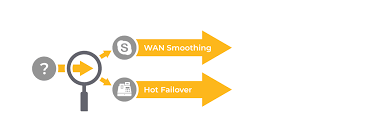

Traffic Steering
Instantly recognize the application for each packet. Then apply different outbound policy, firewall rules, or even SpeedFusion technologies to the traffic depending on its application.
Specifications:
Pepwave UBR LTE | |
---|---|
WAN Interface | 1x GE 2x LTE Modems |
SIM Card Size | Mini-SIM (2FF) |
Redundant SIM Slots | Yes |
LAN Interface | 4x GE |
Wi-Fi Standard | 2.4GHz: 802.11b/g/n OR 5GHz: 802.11a/n |
Wi Fi as WAN | Yes |
Antenna Connectors | 4x SMA Cellular, 2x Wi-Fi, 1x SMA GPS |
Recommended Users | 1 to 60 |
Router Throughput | 120 Mbps |
SpeedFusion Hot Failover | Yes^ |
SpeedFusion WAN Smoothing | Yes^ |
SpeedFusion Bandwidth Bonding | Yes^ |
Number of PepVPN/SpeedFusion Peers | 2/5^ |
SpeedFusion Throughput (No Encryption) | 40Mbps |
SpeedFusion Throughput (256-bit AES) | 20Mbps |
Power Input | Device: 12V – 28V DC AC Adapter: AC Input 100V – 240V / DC Output 12V Terminal Block: 12V – 28V DC |
Power Consumption | 24W (max.) |
Dimensions | 5.1 x 4.3 x 1.6 inches | 130 x 110 x 41 mm |
Weight | 1.2 pounds / 515 grams |
Operating Temperature | -40° – 149°F -40° – 65°C |
Certifications | FCC, CE, RoHS, IC, E-mark EN 61000: Electromagnetic Compatibility |
Warranty | 1-Year Limited Warranty |
^ Requires PrimeCare Subscription, complementary for the first year.
Documentation:
Download the Peplink UBR LTE (PDF).
