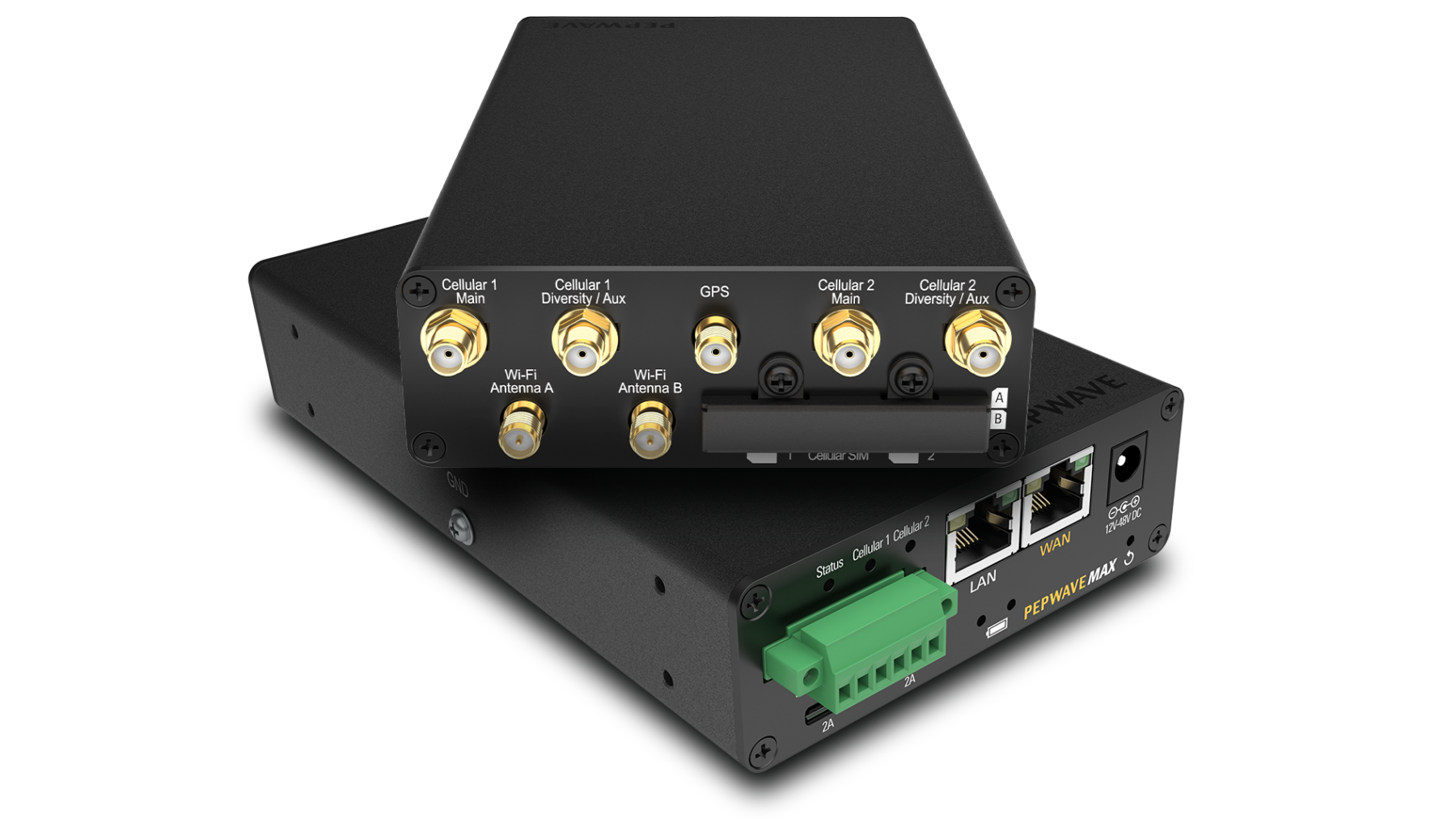

Dual 4G LTE Router for Public Transportation MAX Transit Duo

Pepwave Max Transit Duo

Peplink Products
Pepwave Max Transit Duo
MAX Transit Duo
#MAX-TST-DUO-LTEA-W-T-PRM
Get a Quote!
MAX Transit Duo FirstNet
#MAX-TST-DUO-LTEA-R-T
Get a Quote!
MAX Transit Duo
#MAX-TST-DUO-LTEA-R-T-PRM
Get a Quote!
MAX Transit Duo
#MAX-TST-DUO-LTEA-K-T-PRM
Get a Quote!
MAX Transit Duo LTEA
#MAX-TST-DUO-LTEA-W-T
Get a Quote!
Add-on License
Pepwave MAX Transit Duo
SpeedFusion Bonding License Key for MAX Transit Duo
#MAX-TST-DUO-LC-SF
Get a Quote!

More pricing below, click here!

Overview:

With a compact form factor, simultaneous dual-band 11ac Wi-Fi, and two embedded LTE modems, the MAX Transit Duo is ready to deliver fast, reliable connectivity in transportation and public safety deployments

carriers supported

dual sim slots

Dual Embedded Cellular and Redundant SIM Slots
Up to two cellular modems and redundant SIM slots allow you to use up to four different cellular providers for bandwidth bonding, data overage protection or eliminating blind spots.

dual band wifi

Simultaneous Dual-Band Wi-Fi
Reduce Wi-Fi congestion and interference. Simultaneous dual-band Wi-Fi gives you two independent networks that also work together, maximizing the throughput that your passengers can enjoy.

social wifi

Captive Portal with Social Wi-Fi
The MAX Transit comes with a customizable captive portal what allows passengers to login with Facebook. As they login, you can use InControl 2 to see insightful reports on user demographics.

advertising servers

External Captive Portal for Advertising Servers
The MAX Transit Duo also supports external captive portals, enabling you to connect to an advertising server. That way, your Wi-Fi hotspots can become a source of revenue.

install anywhere

Install it Anywhere
With mounting ears that can be installed from many angles and optional DIN rail mounts, the MAX Transit is ready to fit into just about any space you have available.

certification

Certified Toughness
In addition to rugged metal enclosure, the MAX Transit Duo has certifications on: Shock and vibration resistance (EN 61373:1999, IEC 61373:1999) Railway applications (EN 50155) Electromagnetic Compatibility (EN 61000) eMark (ref: E13*10R00*10R05*13664*00)

FirstNet Ready

FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity. The MAX Transit Duo supports band 14, providing additional coverage as the situation demands.

Specifications:


  MAX Transit Duo
Embedded 4G LTE/3G 2
Sim Card Size Mini-SIM (2FF)
Redundant SIM Slots Yes
Ethernet WAN Ports 1x GE *
Ethernet LAN Ports 1x GE
Recommended Users 150
Router Throughput 400Mbps
Wi-Fi Standard 802.11ac/a/b/g/n 2x2 MIMO
Maximum Number of SSID 16
Transmit Power (2.4GHz) | (5GHz) 19dBm | 21dBm
Simultaneous Dual-Band Wi-Fi AP Yes
Wi-Fi as WAN/ Wi-fi as LAN Yes/Yes
High Availability Yes
Web Blocking Yes
Content Filtering Blacklist Lite
PepVPN Yes
SpeedFusion Hot Failover Yes
SpeedFusion WAN Smoothing No^
SpeedFusion Bandwidth Bonding No^
Number of PepVPN/SpeedFusion Peers 2/5 &
PepVPN/SpeedFusion Throughput (No Encryption) | (256-bit AES) 100Mbps | 60Mbps
Number of IPsec Tunnels 5
Enclosure Indoor Metal
Terminal Block Power Connector for Mobile/Vehicular Deployment Yes
AC Adapter AC Input 100V – 240V / DC Output 12V, 2A
Power Input 2x Micro-USB B with 5V, 2A each
Power Consumption 18W (max.)
Dimensions 6.3 x 3.8 x 1.3 inches |
160 x 97 x 33.5 mm
Weight 1.3 pounds
590 grams
Operating Temperature -40° – 149°F
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Warranty 1-Year Limited Warranty

Documentation:

Download the Pepwave MAX Transit Duo Datasheet (PDF).
