Peplink SD Switches 24/48 Port
Expect More from Your Switch

Peplink SD Switch

Call us Today at 877-352-0546 for a price quote!

Peplink Products
Peplink SD Switch
Peplink SD Switch 850W Power Budget

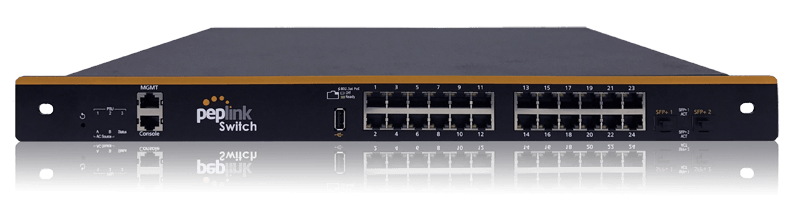

850W power budget, 3x power supply units, 24x GE Ports (PoE+), 2x 10G SFP+ Ports
#PSW-24-850W
Contact us for Pricing!
Peplink 48-Port SD Switch
SD Switch 48-Port with 800W Power Budget
#PSW-48-800W
Call for Lowest Price!

More pricing below, click here!

Overview:

Expect More from Your Switch

Managing your switches and all connected devices can be a worry-free experience. Yet current switches still cause as many headaches as they solve. Is your switch smart and easy to use enough to address the following problems?

No Configuration Transparency

Configuration done through CLI is neither centrally visible nor manageable. This creates unnecessary maintenance downtime.

configuraton code

Time-Consuming Troubleshooting

If an improperly connected device is causing network problems, tracing the problems and finding the culprit becomes frustrating.

magnifying glass

Need to Supply Reliable Power

If a switch’s power supply fails for any reason, all connected devices become inoperable, bringing business to a halt.

connected utilities

Solution: Peplink SD Switch with Software Intelligence

Modern Cloud-Based Management

View the status of every SD Switch on a single interface. Push configurations to device groups and remotely schedule PoE port operation.

Tools to Quickly Find the Culprit

Use our cloud-based management tool to see all devices in your network. Search by MAC address and pinpoint the culprit’s exact port.

Unbreakable Power

The SD Switch is equipped with dual AC power inputs and up to 3x PSU to ensure that it will keep running no matter what.

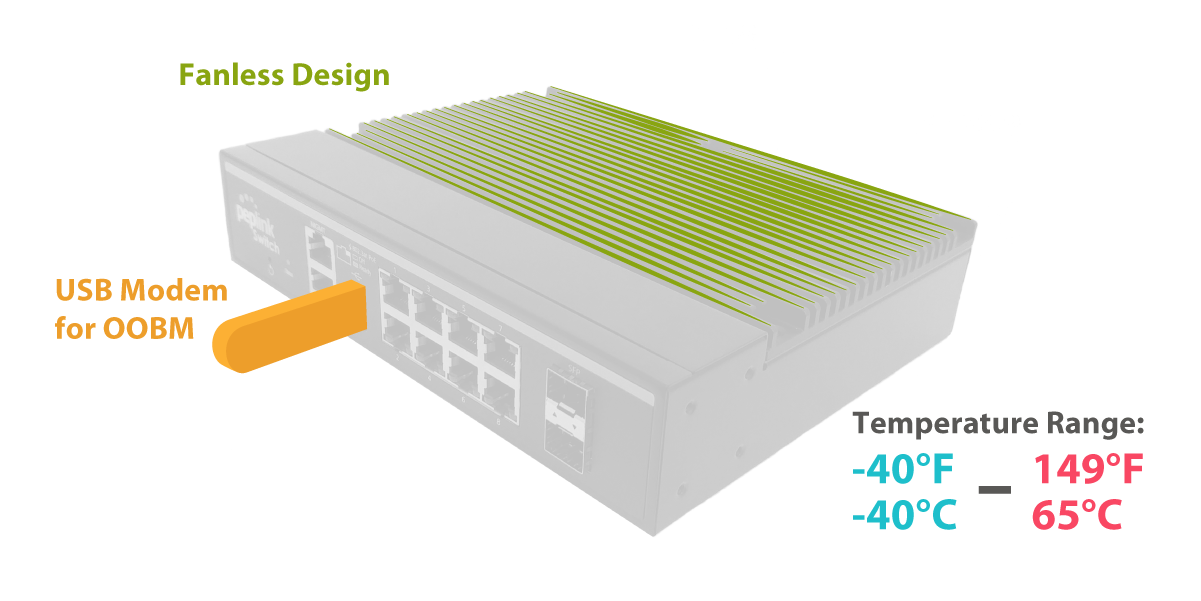

Industrial Grade Hardware for Tough Environments

Our 8-Port SD Switch has a fanless design and an industrial temperature range, making it perfect for the toughest environments.

8-Port Switch

DC and AC Power Input Formats

The 8-Port SD Switch can accept DC Power via Dual Power DIN cables and Terminal Block. An AC Adaptor is also included, so it can accept AC power as well.

Multiple Power Inputs

Connect up to three independent power sources. Even if two sources malfunction, the SD Switch will keep on running.

Out-of-Band Management (OOBM)

The 24-Port version of the SD Switch is equipped with several unique technologies to ensure that your powered devices stay powered.

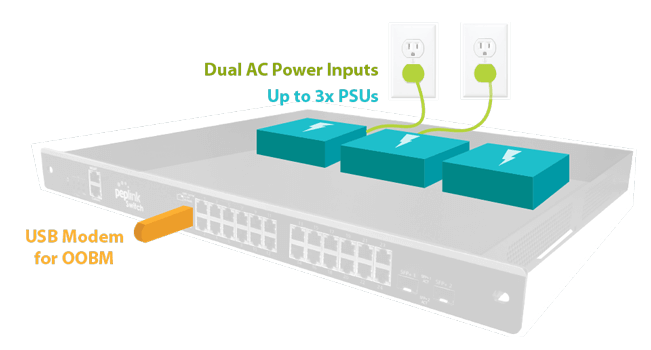

Multiple Redundancies for Unbreakable Reliability

The 24-Port/48-Port version of the SD Switch is equipped with several unique technologies to ensure that your powered devices stay powered.

24-Port Switch

Dual AC Power Inputs

Connect the SD Switch to two independent power sources. Even if one source loses its connection, the SD Switch will keep on running.

Up to 3x PSU

Even if a power supply goes down, the SD Switch will keep on running. Power load balancing ensures longer PSU life expectancy.

Out-of-Band Management (OOBM)

Plug in a USB modem to enable secure out-of-band management using our cloud management tool.

Features:

Networking

  • Link Aggregation (LACP)
  • Spanning Tree Protocol

Hardware

  • PSU Redundancy
  • Power Input Redundancy

Power Management

  • Port Scheduling

Device Management

  • Web Administrative Interface
  • InControl Cloud Management
  • Email Notification
  • Syslog Service

Specifications:


SD Switch Specifications
LAN Interface 24x 802.3at (PoE+) GE Ports, 2x 10G SFP+ Ports
VLAN Groups: Yes
Power Input 2x 100V – 240V Redundant AC Inputs
Power Source 2-3x Redundant PSU
Power Consumption 50W System, 550W or 850W PoE+ Power Budget
Dimensions 1.7 x 19.1 x 15.7 inches
45 x 485 x 400 mm
(Height x Width x Depth)
Weight 17.6 pounds
8.0 kg
Operating Temperature 32° – 104°F
0° – 40°C
Humidity 15% – 95% (non-condensing)
Warranty 1-Year Limited Warranty

Documentation:

Download the Peplink SD Switch Power Budget Datasheet (PDF).
