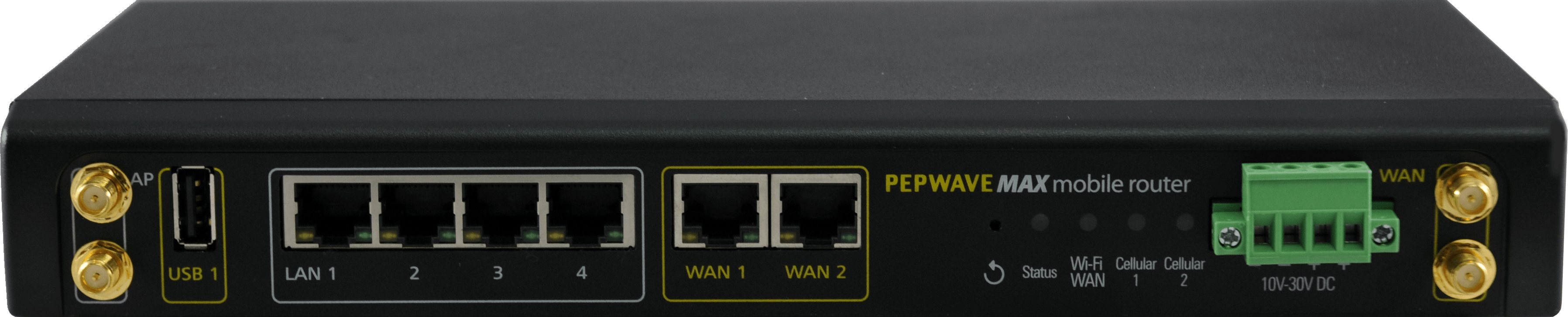

Pepwave MAX HD2
Dual 4G LTE Mobile Router

Pepwave MAX HD2

Call us Today at 877-352-0546 for a price quote!

Pepwave Products
Pepwave MAX HD2
MAX HD2 LTEA
#MAX-HD2-LTEA-W-T
Contact us for Pricing!
MAX HD2 FirstNet
#MAX-HD2-LTEA-WF-T
Call for Lowest Price!

More pricing below, click here!

Overview:

Dual 4G LTE Mobile Router

The HD2 gives you blazing fast connectivity on the road with dual embedded cellular modems and SpeedFusion bandwidth bonding, plus a built-in 4-port GE switch to reduce clutter in your mobile deployments. It is also Verizon XLTE certified.

Dual Cellular for Multiple Carriers

Dual SIM slots allow you to use the same or different cellular providers for bandwidth bonding or eliminating blind spots.

Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.

Terminal Block for Secure Power Supply

MAX HD4 is equipped with a terminal block for secure installation in vehicles and other locations.

SpeedFusion Bandwidth Bonding and Seamless Failover

SpeedFusion bandwidth bonding technology bonds all connected bandwidth into a single superfast stream, using the same or different cellular providers.

Customize Captive Portal

Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS.

Certified Toughness

In addition to rugged metal enclosure, HD2 has certifications on: Shock and vibration resistance (EN 61373:1999 IEC 61373:1999) RF Port Lightning Immunity (ITU-T K.20 (+/- 1.5 kV)) Railway Applications (EN 50155) Electromagnetic Compatibility (EN 61000)

Applications:


High-End Passenger Wi-Fi – Fast and Reliable Mobile Networking

High-End Passenger Wi-Fi – Fast and Reliable Mobile Networking

Command Center/Large Image Transfer – Fast and Reliable Mobile Networking Applications

Command Center/Large Image Transfer – Fast and Reliable Mobile Networking Applications

Specifications:


Software

  • Pepwave MAX Firmware

USB 3G/4G LTE Modem Support

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • USB 3G/4G LTE Modem Support
  • IPv6 Support
  • Support for Dynamic DNS services

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Option
  • DHCP Reservation
  • DNS Proxy for LAN Clients
  • VLAN on LAN Support

Load Balancing

  • Intelligent Failover
  • Session Persistence
  • Per-Service Load Distribution
  • Multiple Algorithms
    • Weighted
    • Enforced
    • Persistence
    • Priority
    • Overflow
    • Least Used
    • Lowest Latency

Global Positioning System

  • Integrated GPS
  • Device Location Map
  • Location Tracking Data
    • GPS eXchange Format (GPX)
    • Up to Seven Days
  • Fleet Management with InControl 2

Complete VPN Solution

  • PepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
    • Site-to-Site VPN
    • Bandwidth Aggregation
    • Hot Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    • X.509 Certificate Support
  • PPTP VPN Server
    • RADIUS, LDAP Authentication
  • IPsec VPN (Network-to-Network) 1
    • X.509 Certificate Support

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP
  • WINS Server
  • VRRP HA support

Security

  • Stateful Firewall
  • DoS Prevention
  • Web Blocking

Advanced QoS

  • User Groups
    • Bandwidth Reservation
    • Individual Bandwidth Limit
  • Application Prioritization
    • By User Groups
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

AP Controller

  • AP Controller Support
  • Wi-Fi Usage Statistics

Captive Portal Support

  • Support for Wired and Wireless LAN Clients
  • Support RADIUS Authentication
  • Time and Usage Quotas on Open Access Mode
  • Built-in Customizable Splash Page

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Management
  • Email Notification
  • Active Client and Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Package Content

  • MAX HD2
  • 12V3A Power Supply
  • 4x 5dBi Wi-Fi Antennas
  • 1x GPS Active Antenna
  • 4x 2dBi 4G LTE Antennas (4G LTE)
  • 2x 3dBi 3G Antennas (3G)
  • 1 Pair of Mounting Brackets

Certifications

  • FCC, CE, RoHS
  • Shock and Vibration Resistance – EN 61373:1999 IEC 61373:1999
  • RF Port Lighting Immunity – ITU-T K.20 (+/- 1.5 kV)

1 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

MAX HD2 Specifications

All specifications are subject to change without notice.

Compare:


Model MAX HD2 MAX HD2 MINI MAX HD4 MAX HD2/HD4 WITH MEDIAFAST
Product Code HD2-LTE HD2-MINI-LTE HD4-LTE HD2-MFA-LTE/
HD4-MFA-LTE
Ethernet WAN Ports 2 (GE) 1 (GE) 2/5 (GE) @ 2 (GE)
Ethernet LAN Ports 4 (GE) 2 (GE) 8/5 (GE) @ 8 (GE)
Embedded 4G LTE/3G 2 2 4 2/4
Redundant SIM Slots No Yes Yes Yes
SIM Card Size Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF)
USB WAN Modem Port 1 1 1 1
Wi-Fi WAN1 Yes [nodot] Yes Yes
Wi-Fi AP1 Yes [nodot] Yes Yes
Maximum number of SSID 16 N/A 16 16
Wi-Fi Standard 802.11ac/a/b/g/n
1166Mbps 2×2 MIMO
No 802.11ac/a/b/g/n
1166Mbps 2×2 MIMO
802.11ac/a/b/g/n
1166Mbps 2×2 MIMO
Transmit Power (2.4GHz) 23dBm No 23dBm 23dBm
Transmit Power (5GHz) 21dBm No 21dBm 21dBm
Simultaneous Dual-Band Wi-Fi AP Yes No Yes Yes
Recommended Users2 150 150 500 150/500
Router Throughput3 400Mbps 300Mbps 400Mbps 400Mbps
LTE Modems Downlink/Uplink Datarate: 100Mbps/50Mbps
LTE-A Modems Downlink/Uplink Datarate: 300Mbps/50Mbps
LTE-A Pro Modems Downlink/Uplink Datarate: 600Mbps/150Mbps / Downlink/Uplink Datarate: 600Mbps/150Mbps /
Cache Throughput4 No No No 150Mbps
Disk Drive No No No 120GB SSD
Core Functionality
802.1q VLANs Supported 128 128 128 128
Drop-In Mode Yes Yes Yes Yes
High Availability Yes Yes Yes Yes
WAN as LAN No Yes No No
Web Blocking Yes Yes Yes Yes
Web Filtering Blacklist Lite Lite Lite Lite
VPN Functionality
PepVPN Yes Yes Yes Yes
SpeedFusion Hot Failover Yes Yes Yes Yes
SpeedFusion WAN Smoothing Yes Yes Yes No
SpeedFusion Bandwidth Bonding No No No No
Number of PepVPN SpeedFusion Peers 2/20 + 2/20 + 2/20 + 2/20 +
PepVPN/SpeedFusion Throughput (No Encryption) 120Mbps 100Mbps 150Mbps 150Mbps
PepVPN/SpeedFusion Throughput (256-bit AES) 55Mbps 60Mbps 120Mbps 120Mbps
IPsec/L2TP/PPTP/OpenVPN Functionality
Number of IPsec Tunnels 5 5 5 5
GRE (Network-to-Network) 5 5 5 5
Central Management
InControl Cloud Management Yes Yes Yes Yes
GPS Fleet Management Yes Yes Yes Yes
AP Controller Functionality
Manage Pepwave AP Series Yes Yes Yes Yes
Maximum Number of AP Support 30 30 30 30
Hardware Features
Enclosure Indoor Metal Compact, Indoor Metal Indoor Metal Indoor Metal
PoE Output Up to 4x 802.3af PoE Outputs # Up to 3x 802.3af PoE Outputs # Up to 8x 802.3at PoE+ Outputs # Up to 8x 802.3at PoE+ Outputs #
Terminal Block Power Connector for
Mobile/Vehicular Deployment
Yes Yes Yes Yes

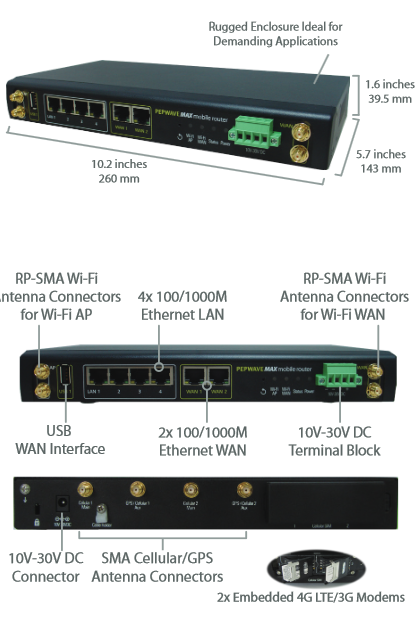

Dimensions
(Height x Width x Depth)
1.6 x 10.2 x 5.6 inches
40 x 260 x 143 mm
1.6 x 5.8 x 5 inches
40 x 147 x 128 mm
1.9 x 11.5 x 6.9 inches
50 x 292 x 177 mm
1.9 x 11.5 x 6.9 inches
50 x 292 x 177 mm
Weight 2.2 pounds
1 kg
0.96 pounds
0.5 kg
4.20 pounds
1.9 kg
4.20 pounds
1.9 kg
Operations
AC Adapter AC Input 100V – 240V
DC Output 12V , 3A
AC Input 100V – 240V
DC Output 12V , 2A
AC Input 100V – 240V
DC Output 12V , 4A
AC Input 100V – 240V
DC Output 12V , 4A
Power Input DC 10V – 56V DC 10V – 56V DC 12V – 56V DC 12V – 56V
Terminal Block DC 10V – 56V DC 10V – 56V DC 12V – 56V DC 12V – 56V
Power Consumption 28W (max.) 15W (max.) 38W (max.) 38W (max.)
Operating Temperature -40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS Yes Yes Yes Yes
RF Port Lightning Immunity: ITU-T K.20 (+/- 1.5 kV) Yes No No No
ESN (Emergency Services Network) No No Yes No
Certifications – Motor Vehicle
E-Mark Yes Yes Yes Yes
Certifications – Rolling Stock
EN 61373:2010
Shock and Vibration Resistance
Yes Yes Yes Yes
EN 50155
Railway Applications – Electronic Equipment used on Rolling Stock
Yes Yes Yes Yes
EN 61000
Electromagnetic Compatibility
Yes Yes Yes Yes
Warranty 1-Year Limited Warranty

[1] The frequency range for 802.11b/g/n Wi-Fi and 802.11ac/a/n Wi-Fi are 2412−2472 MHz and 5180−5825 MHz respectively.
[2] Transmit power can be configured on the Web Admin Interface.
[3] Recommendation for sizing purposes only. No software restrictions applied.
[4] Router Throughput is valid only for currently shipping devices running Firmware 7.0.1 or later. Router Throughtput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
[5] Cache Throughput refers to the speed of routing content from disk drive to LAN.
* Available as an optional add-on.
# Optional PoE Activation Kit is required to activate PoE Output.
+ The MAX HD2, HD2 Mini, HD4, HD2/HD4 with MediaFast come with 2 PepVPN/SpeedFusion peers by default. With an optional add-on, they support up to 20 peers.
@ If the WAN Port Activation License (BPL-ONE-LC-5WAN) is activated, LAN ports 1-3 will be converted to WAN ports 3-5.
