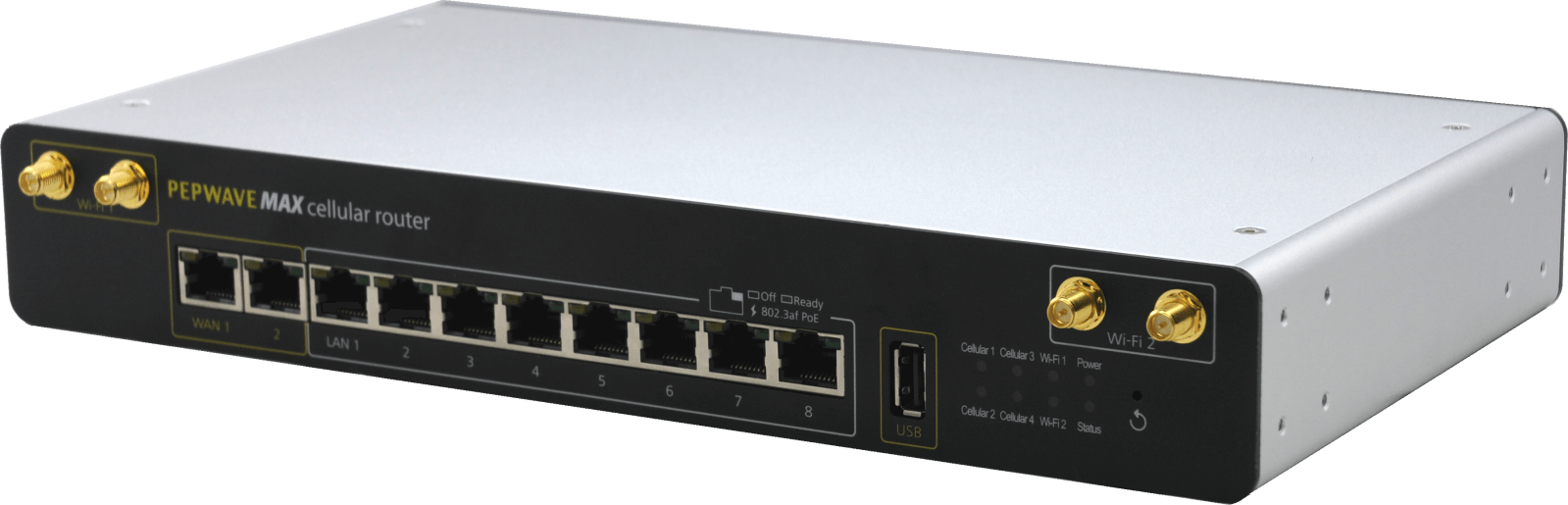

Peplink MAX HD2 with MediaFast
Dual/Quad 4G LTE Content Caching Router

Pepwave MAX HD2 with MediaFast

Call us Today at 877-352-0546 for a price quote!

Peplink Products
Peplink MediaFast
MAX HD2 LTE with MediaFast
#MAX-HD2-MFA-LTE-US-T
Contact us for Pricing!
Pepwave HD2 LTEA MF
#MAX-HD2-MFA-LTEA-W-T
Call for Lowest Price!

More pricing below, click here!

Overview:

Quad 4G LTE Content Caching Router

The HD2 MediaFast and HD4 MediaFast team up embedded cellular modems and other great features of the HD Series with our MediaFast content caching, which lets you store content for later playback anywhere, regardless of connectivity.

Dual/Quad Embedded Cellular Modems

The HD2 with MediaFast includes two built-in 4G LTE modems (four on the HD4 with Mediafast). It allows you to use the same or different cellular providers for bandwidth bonding, data overage protection or eliminating blind spots.

Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.

Mobile Content Caching

Deliver endless content without consuming endless bandwidth. The MediaFast Editions of the HD2 and HD4 let you download content once and play it back without limit, even in locations where connectivity is spotty or absent.

SpeedFusion Bandwidth Bonding and Seamless Failover

SpeedFusion bandwidth bonding technology bonds all connected bandwidth into a single superfast stream, using the same or different cellular providers.

Customize Captive Portal

Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS.

Certified Toughness

In addition to rugged metal enclosure, HD4 has certifications on: Shock and vibration resistance (EN 61373:1999, IEC 61373:1999) Railway applications (EN 50155) Electromagnetic Compatibility (EN 61000)

Applications:

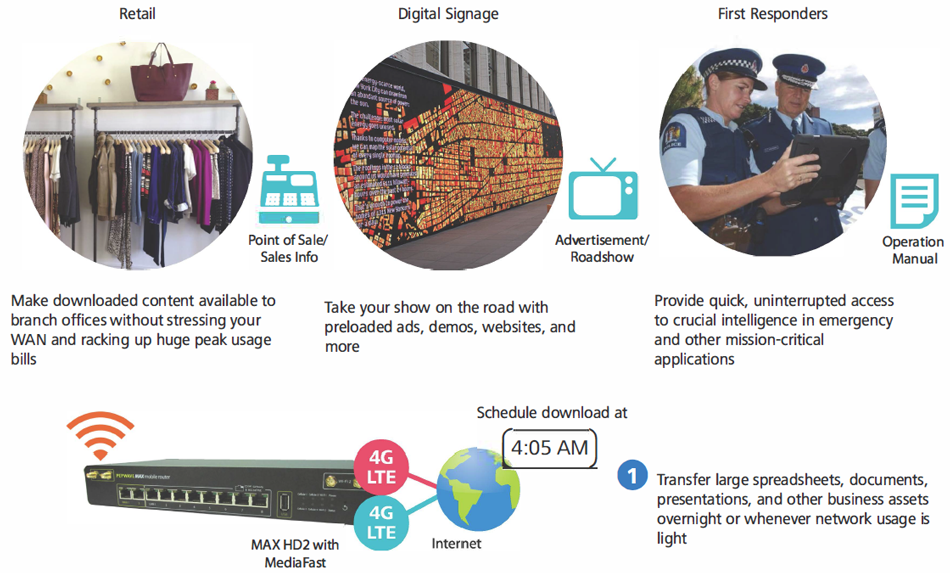

Accelerate Branch/Offsite Networking with Content Prefetching

Accelerate Branch/Offsite Networking with Content Prefetching

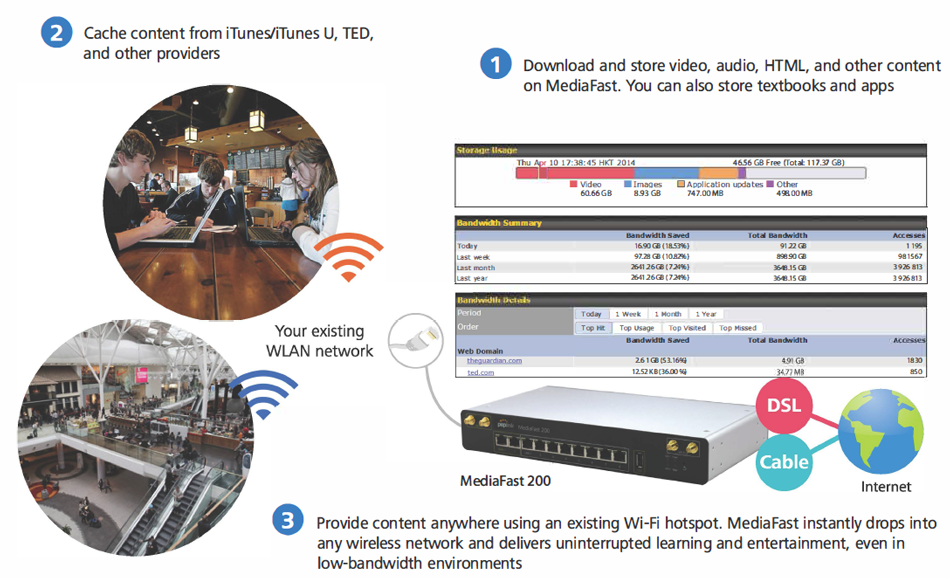

Turbocharge Existing Wi-Fi Hotspots with Cached Content

Turbocharge Existing Wi-Fi Hotspots with Cached Content

Specifications:


Software

  • Peplink MediaFast Firmware

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
    • PING
    • DNS Lookup
    • HTTP
  • Bandwidth Allowance Monitor
  • IPv6 Support
  • USB 4G/3G Modem Support

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Option
  • DHCP Reservation
  • Support for Dynamic DNS services
    • changeip.com
    • dyndns.org
    • no-ip.org
    • tzo.com
    • DNS-O-Matic
  • DNS Proxy for LAN Clients

Caching

  • Video Caching
    • ted.com
    • iTunes
    • iTunes U
  • Content Caching
    • HTML
    • JavaScript
    • Image
  • Flash Application

Load Balancing^

  • Intelligent Failover
  • Session Persistence
  • Per-Service Load Distribution
  • Multiple Algorithms
    • Weighted
    • Enforced
    • Persistence
    • Priority
    • Overflow
    • Least Used
    • Lowest Latency

Complete VPN Solution^

  • SpeedFusion Bandwidth Bonding
    • Site-to-Site VPN
    • Bandwidth Aggregation
    • Intelligent Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    • X.509 certificate support
  • PPTP VPN Server
  • RADIUS, LDAP Authentication
  • IPsec VPN (Network-to-Network)
    • X.509 certificate support

Advanced QoS

  • User Groups
    • Individual Bandwidth Limit
  • Application Prioritization
    • By User Groups
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP
  • WINS Server

AP Controller

  • Support for Pepwave AP Series
  • Auto AP Discovery
  • Auto AP Firmware Management
  • AP Profile Configuration
  • Wi-Fi usage statistics

Captive Portal Support

  • Support for wired and wireless LAN clients
  • Support RADIUS authentication
  • Support LDAP authentication
  • Time and usage quotas on Open Access mode
  • Built-in customizable splash page

Security

  • DoS Prevention
  • Stateful Firewall
  • Web Blocking

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Management
  • Email Notification
  • Active Client & Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Support and Warranty

  • 1-Year Standard Warranty
  • 1-Year Standard Support 1
  • Unlimited 8×5 Email Support
  • 90 Days Telephone Support
  • 1-Year Firmware Upgrade

Package Content

  • MAX HD2 with MediaFast
    • MAX HD2 with MediaFast
    • 12V4.2A Power Supply
    • 4x 5dBi Wi-Fi Antennas
    • 1x GPS Active Antenna
    • 4x 2dBi 4G LTE Antennas (4G LTE)
    • 1 Pair of Mounting Brackets
  • MAX HD4 with MediaFast
    • MAX HD4 with MediaFast
    • 12V4.2A Power Supply
    • 4x Dual Band Wi-Fi Antennas
    • 1x GPS Active Antenna
    • 8x 2dBi 4G LTE Antennas
    • 1 Pair of Mounting Brackets

Certifications

  • CE
  • FCC
  • RoHS

^ Available as an optional add-on.
1 Only valid for customers who have purchased Peplink Balance devices directly from Peplink.

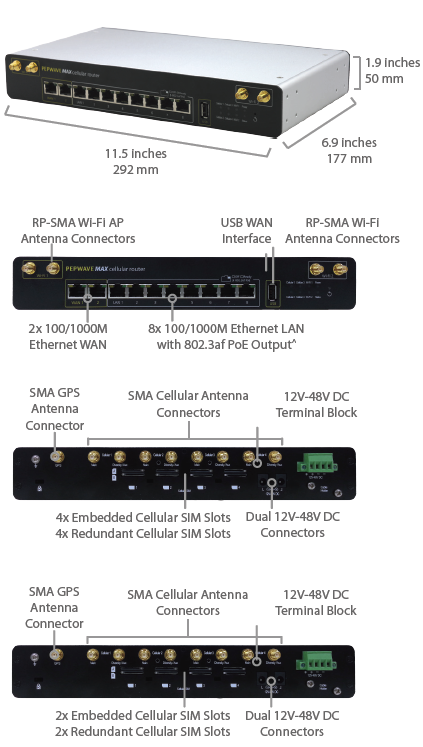

MAX HD2/4 with MediaFast Specifications

All specifications are subject to change without notice.

Compare:


Model MAX HD2 MAX HD2 MINI MAX HD4 MAX HD2/HD4 WITH MEDIAFAST
Product Code HD2-LTE HD2-MINI-LTE HD4-LTE HD2-MFA-LTE/
HD4-MFA-LTE
Ethernet WAN Ports 2 (GE) 1 (GE) 2/5 (GE) @ 2 (GE)
Ethernet LAN Ports 4 (GE) 2 (GE) 8/5 (GE) @ 8 (GE)
Embedded 4G LTE/3G 2 2 4 2/4
Redundant SIM Slots No Yes Yes Yes
SIM Card Size Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF)
USB WAN Modem Port 1 1 1 1
Wi-Fi WAN1 Yes [nodot] Yes Yes
Wi-Fi AP1 Yes [nodot] Yes Yes
Maximum number of SSID 16 N/A 16 16
Wi-Fi Standard 802.11ac/a/b/g/n
1166Mbps 2×2 MIMO
No 802.11ac/a/b/g/n
1166Mbps 2×2 MIMO
802.11ac/a/b/g/n
1166Mbps 2×2 MIMO
Transmit Power (2.4GHz) 23dBm No 23dBm 23dBm
Transmit Power (5GHz) 21dBm No 21dBm 21dBm
Simultaneous Dual-Band Wi-Fi AP Yes No Yes Yes
Recommended Users2 150 150 500 150/500
Router Throughput3 400Mbps 300Mbps 400Mbps 400Mbps
LTE Modems Downlink/Uplink Datarate: 100Mbps/50Mbps
LTE-A Modems Downlink/Uplink Datarate: 300Mbps/50Mbps
LTE-A Pro Modems Downlink/Uplink Datarate: 600Mbps/150Mbps / Downlink/Uplink Datarate: 600Mbps/150Mbps /
Cache Throughput4 No No No 150Mbps
Disk Drive No No No 120GB SSD
Core Functionality
802.1q VLANs Supported 128 128 128 128
Drop-In Mode Yes Yes Yes Yes
High Availability Yes Yes Yes Yes
WAN as LAN No Yes No No
Web Blocking Yes Yes Yes Yes
Web Filtering Blacklist Lite Lite Lite Lite
VPN Functionality
PepVPN Yes Yes Yes Yes
SpeedFusion Hot Failover Yes Yes Yes Yes
SpeedFusion WAN Smoothing Yes Yes Yes No
SpeedFusion Bandwidth Bonding No No No No
Number of PepVPN SpeedFusion Peers 2/20 + 2/20 + 2/20 + 2/20 +
PepVPN/SpeedFusion Throughput (No Encryption) 120Mbps 100Mbps 150Mbps 150Mbps
PepVPN/SpeedFusion Throughput (256-bit AES) 55Mbps 60Mbps 120Mbps 120Mbps
IPsec/L2TP/PPTP/OpenVPN Functionality
Number of IPsec Tunnels 5 5 5 5
GRE (Network-to-Network) 5 5 5 5
Central Management
InControl Cloud Management Yes Yes Yes Yes
GPS Fleet Management Yes Yes Yes Yes
AP Controller Functionality
Manage Pepwave AP Series Yes Yes Yes Yes
Maximum Number of AP Support 30 30 30 30
Hardware Features
Enclosure Indoor Metal Compact, Indoor Metal Indoor Metal Indoor Metal
PoE Output Up to 4x 802.3af PoE Outputs # Up to 3x 802.3af PoE Outputs # Up to 8x 802.3at PoE+ Outputs # Up to 8x 802.3at PoE+ Outputs #
Terminal Block Power Connector for
Mobile/Vehicular Deployment
Yes Yes Yes Yes
Dimensions
(Height x Width x Depth)
1.6 x 10.2 x 5.6 inches
40 x 260 x 143 mm
1.6 x 5.8 x 5 inches
40 x 147 x 128 mm
1.9 x 11.5 x 6.9 inches
50 x 292 x 177 mm
1.9 x 11.5 x 6.9 inches
50 x 292 x 177 mm
Weight 2.2 pounds
1 kg
0.96 pounds
0.5 kg
4.20 pounds
1.9 kg
4.20 pounds
1.9 kg
Operations
AC Adapter AC Input 100V – 240V
DC Output 12V , 3A
AC Input 100V – 240V
DC Output 12V , 2A
AC Input 100V – 240V
DC Output 12V , 4A
AC Input 100V – 240V
DC Output 12V , 4A
Power Input DC 10V – 56V DC 10V – 56V DC 12V – 56V DC 12V – 56V
Terminal Block DC 10V – 56V DC 10V – 56V DC 12V – 56V DC 12V – 56V
Power Consumption 28W (max.) 15W (max.) 38W (max.) 38W (max.)
Operating Temperature -40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS Yes Yes Yes Yes
RF Port Lightning Immunity: ITU-T K.20 (+/- 1.5 kV) Yes No No No
ESN (Emergency Services Network) No No Yes No
Certifications – Motor Vehicle
E-Mark Yes Yes Yes Yes
Certifications – Rolling Stock
EN 61373:2010
Shock and Vibration Resistance
Yes Yes Yes Yes
EN 50155
Railway Applications – Electronic Equipment used on Rolling Stock
Yes Yes Yes Yes
EN 61000
Electromagnetic Compatibility
Yes Yes Yes Yes
Warranty 1-Year Limited Warranty

[1] The frequency range for 802.11b/g/n Wi-Fi and 802.11ac/a/n Wi-Fi are 2412−2472 MHz and 5180−5825 MHz respectively.
[2] Transmit power can be configured on the Web Admin Interface.
[3] Recommendation for sizing purposes only. No software restrictions applied.
[4] Router Throughput is valid only for currently shipping devices running Firmware 7.0.1 or later. Router Throughtput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
[5] Cache Throughput refers to the speed of routing content from disk drive to LAN.
* Available as an optional add-on.
# Optional PoE Activation Kit is required to activate PoE Output.
+ The MAX HD2, HD2 Mini, HD4, HD2/HD4 with MediaFast come with 2 PepVPN/SpeedFusion peers by default. With an optional add-on, they support up to 20 peers.
@ If the WAN Port Activation License (BPL-ONE-LC-5WAN) is activated, LAN ports 1-3 will be converted to WAN ports 3-5.

Documentation:

Download the Pepwave MAX HD2/4 with MediaFast Datasheet (PDF).

Download the Pepwave MAX Full Comparison Chart (PDF).

Pricing Notes:

Pepwave MAX HD2 LTE with MediaFast
MAX HD2 LTE with MediaFast
#MAX-HD2-MFA-LTE-US-T
Contact us for Pricing!
Pepwave HD2 LTEA MF
#MAX-HD2-MFA-LTEA-W-T
Call for Lowest Price!
Pepwave InControl Subscription
1-Year InControl 2 Subscription Per Device
#ICS-015
Contact us for Pricing!
Accessories
PoE Activation Kit
Includes 1x 48V Power Supply. Enables 802.3af PoE Output Ports (PoE License automatically applied after kit purchase)
#ACW-609
Contact us for Pricing!
License Key
SpeedFusion Bonding License Key for MAX HD2 with MediaFast
#BPL-305
Contact us for Pricing!
Add-ons
FIPS License
#FIPS-LC-HD2-MFA
Call for Lowest Price!
SpeedFusion Bonding Key
#MFA-HD2-LC-SF
Call for Lowest Price!
1-Year FrontierCARE for HD2 LTEA MediaFast- includes IC2 subscription
#PSC-220
Call for Lowest Price!
3-Year FrontierCARE for HD2 LTEA MediaFast- includes IC2 subscription
#PSC-419
Call for Lowest Price!
1-Year Warranty for HD2 LTEA MediaFast- includes IC2 subscription
#SVL-434
Call for Lowest Price!
2-Year Warranty for HD2 LTEA MediaFast- includes IC2 subscription
#SVL-534
Call for Lowest Price!
Peplink SmartCare
Peplink SmartCare 1-Year for MAX HD2 LTE with MediaFast
#PSC-174
Contact us for Pricing!
Peplink SmartCare 3-Year for MAX HD2 LTE with MediaFast
#PSC-314
Contact us for Pricing!
Peplink EssentialCare
EssentialCare for MAX HD2 LTE with MediaFast, 1 year
#SVL-775
Contact us for Pricing!
EssentialCare for MAX HD2 LTE with MediaFast, 2 years
#SVL-675
Contact us for Pricing!
