Pepwave MAX HD2 IP67
Dual 4G LTE Outdoor Mobile Router

Pepwave MAX HD2 IP67

Call us Today at 877-352-0546 for a price quote!

Peplink Products
Pepwave MAX HD2 IP67
MAX HD2 LTEA IP67
#MAX-HD2-M-LTEA-W-IP67
Call for Lowest Price!
MAX HD2 IP67 FirstNet
#MAX-HD2-M-LTEA-WF-IP67
Call for Lowest Price!

More pricing below, click here!

Overview:

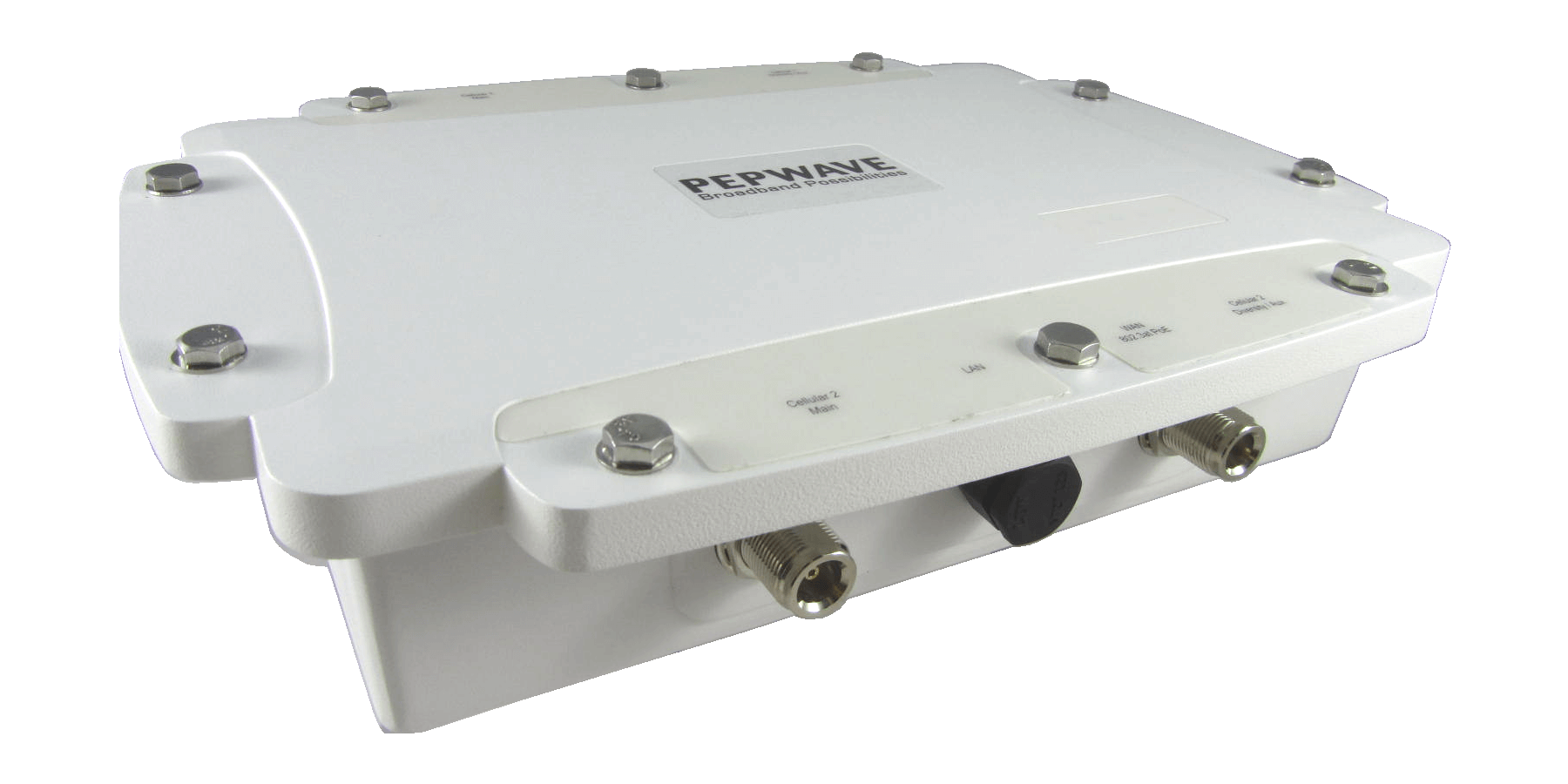

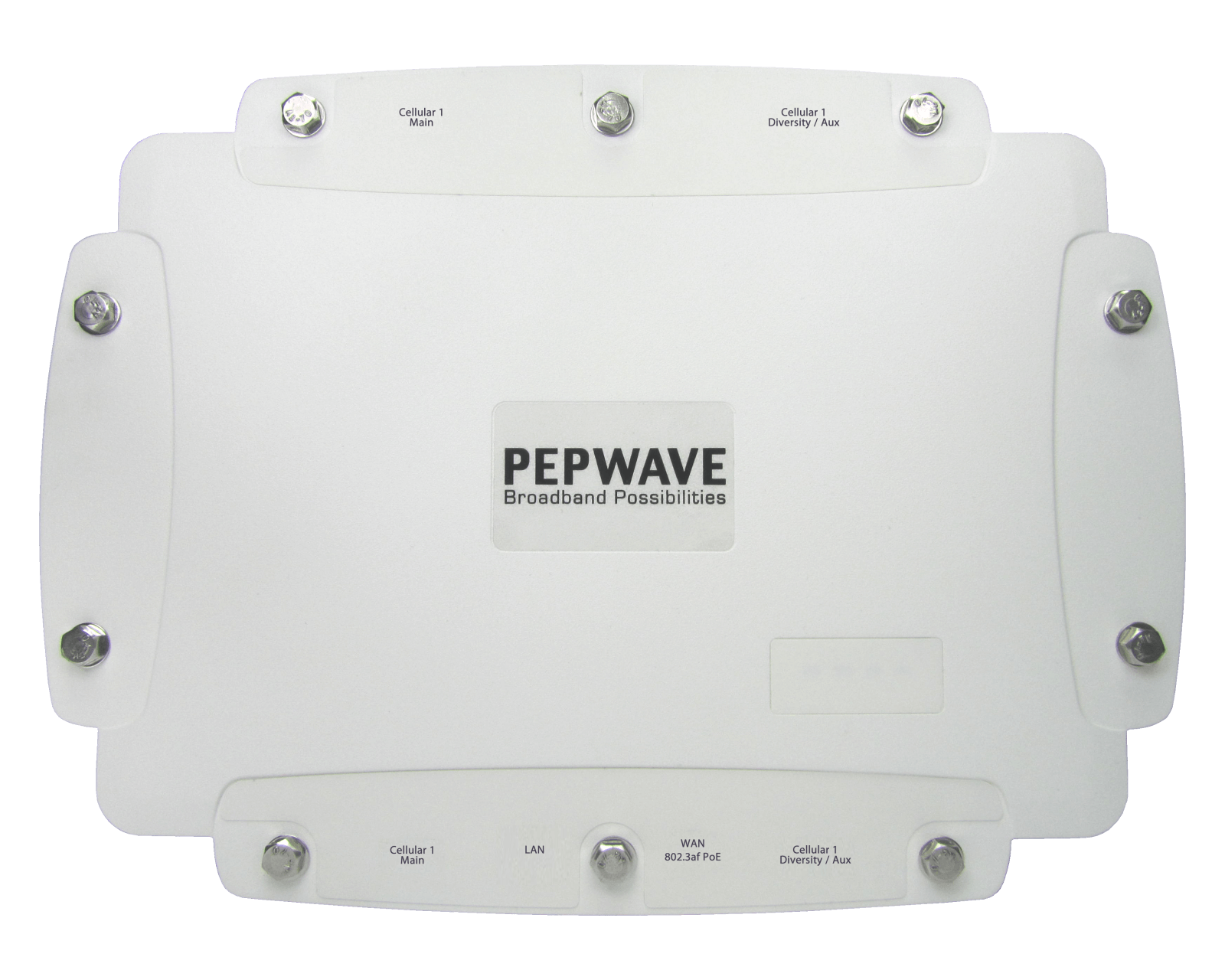

The HD2 IP67 offers dual embedded cellular modems and PoE support, all encased in a shock and vibration certified, waterproof enclosure that's more than a match for almost any environment.

Dual Cellular and Redundant SIM slots for Multiple Carrier.

The HD2 IP67 includes two built-in outdoor 4G LTE/3G modems and two Redundant SIM slots. It allows you to use the same or different cellular providers for bandwidth bonding or eliminating blind spots.

SpeedFusion Bandwidth Bonding and Seamless Failover

SpeedFusion bandwidth bonding technology bonds all connected bandwidth into a single superfast stream, using the same or different cellular providers.

Super-Duty IP67 Enclosure. Shock and Vibration Certified.

Its waterproof IP67 metal enclosure stands up to dust, vibration, and inclement weather.And, it is certified shock and vibration resistant, making it a great choice for construction, drilling, and other heavy-duty applications

Optional PoE Input

Cut down on cabling and simplify deployments. The HD2 IP67 supports 802.3af PoE input, so one wire is all you need for both connectivity and power. 802.af PoE Injector is available separately.

Application:

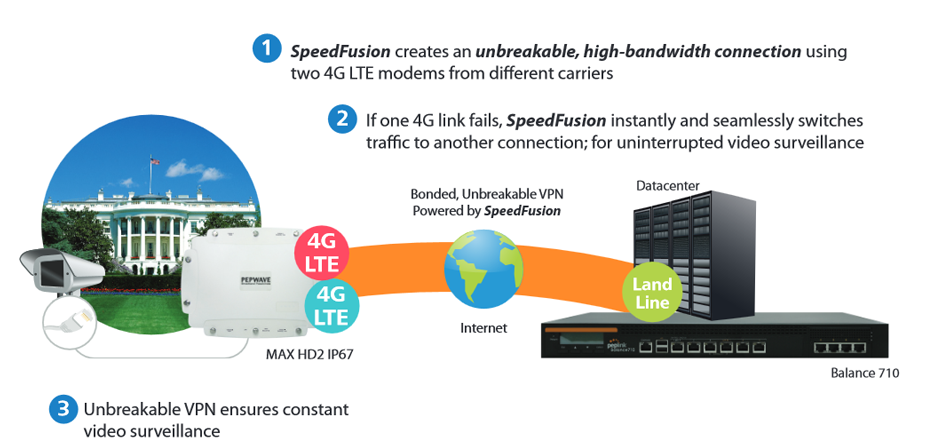

Video Surveillance – 24/7 Unbreakable CCTV

ideo Surveillance – 24/7 Unbreakable CCTV

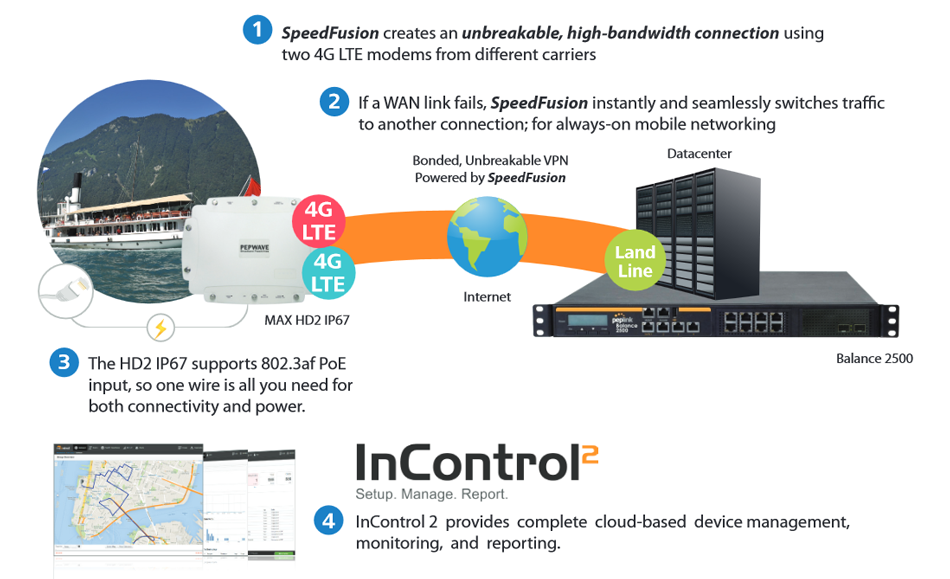

Maritime Connectivity/Construction Site – Fast and Reliable Mobile Networking

Maritime Connectivity/Construction Site – Fast and Reliable Mobile Networking



Specifications:

Software

  • Pepwave MAX Firmware

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • IPv6 Support
  • Support for Dynamic DNS services

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Option
  • DHCP Reservation
  • DNS Proxy for LAN Clients
  • VLAN on LAN Support

Load Balancing

  • Intelligent Failover
  • Session Persistence
  • Per-Service Load Distribution
  • Multiple Algorithms
    • Weighted
    • Enforced
    • Persistence
    • Priority
    • Overflow
    • Least Used
    • Lowest Latency

    Security

    • Stateful Firewall
    • DoS Prevention
    • Web Blocking

Complete VPN Solution

  • PepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
    • Site-to-Site VPN
    • Bandwidth Aggregation
    • Hot Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    • X.509 Certificate Support
  • PPTP VPN Server
    • RADIUS, LDAP Authentication
  • IPsec VPN (Network-to-Network) 1
    • X.509 Certificate Support

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP
  • WINS Server
  • VRRP HA support

Advanced QoS

  • User Groups
    • Bandwidth Reservation
    • Individual Bandwidth Limit
  • Application Prioritization
    • By User Groups
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

AP Controller

  • AP Controller Support
  • Wi-Fi Usage Statistics

Captive Portal Support

  • Support for Wired and Wireless LAN Clients
  • Support RADIUS Authentication
  • Time and Usage Quotas on Open Access Mode
  • Built-in Customizable Splash Page

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Management
  • Email Notification
  • Active Client and Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Power Requirements

  • Device
  • 10V – 30V DC

Package Content

  • MAX HD2 IP67
  • Waterproof Power Connector Kit
  • 2x Waterproof Ethernet Connector Kit
  • Mounting Kit

1 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

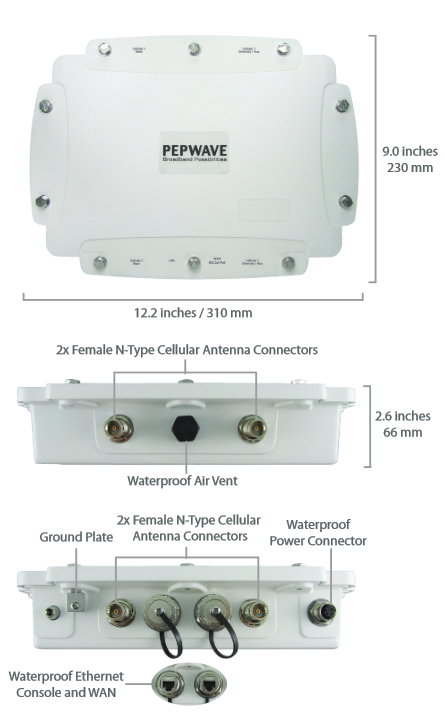

MAX HD2 IP67 Specifications

All specifications are subject to change without notice.

Compare:


Model MAX BR1 IP55 MAX BR2IP55 MAX BR1 IP67 MAX HD2 IP67 MAX HD4 IP67
Product Code BR1-IP55 BR2-IP55 BR1-IP67 HD2-IP67 HD4-IP67
Ethernet WAN Ports 1 (GE) 1 (GE) No 1 (GE) 1 (GE)
Ethernet LAN Ports 2 (GE) 2 (GE) 1 (FE) 1 (GE) 1 (GE)
Embedded 4G LTE 1 2 * 1 2 4
SIM Card Size Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF)
Wi-Fi WAN1 Yes Yes Yes No No
Wi-Fi AP1 Yes Yes Yes No No
Wi-Fi Standard 802.11ac wave 2/ac/a/b/g/n 802.11ac/a/b/g/n
1166Mbps 2×2 MIMO
802.11b/g/n 150Mbps No No
Transmit Power (2.4GHz) 24dBm 24dBm 28dBm No No
Transmit Power (5GHz) 23dBm 23dBm No No No
Simultaneous Dual-Band Wi-Fi AP Yes Yes No No No
Maximum number of SSID 16 16 16 No No
Recommended Users2 60 60 60 150 500
Router Throughput3 100Mbps 100Mbps 100Mbps 400Mbps 400Mbps
Core Functionality
802.1q VLANs Supported 16 16 16 128 128
Drop-In Mode No No No Yes Yes
High Availability Yes Yes Yes Yes Yes
WAN as LAN Yes Yes No Yes Yes
Web Blocking Yes Yes Yes Yes Yes
Web Filtering Blacklist Lite Lite Lite Lite Lite
VPN Functionality
PepVPN Yes Yes Yes Yes Yes
SpeedFusion Hot Failover Yes Yes Yes Yes Yes
SpeedFusion WAN Smoothing No No No Yes Yes
SpeedFusion Bandwidth Bonding No No No Yes Yes
Number of PepVPN SpeedFusion Peers 2 2 2 2/20 + 2/20 +
PepVPN/SpeedFusion Throughput (No Encryption) 40Mbps 40Mbps 40Mbps 100Mbps 150Mbps
PepVPN/SpeedFusion Throughput (256-bit AES) 20Mbps 20Mbps 20Mbps 60Mbps 120Mbps
Central Management
InControl Cloud Management Yes Yes Yes Yes Yes
GPS Fleet Management No No Yes Yes Yes
AP Controller Functionality
Manage Pepwave AP Series No No No Yes Yes
Maximum Number of AP Support No No No 30 30
Hardware Features
Enclosure Outdoor IP55 All-Weather Outdoor IP55 All-Weather Outdoor IP67 All-Weather Outdoor IP67 All-Meta Outdoor IP67 All-Meta
PoE Output 1x 802.3at PoE+ Output
(Requires 56V Passive PoE for full 25.5W PoE+ Output)
1x 802.3at PoE+ Output
(Requires 56V Passive PoE for full 25.5W PoE+ Output)
[nodot] 1x 802.3af PoE Output Ports (Requires PoE License automatically applied after kit purchase) 1x 802.3at PoE Output (Requires 56V DC input for full 25.5W PoE+ Output)
Dimensions
(Height x Width x Depth)
1.2 x 4.9 x 11.8 inches
30 x 124 x 300 mm
1.2 x 4.9 x 11.8 inches
30 x 124 x 300 mm
5.55 x 6.38 x 3.98 in
141 x 162 x 101 mm
9.0 x 12.2 x 2.6 inches
230 x 310 x 66 mm
11.6 x 15.3 x 2.6 inches
295 x 390 x 66 mm
Weight 0.96 pounds
435 grams
0.96 pounds
435 grams
1.50 pounds
680 grams
5.84 pounds
2.65 kg
9.48 pounds
4.3 kg
Operations
Power Input 802.3at PoE+ or
56V Pepwave Passive PoE ^
802.3at PoE+ or
56V Pepwave Passive PoE ^
802.3af PoE ^ 802.3at PoE+ or
AC Input
100V-240V [st]#[/st],
DC: 12V – 56V, 3A
DC: 12V – 56V ^
Power Consumption Max.: 18W, Typical: 11W, Min.: 8W Max.: 18W, Typical: 11W, Min.: 8W 12W (max.) 25W (max.) 38W (max. w/o PoE)
Operating Temperature -40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS Yes Yes Yes Yes Yes
RF Port Lightning Immunity:
ITU-T K.20 (+/- 1.5 kV)
Yes Yes Yes Yes No
Certifications – Motor Vehicle
E-Mark No No No Yes No
Certifications – Rolling Stock
EN 61373:2010
Shock and Vibration Resistance
No No No Yes Yes
Warranty 1-Year Limited Warranty

[1] The frequency range for 2.4GHz and 5GHz are 2412−2472 MHz and 5180−5825 MHz respectively.
[2] Recommendation for sizing purposes only. No software restrictions applied.
[3] Router Throughtput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
[4] Certification pending for American carriers.
^ PoE injector and AC power adapter are available separately.
+ The HD2 IP67 and HD4 IP67 come with 2 PepVPN/SpeedFusion peers by default. With an optional add-on, they support up to 20 peers.
# Support PSE output.

Documentation:

Download the Pepwave HD2 IP67 Datasheet (PDF).

Download the Pepwave MAX Full Comparison Chart (PDF).
