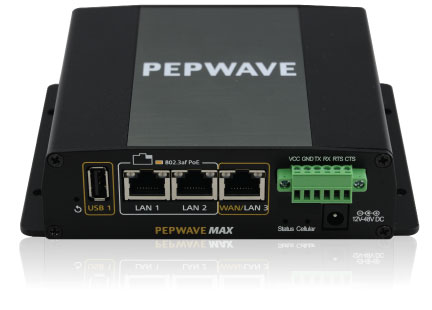

Pepwave MAX BR1 ENT
Enterprise Grade Router with LTE Failover

Pepwave MAX BR1

Call us Today at 877-352-0546 for a price quote!

Peplink Products
Pepwave MAX BR1 ENT
MAX BR1 ENT LTEA
#MAX-BR1-ENT-LTEA-W-T
Call for Lowest Price!
MAX BR1-Ent FirstNet
#MAX-BR1-ENT-LTEA-R-T
Call for Lowest Price!

More pricing below, click here!

Overview:

LTE Highspeed Broadband Router

The BR1 ENT delivers blazing 200Mbps router throughput with automatic failover to LTE and comes without Wi-Fi, making it an ideal choice for deployments that demand high performance, and outstanding reliability. It is also Verizon XLTE certified.

Highspeed Broadband with LTE backup

Stay online when connections fail with instant automatic failover. Connect a high-speed primary line and a backup LTE connection, and the BR1 ENT will seamlessly switch between wired and cellular links as needed to keep your connection stable and fast.

SpeedFusion Hot Failover.

MAX BR automatically re-establishes your IPsec VPN connection on lower priority link when your primary WAN fails. Your VPN stays up, and you stay seamlessly connected.

Meet Strict Security Compliance

Got a strict no-Wi-Fi security policy? Configured without Wi-Fi, the BR1 ENT is a great choice for deployments with compliance requirements

Certified for Tough Deployment

In addition to rugged metal enclosure, BR1 ENT has certifications on: Shock and vibration resistance (EN 61373:1999 IEC 61373:1999) RF Port Lightning Immunity (ITU-T K.20 (+/- 1.5 kV)) Railway Applications (EN 50155) Electromagnetic Compatibility (EN 61000)

Application:

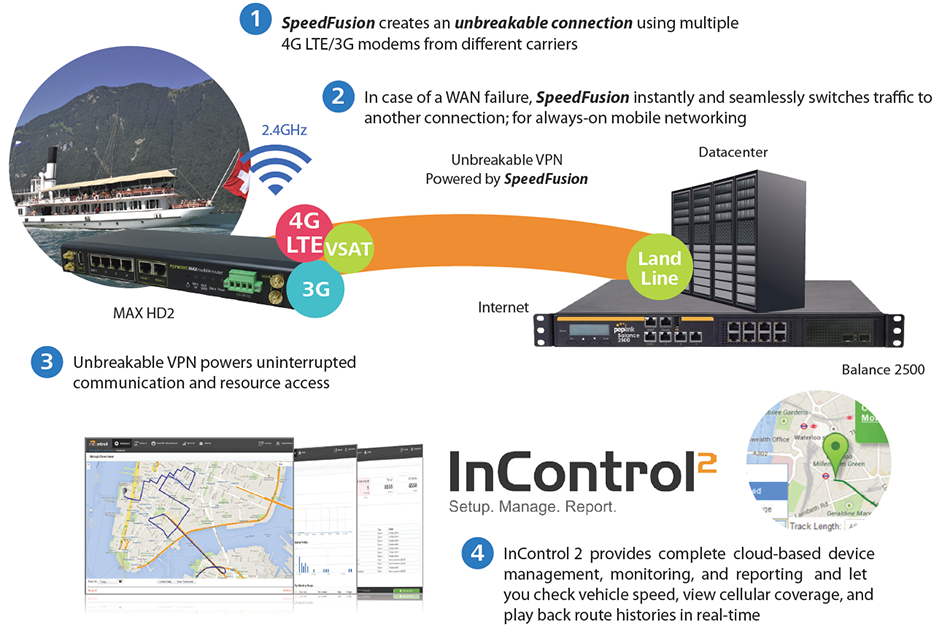

Government/Military – Uninterrupted Communication and Resource Access

Government/Military – Uninterrupted Communication and Resource Access

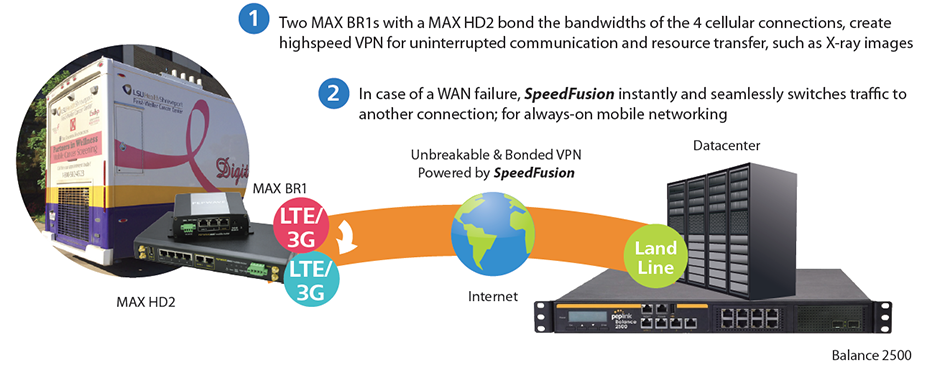

Enterprise – Upgrade Existing Network Infrastructure with LTE Backup

Enterprise – Upgrade Existing Network Infrastructure with LTE Backup

Specifications:


Software

  • Pepwave MAX Firmware

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • Support for Dynamic DNS services
  • WAN Port Convertible into LAN Port

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Option
  • DHCP Reservation
  • DNS Proxy for LAN Clients
  • VLAN on LAN Support

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP

Complete VPN Solution

  • PepVPN/SpeedFusion Hot Failover
    • Site-to-Site VPN
    • Hot Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
  • IPsec VPN (Network-to-Network)

Advanced QoS

  • Individual Bandwidth Limit
  • Application Prioritization
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

Global Positioning System

  • Integrated GPS
  • Device Location Map
  • Location Tracking Data
  • Fleet Management with InControl 2

Security

  • Stateful Firewall
  • DoS Prevention
  • Web Blocking

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Management
  • Email Notification
  • Active Client and Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Package Content

  • MAX BR1 ENT
    • MAX BR1 ENT
    • 12V2A Power Supply
    • 1x GPS Antenna
    • 2x 2dBi 4G LTE Antennas

MAX BR1 ENT Specifications

All specifications are subject to change without notice.

Model Comparison:


Model MAX BR1 MAX BR1 MK2 MAX BR1 MINI MAX BR1 M2M MAX BR1 SLIM MAX BR1 ENT MAX BR1 PRO MAX HOTSPOT
Product Code BR1-LTE/
BR1-LTEA
BR1-MK2-LTE/
BR1-MK2-LTEA
BR1-MINI-LTE/
BR1-MINI-LTEA
BR1-M2M BR1-SLIM-LTE BR1-ENT-LTE/
BR1-ENT-LTEA
BR1-PRO-LTE/
BR1-PRO-LTEA
MAX-HSP
Ethernet WAN Ports 1 (FE) 1 (GE) 1 (FE) # 1 (FE) 1 (FE) 1 (GE) 1 (GE) 1 (GE)
Ethernet LAN Ports 2 (FE) 1 (GE) 1-2 (FE) 1 (FE) 1 (FE) 2 (GE) 4 (GE) 1 (GE)
Embedded 4G LTE/3G 1 1 1 1 1 1 1 1
Cellular Modem @ LTE / LTE-A LTE / LTE-A LTE / LTE-A LTE LTE LTE / LTE-A LTE / LTE-A LTE / LTE-A
SIM Card Size Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF)
Redundant SIM Slots Yes Yes Yes Yes Yes Yes Yes Yes
USB WAN Modem Port No No No No No 1 No No
Wi-Fi WAN1 Yes Yes Yes # No Yes No Yes Yes
Wi-Fi AP1 Yes Yes Yes No Yes No Yes Yes
Maximum number of SSID 16 16 16 N/A 16 No 16 16
Transmit Power (2.4GHz) 25dBm 24dBm 24dBm No 25dBm No 26dBm 25dBm /
17dBm (CE)
Transmit Power (5GHz) No 17dBm No No No No 25dBm 23dBm
Recommended Users2 1-60 1-60 1-60 M2M 1-60 25-100 1-60 1-60
Router Throughput3 100Mbps 100Mbps 100Mbps 100Mbps 100Mbps 300Mbps 120Mbps 100Mbps
Core Functionality
802.1q VLANs Supported 16 16 16 16 16 16 16 16
Drop-In Mode Yes # Yes # Yes # Yes # Yes # Yes # Yes # No
High Availability Yes Yes Yes No No Yes Yes Yes
IP Passthrough Yes Yes Yes Yes Yes Yes Yes Yes
WAN as LAN Yes Yes Yes Yes Yes Yes Yes Yes
Web Blocking Yes Yes Yes Yes Yes Yes Yes Yes
Web Filtering Blacklist Lite Lite Lite Lite Lite Lite Lite Lite
VPN Functionality
PepVPN Yes Yes Yes Yes Yes Yes Yes Yes
SpeedFusion Hot Failover Yes Yes Yes # Yes Yes Yes Yes Yes
SpeedFusion WAN Smoothing Yes Yes Yes # No Yes Yes Yes No
SpeedFusion Bandwidth Bonding No No No No No No No No
Number of PepVPN SpeedFusion Peers 2/5 ! 2/5 ! 2/5 ! 2/5 ! 2/5 ! 2/5/20 - 2/5 ! 2
PepVPN/SpeedFusion Throughput (No Encryption) 40Mbps 40Mbps 40Mbps 40Mbps 40Mbps 100Mbps 40Mbps 40Mbps
PepVPN/SpeedFusion Throughput (256-bit AES) 20Mbps 20Mbps 20Mbps 20Mbps 20Mbps 60Mbps 20Mbps 20Mbps
Central Management
InControl Cloud Management Yes Yes Yes Yes Yes Yes Yes Yes
GPS Fleet Management Yes Yes Yes No Yes Yes Yes No
Hardware Features
Enclosure Compact, Indoor Metal Compact, Indoor Metal Compact, Indoor Metal Compact, Indoor Metal IP50 Compact, Indoor Metal Compact, Indoor Metal Compact, Indoor Metal Plenum-rated, Indoor Plastic
PoE Output No No No No No 802.3af PoE Output * No No
Terminal Block Power Connector for
Mobile/Vehicular Deployment
Yes Yes Yes Yes Yes Yes Yes Yes

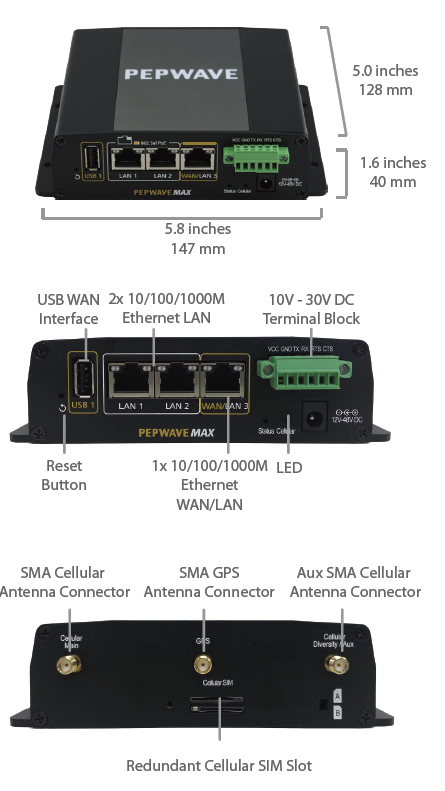

Dimensions
(Height x Width x Depth)
4.1 x 4.3 x 1.2 inches
105 x 110 x 30 mm
1.6 x 5.8 x 5.0 inches
40 x 147 x 128 mm
4.1 x 4.3 x 1.2 inches
105 x 110 x 30 mm
4.8 x 3.8 x 1.1 inches
120 x 97 x 26mm
4.8 x 3.8 x 1.1 inches
120 x 97 x 26mm
1.6 x 5.8 x 5.0 inches
40 x 147 x 128 mm
1.6 x 10.2 x 5.6 inches
40 x 260 x 143 mm
6.8 (diameter) x 1.5 inches
173 (diameter) x 38 mm
Weight 0.54 pounds
244 grams
0.96 pounds
435 grams
0.54 pounds
244 grams
0.8 pound
350 grams
0.8 pound
350 grams
0.96 pounds
435 grams
2.65 pounds
1.2 kg
0.89 pounds
405 grams
Operations
AC Adapter AC Input 100V-240V
DC Output 12V, 2A
AC Input 100V-240V
DC Output 12V, 2A
AC Input 100V-240V
DC Output 12V, 2A
AC Input 100V-240V
DC Output 12V, 2A
No AC Input 100V-240V
DC Output 12V, 2A
AC Input 100V – 240V
DC Output 12V, 3A
No
Power Input DC 12V-30V 2A DC 10V-30V 2A DC 12V – 28V 2A DC 10V-30V, 2A Micro USB 5V 2A DC 10V-56V 2A DC 12-28 V PoE: 802.3at
Terminal Block No DC 10V-30V 2A No DC 10V-30V, 2A DC 12V-24V 2A DC 10V-56V 2A DC 12-28 V, 2A No
Power Consumption Max.: 12W Max.: 16W, Typical: 11W, Min.: 8W Max.: 12W Max.: 10W, Typical: 8.5W, Min.: 6W Max.: 10W, Typical: 8.5W, Min.: 6W Max.: 16W, Typical: 11W, Min.: 8W Max.: 25W Max.:18W
Operating Temperature -40° – 149°F
-40° – 65°C
-40° – 131°F
-40° – 55°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-5° – 113°F
-5° – 45°C
Humidity 15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS Yes Yes Yes Yes Yes Yes Yes Yes
Certifications – Motor Vehicle
E-Mark Yes Yes Yes Yes Yes Yes No No
Certifications – Rolling Stock
EN 61373 Shock and Vibration Resistance Yes Yes Yes Yes Yes No No No
EN 50155
Railway Applications – Electronic
Equipment used on Rolling Stock
Yes Yes Yes No Yes No No No
EN 61000
Electromagnetic Compatibility
Yes Yes Yes No Yes No No No
Warranty 1-Year Limited Warranty

[1] The frequency range for 802.11b/g/n Wi-Fi is 2412−2472 MHz.
[2] Recommendation for sizing purposes only. No software restrictions applied.
[3] Router Throughput is valid only for currently shipping devices running Firmware 7.0.1 or later. Router Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
^ Certifications pending.
* Optional PoE Activation Kit is required to activate 802.3af PoE Output.
! 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05.
~ 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05 or to 20 Peers using license MAX-HD-020-SPF.
# Sold Separately.
@ LTE-A option: 300Mbs / 50Mbs available. (LTE option: 100Mbs / 50Mbs)

Documentation:

Download the Pepwave MAX BR1 ENT Cellular Router Datasheet (PDF).

Download the Pepwave MAX Full Comparison Chart (PDF).
