LTE-A
Increased Band Support and Carrier Aggregation



LTE-A features greater location diversity, one modem can cover more regions. LTE-A also supports newer region and carrier specific bands. These are often much faster than the legacy bands that can become oversaturated. For the US market, LTE-A enabled models support band 41 (2500 MHz) and band 26 (850 Mhz) for Sprint and band 12 (700 MHz) for T-Mobile. For the Asia-Pacific markets, LTE-A models also support TD-LTE bands 38 (2600 MHz) and 40 (2300 MHz).

In addition, LTE-A routers can use Signal Carrier Aggregation (SCA) to simultaneously connect multiple signal channels for up to twice your current connection speed.

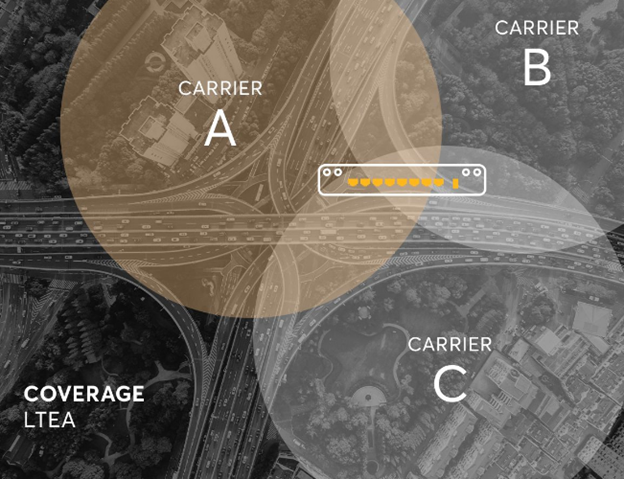

Coverage Area

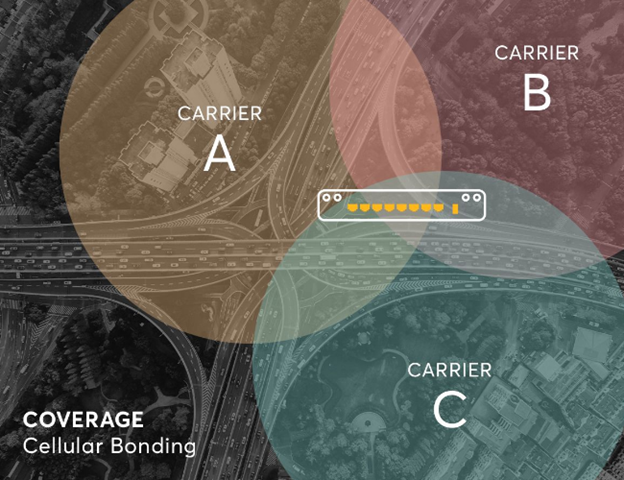

While many LTE-A enabled routers offer greater band support, the coverage is still limited to that of a single provider, so you will still lose reception if you hit a dead spot. With SpeedFusion Bandwidth Bonding, however, you can enjoy uninterrupted service as you move around town, connecting to 3G/4G LTE networks from multiple service carriers.

Difference Between SKUs


5G Module Regions 5G Bands 4G Bands
5GD Global NSA Sub-6G: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79 FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
TD: B34, B38, B39, B40, B41, B42, B46 (LAA)
5GH Global NSA Sub-6G: n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79
SA Sub-6G: n77, n78, n79
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46 (LAA), B48, B66, B71
4G Module Regions 4G/LTE Bands
GLTEA-G
(e.g. TST-GLTE-G)
Global B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B71, B38, B39, B40, B41, B42, B43, B46, B48, B66
GLTE-S
(e.g. MAX-BR1-PRO-GLTE-S)
Global B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46 (LAA), B48, B66, B71
LTEA-US (e.g. MAX-BR1-MK2-LTEA-US) America B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71
LTEA-B (e.g. MAX-BR1-MINI-LTEA-B-T-PRM) EMEA, APAC, Latin America B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B48, B66, B71
LTEA-D (e.g. MAX-BR1-ENT-LTEA-D-T) APAC / EMEA B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B17, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B38, B39, B40, B41, B66
LTEA-E (e.g. MAX-BR1-MK2-LTEA-E) Europe B1, B3, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43
LTEA-K (e.g. HD2-LTEA-K) Global (without China/HK TD LTE) B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66
LTEA-P (e.g. HD2-LTEA-P) APAC B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
LTEA-R (e.g. HD2-LTEA-R) America B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, B48, B66
LTEA-W (e.g. HD2-LTEA-W) America/EMEA B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41
LTEA-WK (e.g. HD4-LTEA-WK) Global (without China/HK TD LTE) Cellular A: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66
Cellular B: B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41
LTEA-WF (e.g. HD4-LTEA-WF) America Cellular A: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, B48, B66
Cellular B: B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41
LTE-US (e.g. HD2-LTE-US) America B2, B4, B5, B13, B17, B25
LTE-E (e.g. HD2-LTE-E) EMEA and Asia Pacific B1, B3, B5, B7, B8, B20, B38, B40, B41
LTE-F (e.g. TST-MINI-LTE-F) America B2, B4, B5, B12, B13, B14, B66, B71
LTE-MX (e.g. UBR-LTE-MX) Latin America/Australia B1, B2, B3, B4, B5, B7, B8, B28, B40

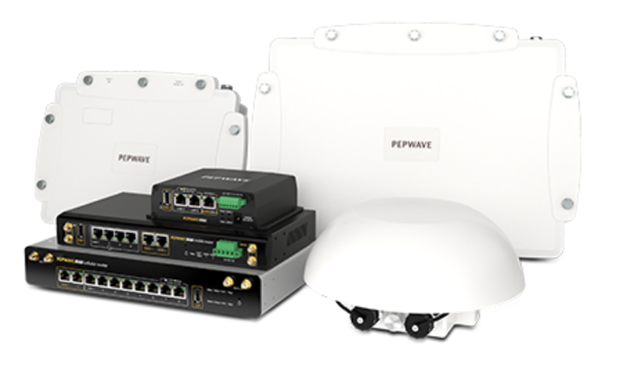

Explore Peplink Products for LTE-A


With LTE-A supported multi-cellular MAX routers, you can combine the additional frequency bands and enhanced speed of LTE-A enabled routers with the greater connection reliability and cellular coverage of SpeedFusion bandwidth bonding for the best cellular connection possible.
