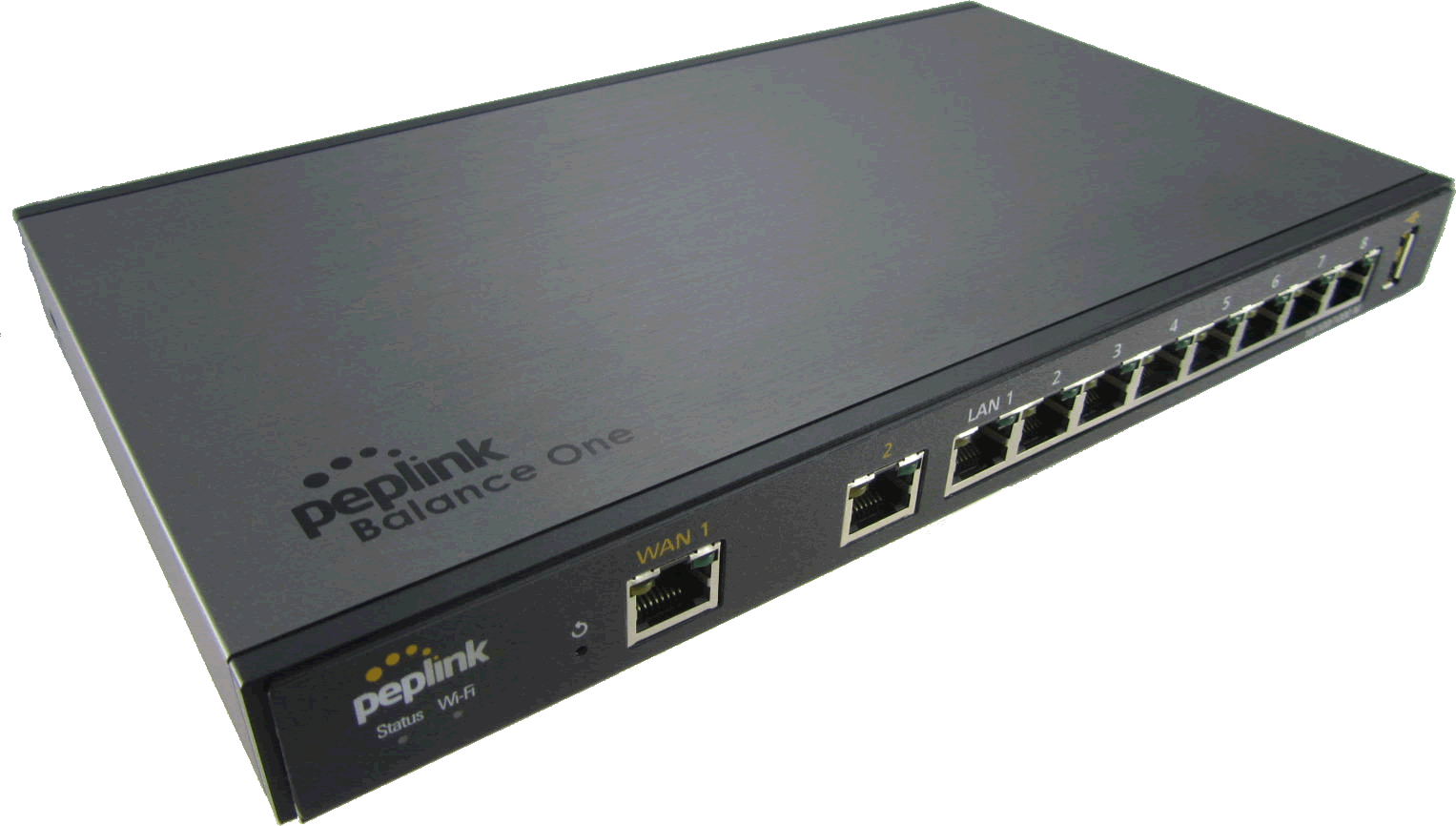

Peplink Balance One
Gigabit Dual-WAN Router with Dual-Band 11n Wi-Fi

Peplink Balance One

Call us Today at 877-352-0546 for a price quote!

Peplink Products
Peplink Multi-WAN Routers
Peplink Balance One
Dual-WAN Router (2 WAN) for Office/Branch, WAN Ports: 2x GbE, 802.11n Wi-F, LAN: 8-Port GbE Switch, 600 Mbps Routing Throughput
#BPL-ONE
Contact us for Pricing!
Peplink Balance One, SpeedFusion
Dual-WAN Router (2 WAN) for Office/Branch, SpeedFusion Bandwidth Bonding, WAN Ports: 2x GbE, 802.11n Wi-Fi, LAN: 8-Port GbE Switch, 600 Mbps Routing Throughput, 30Mbps SpeedFusion Throughput
#BPL-ONE-SF
Contact us for Pricing!
Peplink Balance One Core
Dual-WAN Router (2 WAN) for Office/Branch, WAN Ports: 2x GbE, LAN: 8-Port GbE Switch, 600 Mbps Routing Throughput, SpeedFusion bonding available separately as a paid upgrade
#BPL-ONE-CORE
Contact us for Pricing!

More pricing below, click here!

Overview:

One Huge Leap Forward for SMB, and Branch Networking.

The Balance One router with dual-WAN load balancing delivers big-business uptime and speed in an affordable package designed just for SMBs, branch offices, and power users. Featuring:

600Mbps Throughput. Dual WAN Support.
Drives data at 600Mbps and keeps connections dependable and fast with automatic balancing and failover between links.

Built-in AP Controller and InControl 2.
Built in AP Controller or InControl 2 cloud management puts you in charge of all connected access points, create and manage custom captive portals.

Simultaneous Dual-Band Wi-Fi. (Balance One Only)
Balance One (BPL-ONE) gives you two independent networks that also work together, so all your devices can connect without clashing. Recommended Concurrent Users Per Radio is 60.

Enterprise Features.
Connect remote clients to your private network using L2TP with IPsec, monitor Bandwidth Usage, allocate bandwidth for user groups, and more.

Eight GbE LAN Ports.
Connect all your devices at high speeds, without complicated setup, compromises, or external switches to buy and maintain.

Unparalleled Modem Support.
The Balance One’s USB port supports more than 250 4G LTE/3G modems used by a variety of carriers worldwide.

Features:

Software

  • Peplink Balance Firmware

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • USB 4G/3G Modem Support
  • Intelligent Failover
  • Support for Dynamic DNS services

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Option
  • DHCP Reservation
  • DNS Proxy for LAN Clients

Load Balancing

  • Intelligent Failover
  • Session Persistence
  • Per-Service Load Distribution
  • Multiple Algorithms

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP
  • WINS Server

Complete VPN Solution

  • PepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding^
    • Site-to-Site VPN
    • Bandwidth Aggregation
    • Hot Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    • L2TP with IPsec VPN Server
  • PPTP VPN Server
    • RADIUS, LDAP Authentication
  • IPsec VPN (Network-to-Network) 1

Security

  • Stateful Firewall
  • DoS Prevention
  • Web Blocking

Certifications 2

  • FCC, CE, RoHS

Advanced QoS

  • User Groups
    • Bandwidth Reservation
    • Individual Bandwidth Limit
  • Application Prioritization
    • By User Groups
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

AP Controller

  • AP Controller Support
  • Wi-Fi Usage Statistics

Captive Portal Support

  • Support for Wired and Wireless LAN Clients
  • Support RADIUS Authentication
  • Time and Usage Quotas on Open Access Mode
  • Built-in Customizable Splash Page

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Management
  • Email Notification
  • Active Client and Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Package Content

  • Balance One
  • 12V Power Supply

^ SpeedFusion is available as an optional add-on.
1 IPsec VPN supports connection with Cisco, Juniper, Pepwave, or Peplink devices.
2 Certification differs for different models, please refer to the respective model for details.

All specifications are subject to change without notice.

Applications:

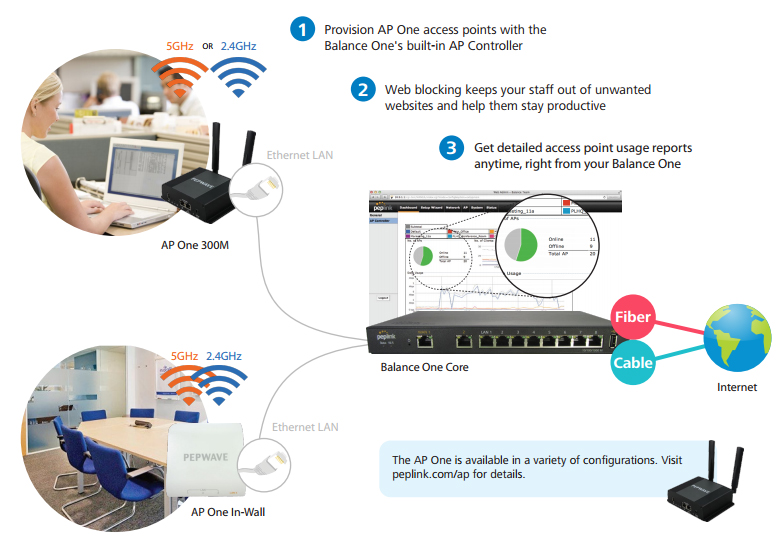

Setup, Manage, and Monitor Office Wi-Fi from Your Balance One

Setup, Manage, and Monitor Office Wi-Fi from Your Balance One

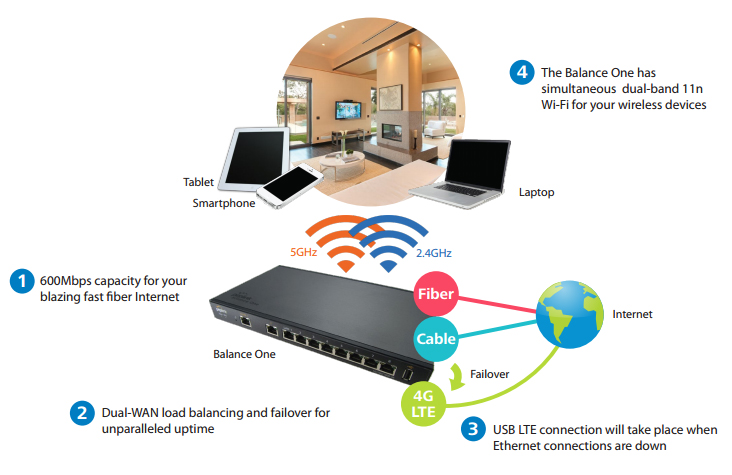

Connect Your Home Office with LTE Backup for 100% Uptime

Connect Your Home Office with LTE Backup for 100% Uptime

Compare:

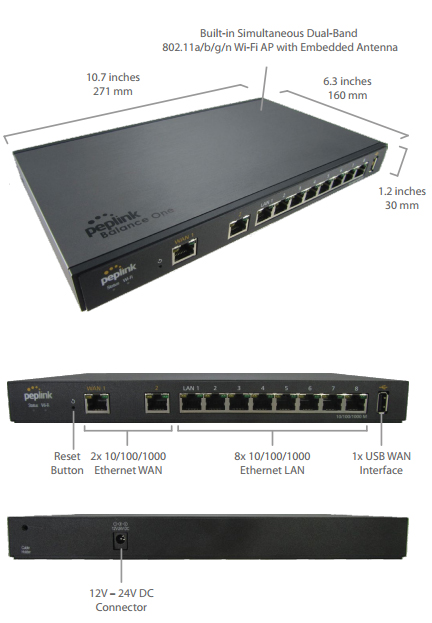

Balance One Dimensions
Small Office / Branch 20 20X 30 LTE 30 PRO ONE TWO 210 310X
Product Code BPL-021 BPL-021X-
LTE
BPL-031-
LTE
BPL-031-
LTEA
BPL-ONE BPL-TWO BPL-210 BPL-310X
Capacity
Ethernet WAN Ports 2 (GE) + 1 (GE) 2 (GE) 2 (GE) 2/5 (GE) # 2 (GE) 2 (GE) + 2 (GE)
LAN Ports 4 (GE) 4 (GE) 4 (GE) 4 (GE) 8/5 (GE) # 4 (GE) 7 (GE) 9 (GE)
Simultaneous Dual-Band 802.11ac/a/b/g/n Wi-Fi AP No Yes No Yes Yes No No No
Embedded 4G LTE No Yes Yes Yes No No No Yes
SIM Card Size No Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) No No No Mini-SIM (2FF)
USB WAN Modem Port1 1 1 1 1 1 1 1 2
Recommended Users2 1-60 1-60 1-60 1-60 1-60 25-150 25-150 50-500
Stateful Firewall Throughput3 150Mbps 900Mbps 200Mbps 400Mbps 600Mbps/
400Mbps #
1Gbps 350Mbps 2.5Gbps
Core Functionality
802.1q VLANs Supported 16 6 16 16 128 128 128 1024
Port-Based VLAN Yes Yes Yes Yes Yes Yes Yes Yes
Load Balancing & Failover Yes Yes Yes Yes Yes Yes Yes Yes
Load Balancing Algorithms 8 8 8 8 8 8 8 8
Drop-In Mode No Yes No No No No Yes Yes
Inbound Load Balancing No No No No No No Yes Yes
InControl Cloud Management Yes Yes Yes Yes Yes Yes Yes Yes
PepVPN/SpeedFusion Functionality
PepVPN Yes % Yes Yes Yes Yes Yes Yes Yes
SpeedFusion Hot Failover No Yes No Yes No* No* Yes Yes
SpeedFusion WAN Smoothing No Yes* No No* No* No* Yes Yes
SpeedFusion Bandwidth Bonding No Yes* No No* No* No* Yes Yes
Number of PepVPN/SpeedFusion Peers4 2/5 ! 2/5 ! 2/5 ! 2/5 ! 2/5/20 ~^ 2/5/20 ~^ 2/5 ! 2/30 &
PepVPN Throughput (256-bit AES)3 30Mbps 60Mbps 55Mbps 55Mbps 30Mbps 150Mbps 80Mbps 500Mbps
PepVPN Throughput (No Encryption)3 60Mbps 100Mbps 120Mbps 120Mbps 60Mbps 150Mbps 150Mbps 600Mbps
IPsec/L2TP/PPTP VPN Functionality
IPsec VPN (Network-to-Network)5 Yes Yes Yes Yes Yes Yes Yes Yes
Number of IPsec Tunnels 2 5 2 2 2 2 2 5
Remote User Access Yes Yes Yes Yes Yes Yes Yes Yes
L2TP VPN Server Yes Yes Yes Yes Yes Yes Yes Yes
OpenVPN Server Yes Yes Yes Yes Yes Yes Yes Yes
PPTP VPN Server Yes Yes Yes Yes Yes Yes Yes Yes
Maximum PPTP/L2TP/OpenVPN Users 15 15 15 15 15 15 15 15
GRE (Network-to-Network) 5 5 5 5 5 5 5 5
AP Controller Functionality
Pepwave AP Series Management Yes Yes Yes Yes Yes Yes Yes Yes
Maximum Number of AP Supported 10 30 30 30 30 30 30 30
Remote AP & Multiple Config Profiles Management6 No No No No No No No No
Advanced QoS Functionality
Bandwidth Usage Monitor Yes Yes Yes Yes Yes Yes Yes Yes
QoS for VoIP and E-Commerce Yes Yes Yes Yes Yes Yes Yes Yes
User Groups Bandwidth Control Yes Yes Yes Yes Yes Yes Yes Yes
Web Blocking Yes Yes Yes Yes Yes Yes Yes Yes
Web Filtering Blacklist No Lite No No Lite Lite Lite Full
Hardware
Operating Temperature -40° – 149°F
-40° – 65°C
14° – 113°F
-10° – 45°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
23° – 113°F
-5° – 45°C
32° – 104°F
0° – 40°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
LACP (802.3ad) NIC Bonding No No No No No No No No
Power Consumption 15W 28W 28W 28W 15W 40W (max.) 15W 30W
1U Rackmount No No No No No No Yes Yes
High Availability No No No No No No Yes Yes
LAN Bypass No No No No No No No No
Dual Hot Swap Power Supply No No No No No No No No
Certifications
FCC, CE, RoHS Yes Yes Yes Yes Yes Yes Yes Yes
Warranty 1-Year Limited Warranty

1 Router Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
^ SpeedFusion is available as an optional add-on.
*Please note that when the 5-WAN license add-on is activated, the throughput of the device will be reduced to 400Mbps

Documentation:

Download the Peplink Balance One Datasheet (PDF).
