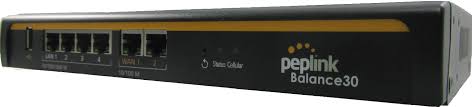

Peplink Balance 30 Pro
SD-WAN Branch Router with LTE Failover


Peplink Balance 30 Pro

Call us Today at 877-352-0546 for a price quote!

Peplink Products
Peplink Balance 30 Pro
Peplink Balance 30 Pro
#BPL-031-LTEA-W-T
Call for Lowest Price!

More pricing below, click here!

Overview:

Unbreakable Branch Connectivity

The Balance 30 Pro comes equipped with two Ethernet WAN and one cellular WAN for automatic failover, making it an ideal choice for branch offices that absolutely must stay connected.

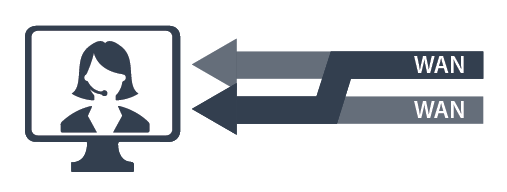

SD-WAN With Dual Wired Ports and LTE

SD-WAN With Dual Wired Ports and LTE

The Balance 30 Pro supports two wired connections and one LTE with SD-WAN capabilities for traffic steering, load sharing and failover, powering your critical business continuity.

SpeedFusion Hot Failover, Great for VoIP

SpeedFusion Hot Failover, Great for VoIP

Balance 30 Pro automatically re-establishes your SpeedFusion connection on lower priority link when your primary WAN fails. Your VPN stays up, and you stay seamlessly connected.

Redundant SIM Slots for Multiple Carriers

Redundant SIM Slots for Multiple Carriers

Redundant SIM slots with automatic switching for reliable network. You can set the Balance 30 Pro to automatically switch SIM cards when you’re in danger of data overage, or aggregate capacity of multiple SIM data plans.

Add PoE Kit to Enable 4-port PoE Switch

Add PoE Kit to Enable 4-port PoE Switch

With the PoE activation kit, all LAN ports can support PoE output. That way, you can hook PoE powered devices such as IP Phones and additional Wi-Fi APs. Perfect for Branch Networking.


One-Device Small Branch Networking Solution

Connectivity does not guarantee streaming quality: even an online connection can suffer from packet loss. High packet loss leads to jittering and stuttering, affecting your streaming experience and conversation quality. Our Solution: SpeedFusion WAN Smoothing. This technology uses bandwidth from other connections to make up for the packet loss. The result: smooth and uninterrupted conversation.

One-Device Retail Connectivity Solution

The Balance 30 Pro can handle all your networking needs. With the PoE activation kit, its four PoE LAN ports can connect and power your payment terminal, IP phones, Wi-Fi hotspots. The Balance 30 Pro has one cellular and two Ethernet connections, ensuring that your network and business will keep running no matter what. With Peplink PrimeCare Advance, you can enjoy turn the Balance 30 Pro into a source of revenue and customer data. Use the Ad Delivery service to deliver advertisements and surverys to your customers before they connect to your Wi-Fi.

Customizable Captive Portal With Ad Delivery

Use InControl to customize the captive portal and apply it to any SSID. With InControl’s scalable architecture, you can apply the SSID to multiple devices in your network using device tags. Use the cloud-based Ad Delivery Service (ADS) to monetize your Hotspot.


InControl: Zero-Touch Provisioning

InControl makes your network scalable. From any web browser, you could remotely push a wide range of settings to multiple devices in your network.

QoS: Determine Traffic Priority

QoS enables you to assign different priority levels to different types of traffic. Minimize latency by giving high priority to VoIP traffic. Control data costs by limiting the speed of bandwidth-intensive applications.


Specifications:


  Balance 30 Pro
WAN Interface 2x GE
1x Embedded LTE-A Modem
1x USB Interface
SpeedFusion Hot Failover Yes
LAN Interface 4x GE PoE
Wi-Fi Interface Dual-Band 802.11ac/a/b/g/n Access Point
Stateful Firewall Throughput 400Mbps
Recommended Users 1-60
IP Passthrough Yes
Antenna Connectors 2x SMA Antenna Connectors
4x RP-SMA Wi-Fi Antenna Connectors
Power Input DC Jack: 10V - 56V
Power Output Up to Four 802.3af PoE Output
Power Consumption 25W (max.)
Dimensions 1.6 x 10.2 x 5.6 inches / 40 x 260 x 143 mm
Weight 2.2 pounds / 1 kg
Operating Temperature -40° – 149°F / -40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications FCC, CE, RoHS
Warranty 1-Year Limited Warranty

Compare:


Small Office / Branch 20 20X 30 LTE 30 PRO ONE TWO 210 310X
Product Code BPL-021 BPL-021X-
LTE
BPL-031-
LTE
BPL-031-
LTEA
BPL-ONE BPL-TWO BPL-210 BPL-310X
Capacity
Ethernet WAN Ports 2 (GE) + 1 (GE) 2 (GE) 2 (GE) 2/5 (GE) # 2 (GE) 2 (GE) + 2 (GE)
LAN Ports 4 (GE) 4 (GE) 4 (GE) 4 (GE) 8/5 (GE) # 4 (GE) 7 (GE) 9 (GE)
Simultaneous Dual-Band 802.11ac/a/b/g/n Wi-Fi AP No Yes No Yes Yes No No No
Embedded 4G LTE No Yes Yes Yes No No No Yes
SIM Card Size No Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) No No No Mini-SIM (2FF)
USB WAN Modem Port1 1 1 1 1 1 1 1 2
Recommended Users2 1-60 1-60 1-60 1-60 1-60 25-150 25-150 50-500
Stateful Firewall Throughput3 150Mbps 900Mbps 200Mbps 400Mbps 600Mbps/
400Mbps #
1Gbps 350Mbps 2.5Gbps
Core Functionality
802.1q VLANs Supported 16 6 16 16 128 128 128 1024
Port-Based VLAN Yes Yes Yes Yes Yes Yes Yes Yes
Load Balancing & Failover Yes Yes Yes Yes Yes Yes Yes Yes
Load Balancing Algorithms 8 8 8 8 8 8 8 8
Drop-In Mode No Yes No No No No Yes Yes
Inbound Load Balancing No No No No No No Yes Yes
InControl Cloud Management Yes Yes Yes Yes Yes Yes Yes Yes
PepVPN/SpeedFusion Functionality
PepVPN Yes % Yes Yes Yes Yes Yes Yes Yes
SpeedFusion Hot Failover No Yes No Yes No* No* Yes Yes
SpeedFusion WAN Smoothing No Yes* No No* No* No* Yes Yes
SpeedFusion Bandwidth Bonding No Yes* No No* No* No* Yes Yes
Number of PepVPN/SpeedFusion Peers4 2/5 ! 2/5 ! 2/5 ! 2/5 ! 2/5/20 ~^ 2/5/20 ~^ 2/5 ! 2/30 &
PepVPN Throughput (256-bit AES)3 30Mbps 60Mbps 55Mbps 55Mbps 30Mbps 150Mbps 80Mbps 500Mbps
PepVPN Throughput (No Encryption)3 60Mbps 100Mbps 120Mbps 120Mbps 60Mbps 150Mbps 150Mbps 600Mbps
IPsec/L2TP/PPTP VPN Functionality
IPsec VPN (Network-to-Network)5 Yes Yes Yes Yes Yes Yes Yes Yes
Number of IPsec Tunnels 2 5 2 2 2 2 2 5
Remote User Access Yes Yes Yes Yes Yes Yes Yes Yes
L2TP VPN Server Yes Yes Yes Yes Yes Yes Yes Yes
OpenVPN Server Yes Yes Yes Yes Yes Yes Yes Yes
PPTP VPN Server Yes Yes Yes Yes Yes Yes Yes Yes
Maximum PPTP/L2TP/OpenVPN Users 15 15 15 15 15 15 15 15
GRE (Network-to-Network) 5 5 5 5 5 5 5 5
AP Controller Functionality
Pepwave AP Series Management Yes Yes Yes Yes Yes Yes Yes Yes
Maximum Number of AP Supported 10 30 30 30 30 30 30 30
Remote AP & Multiple Config Profiles Management6 No No No No No No No No
Advanced QoS Functionality
Bandwidth Usage Monitor Yes Yes Yes Yes Yes Yes Yes Yes
QoS for VoIP and E-Commerce Yes Yes Yes Yes Yes Yes Yes Yes
User Groups Bandwidth Control Yes Yes Yes Yes Yes Yes Yes Yes
Web Blocking Yes Yes Yes Yes Yes Yes Yes Yes
Web Filtering Blacklist No Lite No No Lite Lite Lite Full
Hardware
Operating Temperature -40° – 149°F
-40° – 65°C
14° – 113°F
-10° – 45°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
23° – 113°F
-5° – 45°C
32° – 104°F
0° – 40°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
LACP (802.3ad) NIC Bonding No No No No No No No No
Power Consumption 15W 28W 28W 28W 15W 40W (max.) 15W 30W
1U Rackmount No No No No No No Yes Yes
High Availability No No No No No No Yes Yes
LAN Bypass No No No No No No No No
Dual Hot Swap Power Supply No No No No No No No No
Certifications
FCC, CE, RoHS Yes Yes Yes Yes Yes Yes Yes Yes
Warranty 1-Year Limited Warranty

[1] For a list of supported modems, please refer to https://www.peplink.com/technology/4g3g-modem-support/.
[2] Recommendation for sizing purposes only. No software restrictions applied.
[3] Router Throughput and PepVPN/SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
[4] Number of peer Peplink or Pepwave devices you can connect using SpeedFusion VPN.
[5] IPsec only supports connection with Cisco, Juniper, Peplink or Pepwave devices.
[6] Balance 20/30 LTE/One/210/310 comes with AP Controller Standard, which supports up to two configuration profiles with multiple SSIDs, meaning that all APs will share the same configuration, and you can only manage APs on the local physical LAN. Balance 305/380/580/710/1350/2500 comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN.
+ Balance 20 and 210 have an extra WAN port which can be activated through license key. Click here to learn more.
# If the WAN Activation License (BPL-ONE-LC-5WAN) is activated, router throughput will be changed to 400Mbps, both number of WAN and LAN will become 5.
^ PepVPN is supported on all models. SpeedFusion is an optional feature.
* Balance 2500 are available different configurations. Please refer to ordering information for details.
% Balance 20/30 LTE requires firmware 6.1 to support PepVPN.
! 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05.
& 2 SpeedFusion Peers are enabled by default. Can be increased to 30 Peers with purchase of SpeedFusion Bonding License SFN-LC-30.
~ 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05 or to 20 Peers using license MAX-HD-020-SPF.
@ 30/50 SpeedFusion Peers are enabled by default for Balance 380/580 respectively. Can be increased to 100 Peers with purchase of SpeedFusion Bonding license SFN-LC-100.

Documentation:

Download the Peplink Balance 30 Pro Datasheet (PDF).
