Pepwave AP One AC mini
Fast, Secure and Manageable Enterprise Wireless for Every Environment

Sorry, this product is no longer available, please contact us for a replacement.

Overview:

Pepwave AP One access points deliver enterprise-grade performance, the flexibility to deploy anywhere, and easy setup and management. From the tiny but mighty AP One In-Wall to the super-tough AP One Flex, the AP One series offers fast, secure, long-range Wi-Fi that goes wherever you do.

AP One Features

Go the Distance.

Our exclusive TruePower RF range- and signal-boosting technology virtually eliminates dead spots and dropouts. With TruePower RF, you get full transmit power across all channels, giving you unmatched range and reliability with less equipment and fewer management headaches. TruePower RF requires zero setup or configuration, and it's part of every AP One access point.

Go for Easier AP Management.

It's simple to configure AP One series access points wherever you work. For onsite management, you have complete control and comprehensive reporting from any Peplink Balance router. And with InControl 2, our cloud management solution, you get real-time client lists and bandwidth activity, plus a handy device snapshot, all from any device running a supported web browser.

Go Wireless Anywhere.

Indoors or outdoors, there's an AP One access point for any job.

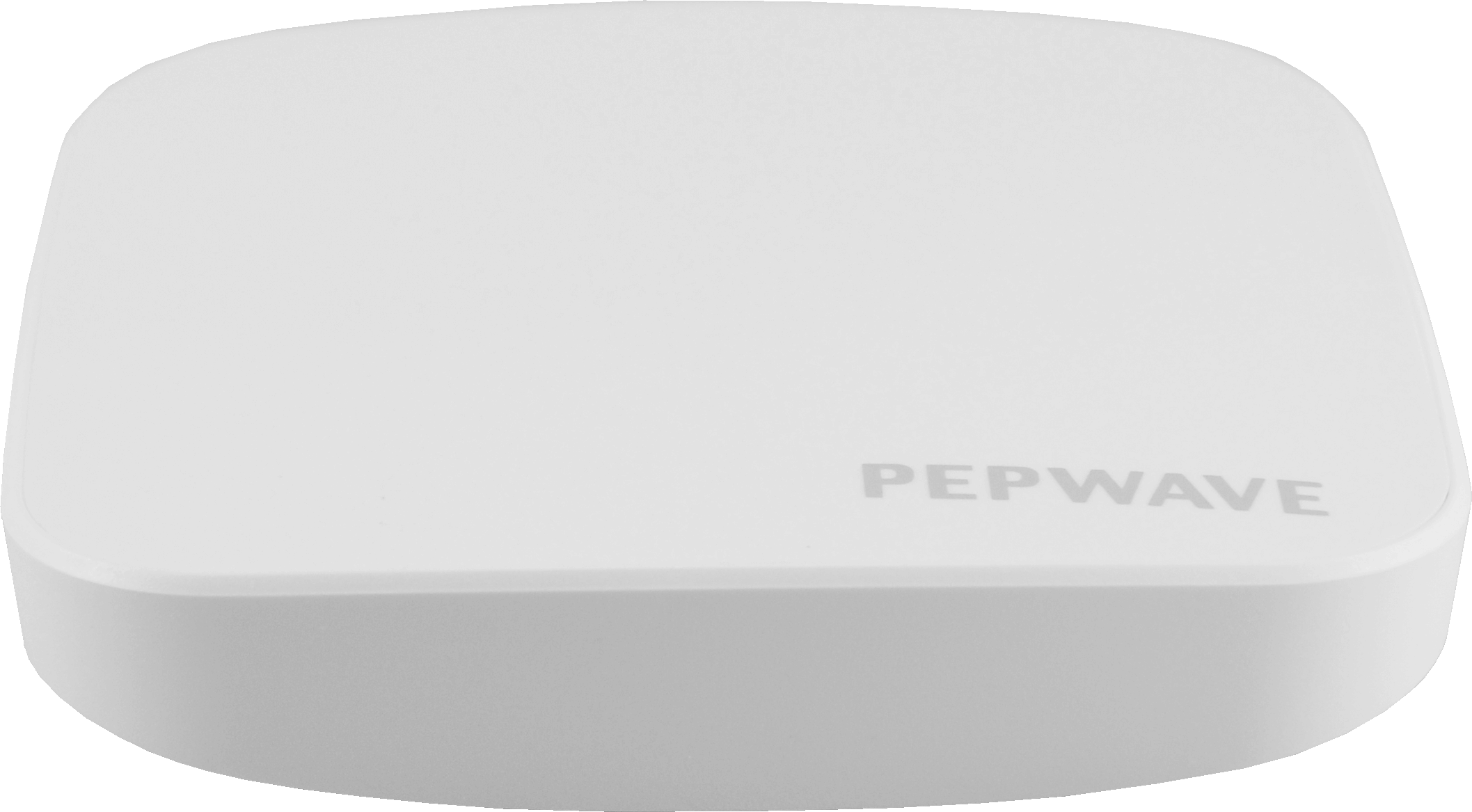

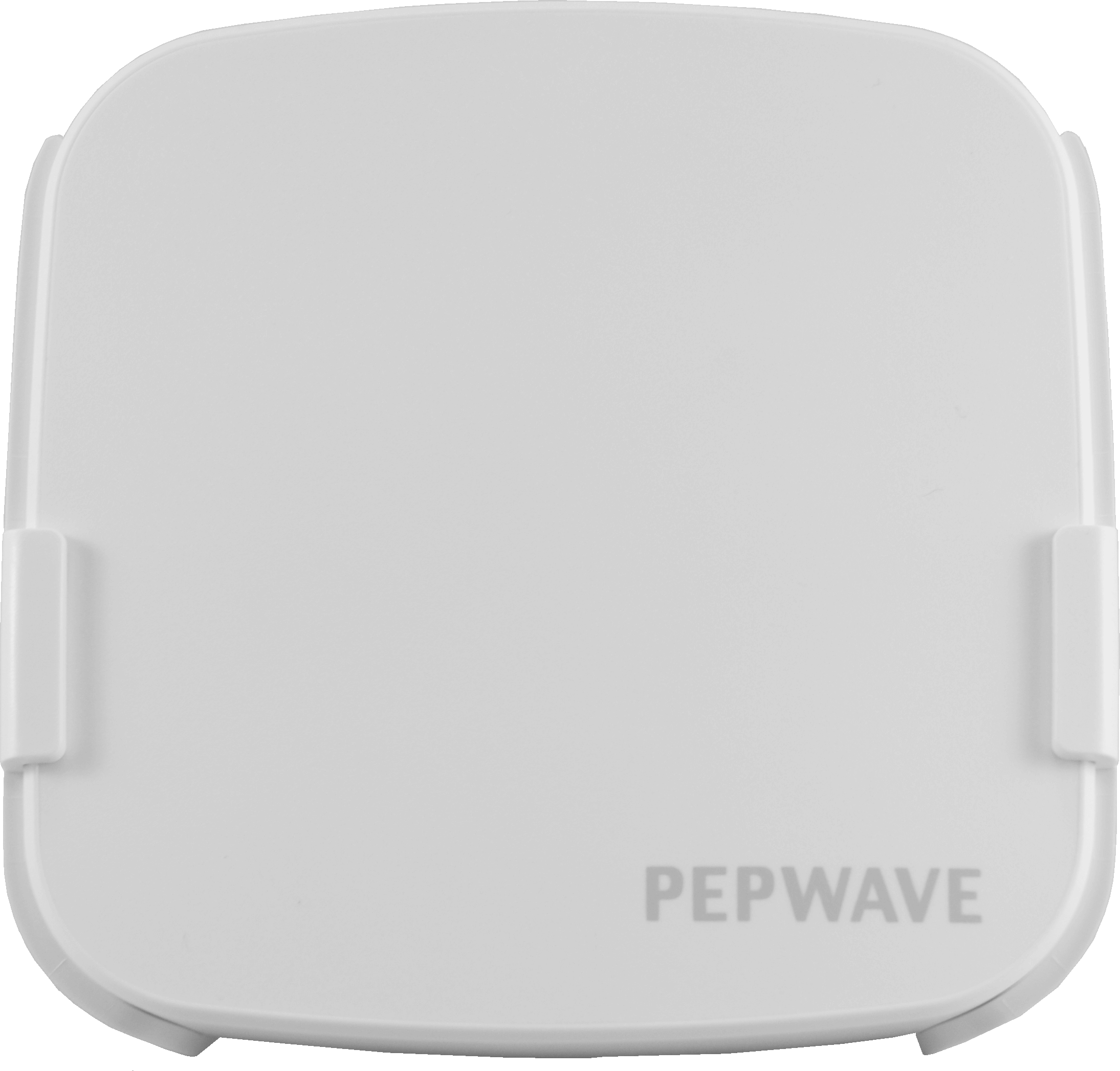

AP One AC mini

802.11ac Wi-Fi AP for Business
Manageable by InControl 2: one-stop cloud based platform, comprehensive reporting and configurations
Simultaneous Dual-Band 802.11ac/a/b/g/n

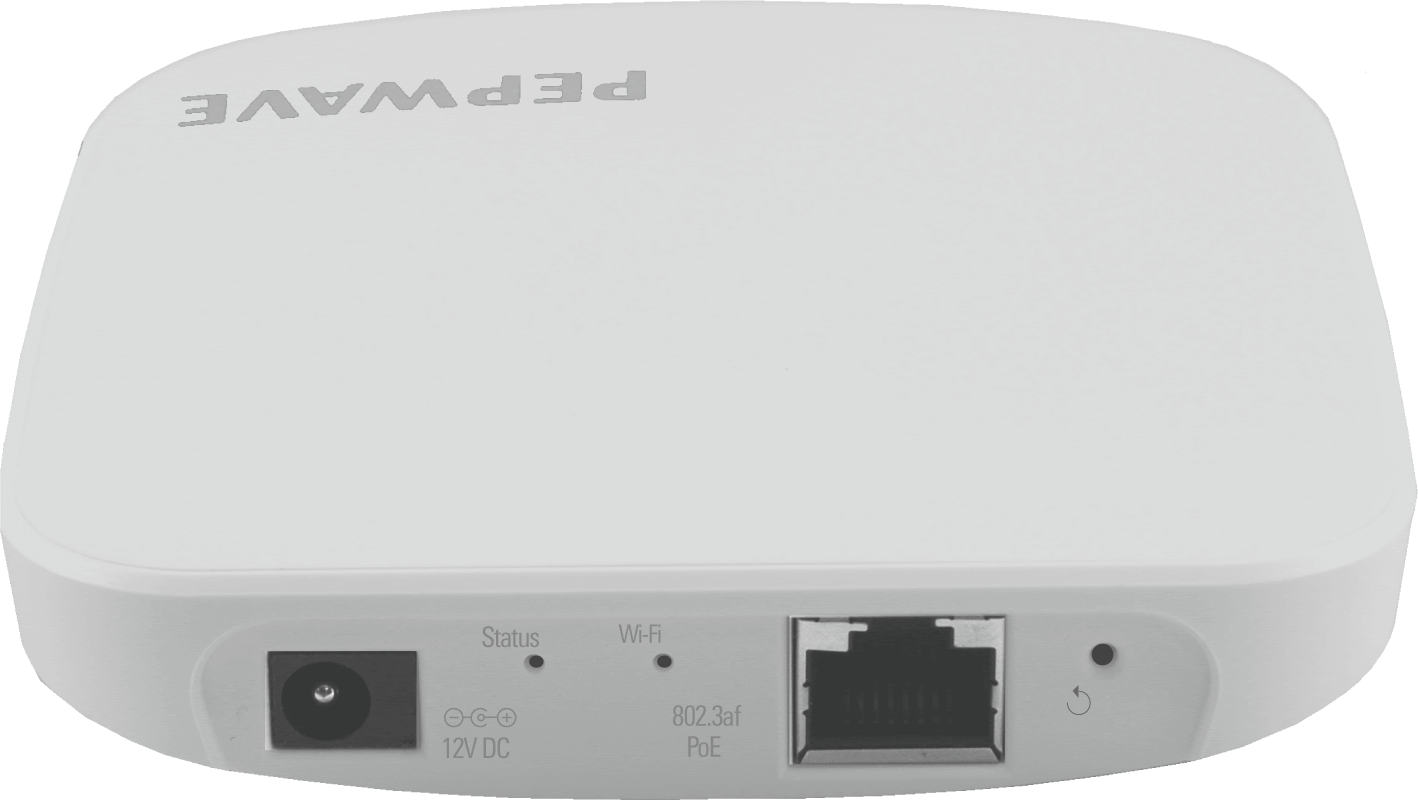

Mini Enclosure, 802.3af PoE Input

Pepwave AP One 300M

Professional Wi-Fi AP for Business
802.11a/b/g/n AP (2x2)
16 SSID, 802.3af
Balance WLAN Controller Ready
PoE Injector not included

AP One In-Wall

Cloud Managed Wi-Fi AP for Hotels
Simultaneous Dual-Band 802.11abgn, 300M (2x2)

AP One Flex 300M

Cloud-Managed Outdoor Wi-Fi AP
802.11bgn
300M (2x2), 400mW Tx Power
Switchable Directional or Omni Antenna
IP55 Enclosure, Passive PoE Input
12V PSU and Passive PoE Adapter Included

Applications:

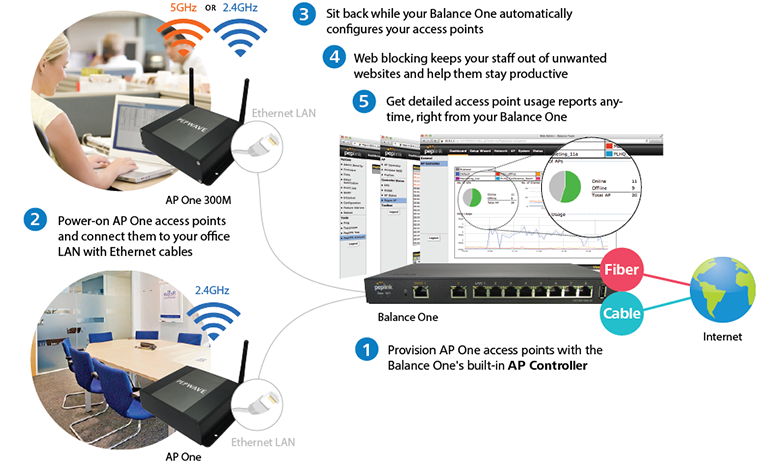

For SMBs – Setup, Manage, and Monitor Office Wi-Fi from Your Peplink Balance

For SMBs

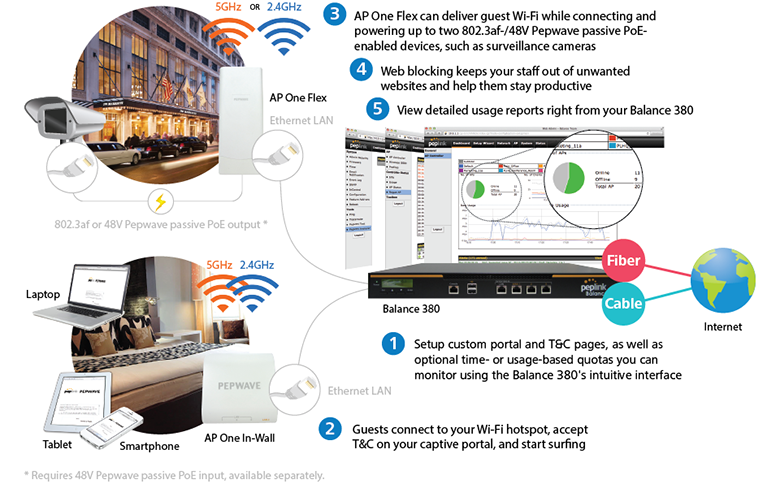

For Hospitality – Offer Guest Hotspots Complete with Captive Portals

For Hospitality

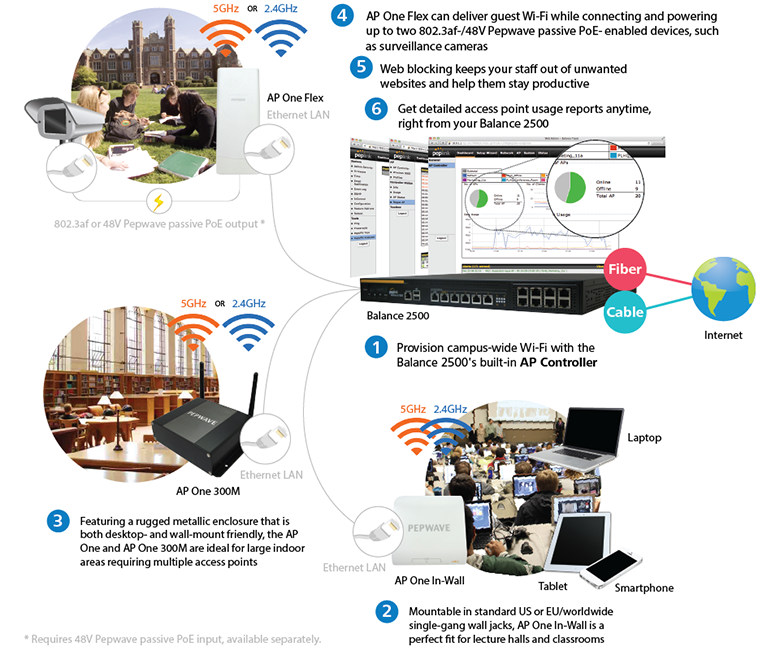

For Education – Setup, Manage, and Monitor Campus Wi-Fi from Your Peplink Balance

For Education

Compare:

AP One Model Comparison
	Indoor Desktop or Wall-Mount Installation			Standard US/EU Single Gang Wall Jack Installation	Outdoor Installation. Wall and Pole Mount Friendly
Model	AP One mini	AP One AC mini	AP One 300M	AP One In-Wall	AP One Flex 300M	AP One Flex 600M (Available Soon)
Basic
WAN Interface	1x 10/100M Ethernet Port	1x 100/1000M Ethernet Port	2x 100/1000M Ethernet Ports	1x 10/100M Ethernet Port 1x 110 Punch Down Block	1x 10/100M Ethernet Port
LAN Interface	802.11a/n or 802.11b/g/n 150Mbps	Simultaneous 802.11ac/a/n and 802.11b/g/n 1166Mbps	802.11a/n or 802.11b/g/n 300Mbps	Simultaneous 802.11a/n and 802.11b/g/n 600Mbps 4x 10/100M Ethernet Ports	802.11b/g/n 300Mbps 2x 10/100M Ethernet Ports	Simultaneous 802.11a/n or 802.11b/g/n 600Mbps 2x 10/100M Ethernet Ports
Wi-Fi Operating Frequency	2412 - 2472 MHz or 5180 - 5825 MHz	2412 - 2472 MHz and 5180 - 5825 MHz	2412 - 2472 MHz or 5180 - 5825 MHz	2412 - 2472 MHz and 5180 - 5825 MHz	2412 - 2472 MHz	2412 - 2472 MHz and 5180 - 5825 MHz
Wi-Fi Transmit Power	2412 - 2472 MHz: 17dBm 5180 - 5825 MHz: 17dBm	2412 - 2472 MHz: 24dBm 5180 - 5825 MHz: 21dBm	2412 - 2472 MHz: 25dBm 5180 - 5825 MHz: 22dBm	2412 - 2472 MHz: 17dBm 5180 - 5825 MHz: 16dBm	2412 - 2472 MHz: 25dBm	Coming Soon
Maximum Concurrent Users	60	60	60	60	60	60
Hardware
Included Antenna	Dual-Band Omni Antenna Antenna gain: 3dBi for 2.4GHz, 5dBi for 5GHz	Built-In Omni Antenna Antenna gain: 2dBi for 2.4GHz, 4dBi for 5GHz	2x Dual-Band Omni Antenna Antenna gain: 3dBi for 2.4GHz, 5dBi for 5GHz	Built-In MIMO Omni Antenna Antenna gain: 2dBi for 2.4GHz, 4dBi for 5GHz	Built-In, Switchable 10dBi MIMO Directional (75° Horizontal x 35° Vertical Beamwidths) and 4dBi MIMO Omni Antennas	Coming Soon
Antenna Connector	RP-SMA Connector	N/A	2x RP-SMA Connector	N/A
Enclosure	Low-Profile, Indoor Plastic Enclosure	Low-Profile, Indoor Plastic Enclosure	Ruggedized Metal Enclosure	Low-Profile, Indoor Plastic Enclosure. Mounts Into Standard US/EU Single Gang Wall Jack	Waterproof IP55 Outdoor Enclosure
Dimensions	3.7 x 3.6 x 1 inches 94 x 90 x 25.5 mm	3.9 x 3.9 x 0.8 inches 98 x 98 x 19.7 mm	5.8 x 4.6 x 1.6 inches 147 x 115 x 40 mm	US: 5 x 3.4 x 2.1 inches 128 x 86 x 53.5 mm International: 3.4 x 3.4 x 2.1 inches 86 x 86 x 53 mm	11.8 x 4.9 x 1.9 inches 300 x 124 x 47 mm
Weight	0.21 pound 95 grams	0.33 pound 150 grams	0.93 pound 420 grams	US: 0.37 pound 170 grams International: 0.34 pound 155 grams	1.15 pounds 520 grams
Operations
Power Input	AC Adapter: AC Input 100V to 240V, DC Output 12V, 1A	AC Adapter: AC Input 100V to 240V, DC Output 12V, 1A Power over Ethernet 802.3af (Injector Not Included)	AC Adapter: AC Input 100V to 240V, DC Output 12V, 2A Power over Ethernet 802.3af (Injector Not Included)	48V DC Connector 802.3af/802.3at PoE	Pepwave Passive PoE: 12V – 48V DC, 2A (48V Pepwave Passive PoE Input is Needed for 802.3af or Pepwave Passive PoE Output)
Power Consumption	9W (max.)	12W (max.)	11W (max.)	15W (max.)	15W (max.)	25W (max.)
Operating Temperature	-4° - 149°F -20° - 65°C	23° - 113°F -5° - 45°C	-4° - 149°F -20° - 65°C	-4° - 104°F -20° - 40°C	-4° - 149°F -20° - 65°C
Humidity	15% - 95% (non-condensing)
Certifications	FCC, CE, RoHS
Warranty	1-Year Limited Warranty

Specifications:

AP One Specs

Technical Specifications:

Network

Bridge Mode
Router (NAT) Mode
Wireless Distribution System (WDS)
Support for PPPoE, Static IP, DHCP
Management VLAN (802.1p)
Spanning Tree Protocol (802.1d)

Radio

Multiple SSID
Auto Channel Selection
Transmit Power Adjustment
Neighbor AP Detection

AP Security

Open, WEP
802.1x with Dynamic WEP
WPA-PSK/RADIUS
WPA2-PSK/RADIUS

Client Managment

Per SSID
- VLAN with QoS (802.1p/802.1q)
- Bandwidth Control
- MAC Address Filtering
- Layer 2 Client Isolation
- Limit on Max. Number of Client
Per Client
- VLAN with RADIUS
- VLAN with VLAN Pool
- Bandwidth Control
- Multicast Filter
- IGMP Snooping/Multicast Enhancement

Complete VPN Solution

PepVPN
- Site-to-Site VPN
- 256-bit AES Encryption
- Pre-shared Key Authentication
- Dynamic Routing
PPTP VPN Server
RADIUS, LDAP Authentication
IPsec VPN (Network-to-Network) ¹

Captive Portal

By InControl
By Peplink AP Controller

Device Management

Web Administrative Interface
InControl Cloud Management
Peplink AP Controller
SNMP v1, v2c and v3

Package Content

AP One mini
- AP One mini
- 12V Power Supply
- 5dBi Omni Antenna
AP One 300M
- AP One 300M
- 12V Power Supply
- 2x 5dBi Omni Antenna
AP One In-Wall
- AP One 300M
- AP One In-Wall
- Mounting Bracket for US or EU/Worldwide Single Gang Wall Jack

Certifications ²

FCC, CE, RoHS

¹ IPsec VPN supports connection with Cisco, Juniper, Pepwave, or Peplink devices.
² Certification differs for different models, please refer to the respective model for details.
All specifications are subject to change without notice.

Documentation:

Download the Pepwave AP One Datasheet (PDF).

Pricing Notes:

Pricing and product availability subject to change without notice.
