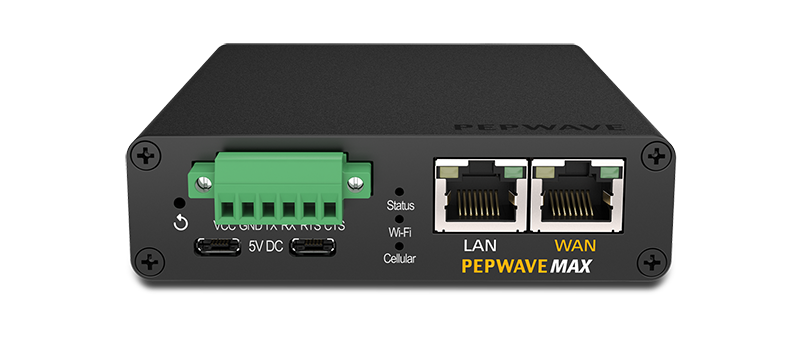

Peplink Pepwave Max BR1 Slim
Portable and Rugged 4G LTE Router

Peplink Pepwave Max BR1 Slim

Sorry, this product is no longer available, please contact us for a replacement.


More pricing below, click here!

Overview:

The MAX BR1 Slim is compact (1.1 x 3.8 x 4.8 inches) and tough enough to install just about anywhere, and it offers advanced features such as GPS fleet tracking, remote management, and USB or terminal block power capability.

carriers supported

sim cards

Redundant SIM Slot for Multiple Carriers
Redundant SIM slot with automatic switching for reliable network. You can also set the MAX BR1 Slim to automatically switch SIM cards when you’re in danger of exceeding a data cap. It also allows you travel across borders without changing SIM cards manually.

usb ports

Dual Micro USB Power Input
Connect one of the two built-in 5V micro USB ports to a 10000mAh power bank for up to 7 hours of operation. Running low on power? Connect a second power bank before disconnecting the first for uninterrupted networking.

superfusion

SpeedFusion Hot Failover
The MAX BR1 Slim automatically re-establishes your SpeedFusion VPN connection on lower priority link when your primary WAN fails. Your VPN stays up, and you stay seamlessly connected.

tracking

Fleet Tracking and Management
Track and manage your fleet from anywhere. With built-in GPS and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.

portal

Customize Captive Portal
Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS or LDAP servers.

camera

Ultra-Portable LTE Connectivity
The MAX BR1 Slim gives you full-featured LTE Connectivity in a package that measures just 1.1 x 3.8 x 4.8 inches. Its rugged metal enclosure stands up to moisture, dust, and vibration. It gives you and your devices, such as surveillance camera, LTE connectivity anywhere.

Features:

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • Support for Dynamic DNS services
  • WAN Port Convertible into LAN Port

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Options
  • DHCP Reservation
  • DNS Proxy for LAN Clients
  • VLAN on LAN Support
  • Port-Based VLAN

Security

  • Stateful Firewall
  • DoS Prevention
  • Web Blocking
  • Web Filtering Blacklists

Complete VPN Solution

  • PepVPN / SpeedFusion Hot Failover
    • Site-to-Site VPN
    • Hot Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    • X.509 Certificate Support
  • IPsec VPN (Network-to-Network)

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP

Advanced QoS

  • Individual Bandwidth Limit
  • Application Prioritization
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

Device Management

  • InControl 2 Cloud Managment
  • Router Utility Mobile App
  • Active Client & Session Lists
  • Bandwidth Usage Statistics
  • Web Reporting Services
  • Syslog Service
  • SNMP v1, v2c and v3

Global Positioning System

  • Integrated GPS
  • Device Location Map
  • Location Tracking Data
  • Fleet Management with InControl 2

Package Content

  • MAX BR1 Slim
  • 1x 5dBi Wi-Fi Antenna
  • 1x GPS Antenna
  • 2x 2dBi 4G LTE Antennas

Specifications:


MAX BR1 Slim Specifications
WAN Interface 1x FE 1x Embedded LTE-A Modem with Redundant SIM Slot
LAN Interface 1x FE
Wi-Fi Interface 802.11b/g/n 150Mbps Wi-Fi WAN or AP
Router Throughput 100Mbps
Recommended Users 60
LTE Modem Downlink/Uplink Datarate: 100Mbps/50Mbps
LTE-A Modem Downlink/Uplink Datarate: 300Mbps/50Mbps
Cellular and GPS Antenna Connector 2x RP-SMA Cellular Antenna Connector
1x SMA GPS Antenna Connector
1x SMA Wi-Fi Antenna Connector
Power Input Micro USB 5V 2A/Terminal Block: 10V – 24V DC
Power Consumption 10W (max.)
Dimensions 1.1 x 3.8 x 4.8 inches
27 x 97 x 120 mm
Weight 0.8 pound
350 grams
Operating Temperature -40° – 149°F
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications FCC, CE, RoHS, E-Mark
EN 61373:1999 IEC 61373:1999 : Shock and Vibration Resistance
EN 50155: Railway Applications
EN 61000: Electromagnetic Compatibility
Warranty 1-Year Limited Warranty

Documentation:

Download the Peplink MAX BR1 Slim Datasheet (PDF).
